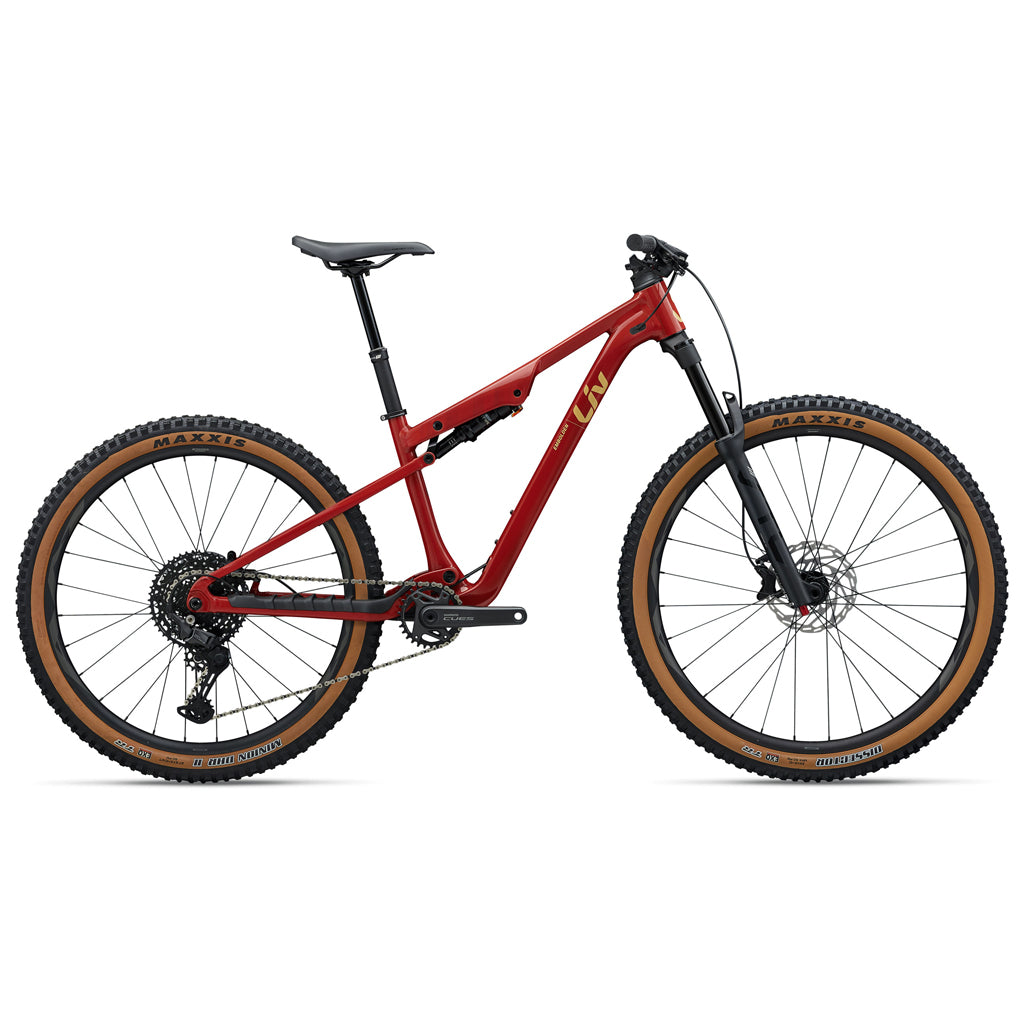

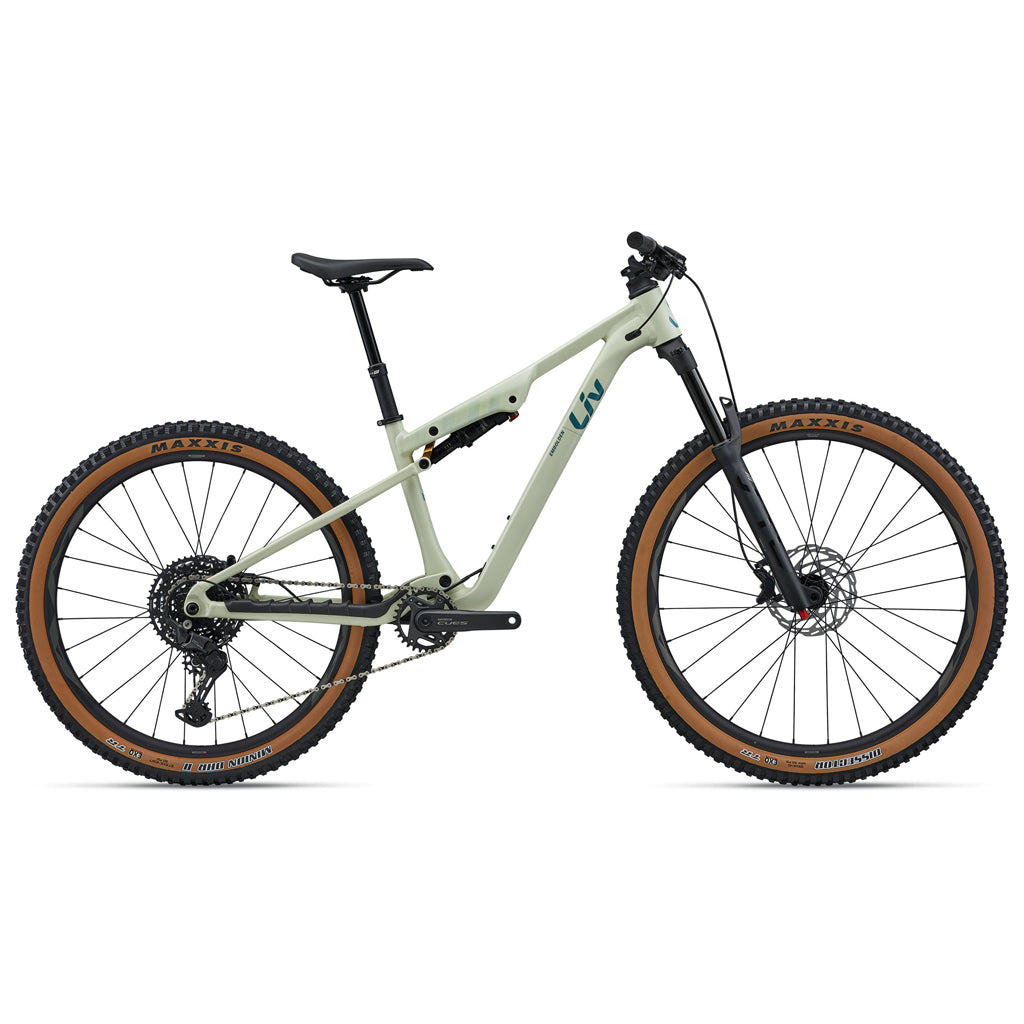

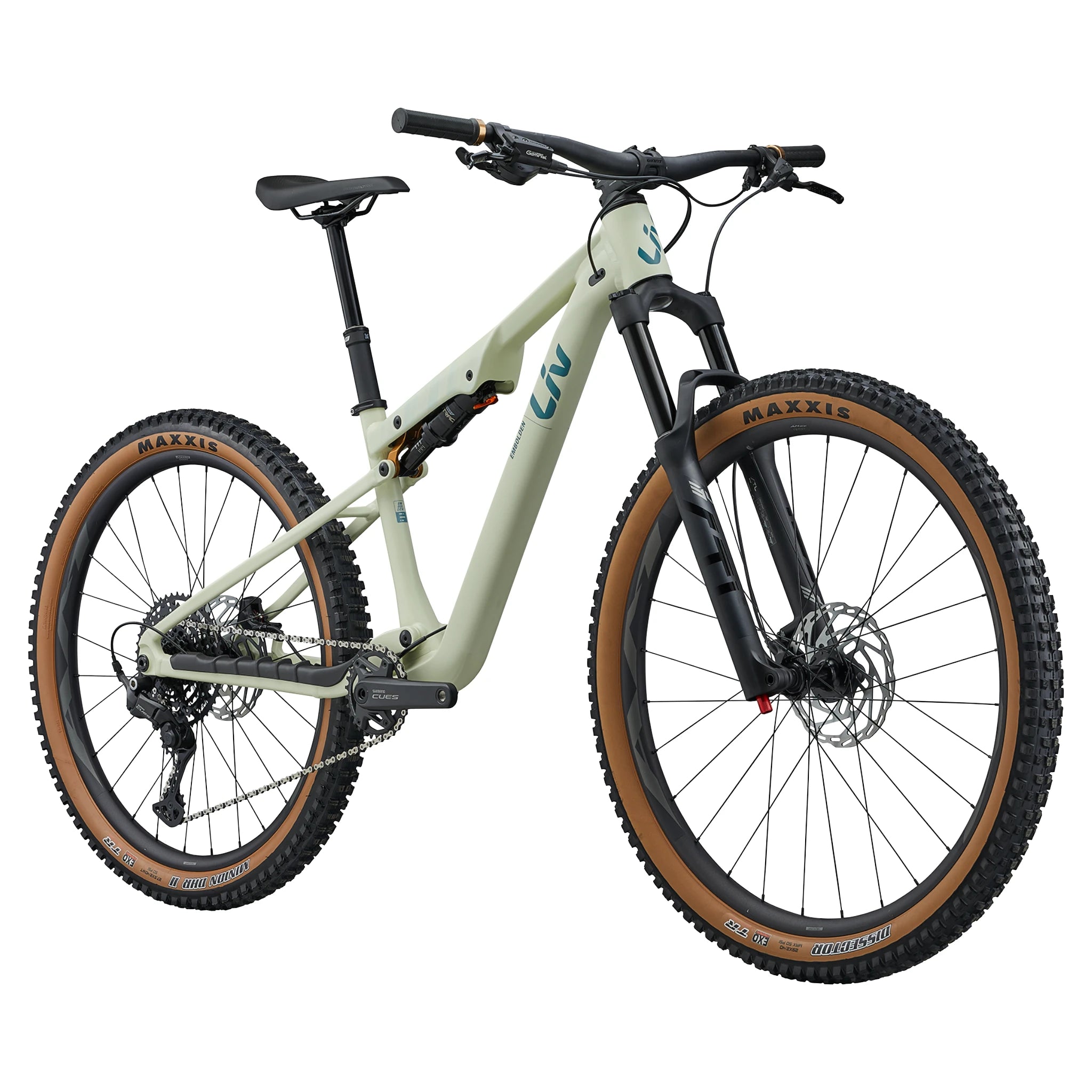

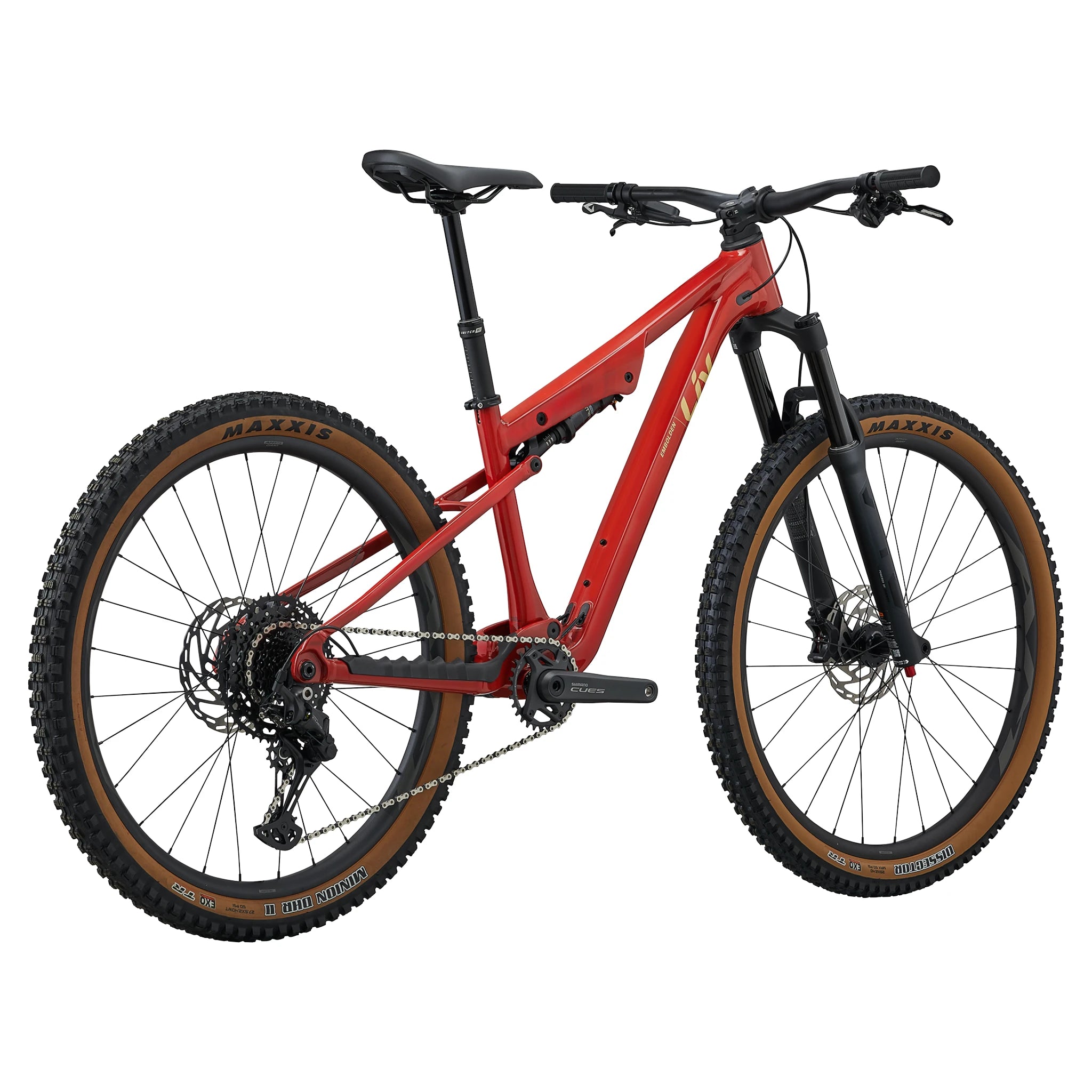

Liv Embolden
Local Pickup Only
Liv Embolden
$2,599.99
The Embolden is built for riders who want to spend more time riding and less time worrying about their bike. Developed using insights from women riders, its geometry and suspension balance stability, control, and efficiency to create a ride that feels intuitive on the trail. With a lightweight aluminum frame, FlexPoint suspension, and modern trail geometry, Embolden builds confidence as riders move from forest paths to proper singletrack.
210000106081
Have a question?
If you have any questions do not hesitate to reach out to us and we'll get back to within 24 hours.
Specifications

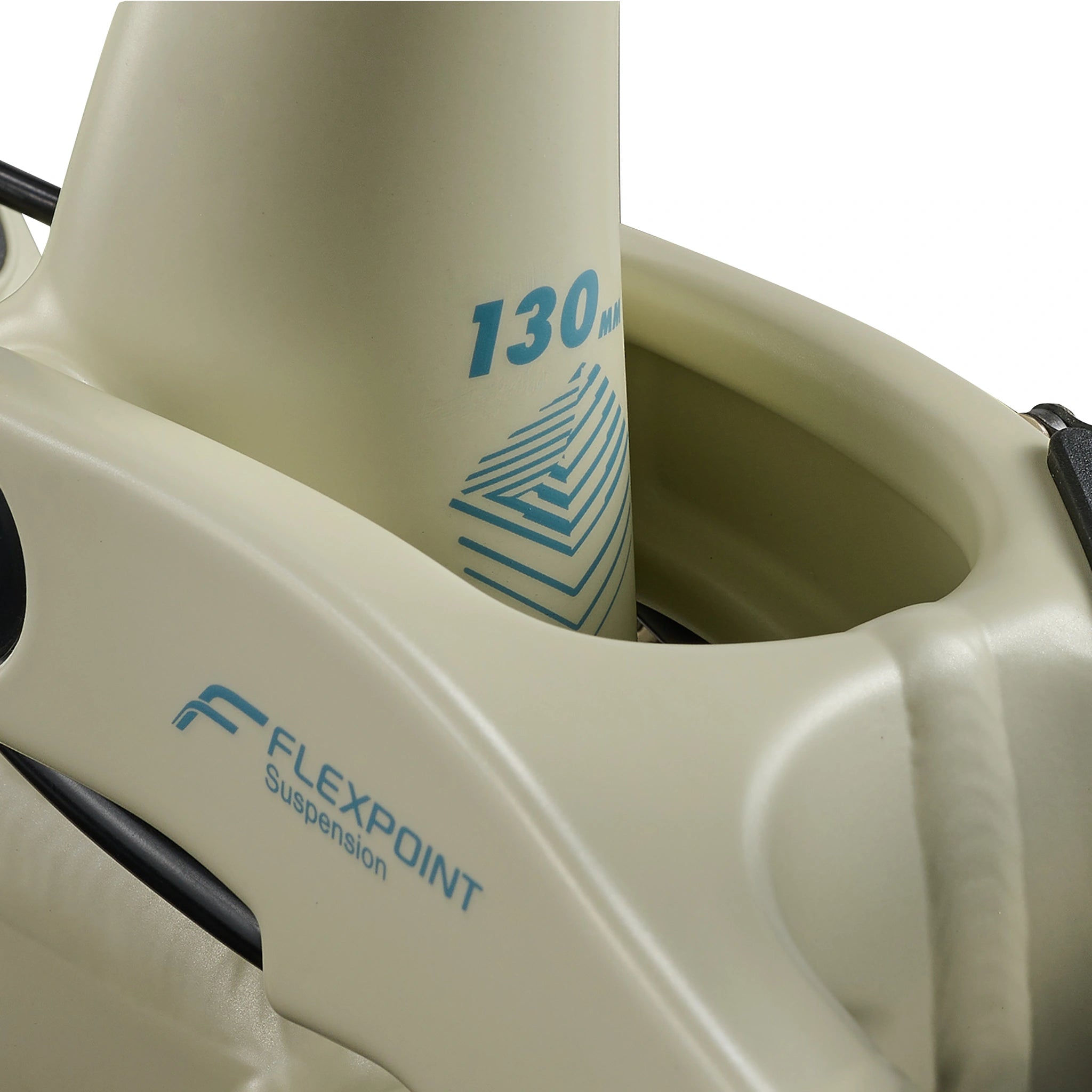

FrameALUXX-grade aluminum, 130mm FlexPoint suspension, 12x148mm thru-axle, UDH interface

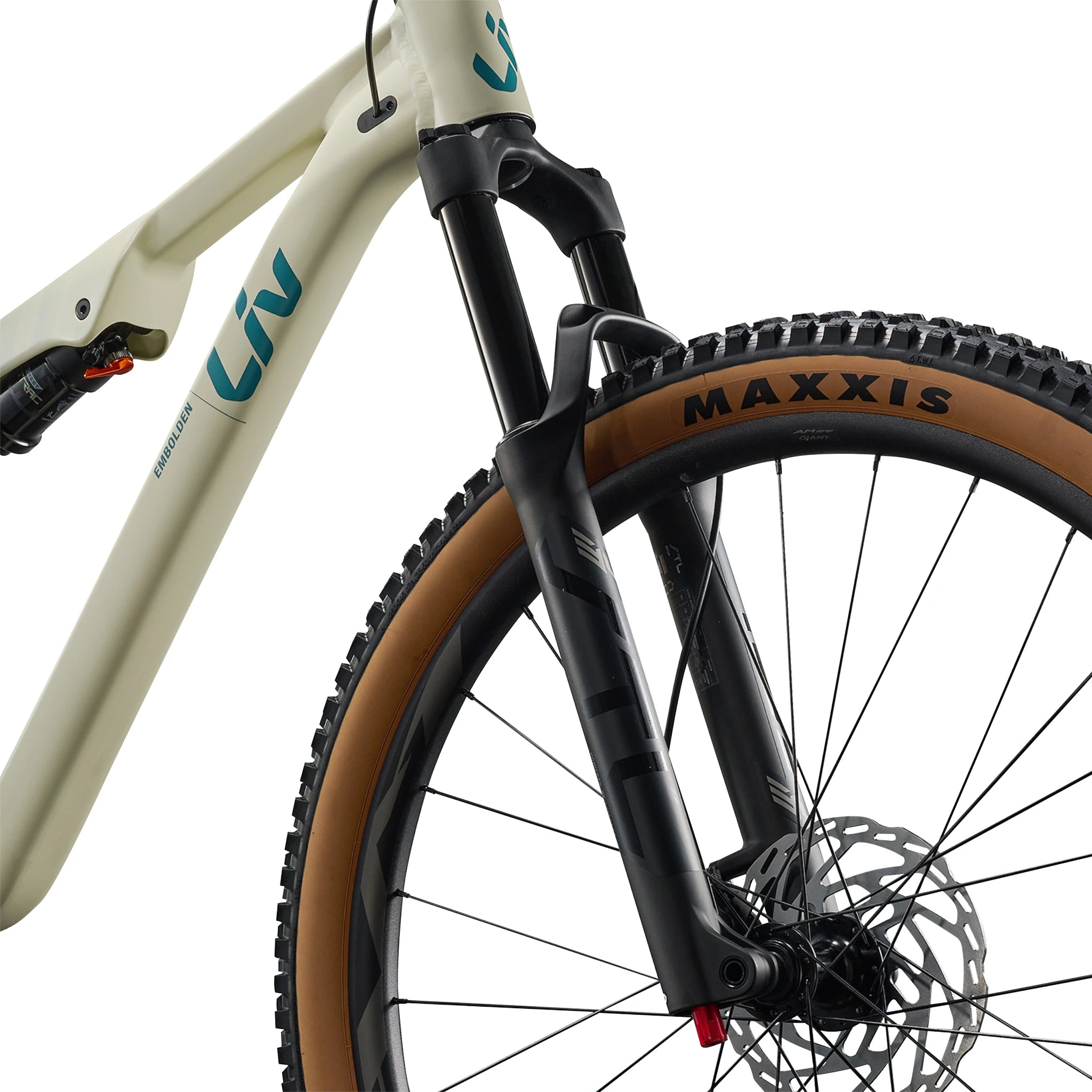

ForkGiant STL 34 dual air, 140mm, 44mm offset, 15x110mm, thru-axle

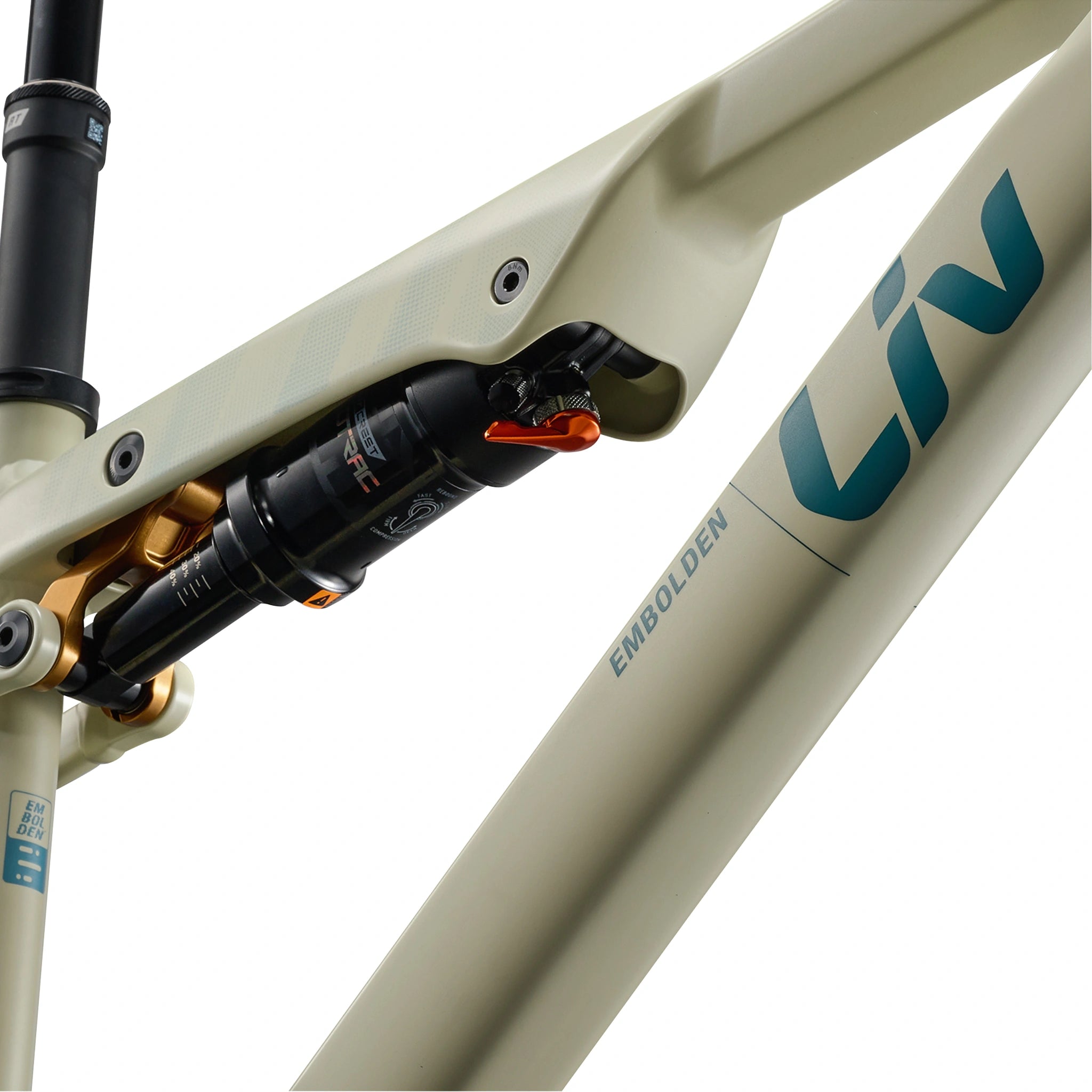

ShockGiant Crest FloTrac Elite TR, 2-position lockout, 210/52.5 custom tuned for Liv
HandlebarGiant Contact TR35, 35mm XS:20mm rise / 760mm, S:20mm rise / 760mm, M:35mm rise / 760mm, L:35mm rise 800mm
GripsTactal Pro, lock on XS & S: 120mm, M & L: 130mm
StemGiant Contact SL 35 XS: 40mm, S: 50mm, M: 50mm, L: 50mm
SeatpostGiant Contact Switch AT adjustable dropper, remote XS/S: 110-140mm travel / 30.9 x 395mm M/L: 140-170mm travel / 30.9 x 470mm
SaddleLiv Contact Ergo Trail
ShiftersShimano CUES SL-6000, 1x10
Rear DerailleurShimano CUES RD-U6000, Shadow +
BrakesTektro HD-M5141, hydraulic, TR-54, 6-bolt rotors [F]180mm, [R]180mm
Brake LeversTektro HD-M5141
CassetteShimano CUES, CS-LG300, 11x48
ChainKMC X11
CranksetShimano CUES FC-U6000, XS: 165mm, S: 165mm, M: 165mm, L: 165mm, 34T for 27.5", 32T for 29"
RimsGiant AM30 alloy rim
Hubs[F] Giant MTB alloy, 6-bolt, sealed [R] Giant MTB alloy, 6 bolt, HG driver body
SpokesSapim
TiresXS & S: [F] Maxxis Dissector 29x2.4, Dual, EXO, TR [R] Maxxis Minion DHR II 27.5x2.4, Dual, EXO, TR, tubeless M & L: [F] Maxxis Dissector 29x2.4, Dual, EXO, TR [R] Maxxis Minion DHR II 29x2.4, Dual, EXO, TR, tubeless
ExtrasTubeless prepared, 2.5" max tire size, 34t max chainring size
*Specifications are subject to change without notice
Geometry
| XS (MX) | S (MX) | M (29") | L (29") | |||
|---|---|---|---|---|---|---|
| A | Reach | 407 | 422 | 436 | 455 | |
| B | Stack | 609 | 618 | 618 | 627 | |
| C | Head Tube Angle | 65.0° | 65.0° | 65.0° | 65.0° | |
| D | Bottom Bracket Drop | 25 | 25 | 40 | 40 | |
| E | Wheelbase | 1158 | 1176 | 1194 | 1217 | |
| F | Chain Stay Length | 440 | 440 | 442 | 442 | |
| G | Head Tube Length | 90 | 100 | 105 | 115 | |
| H | Top Tube Length | 548 | 564 | 584 | 605 | |
| I | Seat Tube Angle | 77.0° | 77.0° | 77.0° | 77.0° | |
| J | Stand Over Height | 758 | 757 | 750 | 745 | |
| All measurements in degrees or millimetres | ||||||
Sizing Guide
The sizing chart is a great place to start when picking your next bike but everyone will fit a bike a bit differently. Your torso, arm, and leg lengths all play into what size of bike you may need. Plus, there's your own personal preference.
We always recommend swinging by the shop and taking the bike that you're looking for a spin to see how it feels. If you're unable to come by, looking at the geometry of your current bike and comparing it is a good place to start. If you have any further questions, our customer service team is there to help.
| Size | Height | |
|---|---|---|
| Imperial | Metric | |
| XS - MX | 4'10" - 5'4" | 148 - 163cm |
| S - MX | 5'2" - 5'7" | 158 - 169cm |
| M - 29" | 5'5" - 5'9" | 164 - 175cm |
| L - 29" | 5'7" - 6'0" | 170 - 183cm |
Model Numbers
| Size | Model Number | Pale Moss | Red Clay |
|---|---|---|
| XS | 1033011103 | 1033011203 |
| S | 1033011104 | 1033011204 |
| M | 1033011105 | 1033011205 |
| L | 1033011107 | 1033011207 |
