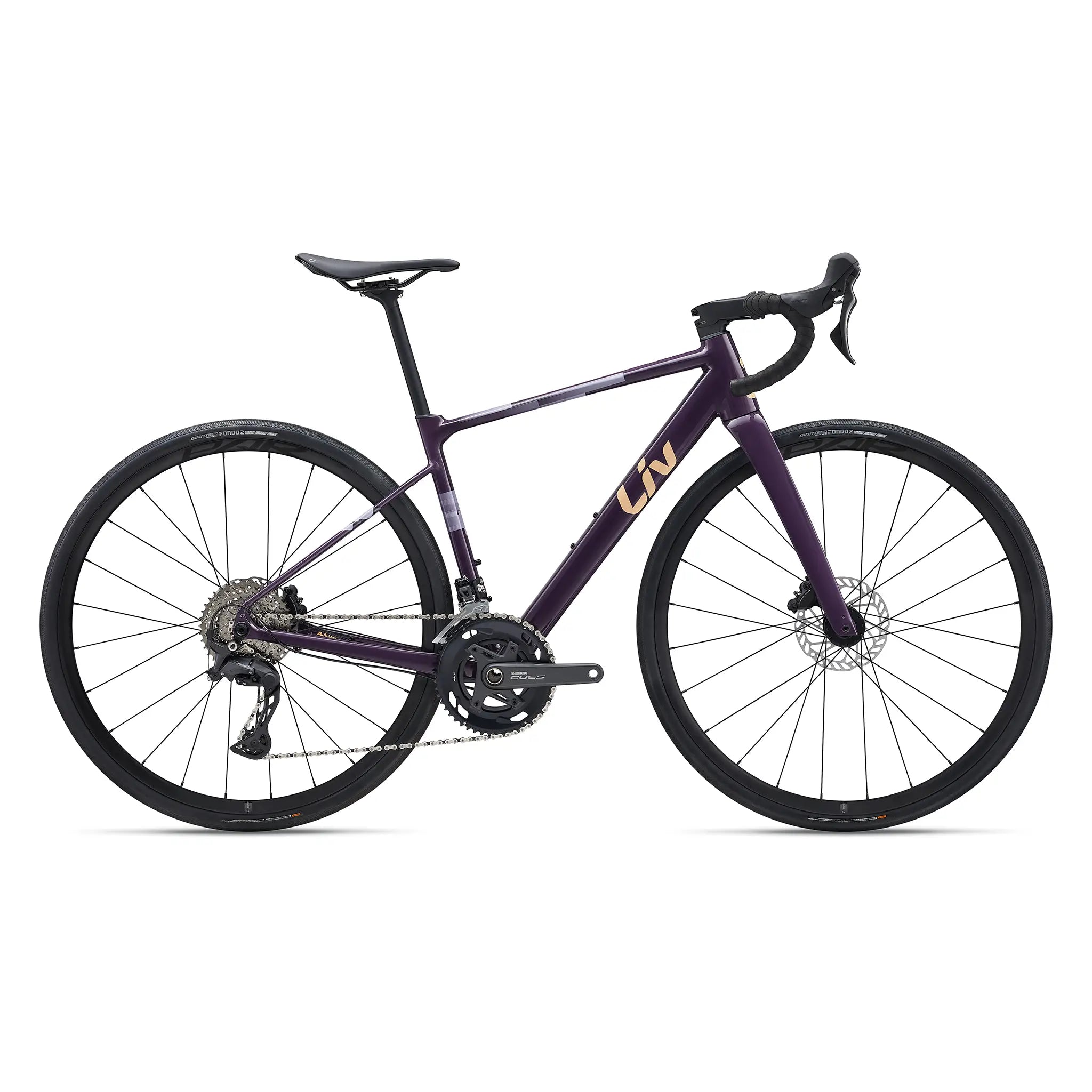

Liv Beliv AR 2
Local Pickup Only
Contact For Availability
Liv Beliv AR 2
$1,999.00
210000129671
Have a question?
If you have any questions do not hesitate to reach out to us and we'll get back to within 24 hours.
Specifications
| Sizes | XXS ,XS, S, M, L |
|---|---|
| Colour | Tyrian Purple |
| Frame | ALUXX SL-grade aluminum, 12x142mm thru-axle, disc |
| Fork | Advanced-grade composite, full-composite OverDrive steerer, 12x100mm thru-axle, disc |
| Handlebar | Giant Contact, flare |
| Grips | Liv All Condition |
| Stem | Giant Contact Aerolight, -10-degree |
| Seatpost | Giant D-Fuse, composite, 14mm offset |
| Saddle | Liv Approach |
| Shifters | Shimano CUES U6030, 2x10 |
| Front Derailleur | Shimano CUES FD-U6030 |
| Rear Derailleur | Shimano CUES U6020 |
| Brakes | Shimano CUES Giant MPH rotors [F] 160mm, [R] 160mm |
| Brake Levers | Shimano CUES |
| Cassette | Shimano CUES, 10-speed, 11x39 |
| Chain | KMC X11 |
| Crankset | Shimano CUES, 34/50 |
| Bottom Bracket | Shimano RS501, threaded |
| Rims | Giant P-AR2 Disc wheelset, alloy, [F] 25mm, [R] 25mm |
| Hubs | Giant P-AR2 Disc wheelset, 12mm thru-axle |
| Spokes | Sapim |
| Tires | Giant Gavia Fondo 2, tubeless, 700x32c (34mm), 60 TPI |
| Extras | Fender mount, tubeless prepared, 43mm max tire size |
*Specifications are subject to change without notice
Geometry
| XXS | XS | S | M | L | ||
|---|---|---|---|---|---|---|
| A | Reach | 362 | 366 | 369 | 373 | 383 |
| B | Stack | 522 | 538 | 561 | 582 | 601 |
| C | Head Tube Angle | 70.0° | 70.5° | 71.5° | 72.0° | 72.0° |
| D | Bottom Bracket Drop | 80 | 80 | 80 | 80 | 80 |
| E | Wheelbase | 994 | 999 | 1001 | 1006 | 1022 |
| F | Chain Stay Length | 422 | 422 | 422 | 422 | 422 |
| G | Head Tube Length | 110 | 118 | 138 | 158 | 178 |
| H | Top Tube Length | 502 | 515 | 525 | 540 | 555 |
| I | Seat Tube Angle | 75.0° | 74.5° | 74.5° | 74.0° | 74.0° |
| J | Standover Height | 680.3 | 703.7 | 730.7 | 760.4 | 788.7 |
| All measurements in degrees or millimetres | ||||||
Sizing Guide
The sizing chart is a great place to start when picking your next bike but everyone will fit a bike a bit differently. Your torso, arm, and leg lengths all play into what size of bike you may need. Plus, there's your own personal preference.
We always recommend swinging by the shop and taking the bike that you're looking for a spin to see how it feels. If you're unable to come by, looking at the geometry of your current bike and comparing it is a good place to start. If you have any further questions, our customer service team is there to help.
| Size | Height | |
|---|---|---|
| Imperial | Metric | |
| XXS | 4'9" - 5'2" | 145 - 157cm |
| XS | 5'0" - 5'4" | 152 - 163cm |
| S | 5'2" - 5'7" | 158 - 169cm |
| M | 5'5" - 5'9" | 164 - 176cm |
| L | 5'7" - 6'0" | 170 - 183cm |
Model Numbers
| Size | Model Number | Tyrian Purple |
|---|---|
| XXS | 1319007122 |
| XS | 1319007123 |
| S | 1319007124 |
| M | 1319007125 |
| L | 1319007127 |
