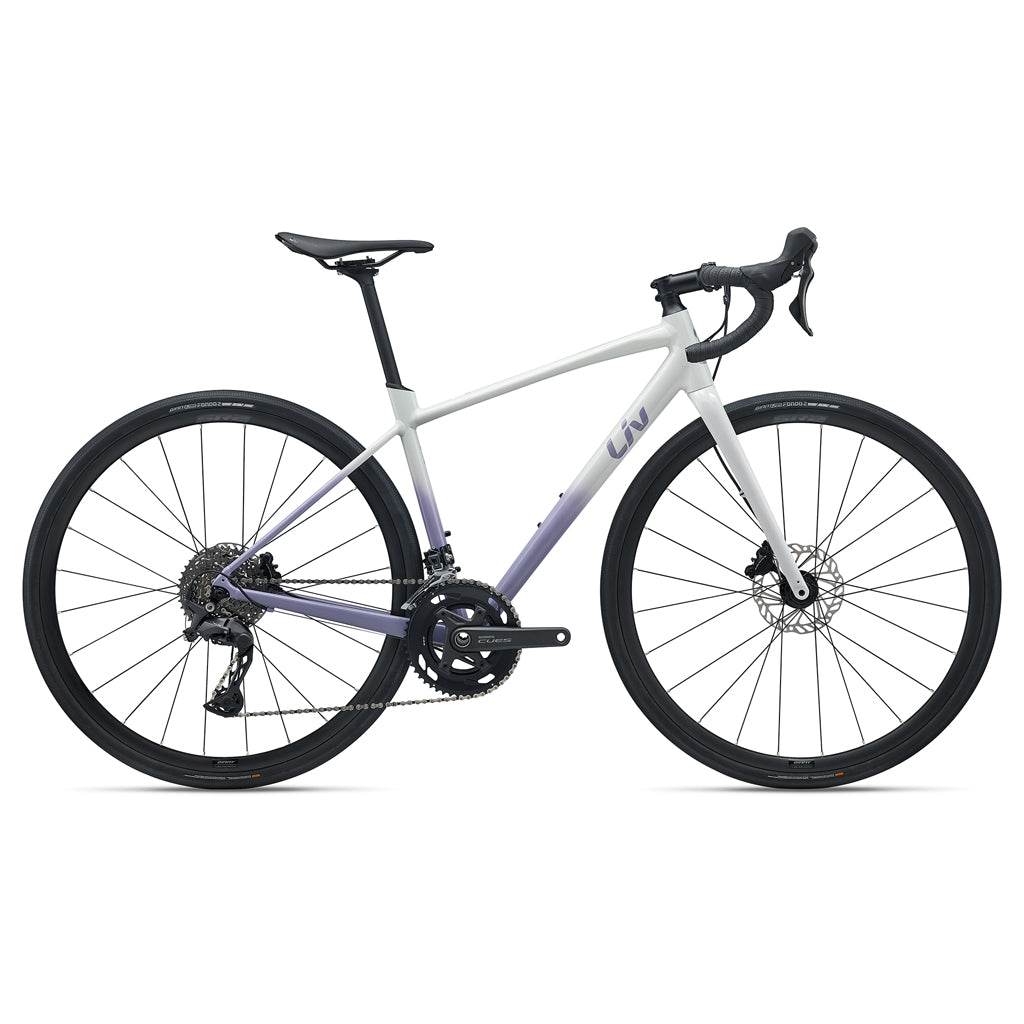

Liv Avail AR 2
Local Pickup Only

Liv Avail AR 2

$2,099.00

Whether it’s navigating asphalt or venturing through an unpaved short cut, the Avail AR is smooth on flats, spry on climbs and confident on descents.

Click here for more info
210000106017
Colour
Size
Quantity
Have a question?

If you have any questions do not hesitate to reach out to us and we'll get back to within 24 hours.


Contact Us
Liv Avail AR 2

Liv Avail AR 2

$2,099.00

Liv Avail AR 2

The lightweight ALUXX aluminum frame features the latest endurance geometry with an Advanced-grade composite fork and D-Fuse seatpost to diminish vibrations. The 32c tires provide stability on both road and off-road surfaces, with compatibility for tubeless tires up to 38c. The OverDrive steerer and powerful disc brakes ensure precise handling and reliable stopping power, giving you confidence on any terrain.Equipped with frame mounts for racks and fenders, the Avail AR ensures you're ready for longer journeys with all the necessary gear and protection.

Specifications

Sizes XXS, XS, S, M, L
Colour Sandshell/Cold Night
Frame ALUXX-grade aluminum, 12x142mm thru-axle, disc
Fork Advanced-grade composite, full-composite OverDrive steerer, 12x100mm thru-axle, disc
Handlebar Liv Connect
Grips Liv All Condition
Stem Giant Sport, 7-degree
Seatpost Giant D-Fuse, composite, 14mm offset
Saddle Liv Approach
Shifters Shimano CUES U6030, 2x10
Front Derailleur Shimano CUES FD-U6030
Rear Derailleur Shimano CUES U6020
Brakes Shimano CUES
Giant MPH rotors [F] 160mm, [R] 160mm
Brake Levers Shimano CUES
Cassette Shimano CUES, 10-speed, 11x39
Chain KMC X11
Crankset Shimano CUES, 34/50
Bottom Bracket Shimano RS501, threaded
Rims Giant S-R2 Disc wheelset, alloy, [F] 25mm, [R] 25mm
Hubs Giant S-R2 Disc wheelset, 12mm thru-axle
Spokes Sapim Leader
Tires Giant Gavia Fondo 2, tubeless, 700x32c (34mm)
Extras Fender mount, tubeless prepared, 38mm max tire size

*Specifications are subject to change without notice

Geometry

XXS XS S M L
A Reach 362 372 372 377 386
B Stack 514 530 550 569 588
C Head Tube Angle 70.0° 70.5° 72.0° 72.0° 72.0°
D Bottom Bracket Drop 70 70 70 70 70
E Wheelbase 986 998 990 1000 1016
F Chainstay Length 420 420 420 420 420
G Head Tube Length 120 135 150 170 190
H Top Tube Length 500 515 525 540 555
I Seat Tube Angle 75.0° 75.0° 74.5° 74.0° 74.0°
J Stand Over Height 662 687 716 744 772
*All measurements in degrees or millimetres

Sizing Guide

The sizing chart is a great place to start when picking your next bike but everyone will fit a bike a bit differently. Your torso, arm, and leg lengths all play into what size of bike you may need. Plus, there's your own personal preference.

We always recommend swinging by the shop and taking the bike that you're looking for a spin to see how it feels. If you're unable to come by, looking at the geometry of your current bike and comparing it is a good place to start. If you have any further questions, our customer service team is there to help.

Size Height
Imperial Metric
XXS 4'9" - 5'1" 145 - 156cm
XS 5'0" - 5'4" 153 - 162cm
S 5'2" - 5'7" 158 - 169cm
M 5'5" - 5'19 165 - 174cm
L 5'7" - 6'0" 171 - 182cm

Model Numbers

Size Model Number
Lavender Blush
XXS 1017035122
XS 1017035123
S 1017035124
M 1017035125
L 1017035127
