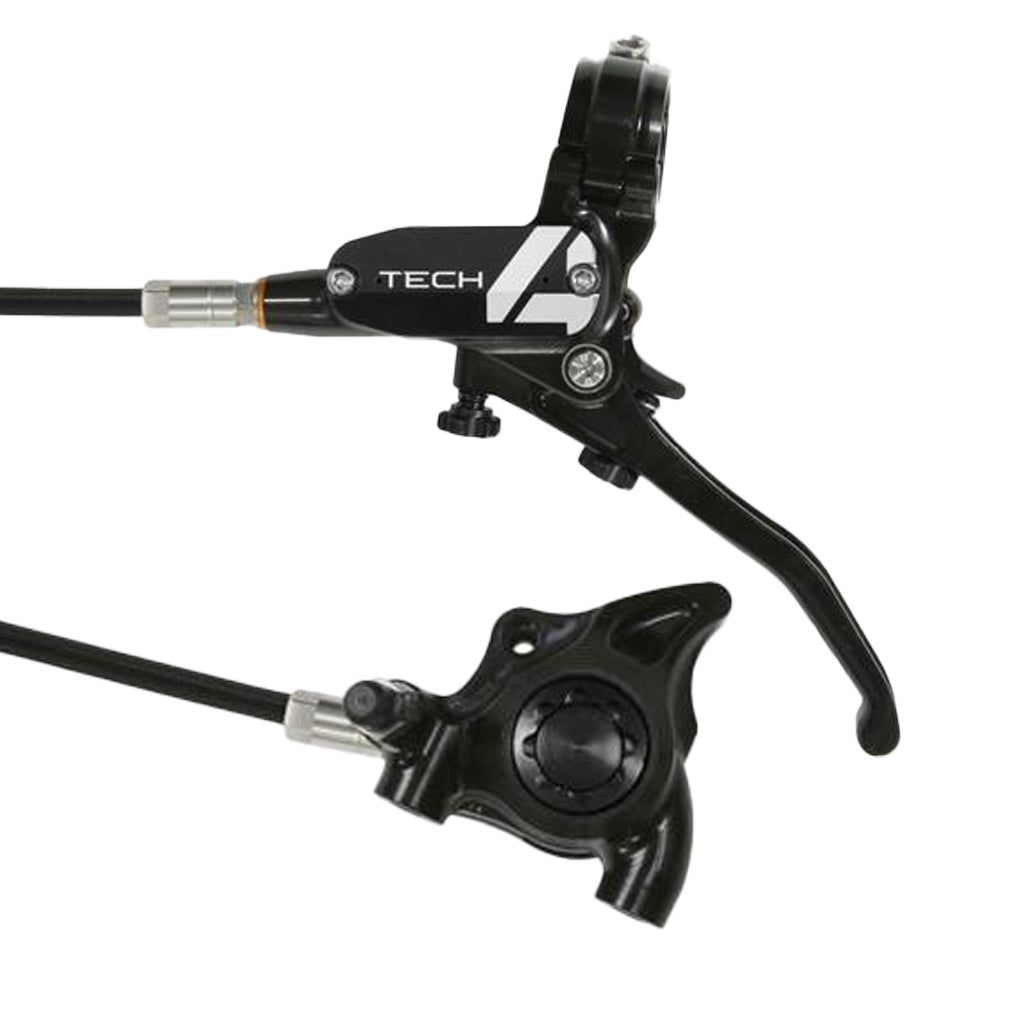

Hope Tech 4 X2 Flat Mount Disc Brake (No Rotor)

The Tech 4 X2 builds on our 25+ years’ experience designing and manufacturing hydraulic brake systems. The Tech 4 uses all new internal sealing for reduced friction and the pivot spins on roller bearings, allowing the spring rate to be reduced. The lower spring rate in turn gives a lighter lever action, reducing rider fatigue and keeping our legendary feel and modulation. Combine this with an updated X2 Postmount or Flatmount caliper a lightweight adjustable brake.

Features:

• Increased power versus Tech 3
• Lever shape updated to provide a more ergonomic shape orientated to provide the best mechanical advantage during braking.

• Hinged clamp reducing weight and to improve ergonomics
• Tool free bite point and reach adjustments
• Hybrid piston design
• Rigid CNC'd one piece caliper
• Compatible with a wider range of current shifter options

• Choose either standard or braided hose (braided hose is an extra cost)
• 30% pressure increase compared with the Tech 3 brake
• Reservoir area increased to lower overall stack height.
• Shifter integration has been improved and now offers 30° of angle adjustment as well as neater packaging and compatibility with the latest shifters. Lateral adjustment on both sides of the master // cylinder is also possible to give a wide range of lever position options.
• Hybrid-style pistons that allow smoother movement and require less maintenance, and a phenolic insert to manage heat transfer during extreme use.
• The Tech 4 retains the tool-free bite point and reach adjustments from the Tech 3
• All Tech 4 brakes are supplied with new racing compound pads. For more information on all our pad compounds see the new pad guide here.
• Maxium Rotor thickness for X2 caliper 2.3mm

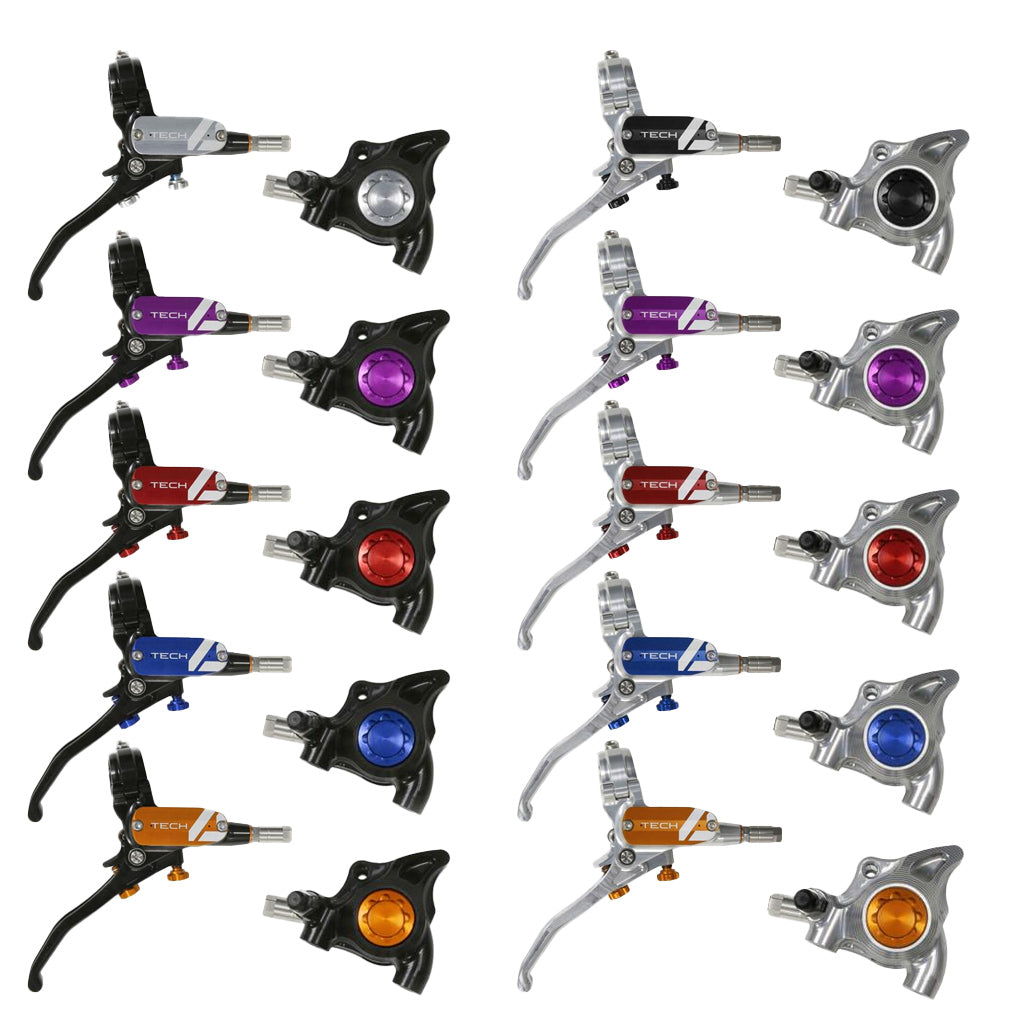

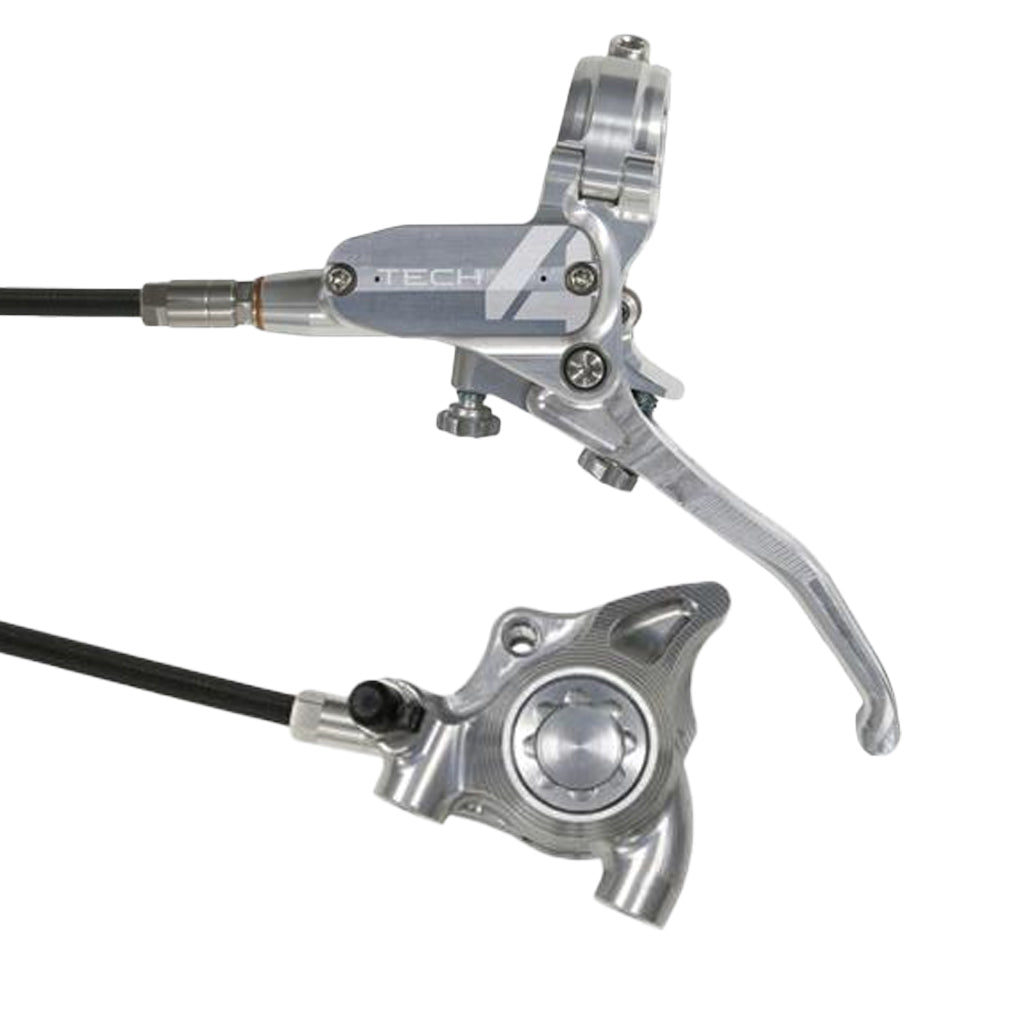

* Brakes also available to order in Black w/Silver accent or Silver w/Black accent options - additional colour accent options of Purple, Red, Blue & Orange available. Contact Customer Service for availability.

Flatmount Caliper Mount options:

• Mount Z: Required to fit the X2 FM caliper onto Front Flatmount standard and use a Ø160 disc – Front Flatmount standard is typically found on road/gravel/CX forks
• Mount Y: Required to fit the X2 FM caliper onto Rear Flatmount standard using Ø160 disc – Rear Flatmount std is typically found on the back of some road/grave/CX frame but also lately on light XC frames
• The caliper will also fit directly on Flatmount rear standard using a Ø140 disc.
  For more information please see our guides in the manuals and diagrams section.

**Note** - The Flatmount X2 caliper is designed for use with the Hope Tech 4, Tech 3, XCR Pro and Tech/Tech Evo levers only.
