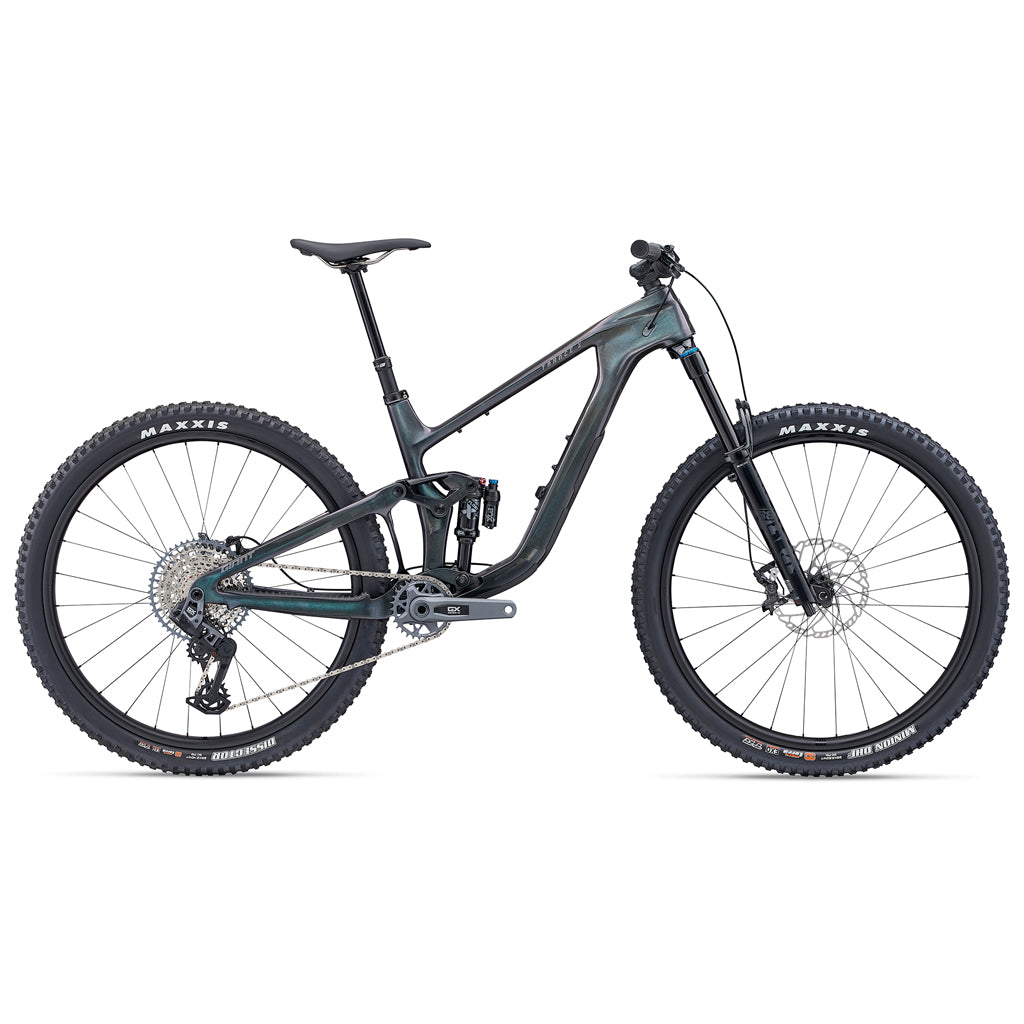

Giant Trance X Advanced 1

Giant Trance X Advanced 1

210000070367

Regular price$8,499.99 CAD
/
The Giant Trance X is built for tackling the toughest trails! With a lightweight carbon frame, SRAM GX AXS T-Type drivetrain, and Fox Performance Elite suspension, it’s equipped with TRX carbon wheels for smooth handling on every ride.

Colour
Size

Local Pickup Only

This site is protected by hCaptcha and the hCaptcha Privacy Policy and Terms of Service apply.

Giant Trance X Advanced 1

The latest Trance X range offers progressive trail bikes with enhanced control and adaptability for diverse terrain. Featuring superlight composite and dynamic alloy frames, each model boasts increased suspension travel and the option to switch between 29-inch and 27.5-inch rear wheels. Giant's expertise ensures superior performance, while adjustable flip chip technology allows riders to customize geometry and cockpit dimensions. In summary, the Trance X range delivers unmatched versatility and confidence for conquering any trail.

Specifications

FrameAdvanced-grade composite front and rear triangles, 140mm Maestro suspension, flip chip - Maestro 3, flip chip - headset, 12x148mm thru-axle, integrated downtube storage

ForkFox 36 Performance Elite, GRIP2 damper, 44mm offset, 150mm, 15x110 Kabolt X, custom tuned for Giant

ShockFox Float X Performance Elite, 185/52.5, custom tuned for Giant

HandlebarGiant Contact SLR TR35, 780x35mm, 20mm rise

GripsGiant Tactal Pro single lock-on

StemGiant Contact SL 35 S:40mm, M:40mm, L:50mm, XL:50mm

SeatpostGiant Contact Switch Adjustable, remote S: 110-140mm travel / 30.9 x 395mm M: 140-170mm travel / 30.9 x 470mm L: 170-200mm travel / 30.9 x 530mm XL: 170-200mm travel / 30.9 x 530mm

SaddleGiant Romero SL

ShiftersSRAM AXS, 1x12

Rear DerailleurSRAM GX Eagle AXS

BrakesShimano Deore XT BR-MT8120, hydraulic, Shimano RT-66 rotors [F] 203mm, [R] 180mm

Brake LeversShimano Deore XT BL-M8100

CassetteSRAM GX-1275, 10x52

ChainSRAM GX Eagle

CranksetSRAM GX, 30t, 55mm chainline S:165mm, M:170mm, L:170mm, XL:170mm

Bottom BracketSRAM DUB, press fit

RimsGiant TRX 0 29 Carbon WheelSystem, 30mm inner width

Hubs[F] DT 240, 6-bolt
[R] DT240, 36t ratchet driver, 6-bolt

SpokesSapim Super

Tires[F] Maxxis Minion DHF 29x2.5 WT, 3C MaxxTerra, EXO, TR
[R] Maxxis Dissector 29x2.4, EXO, TR, tubeless

ExtraTubeless prepared, 2.5" max tire size, 34t max chainring size, 3M tailgate protector, integrated down tube storage bag

*Specifications are subject to change without notice

Geometry

S M L XL
HI | MD | LO HI | MD | LO HI | MD | LO HI | MD | LO
A Reach 434 | 430 | 426 464 | 460 | 456 484 | 480 | 476 514 | 510 | 507
B Stack 611 | 614 | 617 616 | 619 | 621 625 | 628 | 631 634 | 637 | 640
C Head Tube Angle 65.1 | 64.8 | 64.4 65.1 | 64.8 | 64.4 65.1 | 64.8 | 64.4 65.1 | 64.8 | 64.4
D Bottom Bracket Drop 30 | 35 | 40 30 | 35 | 40 30 | 35 | 40 30 | 35 | 40
E Wheelbase 1189 | 1189 | 1190 1221 | 1222 | 1222 1245 | 1246 | 1246 1280 | 1280 | 1281
F Chainstay Length 438 | 439 | 440 438 | 439 | 440 438 | 439 | 440 438 | 439 | 440
G Head Tube Length 100 | 100 | 100 105 | 105 | 105 115 | 115 | 115 125 | 125 | 125
H Top Tube Length 569 | 570 | 571 600 | 601 | 602 622 | 623 | 624 655 | 656 | 656
I Seat Tube Angle 77.5 | 77.2 | 76.8 77.5 | 77.2 | 76.8 77.5 | 77.2 | 76.8 77.5 | 77.2 | 76.8
J Standover Height 742 | 737 | 733 746 | 741 | 737 763 | 759 | 754 762 | 757 | 752
All measurements in degrees or millimetres

Sizing Guide

The sizing chart is a great place to start when picking your next bike but everyone will fit a bike a bit differently. Your torso, arm, and leg lengths all play into what size of bike you may need. Plus, there's your own personal preference.

We always recommend swinging by the shop and taking the bike that you're looking for a spin to see how it feels. If you're unable to come by, looking at the geometry of your current bike and comparing it is a good place to start. If you have any further questions, our customer service team is there to help.

Size Height
Imperial Metric
S 5'4" - 5'8" 163- 172cm
M 5'7" - 5'11" 171 - 188cm
L 5'10" - 6'2" 179 - 188cm
XL 6'2" - 6'5" 187 - 196cm
