Fun Factor
Giant Trance X 2
Local Pickup Only
Contact For Availability

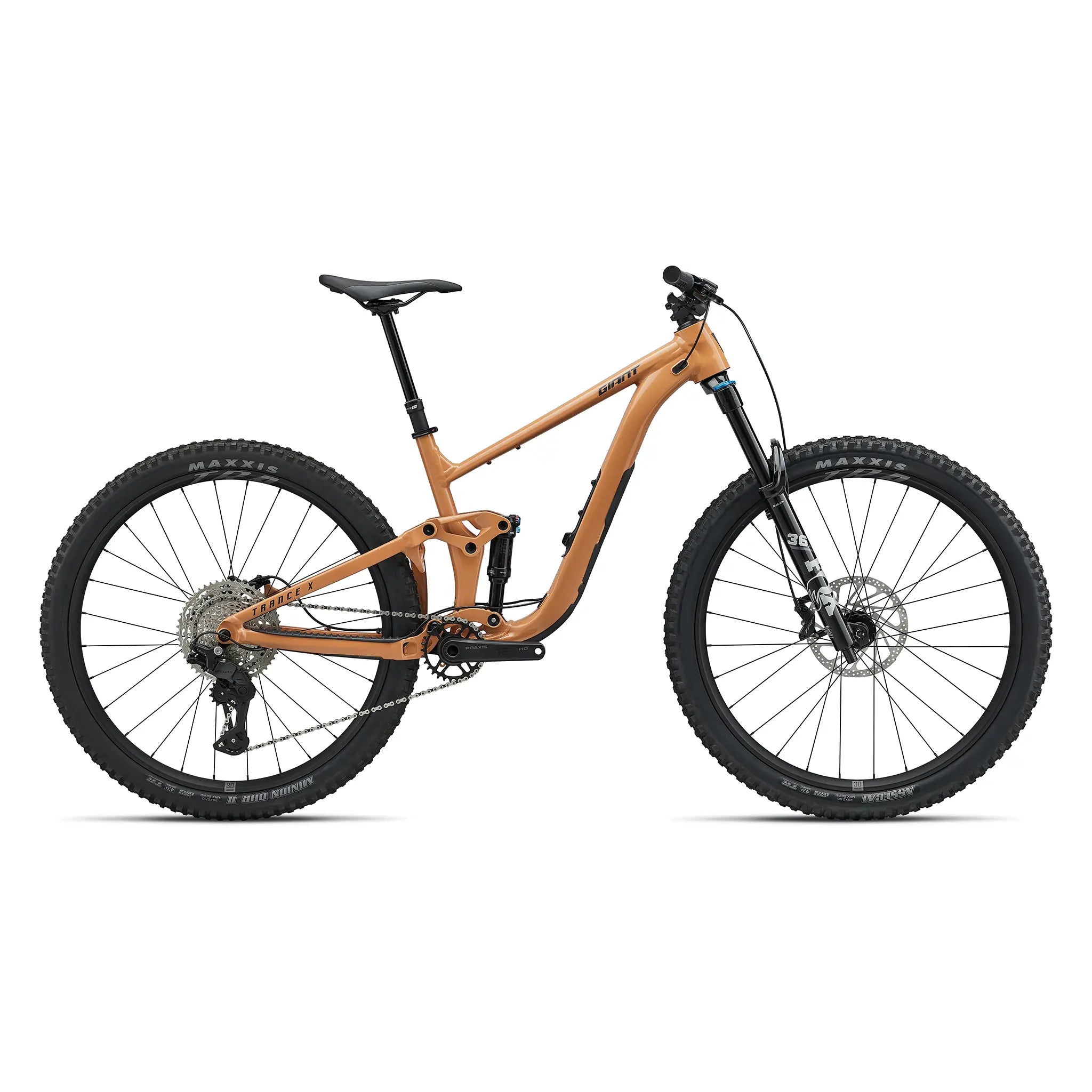

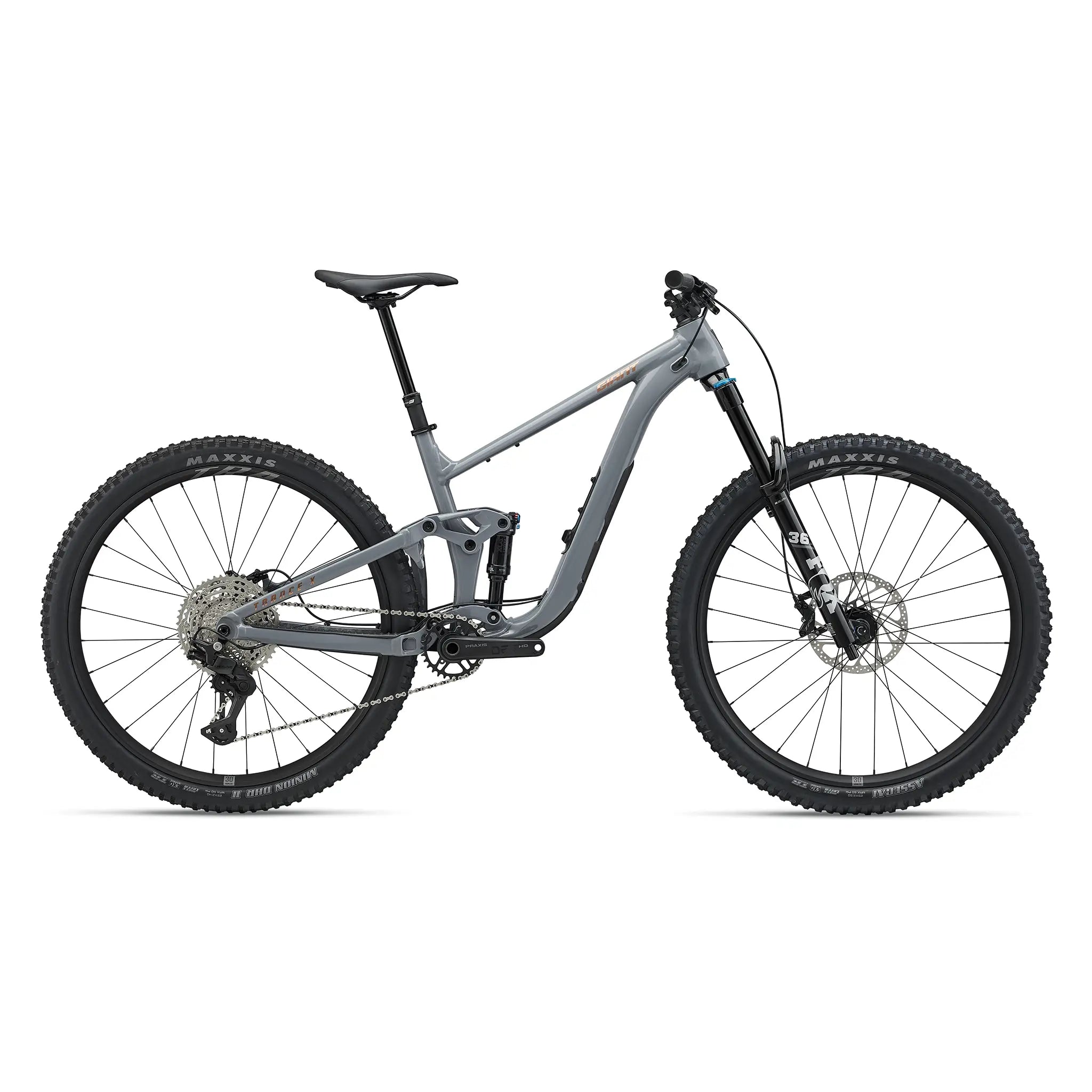

Giant Trance X 2
$3,899.00
Float up technical climbs and sail down chunky descents. The Trance X's alloy frame gives you 140mm of smooth Maestro rear suspension and all sorts of adjustability. You can dial in frame geometry and switch the rear wheel size for the terrain.
Quick Highlights
- Fox Factory Suspension
- SRAM GX AXS Transmission Drivetrain
- Giant TRX Carbon Wheels
210000129576
Colour
Quantity
Have a question?
If you have any questions do not hesitate to reach out to us and we'll get back to within 24 hours.
Specifications
| Sizes | S, M, L, XL |
|---|---|
| Colours | Tactical Grey, Natural Sienna |
| Frame | ALUXX SL-grade aluminum front and rear triangles, 140mm Maestro suspension, flip chip - Maestro 3, flip chip - headset, 12x148mm thru-axle, integrated downtube storage |
| Fork | Fox 36 Float Rhythm, 150mm, GRIP damper, 44mm offset, 15x110mm Kabolt X |
| Shock | Fox Float Performance, 185/52.5 |
| Handlebar | Giant Contact TR35, 20mm rise, 35mm |
| Grips | Giant Tactal Pro single lock-on |
| Stem | Giant Contact SL 35 |
| Seatpost | Giant Contact Switch AT adjustable dropper, remote S: 110-140mm travel / 30.9 x 395mm M: 140-170mm travel / 30.9 x 470mm L/XL: 170-200mm travel / 30.9 x 530mm |
| Saddle | Giant Romero |
| Shifters | Shimano Deore, 1x12 |
| Rear Derailleur | Shimano Deore RD-M7200 |
| Brakes |
TRP EVO Comp HD-M7040, 4-piston, hydraulic TRP SO6E 2.3mm rotors [F] 203mm, [R] 180mm |
| Brake Levers | TRP EVO Comp |
| Cassette | Shimano Deore M6200, 12-speed, 10x51 |
| Chain | KMC X12 |
| Crankset | Praxis Cadet HD M24, 30t, 55mm chainline |
| Bottom Bracket | Praxis, press fit |
| Rims | Giant TRA 2 6061 alloy, welded, hookless 30mm IW, 40mm OW, 21mm H, Wide Guard technology [F] 29, [R] 29 |
| Hubs |
[F] Giant MTB alloy, 6-bolt sealed [R] Giant MTB alloy, 72t POE, 6-bolt, 6-pawl, MS-driver |
| Spokes | Sapim Race j-bend |
| Tires | [F] Maxxis Assegai 29x2.5" WT, MaxxTerra, EXO, TR, 60TPI, folding [R] Maxxis Minion DHR II 29x2.4" WT, MaxxTerra, EXO, TR, 60TPI, tubeless, folding |
| Extras | 3M tailgate protector, integrated down tube storage bag, tubeless prepared, 2.5" max tire size, 34t max chainring size |
*Specifications are subject to change without notice
Geometry
| S | M | L | XL | ||
|---|---|---|---|---|---|
| HI | MD | LO | HI | MD | LO | HI | MD | LO | HI | MD | LO | ||
| A | Reach | 434 | 430 | 426 | 464 | 460 | 456 | 484 | 480 | 476 | 514 | 510 | 507 |
| B | Stack | 611 | 614 | 617 | 616 | 619 | 621 | 625 | 628 | 631 | 634 | 637 | 640 |
| C | Head Tube Angle | 65.1 | 64.8 | 64.4 | 65.1 | 64.8 | 64.4 | 65.1 | 64.8 | 64.4 | 65.1 | 64.8 | 64.4 |
| D | Bottom Bracket Drop | 30 | 35 | 40 | 30 | 35 | 40 | 30 | 35 | 40 | 30 | 35 | 40 |
| E | Wheelbase | 1189 | 1189 | 1190 | 1221 | 1222 | 1222 | 1245 | 1246 | 1246 | 1280 | 1280 | 1281 |
| F | Chainstay Length | 438 | 439 | 440 | 438 | 439 | 440 | 438 | 439 | 440 | 438 | 439 | 440 |
| G | Head Tube Length | 100 | 100 | 100 | 105 | 105 | 105 | 115 | 115 | 115 | 125 | 125 | 125 |
| H | Top Tube Length | 569 | 570 | 571 | 600 | 601 | 602 | 622 | 623 | 624 | 655 | 656 | 656 |
| I | Seat Tube Angle | 77.5 | 77.2 | 76.8 | 77.5 | 77.2 | 76.8 | 77.5 | 77.2 | 76.8 | 77.5 | 77.2 | 76.8 |
| J | Standover Height | 742 | 737 | 733 | 746 | 741 | 737 | 763 | 759 | 754 | 762 | 757 | 752 |
| All measurements in degrees or millimetres | |||||
Sizing Guide
The sizing chart is a great place to start when picking your next bike but everyone will fit a bike a bit differently. Your torso, arm, and leg lengths all play into what size of bike you may need. Plus, there's your own personal preference.
We always recommend swinging by the shop and taking the bike that you're looking for a spin to see how it feels. If you're unable to come by, looking at the geometry of your current bike and comparing it is a good place to start. If you have any further questions, our customer service team is there to help.
| Size | Height | |
|---|---|---|
| Imperial | Metric | |
| S | 5'4" - 5'8" | 163- 172cm |
| M | 5'7" - 5'11" | 171 - 188cm |
| L | 5'10" - 6'2" | 179 - 188cm |
| XL | 6'2" - 6'5" | 187 - 196cm |
Model Numbers
| Size | Model Number | Tactical Grey | Natural Sienna |
|---|---|---|
| S | 1111005104 | 1111005204 |
| M | 1111005105 | 1111005205 |
| L | 1111005107 | 1111005207 |
| XL | 1111005108 | 1111005208 |
