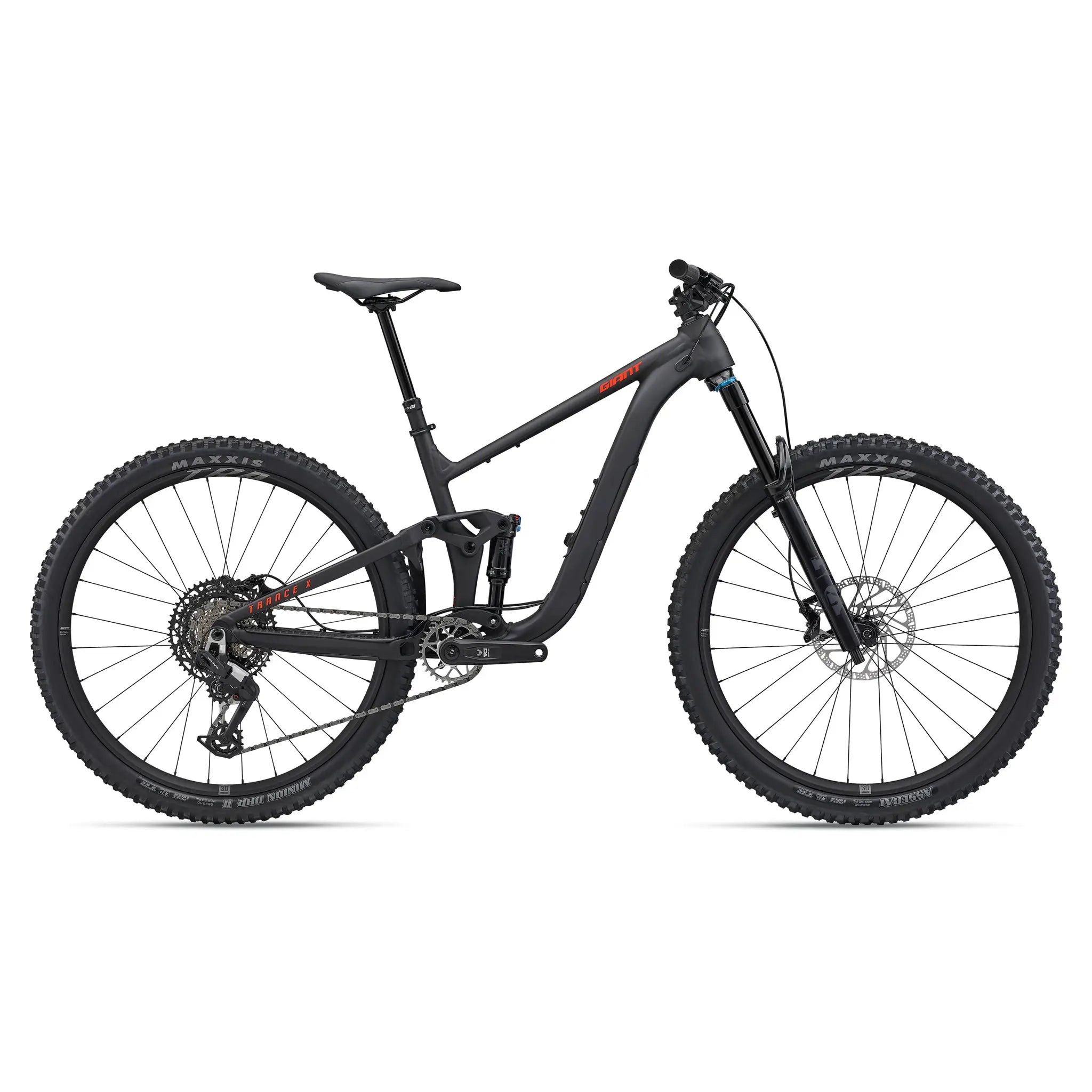

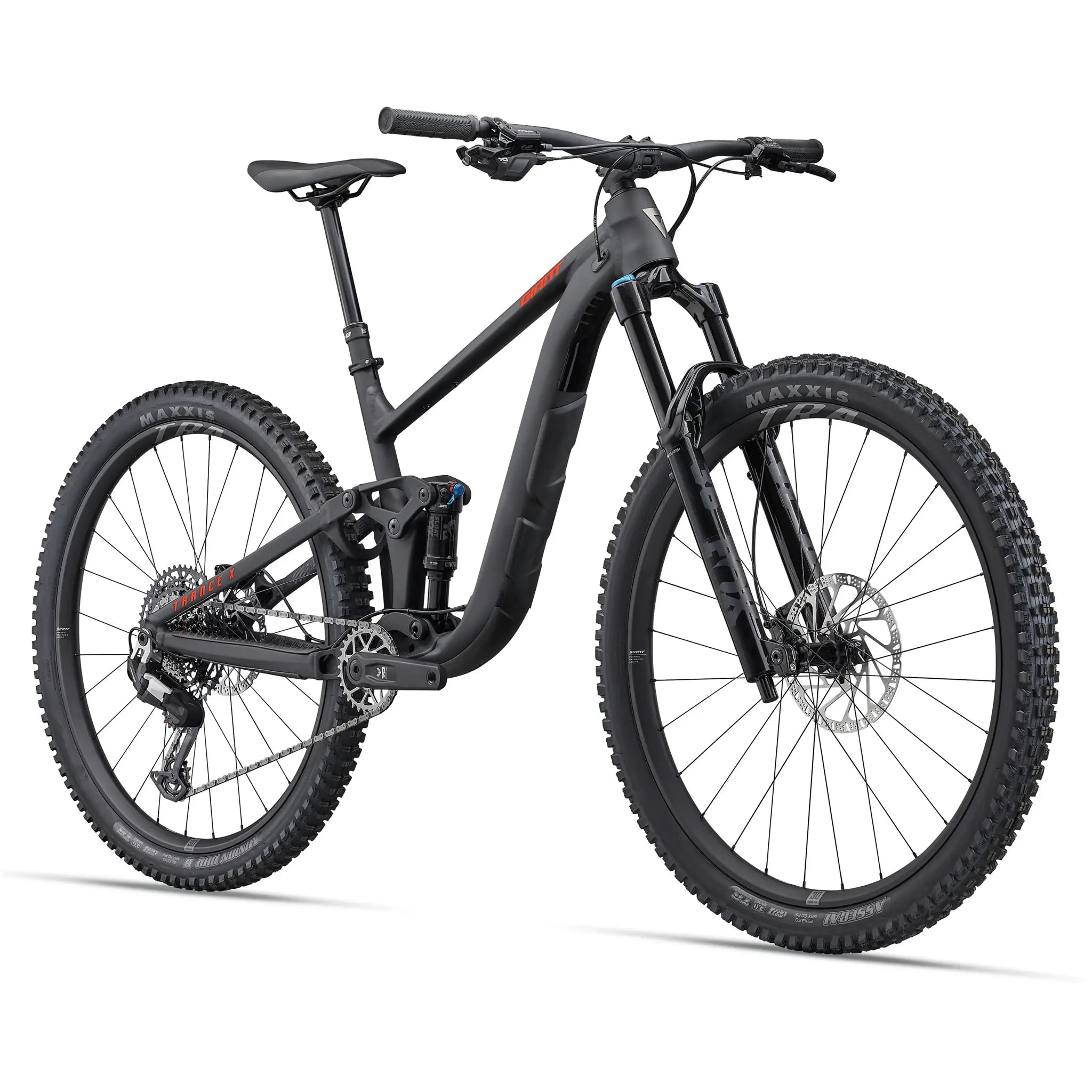

Giant Trance X 1
$5,299.00
Find your flow on technical trails. With adjustable geometry, the option to change rear wheel size, and a new 140mm Maestro rear suspension setup, this versatile trail bike steamrolls singletrack with confidence and control.
Quick Highlights
- Fox Performance Suspension
- SRAM 90 Transmission Drivetrain
- TRP EVO Expert 4-piston Brakes
210000105932
Colour
Quantity
Have a question?
If you have any questions do not hesitate to reach out to us and we'll get back to within 24 hours.
Specifications
Frame ALUXX SL-grade aluminum front and rear triangles, 140mm Maestro suspension, flip chip - Maestro 3, flip chip - headset, 12x148mm thru-axle, integrated downtube storage
Fork Fox 36 Float Performance, 150mm, Grip Damper, 44mm Offset, 15x110 Kabolt X
Shock Fox Float Performance, 185/52.5
Handlebar Giant Contact TR35, 20mm rise, 35mm
Grips Giant Tactal Pro single lock-on
Stem Giant Contact SL
Seatpost Giant Contact Switch AT adjustable dropper, remote S: 110-140mm travel / 30.9 x 395mm M: 140-170mm travel / 30.9 x 470mm L/XL: 170-200mm travel / 30.9 x 530mm
Saddle Giant Romero
Shifters SRAM Eagle 90, 1x12
Rear Derailleur SRAM Eagle 90 transmission
Brakes TRP Trail EVO, hydraulic TRP RS01E rotors [F] 203mm, [R] 180mm
Brake Levers TRP Trail EVO
Cassette SRAM XS-1270 Transmission, 12-speed, 10x52
Chain SRAM 70 Eagle Transmission
Crankset SRAM 90, 30t, 55mm chainline
Bottom Bracket SRAM DUB, press fit
Rims Giant TRA 2 6069 alloy, welded, hookless 30mm IW, 40mm OW, 21mm H, Wide Guard technology [F] 29, [R] 29
Hubs [F] Giant MTB alloy, 6-bolt [R] Giant MTB alloy, 72t POE, 6-bolt, 6-pawl, HG-driver
Spokes Sapim Laser straight pull, DBL technology
Tires [F] Maxxis Minion DHF 29x2.5" WT, EXO, TR, 60TPI [R] Maxxis Dissector 29x2.4" WT, EXO, TR, 60TPI, tubeless
Extras 3M tailgate protector, integrated down tube storage bag, tubeless prepared, 2.5" max tire size, 34t max chainring size
*Specifications are subject to change without notice
Geometry
| S | M | L | XL | ||
|---|---|---|---|---|---|
| HI | MD | LO | HI | MD | LO | HI | MD | LO | HI | MD | LO | ||
| A | Reach | 434 | 430 | 426 | 464 | 460 | 456 | 484 | 480 | 476 | 514 | 510 | 507 |
| B | Stack | 611 | 614 | 617 | 616 | 619 | 621 | 625 | 628 | 631 | 634 | 637 | 640 |
| C | Head Tube Angle | 65.1 | 64.8 | 64.4 | 65.1 | 64.8 | 64.4 | 65.1 | 64.8 | 64.4 | 65.1 | 64.8 | 64.4 |
| D | Bottom Bracket Drop | 30 | 35 | 40 | 30 | 35 | 40 | 30 | 35 | 40 | 30 | 35 | 40 |
| E | Wheelbase | 1189 | 1189 | 1190 | 1221 | 1222 | 1222 | 1245 | 1246 | 1246 | 1280 | 1280 | 1281 |
| F | Chainstay Length | 438 | 439 | 440 | 438 | 439 | 440 | 438 | 439 | 440 | 438 | 439 | 440 |
| G | Head Tube Length | 100 | 100 | 100 | 105 | 105 | 105 | 115 | 115 | 115 | 125 | 125 | 125 |
| H | Top Tube Length | 569 | 570 | 571 | 600 | 601 | 602 | 622 | 623 | 624 | 655 | 656 | 656 |
| I | Seat Tube Angle | 77.5 | 77.2 | 76.8 | 77.5 | 77.2 | 76.8 | 77.5 | 77.2 | 76.8 | 77.5 | 77.2 | 76.8 |
| J | Standover Height | 742 | 737 | 733 | 746 | 741 | 737 | 763 | 759 | 754 | 762 | 757 | 752 |
| All measurements in degrees or millimetres | |||||
Sizing Guide
The sizing chart is a great place to start when picking your next bike but everyone will fit a bike a bit differently. Your torso, arm, and leg lengths all play into what size of bike you may need. Plus, there's your own personal preference.
We always recommend swinging by the shop and taking the bike that you're looking for a spin to see how it feels. If you're unable to come by, looking at the geometry of your current bike and comparing it is a good place to start. If you have any further questions, our customer service team is there to help.
| Size | Height | |
|---|---|---|
| Imperial | Metric | |
| S | 5'4" - 5'8" | 163- 172cm |
| M | 5'7" - 5'11" | 171 - 188cm |
| L | 5'10" - 6'2" | 179 - 188cm |
| XL | 6'2" - 6'5" | 187 - 196cm |
Model Numbers
| Size | Model Number | Black/Plasma Coral |
|---|---|
| S | 1110005104 |
| M | 1110005105 |
| L | 1110005107 |
| XL | 1110005108 |
