The Total Race Bike
Giant TCR Advanced SL 0 RED
Local Pickup Only
Contact For Availability

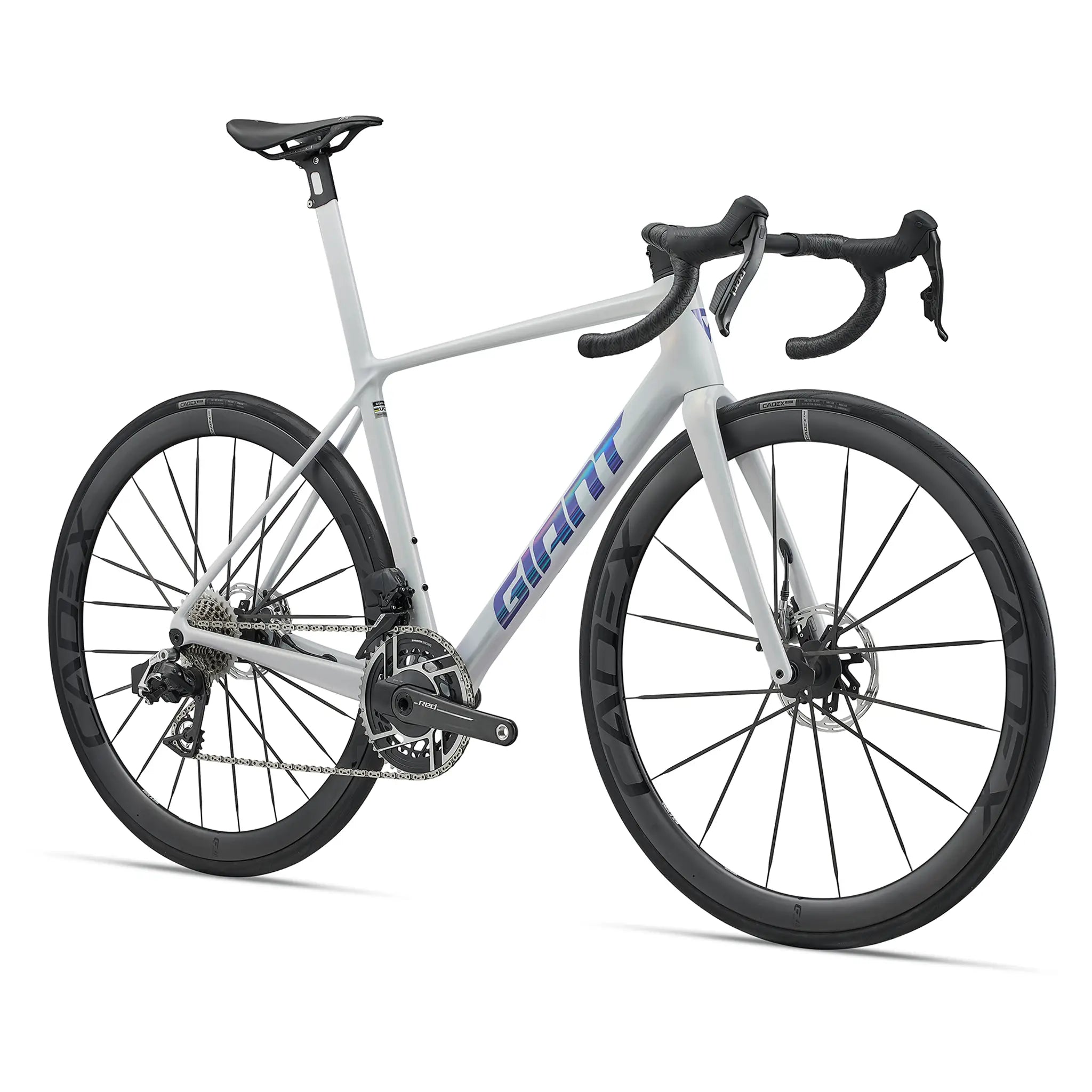

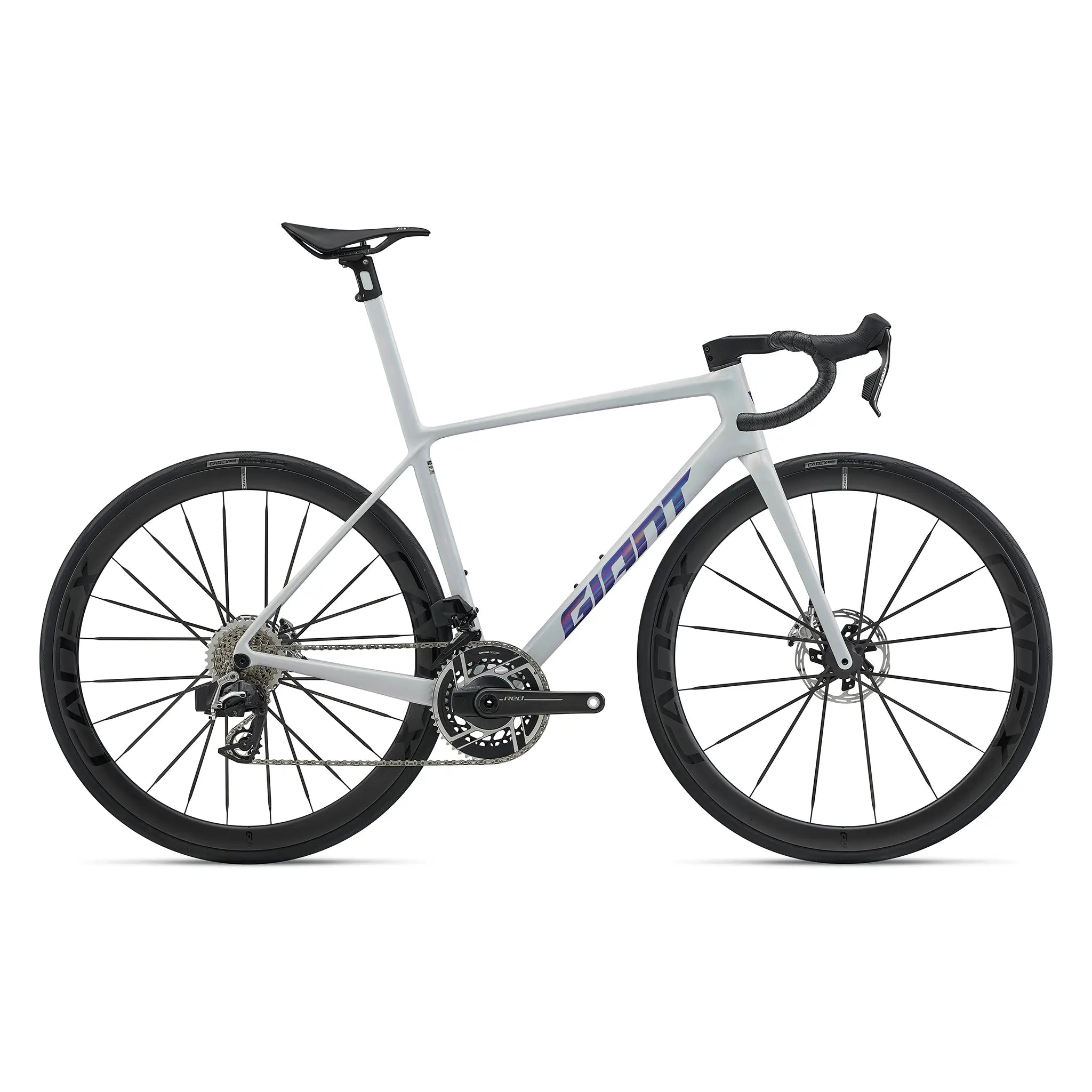

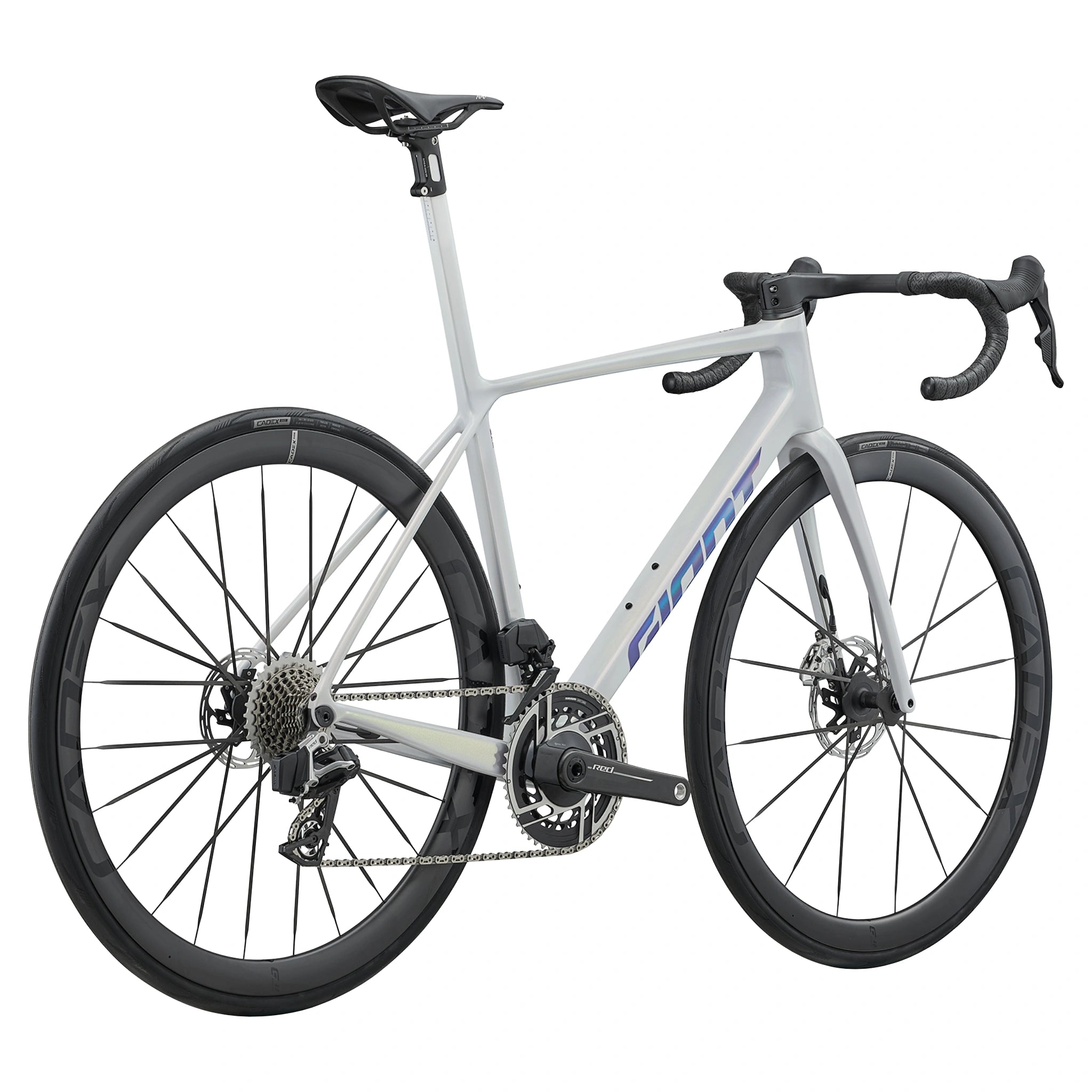

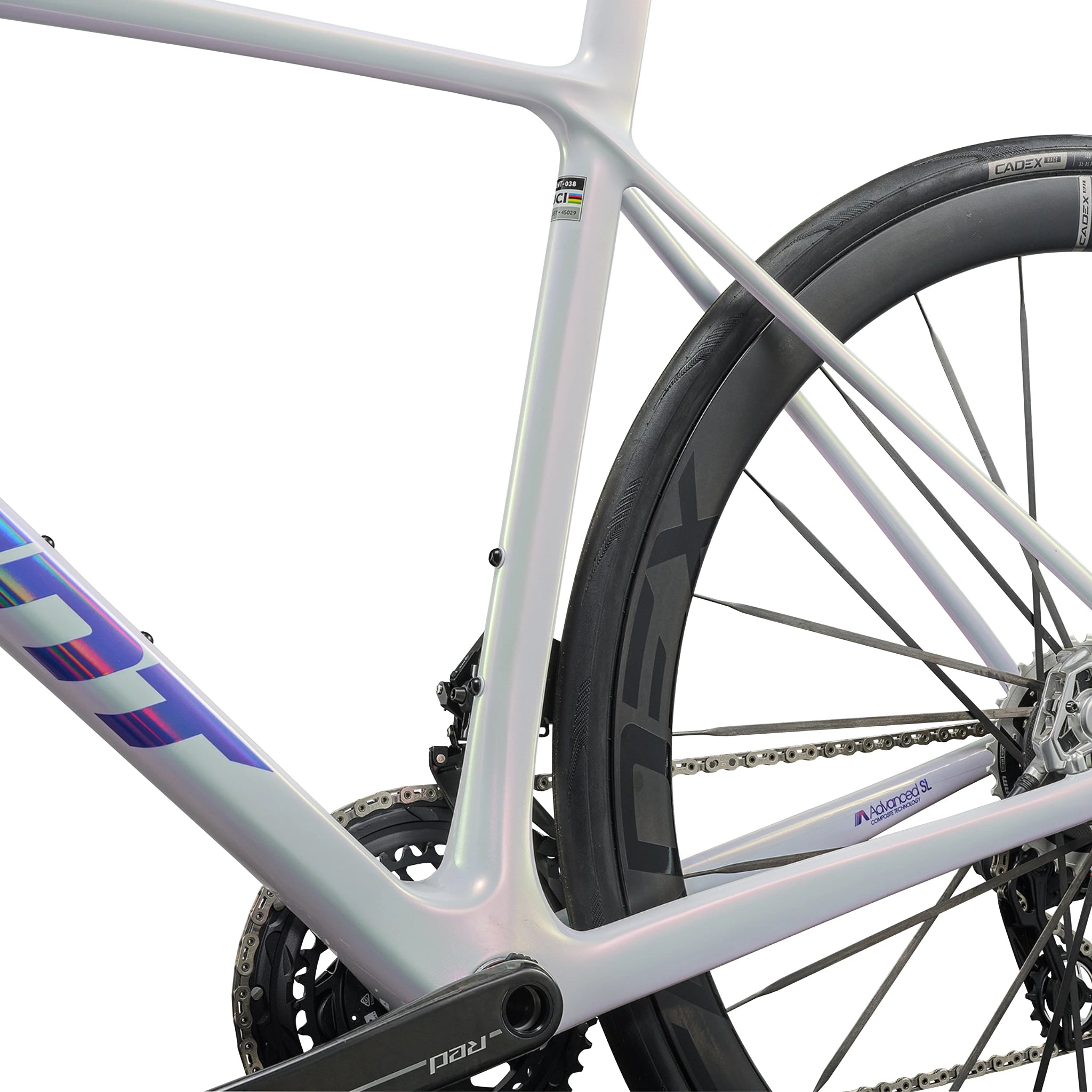

Giant TCR Advanced SL 0 RED
$15,999.00
Superlight, ultra-efficient and rides like a dream. The TCR well-rounded race bike blends industry-leading composite frame engineering with fully integrated components to help you climb, corner and descend with astonishing speed and precise handling.
Quick Highlights
- Advanced SL Carbon Frame
- SRAM RED AXS Drivetrain
- CADEC Max 40 Carbon Wheels
210000129325
Have a question?
If you have any questions do not hesitate to reach out to us and we'll get back to within 24 hours.
Specifications
| Sizes | XS, S, M, M/L, L |
|---|---|
| Colour | rism Pearl |
| Frame | Advanced SL-grade composite, 12x142mm thru-axle, integrated seatpost, disc |
| Fork | Advanced SL-grade composite, full-composite D-shaped OverDrive Aero steerer, 12x100mm thru-axle, disc |

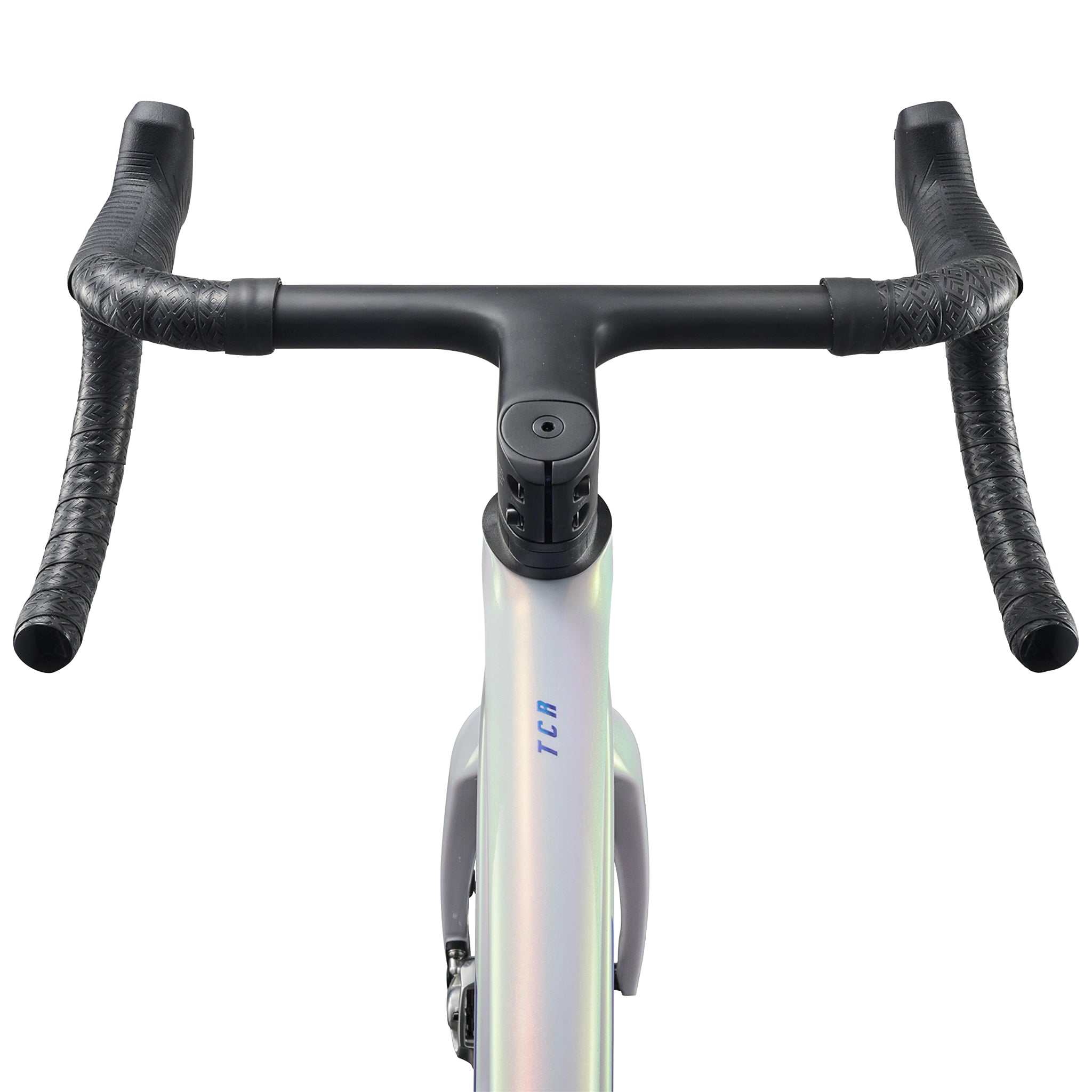

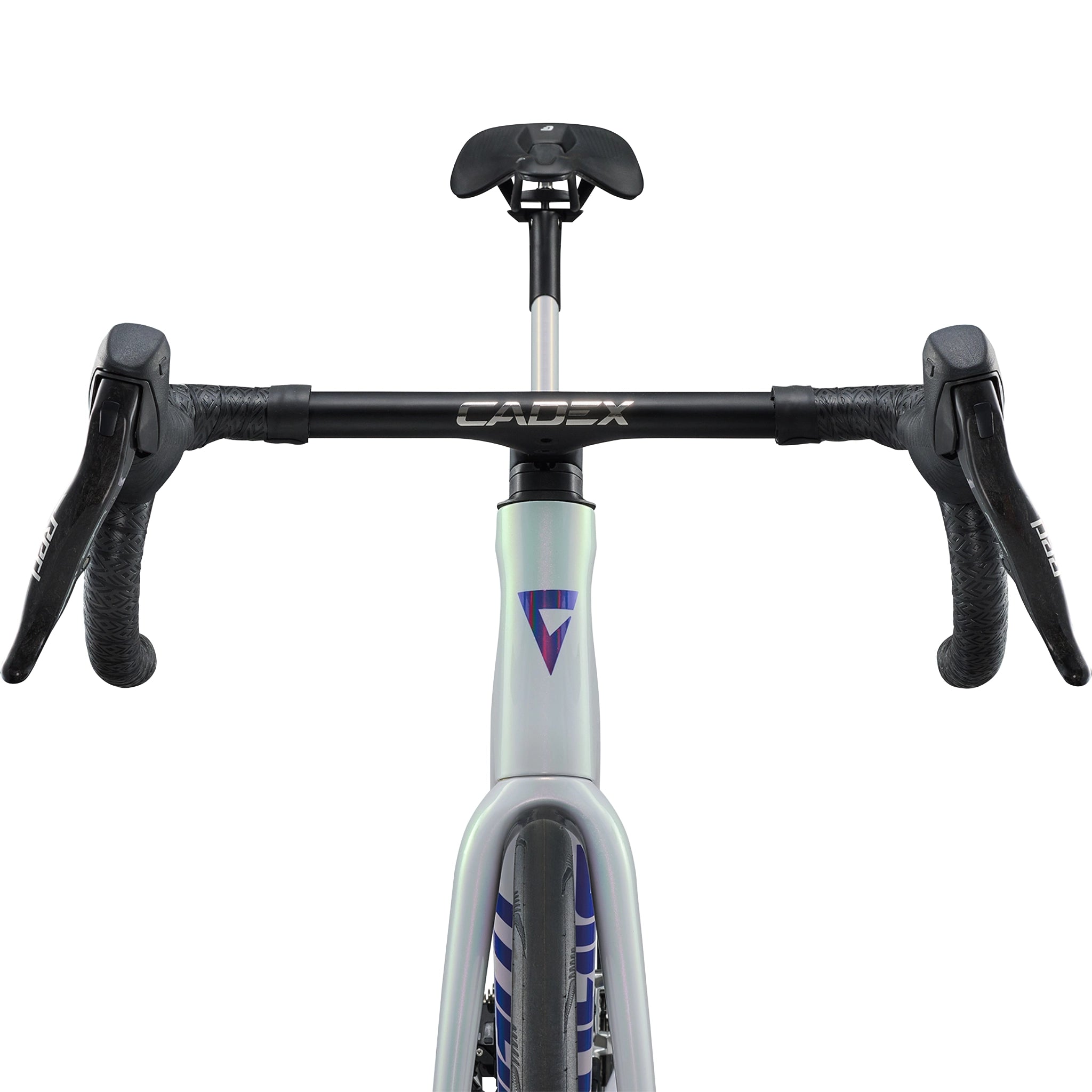

| Handlebar | CADEX Race Integrated, composite |
| Grips | Stratus Lite 2.0 |
| Stem | CADEX Race Integrated |
| Seatpost | Advanced SL-grade composite, integrated design, -5/+15mm offset |
| Saddle | CADEX Amp |
| Shifters | SRAM RED AXS E1, 2x12 |
| Front Derailleur | SRAM RED AXS E1 |
| Rear Derailleur | SRAM RED AXS E1 |
| Brakes |
SRAM RED E1 hydraulic SRAM CenterLine XR rotors [F]160mm, [R]140mm |
| Brake Levers | SRAM RED AXS E1 |
| Cassette | SRAM RED E1, 12-speed, 10x33 |
| Chain | SRAM RED E1 |

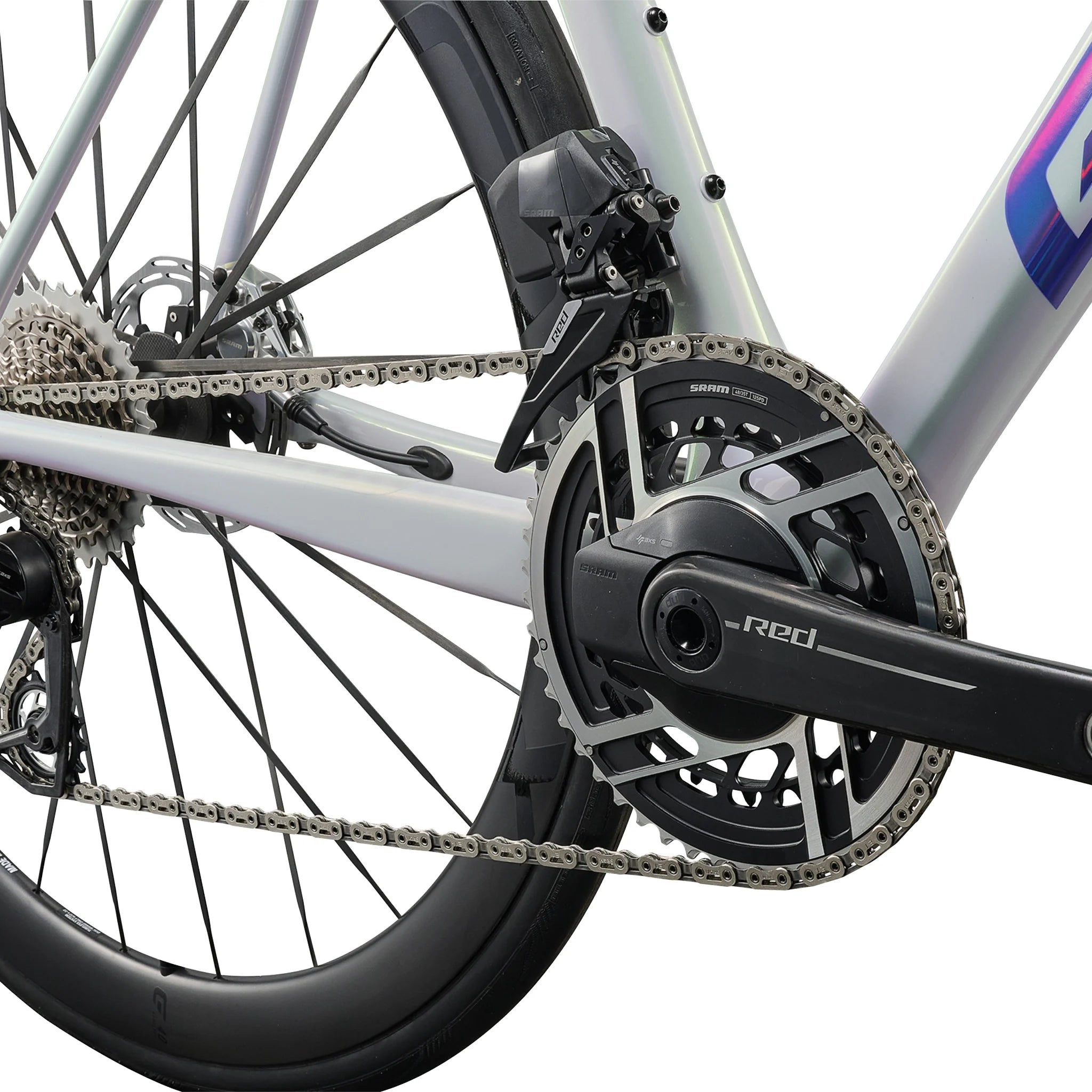

| Crankset | SRAM RED E1 DUB, 35/48 with power meter |
| Bottom Bracket | SRAM DUB ceramic, press fit |
| Rims | CADEX Max 40 Disc WheelSystem, [F] 40mm, [R] 40mm |
| Hubs |
[F] CADEX R3 Aero Hub, CenterLock, 12mm thru-axle, ceramic bearings [R] CADEX R3-C48 Aero Low Friction Hub, 48t ratchet driver, CenterLock, 12mm thru-axle, ceramic bearings |
| Spokes | CADEX Aero Carbon Spoke |
| Tires | CADEX Road Race GC, tubeless, 700x30c (30mm), 170 TPI, folding |
| Extras | Computer mount, tubeless prepared, 33mm max tire size |
*Specifications are subject to change without notice
Geometry
| XS | S | M | ML | L | XL | ||
|---|---|---|---|---|---|---|---|
| A | Reach | 376 | 383 | 388 | 393 | 402 | 412 |
| B | Stack | 517 | 528 | 545 | 558 | 577 | 596 |
| C | Head Tube Angle | 71 | 72.25 | 73 | 73 | 73 | 73 |
| D | BB Drop | 72 | 70 | 69.5 | 69.5 | 67 | 67 |
| E | Wheelbase | 976 | 977 | 980 | 991 | 1006 | 1020 |
| F | Chainstay Length | 405 | 405 | 405 | 405 | 405 | 405 |
| G | Head Tube Length | 120 | 130 | 145 | 165 | 185 | 200 |
| H | Top Tube Length | 520 | 535 | 550 | 565 | 580 | 600 |
| I | Seat Tube Angle | 74.5 | 74 | 73.5 | 73 | 73 | 73 |
| J | Standover Height | 703 | 722 | 743 | 771 | 798 | 807 |
| All measurements in degrees or millimetres | |||||||
Sizing Guide
The sizing chart is a great place to start when picking your next bike but everyone will fit a bike a bit differently. Your torso, arm, and leg lengths all play into what size of bike you may need. Plus, there's your own personal preference.
We always recommend swinging by the shop and taking the bike that you're looking for a spin to see how it feels. If you're unable to come by, looking at the geometry of your current bike and comparing it is a good place to start. If you have any further questions, our customer service team is there to help.
| Size | Height | |
|---|---|---|
| Imperial | Metric | |
| XS | 5'2" - 5'7" | 157 - 169cm |
| S | 5'5" - 5'9" | 165 - 175cm |
| M | 5'7" - 5'11" | 171 - 181cm |
| ML | 5'10" - 6'2" | 177 - 187cm |
| L | 6'0" - 6'4" | 183 - 193cm |
| XL | 6'2" - 6'6" | 189 - 199cm |
Model Numbers
| Size | Model Number | Prism Pearl |
|---|---|
| XS | 1096079103 |
| S | 1096079104 |
| M | 1096079105 |
| M/L | 1096079106 |
| L | 1096079107 |
