The Total Race Bike

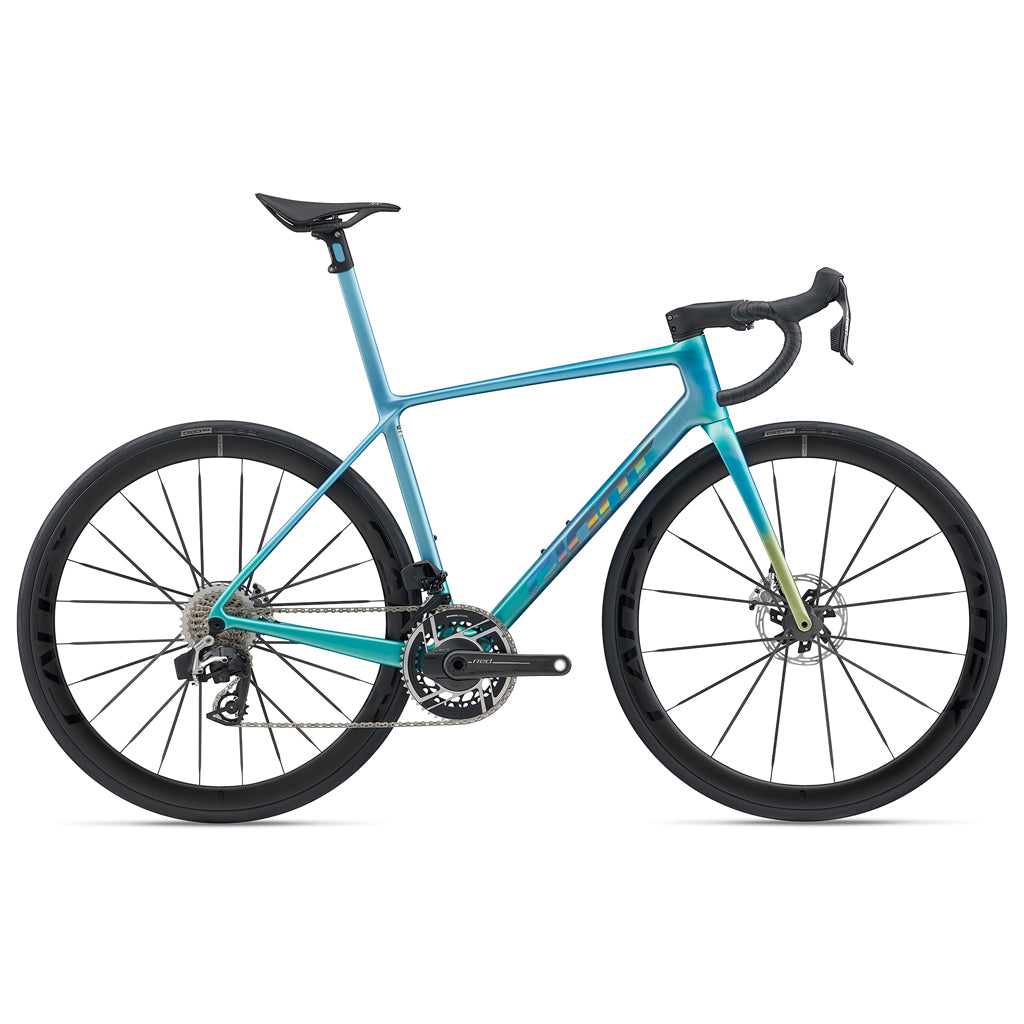

Giant TCR Advanced SL 0 RED
Local Pickup Only
Contact For Availability
Giant TCR Advanced SL 0 RED
$13,399.00
$15,899.00
Save
$2,500.00
This pro-level road bike is made for competitive road riders who obsess over performance—from grand tour pros like Simon Yates to everyday riders trying to reach a new level. The flagship TCR model combines its legendary ride quality with new system integration and construction methods to make it more efficient than ever. The down tube is significantly redesigned for improved aerodynamics, and a new integrated cockpit, including the OverDrive Aero steerer tube and Contact SLR AeroLight stem, offers internal cable routing to further minimize drag. From the integrated seatpost to the CADEX WheelSystem with 40mm deep carbon rims, every component is chosen and tested for system optimization.
210000105705
Have a question?
If you have any questions do not hesitate to reach out to us and we'll get back to within 24 hours.
Specifications
FrameAdvanced SL-grade composite, 12x142mm thru-axle, integrated seatpost, disc
ForkAdvanced SL-grade composite, full-composite D-shaped OverDrive Aero steerer, 12x100mm thru-axle, disc
HandlebarGiant Contact SLR, 11-degree flare
GripsStratus Lite 2.0
StemGiant Contact SLR Aerolight, -10-degree
SeatpostAdvanced SL-grade composite, integrated design, -5/+15mm offset
SaddleCADEX AMP
ShiftersSRAM RED AXS E1, 2x12
Front DerailleurSRAM RED AXS E1
Rear DerailleurSRAM RED AXS E1
Brakes SRAM RED E1 hydraulic, SRAM CenterLine XR rotors [F] 160mm, [R] 140mm
Brake LeversSRAM RED AXS E1
CassetteSRAM RED E1, 12-speed, 10x33
Chain SRAM RED E1
CranksetSRAM RED PM E1 DUB, 35/48 with power meter
Bottom BracketSRAM DUB ceramic, press fit
RimsCADEX Max 40 Disc WheelSystem, [F] 40mm, [R] 40mm
Hubs[F] CADEX R3 Aero Hub, CenterLock, 12mm thru-axle, ceramic bearings [R] CADEX R3-C48 Aero Low Friction Hub, 48t ratchet driver, CenterLock, 12mm thru-axle, ceramic bearings
SpokesCADEX Aero Carbon Spoke
TiresCADEX Road Race GC, tubeless, 700x30c, 170 TPI, folding
ExtrasComputer mount, tubeless prepared, 33mm max tire size
*Specifications are subject to change without notice
Geometry
| XS | S | M | ML | L | XL | ||
|---|---|---|---|---|---|---|---|
| A | Reach | 376 | 383 | 388 | 393 | 402 | 412 |
| B | Stack | 517 | 528 | 545 | 558 | 577 | 596 |
| C | Head Tube Angle | 71 | 72.25 | 73 | 73 | 73 | 73 |
| D | BB Drop | 72 | 70 | 69.5 | 69.5 | 67 | 67 |
| E | Wheelbase | 976 | 977 | 980 | 991 | 1006 | 1020 |
| F | Chainstay Length | 405 | 405 | 405 | 405 | 405 | 405 |
| G | Head Tube Length | 120 | 130 | 145 | 165 | 185 | 200 |
| H | Top Tube Length | 520 | 535 | 550 | 565 | 580 | 600 |
| I | Seat Tube Angle | 74.5 | 74 | 73.5 | 73 | 73 | 73 |
| J | Standover Height | 703 | 722 | 743 | 771 | 798 | 807 |
| All measurements in degrees or millimetres | |||||||
Sizing Guide
The sizing chart is a great place to start when picking your next bike but everyone will fit a bike a bit differently. Your torso, arm, and leg lengths all play into what size of bike you may need. Plus, there's your own personal preference.
We always recommend swinging by the shop and taking the bike that you're looking for a spin to see how it feels. If you're unable to come by, looking at the geometry of your current bike and comparing it is a good place to start. If you have any further questions, our customer service team is there to help.
| Size | Height | |
|---|---|---|
| Imperial | Metric | |
| XS | 5'2" - 5'7" | 157 - 169cm |
| S | 5'5" - 5'9" | 165 - 175cm |
| M | 5'7" - 5'11" | 171 - 181cm |
| ML | 5'10" - 6'2" | 177 - 187cm |
| L | 6'0" - 6'4" | 183 - 193cm |
| XL | 6'2" - 6'6" | 189 - 199cm |
Model Numbers
| Size | Model Number | Turbo Teal |
|---|---|
| XS | 1096050103 |
| S | 1096050104 |
| M | 1096050105 |
| M/L | 1096050106 |
| L | 1096050107 |
