Gravel Crusher
Giant Revolt Advanced SL 0
Local Pickup Only

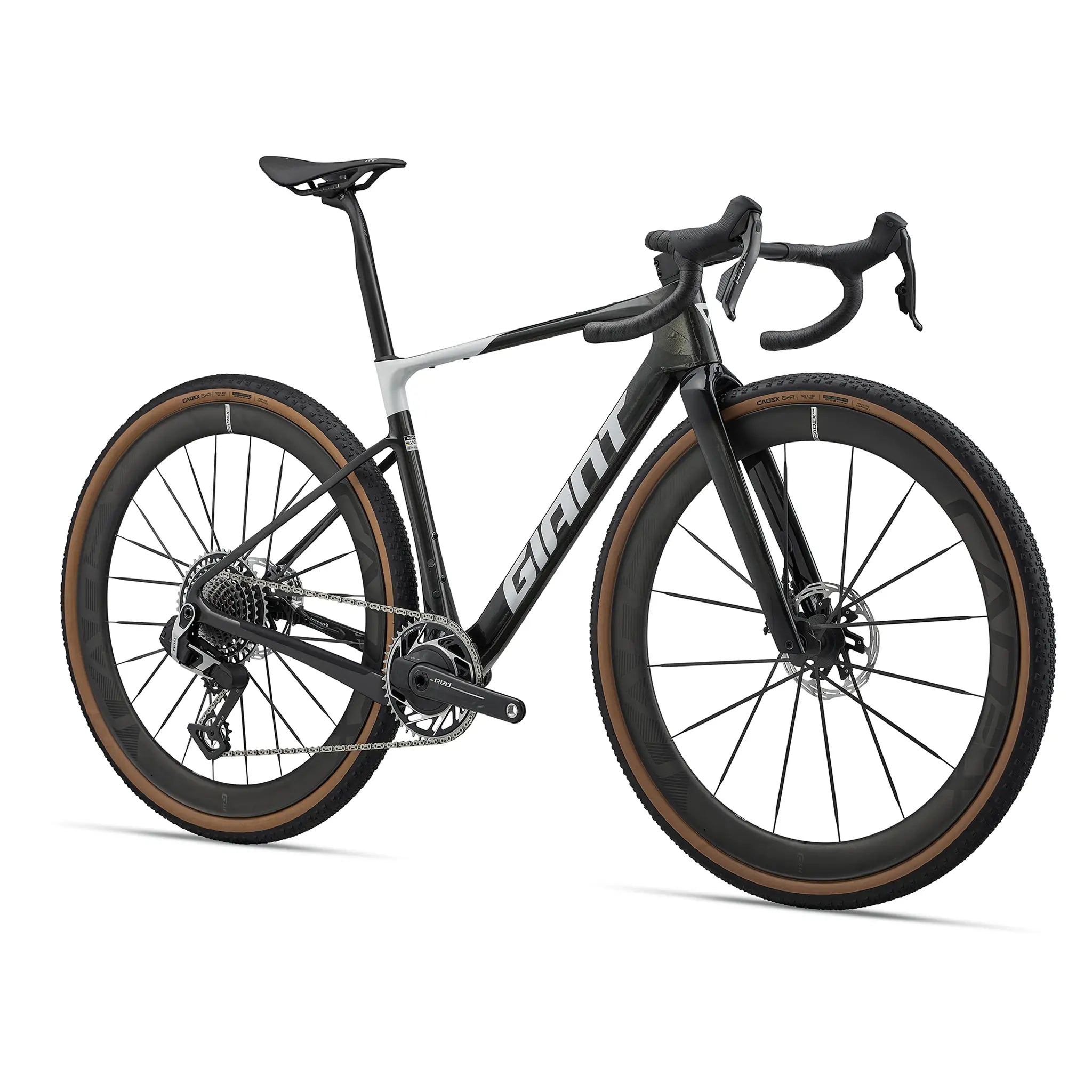

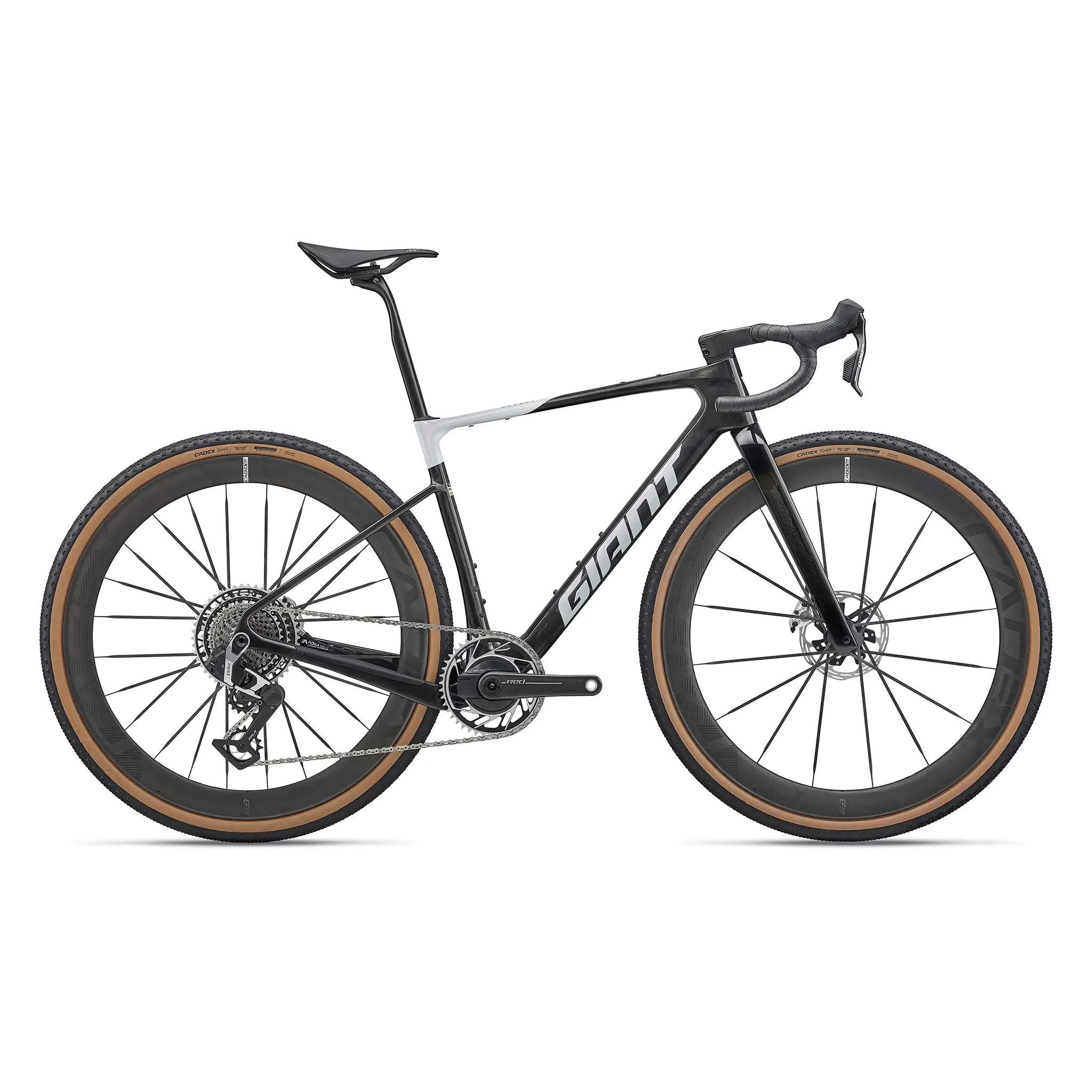

Giant Revolt Advanced SL 0
$15,999.00
The Revolt Advanced SL is Giant's answer to what gravel racing has become. This bike was not
adapted or evolved from its predecessor. It was engineered from the ground up—every tube shape,
every layup, every system decision designed to optimize gravel racing performance over gravel
racing distances.
210000124787
Have a question?
If you have any questions do not hesitate to reach out to us and we'll get back to within 24 hours.
Specifications
| Frame | Advanced SL-grade composite, 12x142mm thru-axle, UDH dropout, disc |
|---|---|
| Fork | Advanced SL-grade composite, full-composite OverDrive steerer, 12x100mm thru-axle, disc |
| Brake Levers | SRAM RED AXS E1 |
| Brakes | SRAM RED E1 hydraulic |
| Rotors | SRAM Paceline X rotors [F] 160mm, [R] 160mm |
| Shifters | SRAM RED XPLR AXS E1, 1x13 |
| Rear Derailleur | SRAM RED XPLR AXS E1 |
| Crankset | SRAM RED E1 DUB Wide, 44t with power meter |
| Cassette | SRAM RED XPLR E1, 13-speed, 10x46 |
| Chain | SRAM RED E1 |
| Bottom Bracket | SRAM DUB Wide, press fit |
| Rims | CADEX Max GXR Disc WheelSystem, 25mm IW, 35mm OW, 50mm H, Wide Guard technology |
| Hubs | [F] CADEX R3 Aero Hub, CenterLock, 12mm thru-axle, ceramic bearings [R] CADEX R3-C60 Aero Hub, 60t ratchet driver, CenterLock, 12mm thru-axle, ceramic bearings |
| Spokes | CADEX Super Aero Carbon Spoke |
| Tires | CADEX GXR, tubeless, 700x45c, 170 TPI, folding, Race Shield+ puncture protection, X-Shield sidewall protection |
| Handlebars | Giant Contact SLR XR Integrated, composite |
| Stem | Giant Contact SLR XR Integrated, -8-degree |
| Tape | Stratus Lite 3.0 |
| Saddle | CADEX Amp |
| Seat Post | Giant D-Fuse SLR XR, composite, +20 offset |
| Extras | Computer mount, chain guide, tubeless prepared, 53mm max tire size, Shimano Road 54-40t, SRAM road 52-39t max chainring size |
*Specifications are subject to change without notice
Geometry
| XS | S | M | ML | L | XL | ||
|---|---|---|---|---|---|---|---|
| A | Reach | 389 | 391 | 395 | 401 | 410 | 413 |
| B | Stack | 525 | 536 | 557 | 573 | 592 | 616 |
| C | Head Tube Angle | 70.5° | 71.0° | 71.5° | 72.0° | 72.0° | 72.0° |
| D | Bottom Bracket Drop | 80 | 80 | 80 | 80 | 80 | 80 |
| E | Wheelbase | 1026 | 1027 | 1033 | 1039 | 1055 | 1066 |
| F | Chain Stay Length | 433.0 | 433.0 | 433.0 | 433.0 | 433.0 | 433.0 |
| G | Head Tube Length | 90 | 100 | 120 | 135 | 155 | 180 |
| H | Top Tube Length | 530 | 540 | 550 | 565 | 580 | 590 |
| I | Seat Tube Angle | 75.00° | 74.50° | 74.50° | 74.00° | 74.00° | 74.00° |
| J | Standover Height | 726 | 743 | 762 | 779 | 798 | 818 |
| All measurements in degrees or millimetres | |||||||
Sizing Guide
The sizing chart is a great place to start when picking your next bike but everyone will fit a bike a bit differently. Your torso, arm, and leg lengths all play into what size of bike you may need. Plus, there's your own personal preference.
We always recommend swinging by the shop and taking the bike that you're looking for a spin to see how it feels. If you're unable to come by, looking at the geometry of your current bike and comparing it is a good place to start. If you have any further questions, our customer service team is there to help.
| Size | Height | |
|---|---|---|
| Imperial | Metric | |
| XS | 5'1" - 5'5" | 155 - 166cm |
| S | 5'3" - 5'7" | 159 - 171cm |
| M | 5'7" - 5'11" | 169 - 181cm |
| ML | 5'9" - 6'1" | 174 - 186cm |
| L | 5'10" - 6'3" | 179 - 191cm |
| XL | 6'2" - 6'7" | 189 - 200cm |
Model Numbers
| Size | Model Number |
|---|---|
| Raw Carbon | |
| XS | 1081001103 |
| S | 1081001104 |
| M | 1081001105 |
| M/L | 1081001106 |
| L | 1081001107 |
