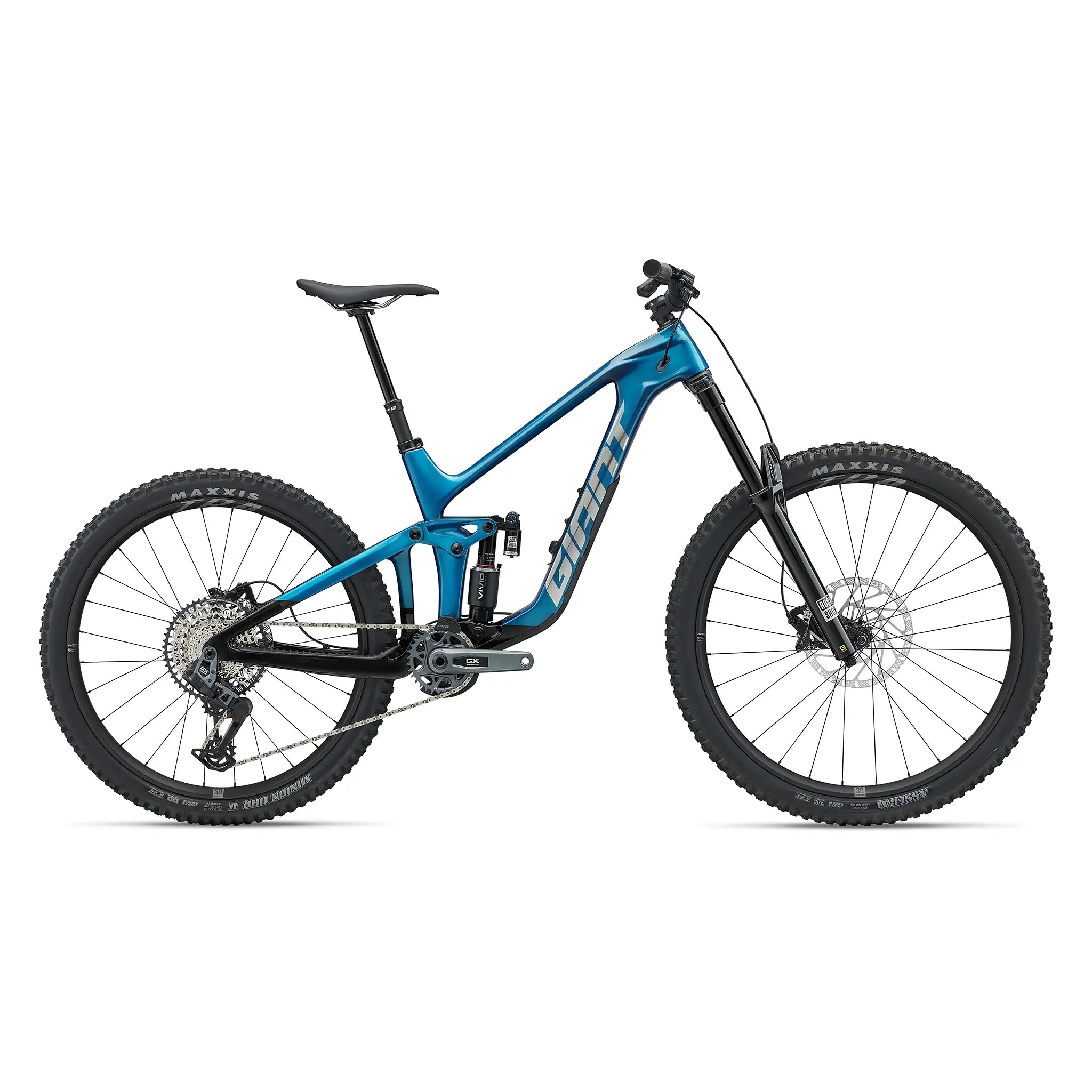

Reign Supreme
Giant Reign Advanced
Local Pickup Only
Contact For Availability
Giant Reign Advanced
$8,199.00
Go fast, get rowdy and nail new lines. With a full-composite chassis, developed with Giant’s enduro racing pros, this hard-charging 29/27.5’er has 160mm of Maestro rear suspension, adjustable geometry, and the option to switch to a 29-inch rear wheel.
Quick Highlights
- RockShox Ultimate Suspension
- SRAM GX AXS Transmission Drivetrain
- TRP EVO Pro Brakes
210000129589
Colour
Quantity
Have a question?
If you have any questions do not hesitate to reach out to us and we'll get back to within 24 hours.
Specifications
| Sizes | S, M, L, XL |
|---|---|
| Colour | Luminous Lagoon |
| Frame | Advanced-grade composite front and rear triangles, 160mm Maestro suspension, flip chip - Maestro 3, 12x148mm thru-axle, 27.5 or 29-inch rear wheel compatible, integrated down tube storage |
| Fork | RockShox Zeb Ultimate, 180mm, Debonair, Charger 3.2 RC2 damper, 15x110mm, Maxle Stealth |
| Shock | RockShox Vivid Ultimate, RCT2, adjustable hydraulic bottom out, 205/65 |
| Handlebar | Giant Contact TR35, 35mm rise, 35mm |
| Grips | Giant Tactal Pro single lock-on |
| Stem | Giant Contact SL 35 |
| Seatpost | Giant Contact Switch AT adjustable dropper, remote S: 110-140mm travel / 30.9 x 395mm M: 140-170mm travel / 30.9 x 470mm L/XL: 170-200mm travel / 30.9 x 530mm |
| Saddle | Giant Romero SL |
| Shifters | SRAM AXS Pod, discrete clamp, 1x12 |
| Rear Derailleur | SRAM GX Eagle transmission AXS |
| Brakes |
TRP EVO Pro HD-M9040, 4-piston, hydraulic TRP RS05E 2.3mm Race rotors [F] 180mm, [R] 180mm |
| Brake Levers | TRP EVO Pro |
| Cassette | SRAM GX XG-1275 Eagle Transmission, 12-speed, 10x52 |
| Chain | SRAM GX Eagle Transmission |
| Crankset | SRAM GX Eagle Transmission, 32t, 55mm chainline |
| Bottom Bracket | SRAM DUB, press fit |
| Rims | Giant TRA 6069 alloy, welded, hookless 30mm IW, 40mm OW, 21mm H, Wide Guard technology [F] 29, [R] 27.5 |
| Hubs |
[F] Giant MTB alloy, 6-bolt [R] Giant MTB alloy, 72t POE, 6-bolt, 6-pawl, HG-driver |
| Spokes | Sapim Laser straight pull, DBL technology |
| Tires | [F] Maxxis Assegai 29x2.5" WT, MaxxTerra, EXO+, TR, 60TPI, folding [R] Maxxis Minion DHR II 27.5x2.4" WT, MaxxTerra, DD, TR, tubeless, 120TPI, folding |
| Extras | MRP AMG CS chain guide, 3M tailgate protector, integrated down tube storage bag, tubeless prepared, 2.5" max tire size, 36t max chainring size |
*Specifications are subject to change without notice
Geometry
| S | M | L | XL | ||
|---|---|---|---|---|---|
| HIGH|MID|LOW | HIGH|MID|LOW | HIGh|MID|LOW | HIGH|MID|LOW | ||
| A | Reach | 426 | 430 | 434 | 456 | 460 | 464 | 476 | 480 | 484 | 506 | 510 | 514 |
| B | Stack | 627 | 624 | 622 | 632 | 629 | 626 | 641 | 638 | 635 | 645 | 642 | 639 |
| C | Head Tube Angle | 63.5° | 63.9° | 64.2° | 63.5° | 63.9° | 64.2° | 63.5° | 63.9° | 64.2° | 63.5° | 63.9° | 64.2° |
| D | Bottom Bracket Drop | 35 | 30 | 25 | 35 | 30 | 25 | 35 | 30 | 25 | 35 | 30 | 25 |
| E | Wheelbase | 1214 | 1213 | 1212 | 1246 | 1245 | 1244 | 1271 | 1270 | 1269 | 1304 | 1303 | 1302 |
| F | Chainstay Length | 445 | 443 | 442 | 445 | 443 | 442 | 445 | 443 | 442 | 445 | 443 | 442 |
| G | Head Tube Length | 100 | 105 | 115 | 120 |
| H | Top Tube Length | 556 | 555 | 555 | 587 | 586 | 585 | 620 | 620 | 619 | 652 | 652 | 651 |
| I | Seat Tube Angle | 78.3° | 78.7° | 79.0° | 78.3° | 78.7° | 79.0° | 77.3° | 77.7° | 78.0° | 77.3° | 77.7° | 78.0° |
| J | Standover Height | 720 | 724 | 729 | 735 | 739 | 744 | 751 | 756 | 760 | 746 | 751 | 756 |
| All measurements in degrees or millimetres | |||||
Sizing Guide
The sizing chart is a great place to start when picking your next bike but everyone will fit a bike a bit differently. Your torso, arm, and leg lengths all play into what size of bike you may need. Plus, there's your own personal preference.
We always recommend swinging by the shop and taking the bike that you're looking for a spin to see how it feels. If you're unable to come by, looking at the geometry of your current bike and comparing it is a good place to start. If you have any further questions, our customer service team is there to help.
| Size | Height | |
|---|---|---|
| Imperial | Metric | |
| S | 5'4" - 5'8" | 163- 172cm |
| M | 5'7" - 5'11" | 171 - 188cm |
| L | 5'10" - 6'2" | 179 - 188cm |
| XL | 6'2" - 6'6" | 187 - 198cm |
Model Numbers
| Size | Model Number | Luminous Lagoon |
|---|---|
| S | 1125010104 |
| M | 1125010105 |
| L | 1125010107 |
| XL | 1125010108 |
