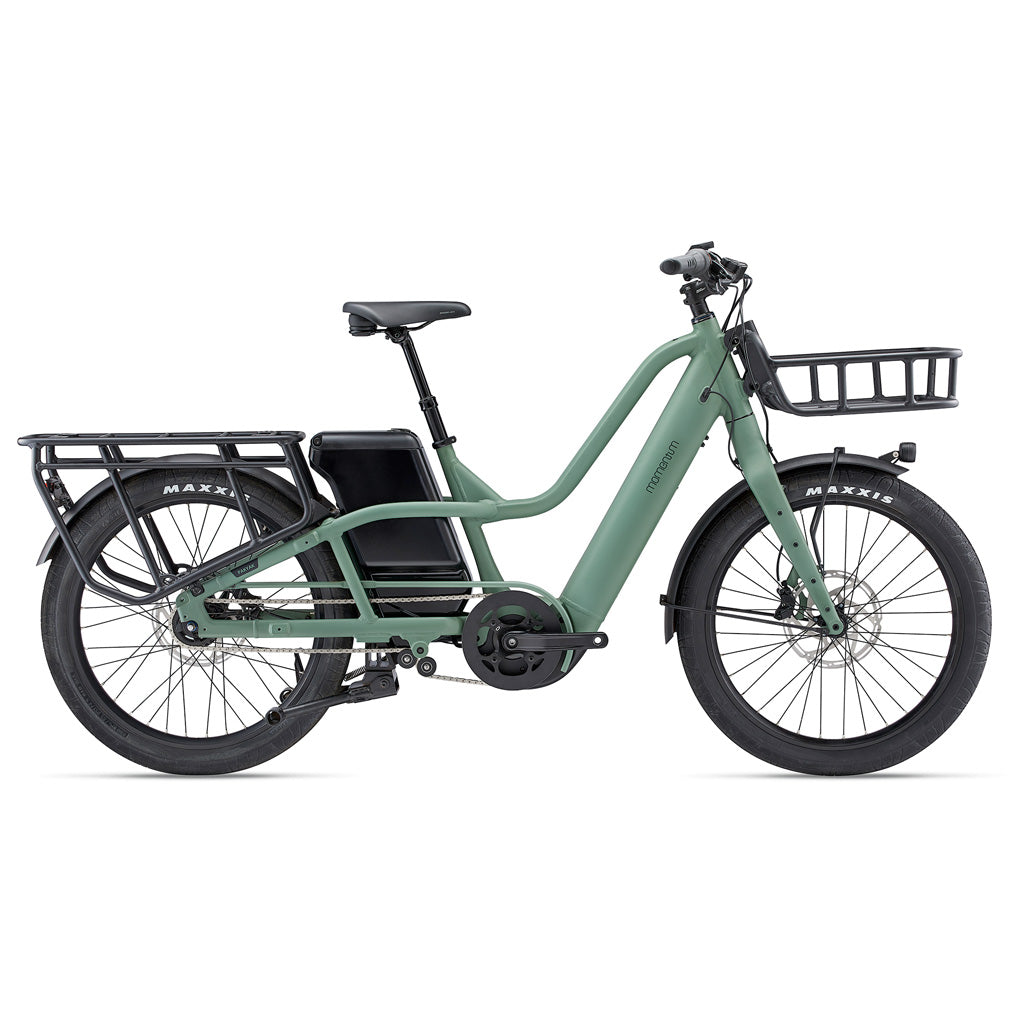

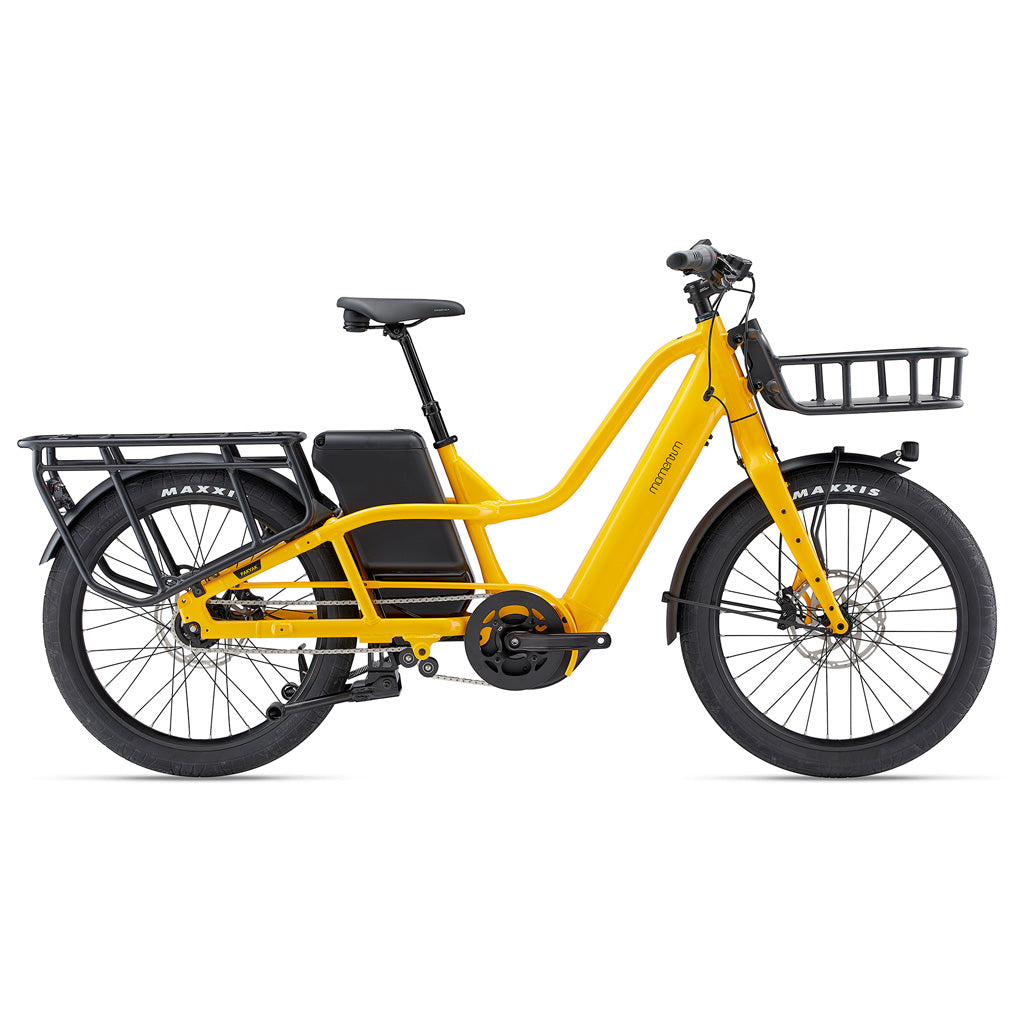

Giant / Momentum PakYak E+
Specifications
FrameALUXX-Grade Aluminum, mid step
ForkALUXX-Grade Aluminium, Rigid Fork with Utility Feature
HandlebarAluminum Rider 31.8x720mm
GripsMomentum dual compound
StemGiant Contact
SeatpostSuspension Dropper 30.9mm, Travel: 40mm, Height 70mm Adjustment
SaddleSelle Royal Essenza
PedalsAnti-slip
ShiftersShimano Nexus 5sp RevoShift
BrakesTektro HD-E737, 4-piston, hydraulic disc for Cargo, 203mm [F&R]
Brake LeversTektro 2 Fingers
Cassette24T
ChainKMC Z1eHX NP/NP
CranksetForged Alloy minimal Q-factor, 46T
RimsAlloy, 35mm inner width, e-bike optimized
HubsShimano Nexus 5-Speed [R]
SpokesStainless steel, 13G [F] 13G [R]
TiresMaxxis Hook Worm, 24x2.5", Wire Bead, 60TPI
ExtrasSupernova E2 Mini Pro, Axa BlueLine Steady E6 rear, Center Mount Utility Specific Kickstand, Alloy Front/Rear Carrier, Range Extender Box
MotorSyncDrive Pro, 80Nm, powered by Yamaha
ControlsRideControl Dash, full colour LCD screen, 5 power level plus auto mode
DisplayRideControl Dash, full colour LCD screen
BatteryEnergyPak Smart Compact 500Wh, Auxiliary EnergyPak Smart Compact 500Wh compatible
ChargerEnergyPak 6A smart charger
Geometry

One Size | ||
---|---|---|
A | Reach | 390 |
B | Stack | 633 |
C | Head Tube Angle | 70.0° |
D | Bottom Bracket Drop | 30 |
E | Wheelbase | 1284 |
F | Chain Stay Length | 638 |
G | Head Tube Length | 205 |
H | Top Tube Length | 620 |
I | Seat Tube Angle | 70.0° |
J | Standover Height | 574 |
All measurements in degrees or millimetres |
Sizing Guide
The sizing chart is a great place to start when picking your next bike but everyone will fit a bike a bit differently. Your torso, arm, and leg lengths all play into what size of bike you may need. Plus, there's your own personal preference.
We always recommend swinging by the shop and taking the bike that you're looking for a spin to see how it feels. If you're unable to come by, looking at the geometry of your current bike and comparing it is a good place to start. If you have any further questions, our customer service team is there to help.
Size | Height | Imperial | Metric |
---|---|---|
One Size | 5'1" - 6'3" | 155 - 190cm |
