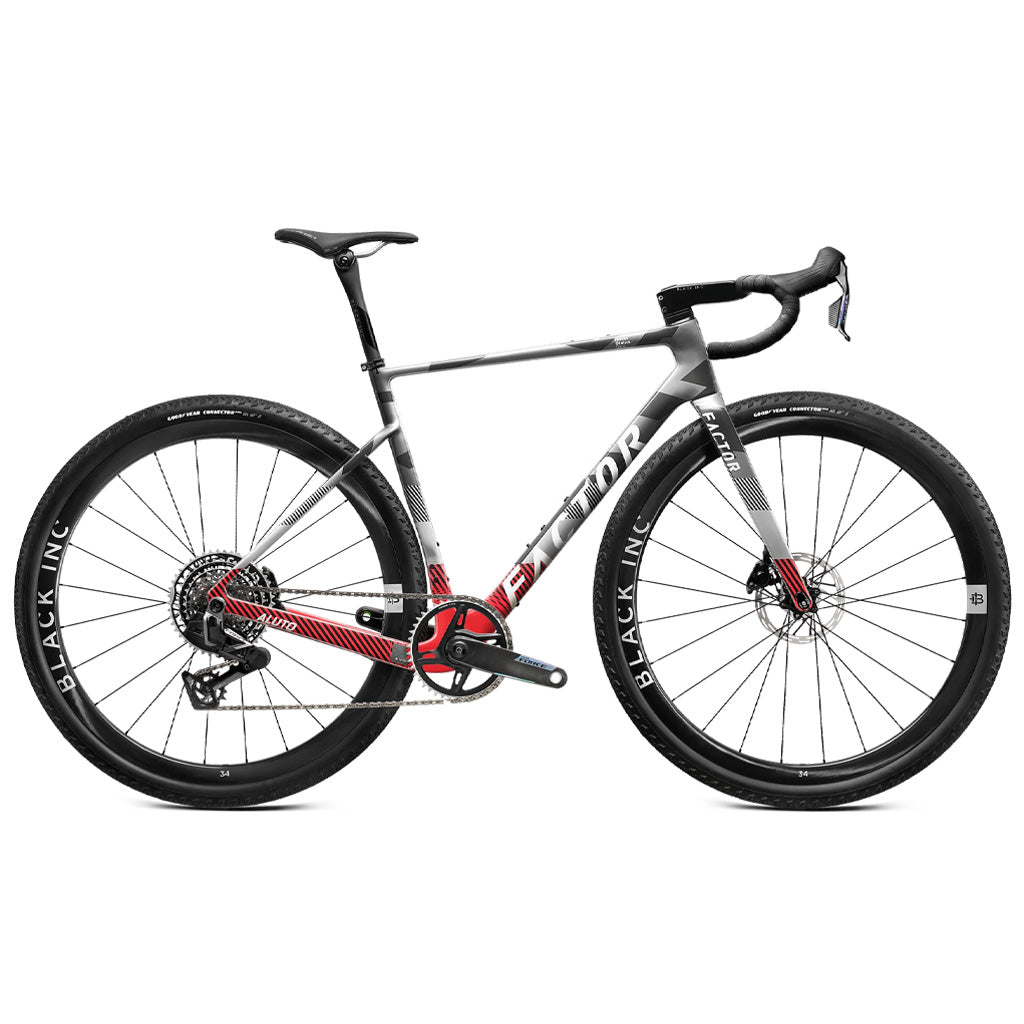

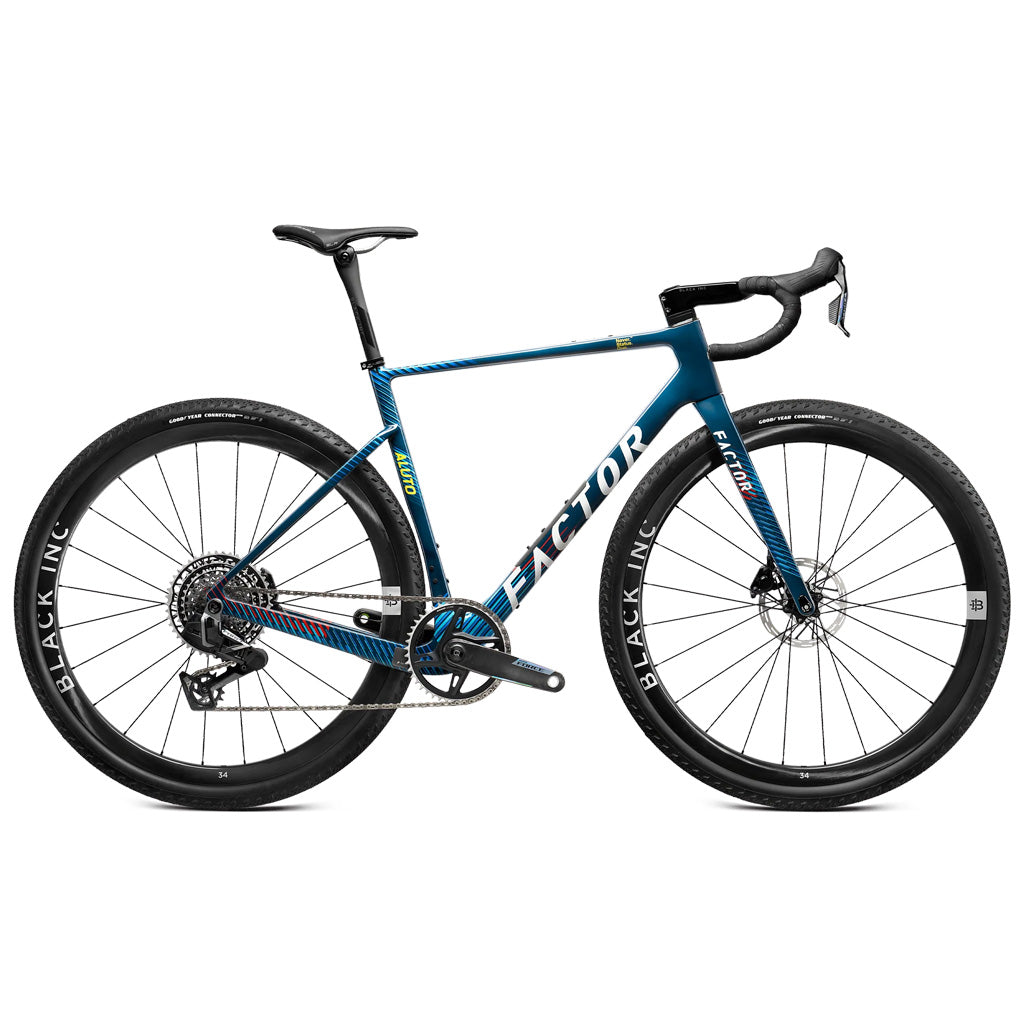

Factor Aluto Force XPLR w/ Power Meter
Purpose built, but not. The Factor Aluto is the gravel bike that doesn't shy away from anything as it's just as at home with a race plate mounted as it is for those long grinding adventures on the roads less travelled. The Aluto boasts knife edged handling thanks to tuned geometry and it's well thought out carbon layup that makes sure that it's stiff in the right places. But not too stiff, the layup alongside the tubing shape helps the Aluto maintain compliance and comfort on those all-day or even longer rides. It is a bike that feels bright, light, and alive. A pocketknife. With a razor’s edge.
Specifications
SIZES
49, 52, 54, 56, 58, 61
FORK
Factor Aluto Carbon
HEADSET
1.5" Bearings
Cockpit
Black Inc Integrated Barstem Reach 75mm, drop 116mm.
Cockpit Sizing
Size 49 - 380mm/90mm, Size 52 - 380mm/100mm, Size 54
- 400mm/100mm, Size 56 - 400mm/100mm, Size 58 - 400mm/110mm, Size 61 -
400mm/110mm
SEATPOST
Aluto Carbon Post, 49-56 0mm offset, 58-61 25mm offset
SADDLE
Selle Italia SLR Boost TM Superflow 145mm
SHIFTERS
SRAM Force AXS E1, 12 speed
BRAKE CALIPERS
SRAM Force E1
BRAKE ROTOR
SRAM Paceline Centerlock 160mm
REAR DERAILLEUR
SRAM Force AXS XPLR E1, 13 speed
CASSETTE
SRAM Force, 10-48, 13 Speed
CHAIN
SRAM Force E1, 13 speed
CRANKSET
SRAM Force XPLR AXS E1, 44T, DUB, with power meter
BOTTOM BRACKET
SRAM DUB, T47A
REAR WHEEL
Black Inc THIRTY FOUR, 25mm IW, HU-03B Hub, 24H, centerlock, tubeless
compatible
REAR WHEEL
Black Inc THIRTY FOUR, 25mm IW, HU-03B Hub, 24H, centerlock,
tubeless compatible
TIRES
Goodyear Connector Speed
MAX TIRE WIDTH (ACTUAL)
47mm Measured
Geometry
| 49 | 52 | 54 | 56 | 58 | 61 | ||
|---|---|---|---|---|---|---|---|
| A | Reach | 377 | 385 | 393 | 402 | 412 | 422 |
| B | Stack | 530 | 547 | 565 | 585 | 605 | 625 |
| C | Head Tube Angle | 71.5° | 71.9° | 72° | 72° | 72° | 72° |
| D | Trail | 64.4 | 61.8 | 61.2 | 61.2 | 61.2 | 61.2 |
| E | Bottom Bracket Drop | 80 | 80 | 78 | 78 | 78 | 78 |
| F | Wheelbase | 992.6 | 1002.5 | 1016.5 | 1035 | 1053 | 1070 |
| G | Chainstay Length | 420 | 420 | 420 | 423 | 425 | 425 |
| J | Seat Tube Angle | 74.5° | 74° | 74° | 73.5° | 73.5° | 73.5° |
| K | Standover Height | 749.5 | 770 | 793 | 812 | 833 | 850.5 |
| All measurements in degrees or millimetres | |||||||
