210000074575

$7,699.99 CAD
/
  • Shipping Canada Wide
Colour
Size

This site is protected by hCaptcha and the hCaptcha Privacy Policy and Terms of Service apply.

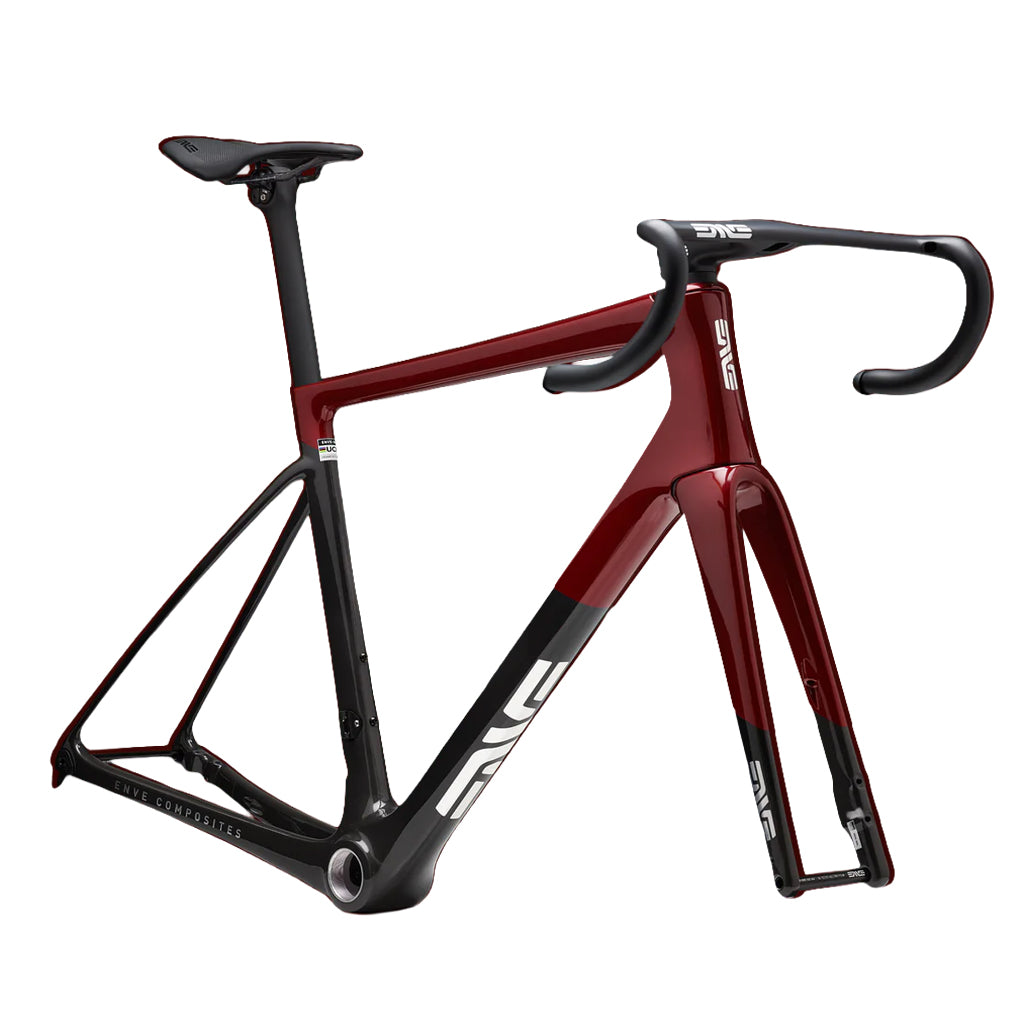

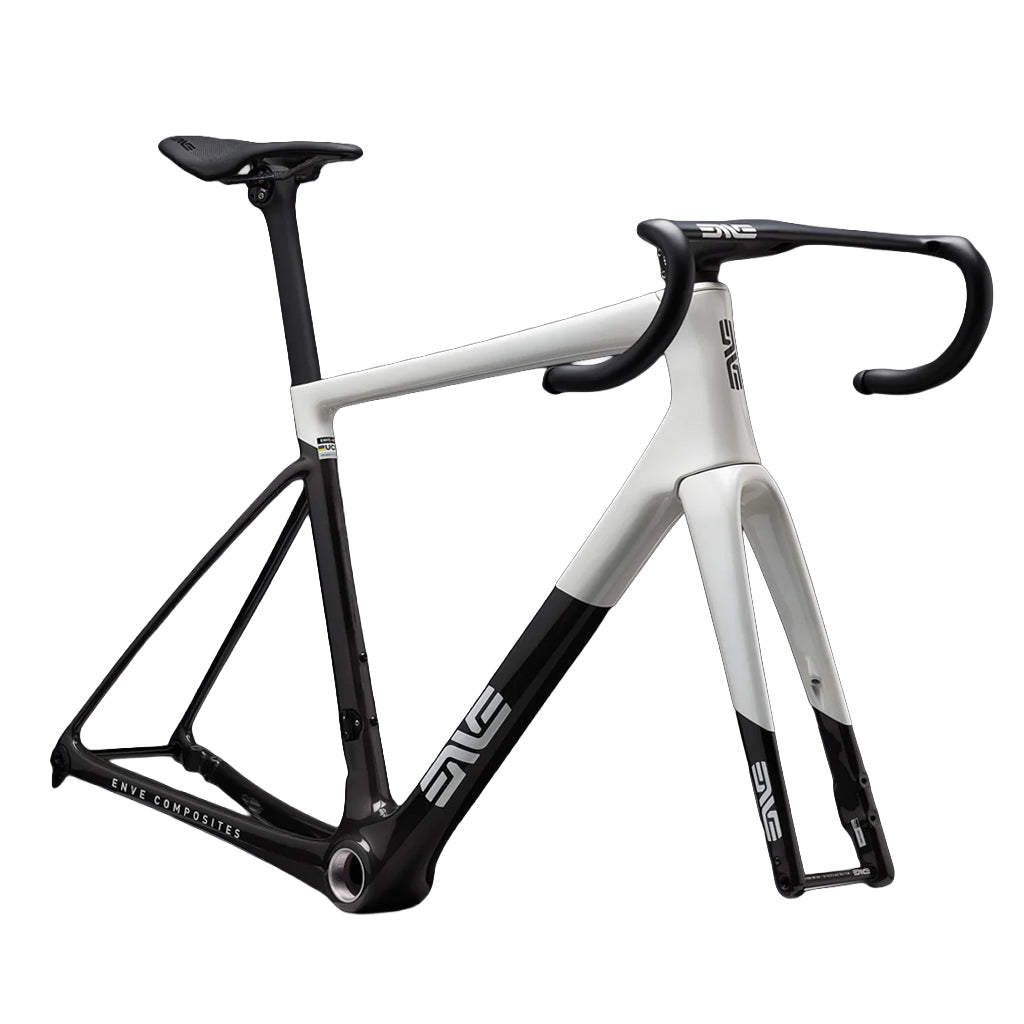

The Melee comes as a chassis only, this includes the stem, bar, seat post, and frame.

The ENVE Melee takes design cues from our own Custom Road, but where the Custom Road prioritizes customization, the Melee prioritizes efficiency and speed. With geometry and handling characteristics optimized for 27 to 32 mm tires, the Melee is a modern road race bike engineered to provide the performance competitive riders demand. The Melee performs in all the areas that count – efficient power transmission, weight, aerodynamics and versatility. To achieve the versatility today’s road racers require, the Melee provides riders with up to 35 mm of tire clearance

  • Real-World Fast™ aero optimization
  • Tube shapes complement SES rim shapes
  • Max Tire Clearance: 35 mm
  • Frame Weight: 850 grams (56cm, Painted, No Hardware)

If you're wanting to change out the handlebar, stem, or seatpost let us know. We're happy to accommodate changes.

Frame Material
ENVE M.O.D Carbon

Headset
ENVE Integrated IS52/IS52 Internal Drop-In

*All specifications are subject to change without notice

Frame Size Aero In-Route Handlebar In-Route Aero Road Stem Aero Seatpost
47cm 37cm | 42cm 80mm 275mm | 0 offset
50cm 37cm | 42cm 80mm 275mm | 0 offset
52cm 37cm | 42cm 90mm 275mm | 0 offset
54cm 39cm | 44cm 100mm 350mm | 0 offset
56cm 39cm | 44cm 110mm 350mm | 0 offset
58cm 41cm | 46cm 110mm 350mm | 20 offset
60cm 41cm | 46cm 110mm 350mm | 20 offset

Target Application
Road Race/Performance

Sizes (cm)
47, 50, 52, 54, 56, 58, 60

Fork Rake
55, 51, 47, 43, 39

Frame Size/Fork Rake
47cm/55, 50cm/51, 52cm/47, 54cm/47,
56cm/43, 58cm/43, 60cm/39

Frame Weight
850g +/- 2% (Size 56, Painted, No Hardware)

Headset Bearing
1.5″ IS52 Upper and Lower

Seat Post Diameter
ENVE Aero

BB Type
T47 Inboard Bearing

Brake Mount
Flat Mount

Front Axle
12×100 (Total Length: 122, TP:1.5, TL:15)

Rear Axle
12×142 (Total Length: 168, TP:1.0, TL:14)

Minimum Tire Size
25c

Optimal Tire Size
27c-32c

Maximum Listed Tire Clearance
35c

Frame Routing
Internal
47 50 52 54 56 58 60
A Reach 370 376 381 386 394 400 408
B Stack 509 525 539 552 571 589 609
C Head Tube Angle 71.1° 71.5° 72.2° 72.4° 73.3° 73.3° 73.6°
D Front Centre 582 585 584 592 593 605 611
E Bottom Bracket Drop 75 75 75 73 73 71 71
F Wheelbase 980 983 983 991 992 1006 1013
G Chainstay Length 410 410 410 410 410 412 412
H Head Tube Length 105 120 130 145 160 180 200
I Top Tube Length 506 522 536 547 563 578 598
J Seat Tube Angle 75.1 74.5 74 73.8 73.5 73.2 72.7
K Standover Height 693 710 728 744 768 787 809

*All measurements in degrees or millimetres
