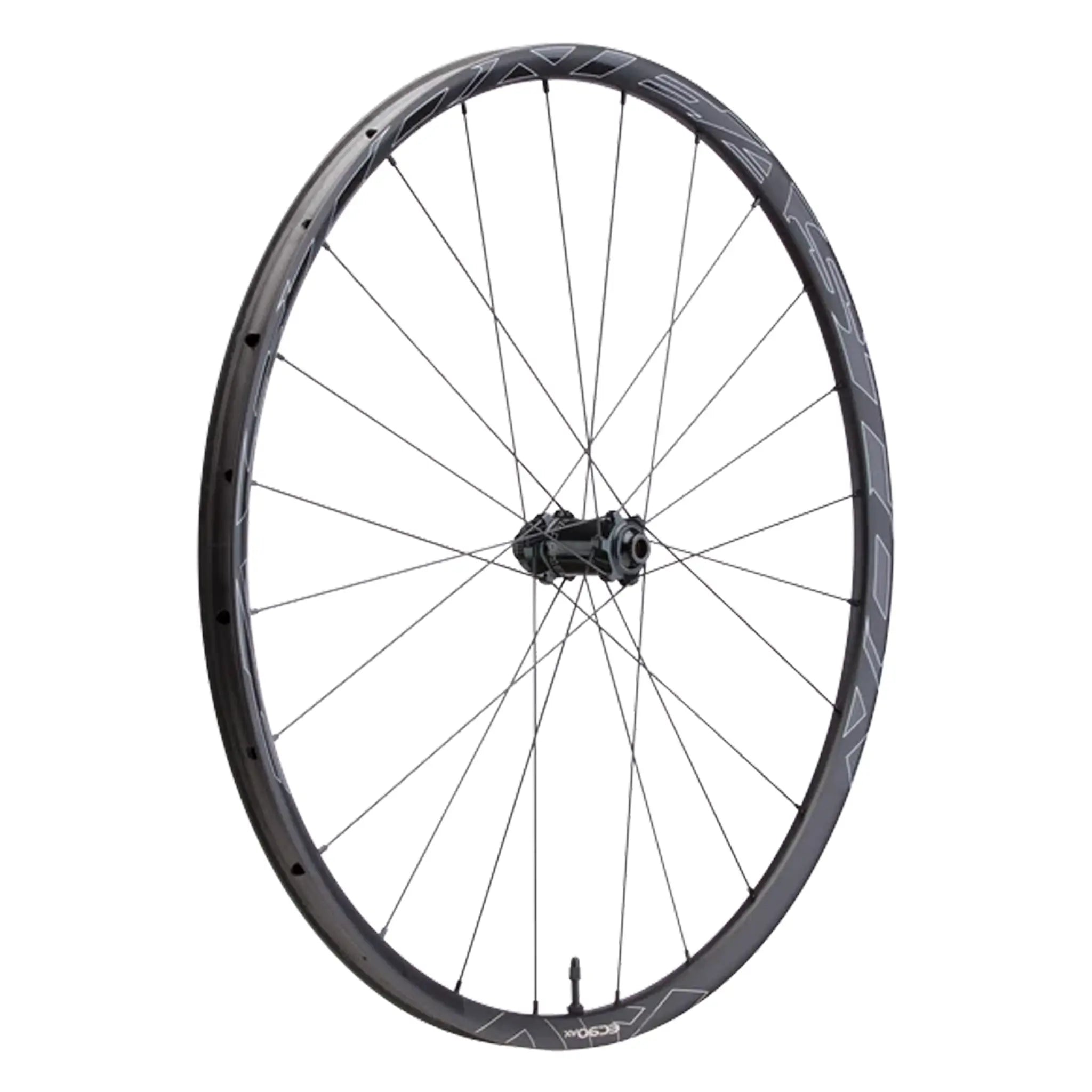

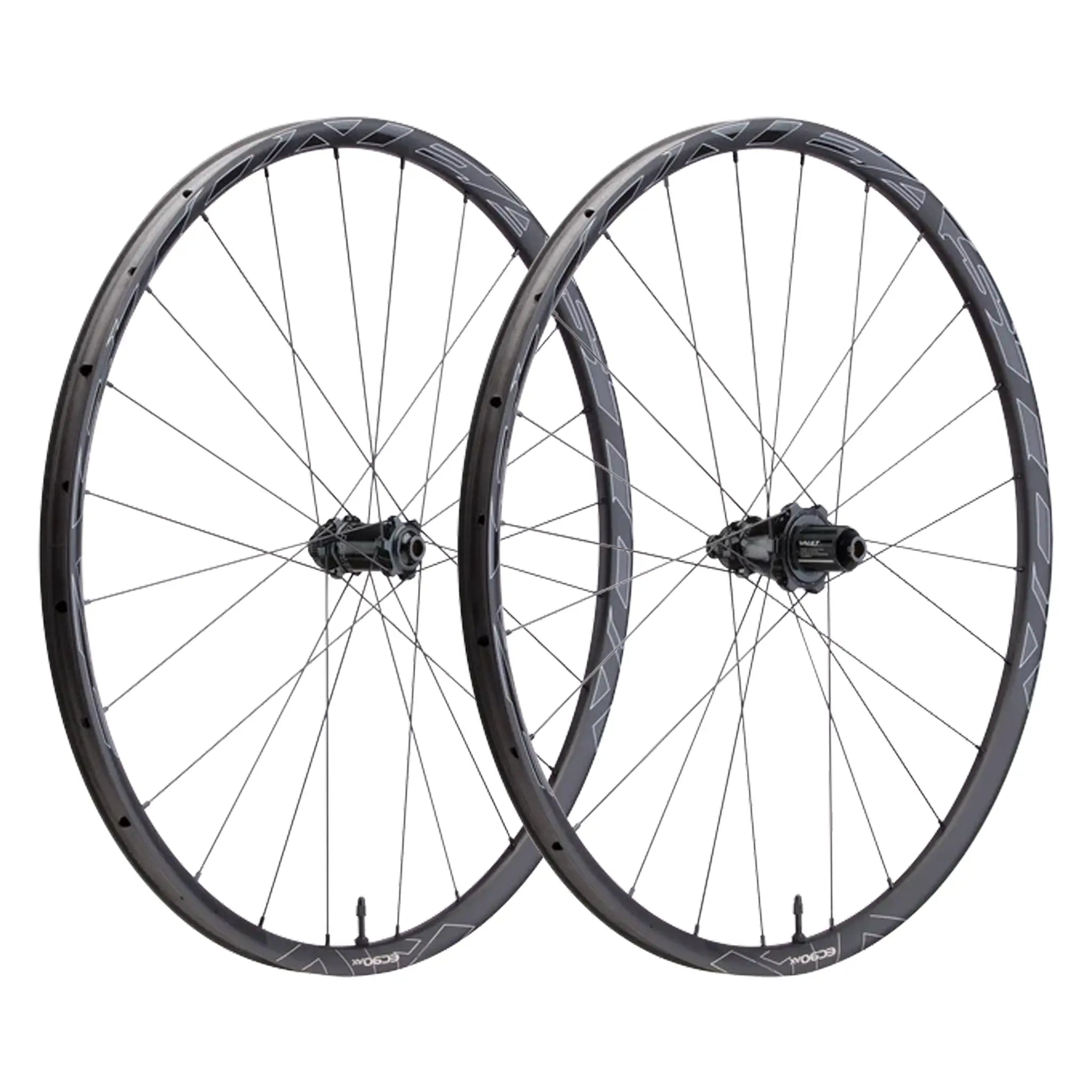

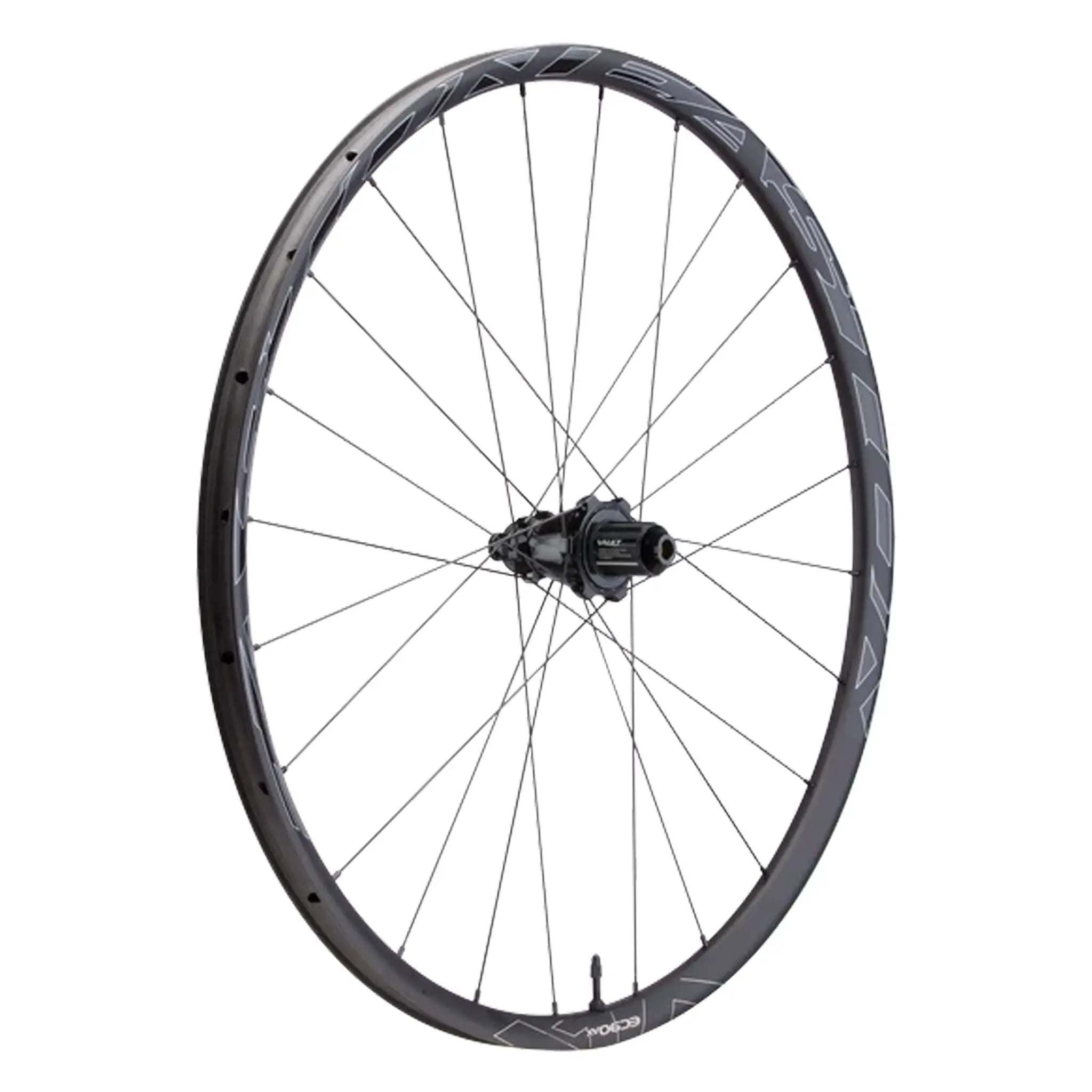

The ultimate gravel wheel. Raced to victory at DK200 by Amity Rockwell, and selected by Outside Online as 2020 Gear of the Year. Our EC90 AX gravel wheels use our EC90 carbon rims with 24 3x double butted Sapim straight pull spokes laced to our quick-engagement Vault hub and is backed by our Carbon Confidence guarantee. Like all our Vault hub wheels, these feature tool-free endcaps, and 10, 11 and 12 speed compatibility with Shimano, Campagnolo and SRAM.

Wide, 24mm internal rims are optimized for gravel tires 35mm and larger, giving you a more confident tire stance for control on the ground during your expansive adventure rides, single track forays and unrelenting gravel races.

Specifications:

Wheelset Weight: 1470 G
Finish: Gloss Carbon / Vinyl Decals
Type: Tubeless Ready Carbon Clincher
Rim Material: Carbon
Rim Depth: 21mm
Internal Rim Width: 24mm
External Rim Width: 31mm
Spokes: Sapim Straight-pull Double Butted
Spoke Pattern: 24 / 3x
Braking Surface: Disc - Center Lock Rotor Mount
Nipple Type: DT External Alloy - Easton Vault Center-lock 12x100 / 12x142*
Engagement: 60 Point, 6°
Bearing Type: Sealed Cartridge Bearings

Product Code:
8023140 (Front)
8023141 (Rear Shimano)
8023142 (Rear XDr)
