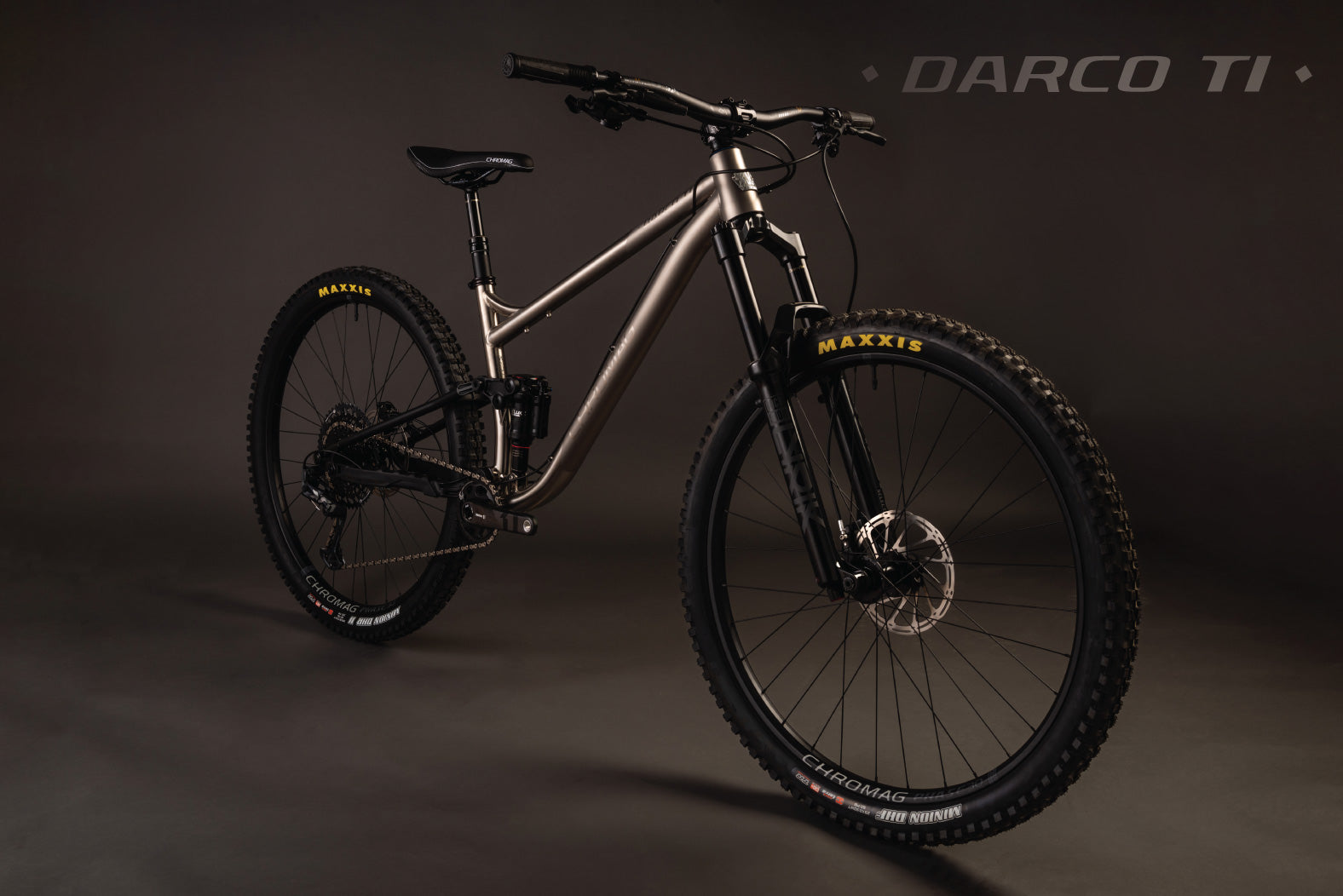

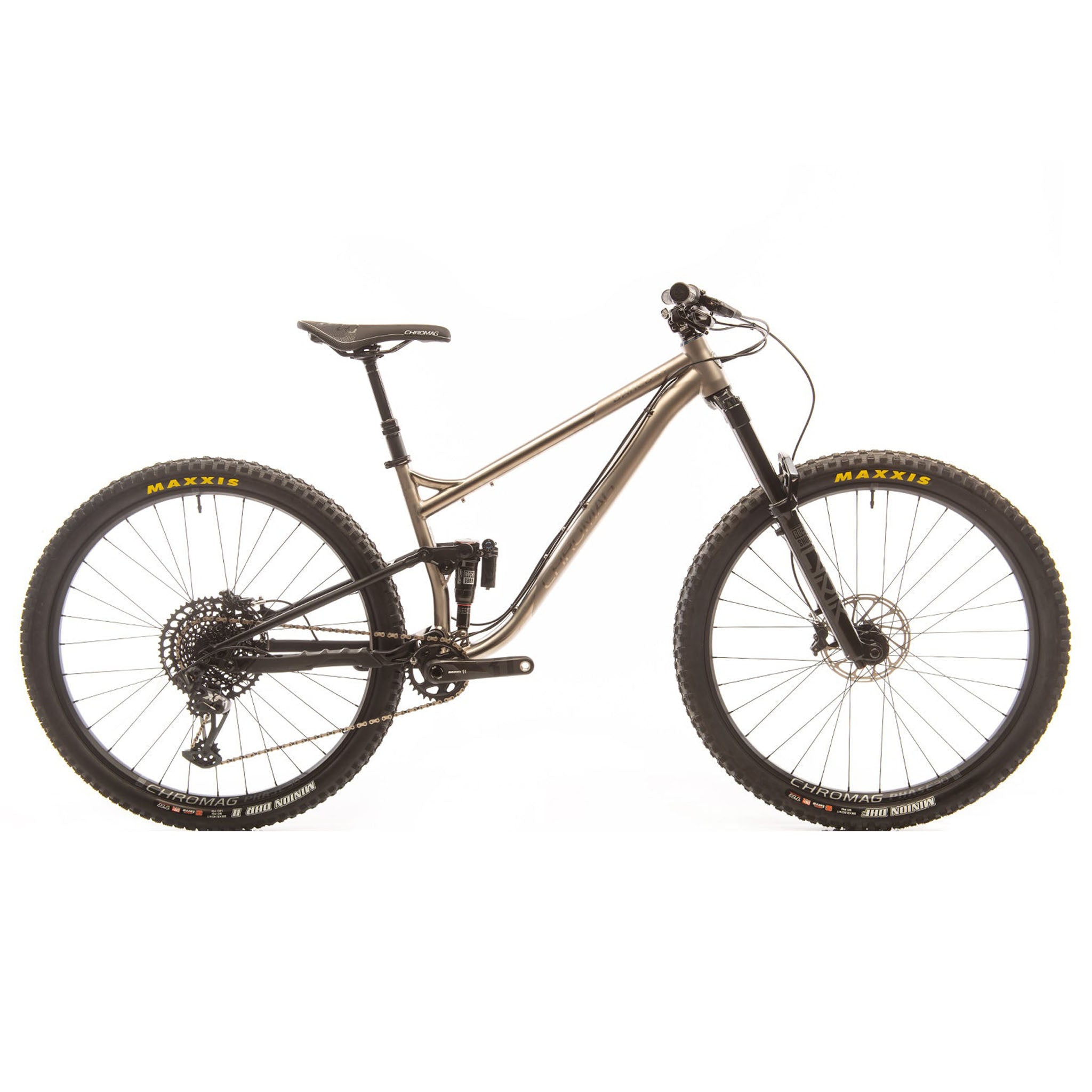

Chromag Darco Ti
The Darco rolls on 29” wheels and has 150mm of travel up front paired with a stout 120mm in the rear, a hardtailers full-suser if you will. Chromag's geometry philosophy has carried right over onto this bike, pairing slack head tube angles (64°) and steep seat tube angles (78°), with ample room up front (490mm reach on M/L). Perfect for the type of terrain we have in the Sea to Sky, steep climbs and steeper descents.
*Builds may vary from images shown
Specifications
ForkRockshox Lyrik Ultimate 160mm
ShockRockshox Super Deluxe Ultimate Air
StemChromag HiFi 40mm
HandlebarChromag Cutlass 25mm Rise, 800mm
HeadsetCane Creek Forty ZS
CrankSRAM X0 170mm
BrakesSRAM Code Ultimate Stealth
RotorsSRAM HS2 200mm
ShifterSRAM AXS Pod Controller
CassetteSRAM X0 Eagle Transmission
DerailleurSRAM X0 Eagle Transmission
RimsChromag 29" Phase30
HubsChromag R4
TiresMaxxis Minion DHF/DHR
SeatpostRockShox Reverb AXS - (150mm - S, M) (175mm - M/L, L, XL)
SaddleChromag Trailmaster LTD
GripsChromag Format
ChainSRAM X01 Eagle
*Specifications are subject to change without notice
Geometry
| S | M | M/L | L | XL | ||
|---|---|---|---|---|---|---|
| A | Reach | 450 | 472 | 490 | 514 | 530 |
| B | Stack | 617 | 617 | 622 | 631 | 640 |
| C | Head Tube Angle | 64° | 64° | 64° | 64° | 64° |
| D | Bottom Bracket Drop | 39 | 39 | 39 | 39 | 39 |
| E | Wheelbase | 1214 | 1236 | 1256 | 1284 | 1305 |
| F | Chainstay Length | 435 | 435 | 435 | 435 | 435 |
| G | Head Tube Length | 100 | 100 | 105 | 115 | 125 |
| H | Top Tube Length | 581 | 603 | 622 | 648 | 666 |
| I | Seat Tube Angle | 78° | 78° | 78° | 78° | 78° |
| J | Standover Height | 677 | 707 | 736 | 765 | 795 |
| All measurements in degrees or millimetres | ||||||
Sizing Guide
The sizing chart is a great place to start when picking your next bike but everyone will fit a bike a bit differently. Your torso, arm, and leg lengths all play into what size of bike you may need. Plus, there's your own personal preference.
We always recommend swinging by the shop and taking the bike that you're looking for a spin to see how it feels. If you're unable to come by, looking at the geometry of your current bike and comparing it is a good place to start. If you have any further questions, our customer service team is there to help.
| Size | Height | |
|---|---|---|
| Imperial | Metric | |
| S | 5'1" - 5'6" | 155 - 168cm |
| M | 5'4" - 5'9" | 163 - 175cm |
| ML | 5'7" - 6'1" | 170 - 185cm |
| L | 5'11" - 6'4" | 180 - 193cm |
| XL | 6'2" - 6'6" | 188 - 198cm |
