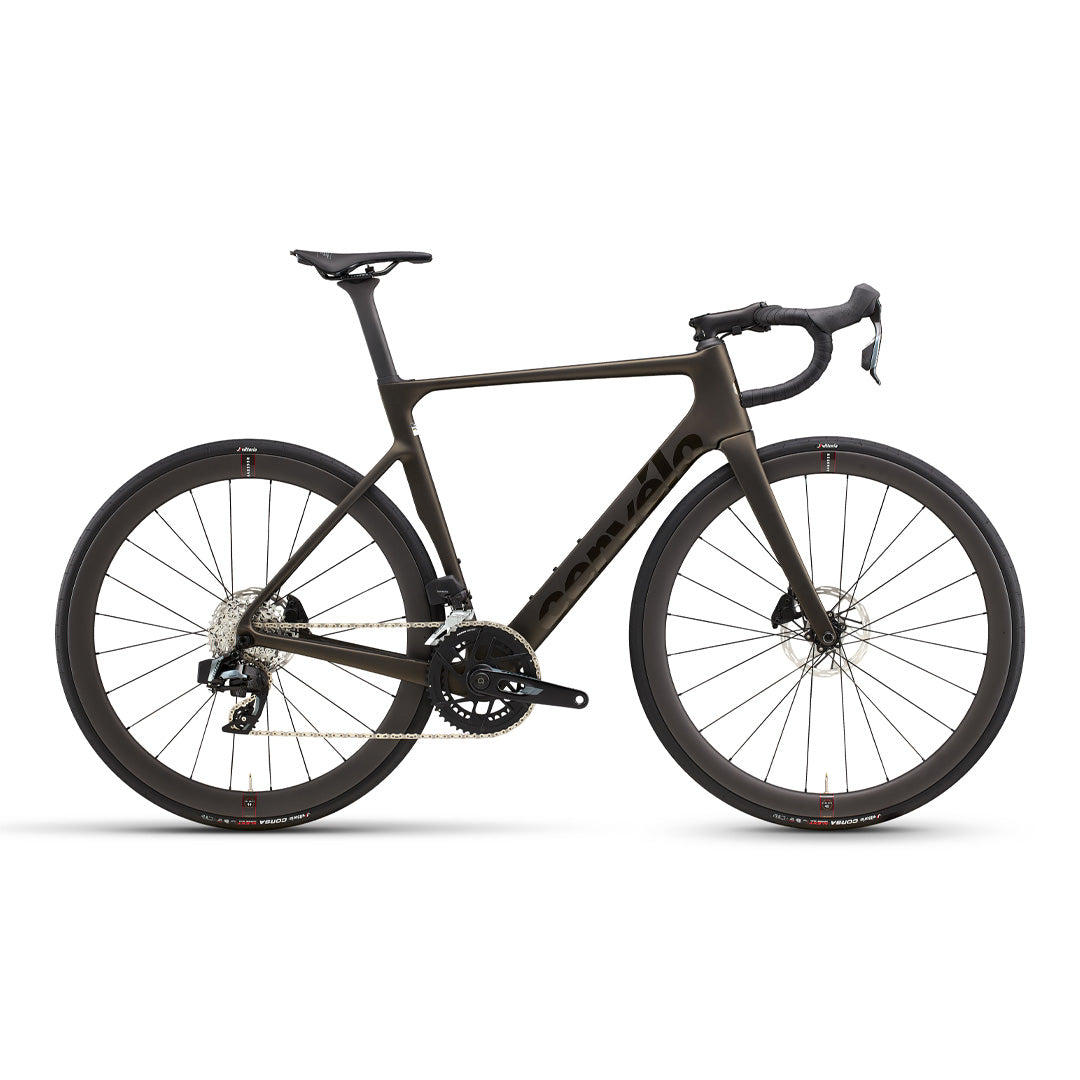

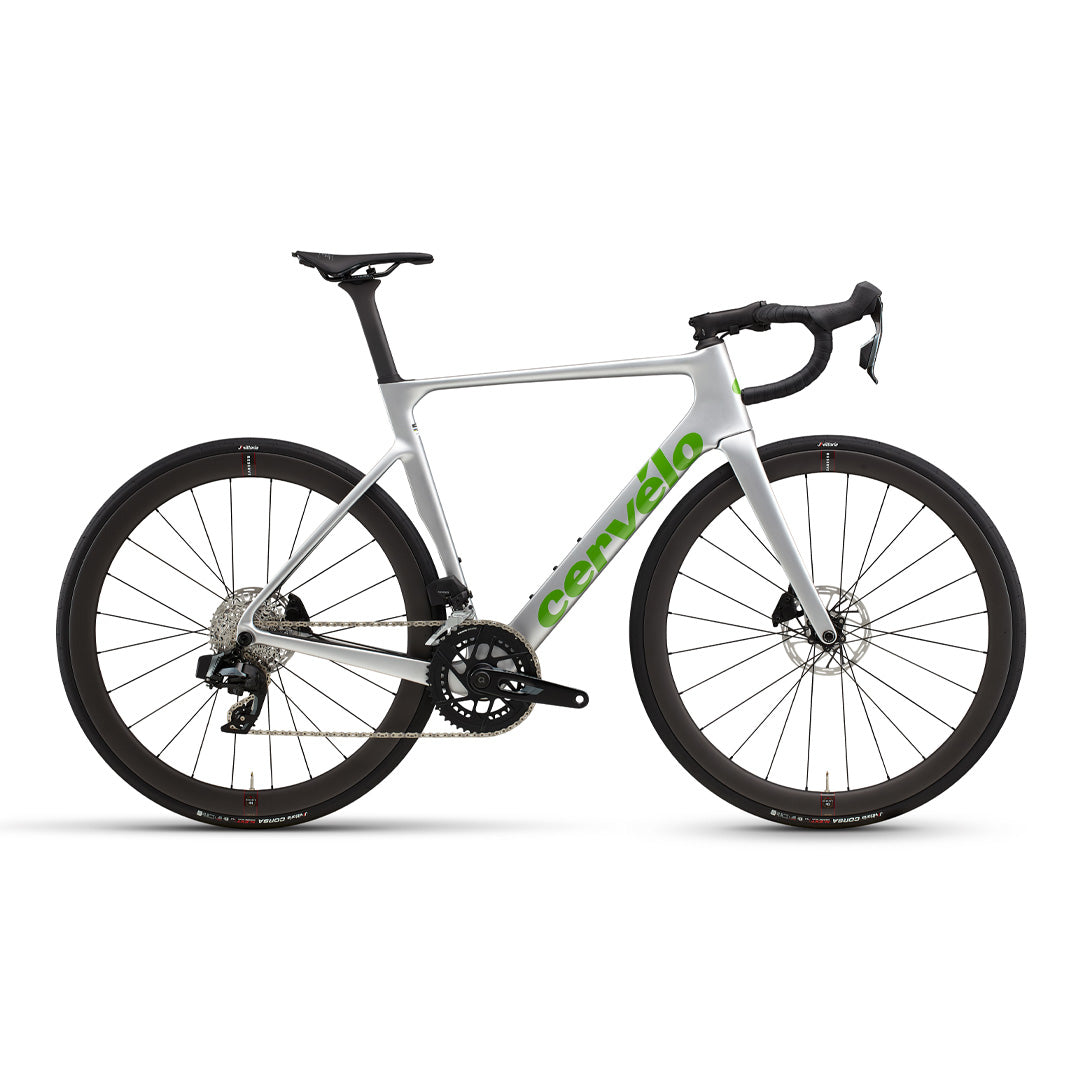

Cervélo Soloist Rival AXS
Specifications
SIZES
48, 51, 54, 56, 58, 61
FORK
Cervélo All-Carbon, Tapered Soloist Fork
HEADSET
FSA IS2 1-1/4, 45° x 45° / 1-1/2, 36° x 45°
STEM
Cervélo ST36 Alloy, w Cable Management
HANDLEBAR
Cervélo HB13 Carbon, 31.8mm clamp
SEATPOST
Cervélo SP27 Carbon
SADDLE
Prologo Nago R4 PAS LIGHTWEIGHT STN
SHIFTERS
SRAM Rival AXS E1, 12 speed
BRAKE CALIPERS
SRAM Rival E1
BRAKE ROTOR
SRAM Paceline Centerlock
FRONT DERAILLEUR
SRAM Rival AXS, 12 speed
REAR DERAILLEUR
SRAM Rival AXS, 12 speed
CASSETTE
SRAM Rival E1, 10-36, 12 Speed
CHAIN
SRAM Rival E1, 12 speed
CRANKSET
SRAM Rival AXS E1, 48/35T, DUB, with power meter
BOTTOM BRACKET
SRAM DUB, T47 BBright
FRONT WHEEL
Reserve 40, Reserve hub, 12x100mm, 24H, centerlock, tubeless compatible
REAR WHEEL
Reserve 44, Reserve hub, 4 Pawl, 12x142mm, XDR freehub, 24H, centerlock,
tubeless compatible
THRU AXLES
Cervélo Aero Thru-Axles, 12x100/142
TIRES
Corsa N.EXT TLR G2.0 700x29
MAX TIRE WIDTH (ACTUAL)
34mm
ACCESSORIES
Cervélo Faceplate Front Computer/Accessory Mount, Cervélo Rear Accessory
Mount
Geometry
| 48 | 51 | 54 | 56 | 58 | 61 | ||
|---|---|---|---|---|---|---|---|
| A | Reach | 363 | 374 | 383 | 392 | 401 | 410 |
| B | Stack | 491 | 515 | 540 | 565 | 590 | 615 |
| C | Head Tube Angle | 71° | 72° | 73° | 73° | 73° | 73° |
| D | Front Center | 574 | 576 | 578 | 595 | 611 | 628 |
| E | Bottom Bracket Drop | 74.5 | 74.5 | 72 | 72 | 69.5 | 69.5 |
| F | Wheelbase | 972 | 974 | 977 | 994 | 1011 | 1028 |
| G | Chainstay Length | 410 | 410 | 410 | 410 | 410 | 410 |
| H | Head Tube Length | 86 | 106 | 130 | 156 | 184 | 211 |
| I | Top Tube Length | 516 | 532 | 548 | 565 | 581 | 598 |
| J | Seat Tube Angle | 73° | 73° | 73° | 73° | 73° | 73° |
| K | Standover Height | 708 | 748 | 774 | 798 | 824 | 848 |
| All measurements in degrees or millimetres | |||||||
Sizing Guide
The sizing chart is a great place to start when picking your next bike but everyone will fit a bike a bit differently. Your torso, arm, and leg lengths all play into what size of bike you may need. Plus, there's your own personal preference.
We always recommend swinging by the shop and taking the bike that you're looking for a spin to see how it feels. If you're unable to come by, looking at the geometry of your current bike and comparing it is a good place to start. If you have any further questions, our customer service team is there to help.
| Size | Height | Imperial | Metric |
|---|---|---|
| 48 | 4'11" - 5'3" | 150 - 160cm |
| 51 | 5'3" - 5'5" | 160 - 168cm |
| 54 | 5'5" - 5'9" | 168 - 176cm |
| 56 | 5'9 - 6'½" | 176 - 184cm |
| 58 | 6'½" - 6'3" | 184 - 192cm |
| 61 | 6'3" - 6'7" | 192 - 200cm |
