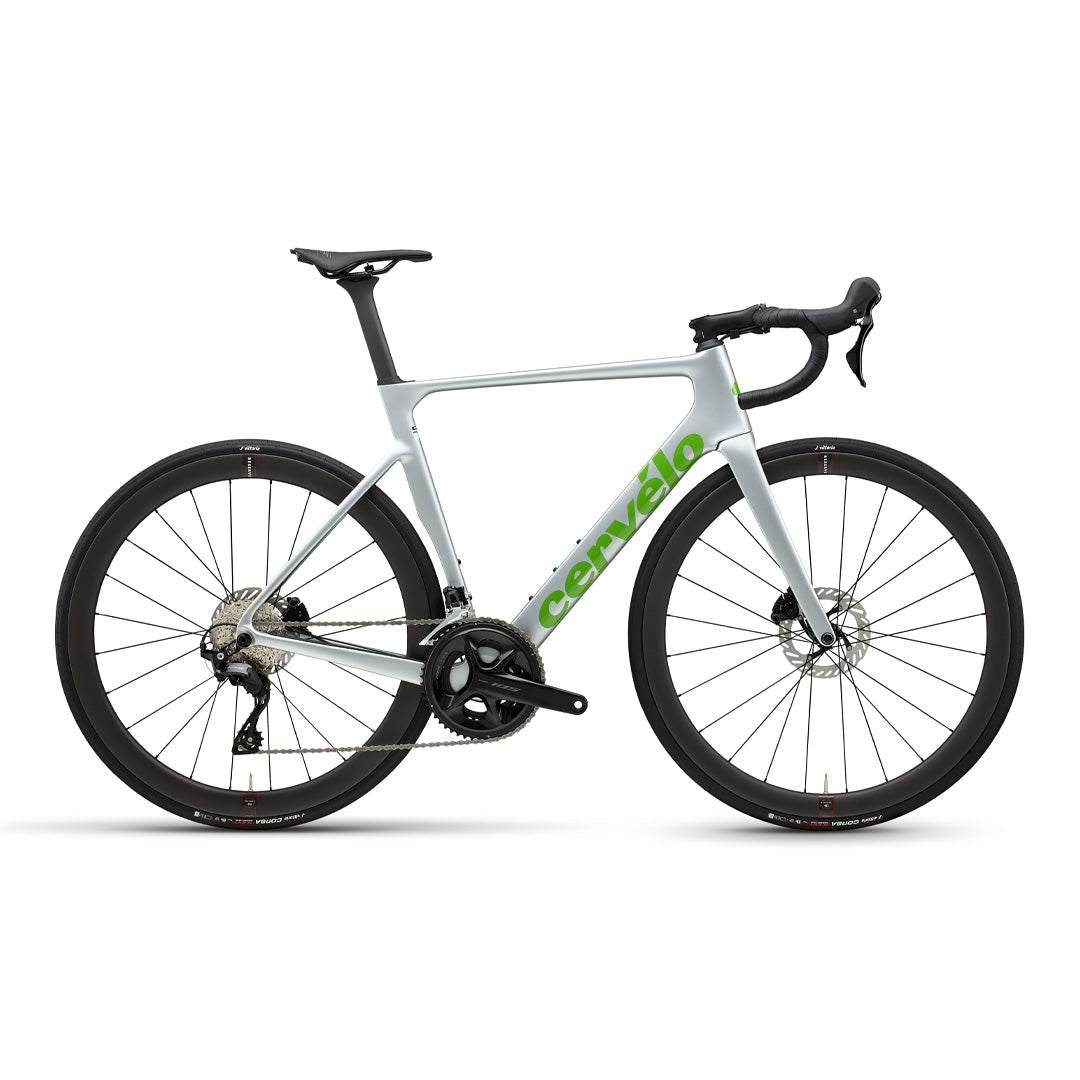

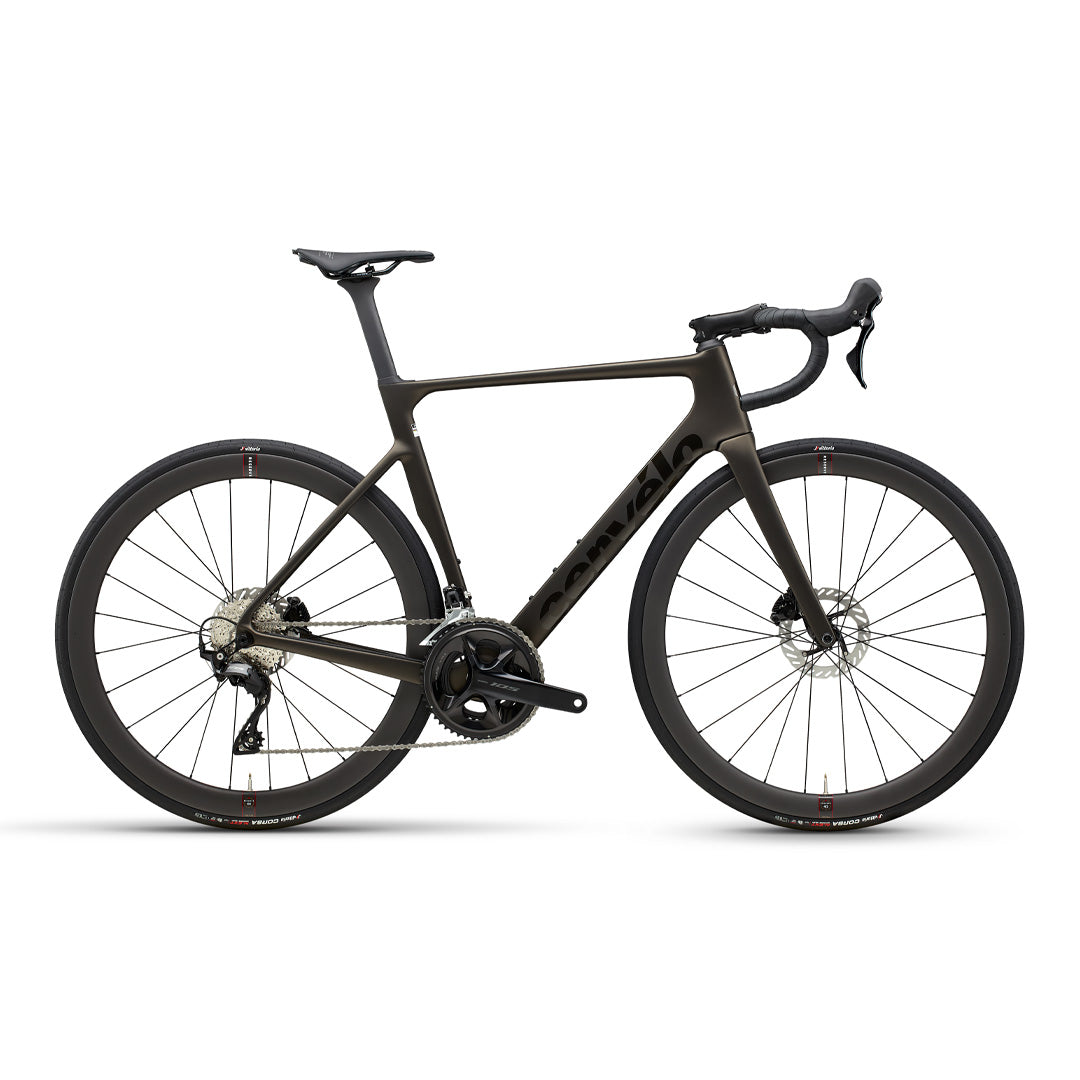

Cervélo Soloist 105 Race
Specifications
FORKCervélo All-Carbon, Tapered Soloist Fork
HEADSETFSA IS2 1-1/4, 45° x 45° / 1-1/2, 36° x 45°
HANDLEBARCervélo HB13 Carbon, 31.8mm clamp
STEMCervélo ST36 Alloy
SHIFTER/BRAKEShimano 105, R7120
CRANKSETShimano 105, R7100, 52/36T
POWER METER4iiii Precision, GEN3+ Single Sided
BOTTOM BRACKETFSA, T47 BBright for 24mm spindle
CHAINShimano M7100
FRONT DERAILLEURShimano 105, R7100
REAR DERAILLEURShimano 105, R7100
CASSETTEShimano 105, R7101, 11-34T, 12-Speed
FRONT THRU AXLECervélo Aero Thru Axle Front, M12x-1.5mm, 127mm length
REAR THRU AXLECervélo Aero Thru Axle Rear, M12x-1.5mm, 170.5mm length
TIRESVittoria Corsa N.EXT TLR G2.0 700x29c
FRONT WHEELReserve 40, Reserve hub, 12x100mm, 24H, centerlock, tubeless compatible
REAR WHEELReserve 44, Reserve hub, 4 Pawl, 12x142mm, HG freehub, 24H, centerlock, tubeless compatible
BRAKE ROTORSShimano RT-CL700 Centerlock
SADDLEPrologo Nago R4 PAS LIGHTWEIGHT STN
SEATPOSTCervélo SP27 Carbon
ACCESSORIESCervélo Front Computer/Accessory Mount 810, Cervélo Rear Accessory Mount
Geometry
| 48 | 51 | 54 | 56 | 58 | 61 | ||
|---|---|---|---|---|---|---|---|
| A | Reach | 363 | 374 | 383 | 392 | 401 | 410 |
| B | Stack | 491 | 515 | 540 | 565 | 590 | 615 |
| C | Head Tube Angle | 71° | 72° | 73° | 73° | 73° | 73° |
| D | Front Center | 574 | 576 | 578 | 595 | 611 | 628 |
| E | Bottom Bracket Drop | 74.5 | 74.5 | 72 | 72 | 69.5 | 69.5 |
| F | Wheelbase | 972 | 974 | 977 | 994 | 1011 | 1028 |
| G | Chainstay Length | 410 | 410 | 410 | 410 | 410 | 410 |
| H | Head Tube Length | 86 | 106 | 130 | 156 | 184 | 211 |
| I | Top Tube Length | 516 | 532 | 548 | 565 | 581 | 598 |
| J | Seat Tube Angle | 73° | 73° | 73° | 73° | 73° | 73° |
| K | Standover Height | 708 | 748 | 774 | 798 | 824 | 848 |
| All measurements in degrees or millimetres | |||||||
Sizing Guide
The sizing chart is a great place to start when picking your next bike but everyone will fit a bike a bit differently. Your torso, arm, and leg lengths all play into what size of bike you may need. Plus, there's your own personal preference.
We always recommend swinging by the shop and taking the bike that you're looking for a spin to see how it feels. If you're unable to come by, looking at the geometry of your current bike and comparing it is a good place to start. If you have any further questions, our customer service team is there to help.
| Size | Height | Imperial | Metric |
|---|---|---|
| 48 | 4'11" - 5'3" | 150 - 160cm |
| 51 | 5'3" - 5'5" | 160 - 168cm |
| 54 | 5'5" - 5'9" | 168 - 176cm |
| 56 | 5'9 - 6'½" | 176 - 184cm |
| 58 | 6'½" - 6'3" | 184 - 192cm |
| 61 | 6'3" - 6'7" | 192 - 200cm |
