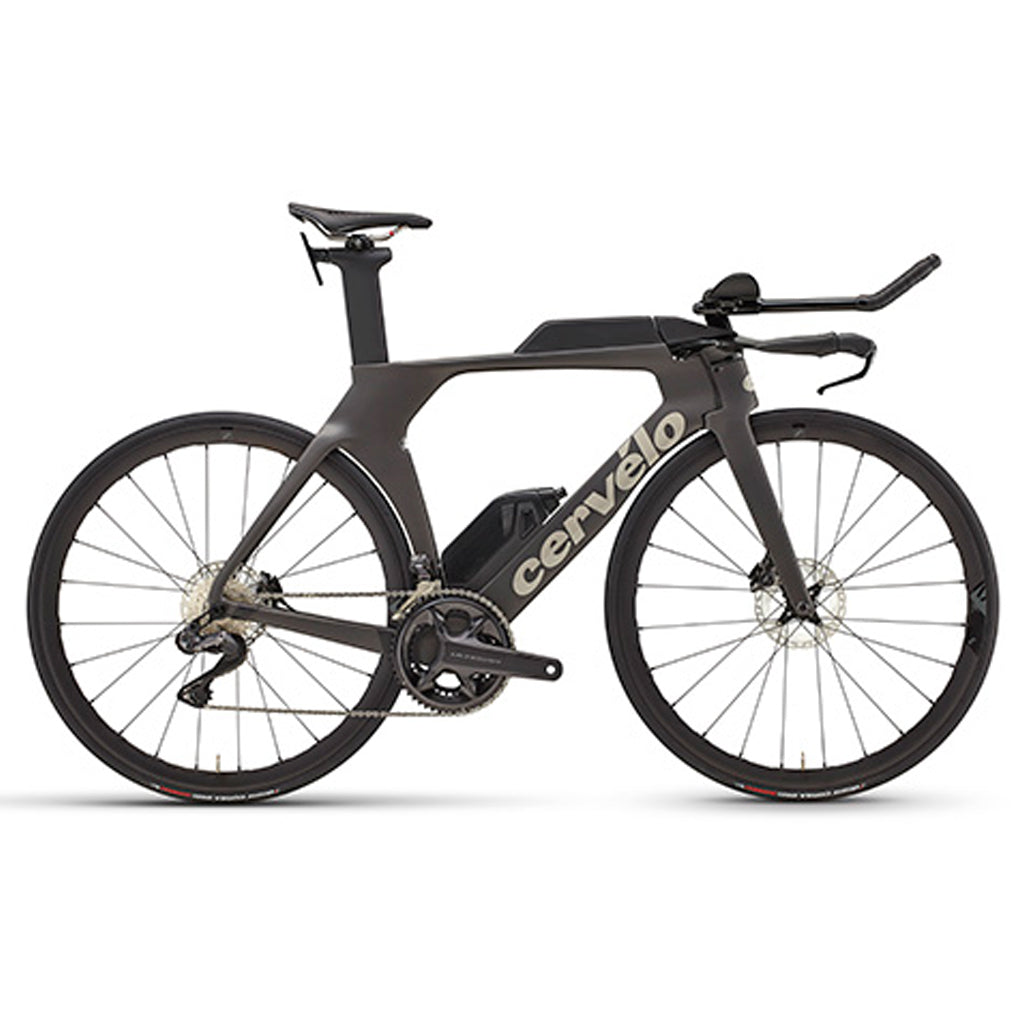

Cervélo P5 Ultegra Di2
Aerodynamics are critical to engineering a fast bike: aero drag accounts for as much as 90% of the overall resistance affecting a rider. The P5’s frame design and customized tube shapes improve its aerodynamics while enhancing its stiffness, weight, and usability - all in a UCI-legal package.
Specifications
FORKCervélo All-Carbon, Tapered P5 Fork
HEADSETFSA IS2 1 x 1-3/8
THRU AXLESCervelo Aero Thru-Axles, 12x100/142
WHEELSFulcrum Racing 400 DB, 12x100(F)/142(R), 24H, 19mm IW, HG freehub, centerlock, tubeless compatible
TIRESCorsa Speed TLR G 700x25c
CRANKSETShimano Ultegra R8100, 52/36T, 12 Speed
BOTTOM BRACKETFSA, BBright thread together, 24mm spindle
CHAINShimano M8100, 12 speed
FRONT DERAILLEURShimano Ultegra, R8150, 12 speed
REAR DERAILLEURShimano Ultegra, R8150, 12 speed
CASSETTEShimano Ultegra, 11-30, 12 Speed
SHIFTERSShimano Dura Ace, R9160
HANDLEBARP5 CarbonBasebar/EX10 Riser/Carbon Extensions
BRAKE CALIPERSShimano Ultegra
BRAKE LEVERSShimano Dura Ace, R9180, 12 speed
SADDLEPrologo Dimesnion Tri TiRox
SEATPOSTCervélo SP23 Carbon
BRAKE ROTORShimano MT800 Centerlock
ACCESSORIESSmartpak 400, Smartpak 100, Aerobottle 500, Rear Hydration Mount
Geometry
| 48 | 51 | 54 | 56 | 58 | ||
|---|---|---|---|---|---|---|
| A | Reach | 387 | 403 | 417 | 431 | 444 |
| B | Stack | 466 | 486 | 502 | 521 | 539 |
| C | Head Tube Angle | 71° | 72.5° | 72.5° | 72.5° | 72.5° |
| D | Front Center | 582 | 583 | 602 | 622 | 640 |
| E | Bottom Bracket Drop | 75 | 75 | 75 | 75 | 75 |
| F | Wheelbase | 975 | 976 | 995 | 1015 | 1033 |
| G | Head Tube Length | 67.5 | 81 | 98 | 117 | 137 |
| H | Standover Height | 728 | 754 | 769 | 786 | 804 |
| All measurements in degrees or millimetres | ||||||
Sizing Guide
The sizing chart is a great place to start when picking your next bike but everyone will fit a bike a bit differently. Your torso, arm, and leg lengths all play into what size of bike you may need. Plus, there's your own personal preference.
We always recommend swinging by the shop and taking the bike that you're looking for a spin to see how it feels. If you're unable to come by, looking at the geometry of your current bike and comparing it is a good place to start. If you have any further questions, our customer service team is there to help.
For information on sizing please refer to Cervélo's interactive bike size and setup calculator for the P5.
