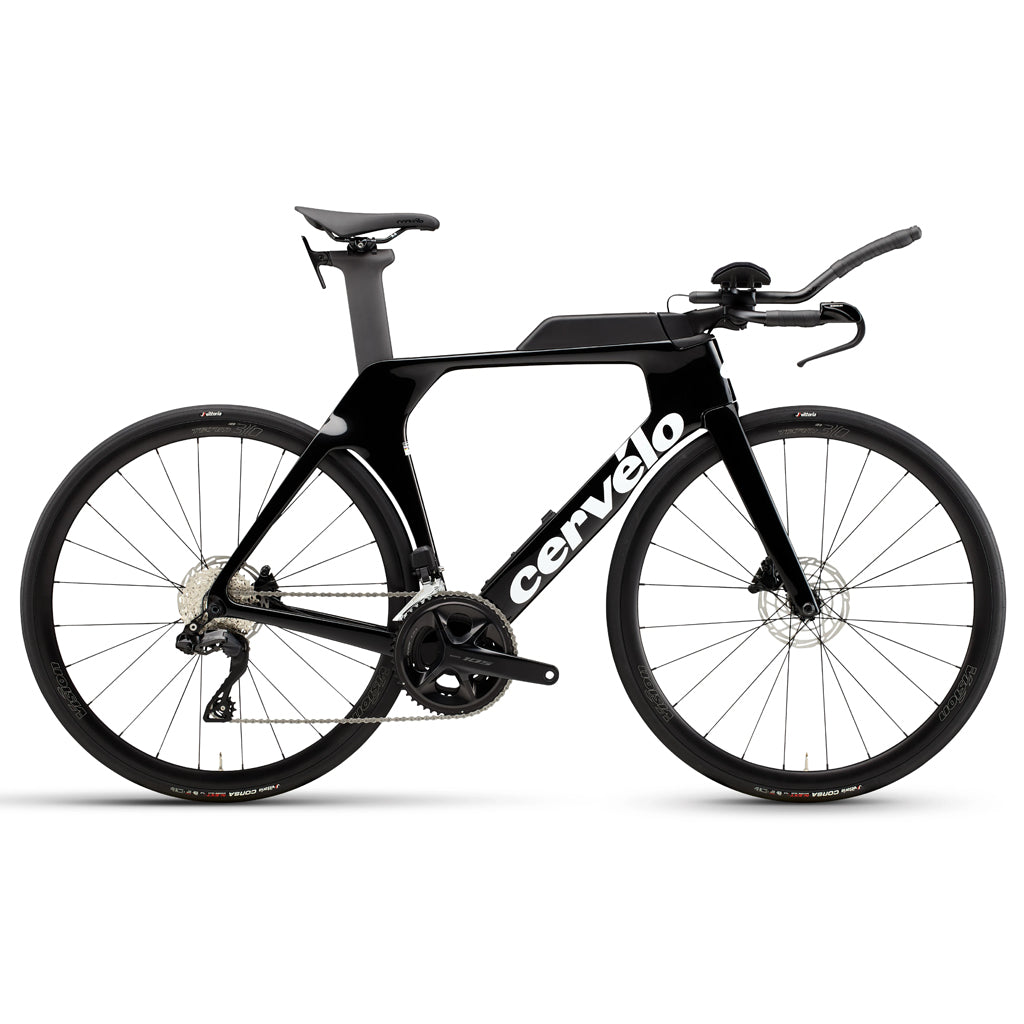

Cervélo P 105 Di2
Specifications
FORKCervélo All-Carbon, Tapered P Fork
HEADSETFSA IS2 1-1/4 x 1-3/8
STEMCervélo ST36 Alloy
AERO BASEBAR/EXTENSIONSZipp Vuka Alumina Basebar and Extensions
SEATPOST
Cervélo SP23 Carbon
SADDLECervélo Tri Saddle
FRONT BRAKERiderever Triva Carbon Di2
REAR BRAKERiderever Triva Carbon Di2
BRAKE ROTORSJagwire RS04 6-Bolt
FRONT DERAILLEURShimano 105, R7150, 12 speed
REAR DERAILLEURShimano 105, R7150, 12 speed
CASSETTEShimano 105, 11-34, 12 Speed
CHAINShimano M7100, 12 speed
CRANKSETShimano 105 R7100, 52/36T, 12 Speed
BOTTOM BRACKETFSA, BBright thread together, 24mm spindle
FRONT WHEELVision Team i23 Disc, 23mm IW, direct pull, 12x100mm, centerlock, tubeless compatible
REAR WHEELVision Team i23 Disc, 23mm IW, direct pull, 12x142mm, HG freehub, centerlock, tubeless compatible
THRU AXLESCervélo Aero Thru-Axles, 12x100/142
TIRESCorsa N.EXT TLR G2.0 700x29
ACCESSORIESSmartpak 400, Rear Hydration Mount
Geometry
| 48 | 51 | 54 | 56 | 58 | 61 | ||
|---|---|---|---|---|---|---|---|
| A | Reach | 378 | 395 | 409 | 422 | 434 | 443 |
| B | Stack | 494 | 515 | 531 | 549 | 569 | 587 |
| C | Head Tube Angle | 71° | 72.5° | 72.5° | 72.5° | 72.5° | 72.5° |
| D | Front Centre | 581 | 583 | 602 | 620 | 638 | 653 |
| E | Bottom Bracket Drop | 80 | 80 | 80 | 80 | 80 | 80 |
| F | Wheelbase | 973 | 983 | 993 | 1012 | 1030 | 1045 |
| G | Chainstay Length | 405 | 405 | 405 | 405 | 405 | 405 |
| H | Head Tube Length | 87.8 | 101.7 | 118.4 | 137.3 | 158.3 | 177.2 |
| I | Standover Height | 734 | 755 | 770 | 787 | 806 | 823 |
| All measurements in degrees or millimetres | |||||||
Sizing Guide
The sizing chart is a great place to start when picking your next bike but everyone will fit a bike a bit differently. Your torso, arm, and leg lengths all play into what size of bike you may need. Plus, there's your own personal preference.
We always recommend swinging by the shop and taking the bike that you're looking for a spin to see how it feels. If you're unable to come by, looking at the geometry of your current bike and comparing it is a good place to start. If you have any further questions, our customer service team is there to help.
