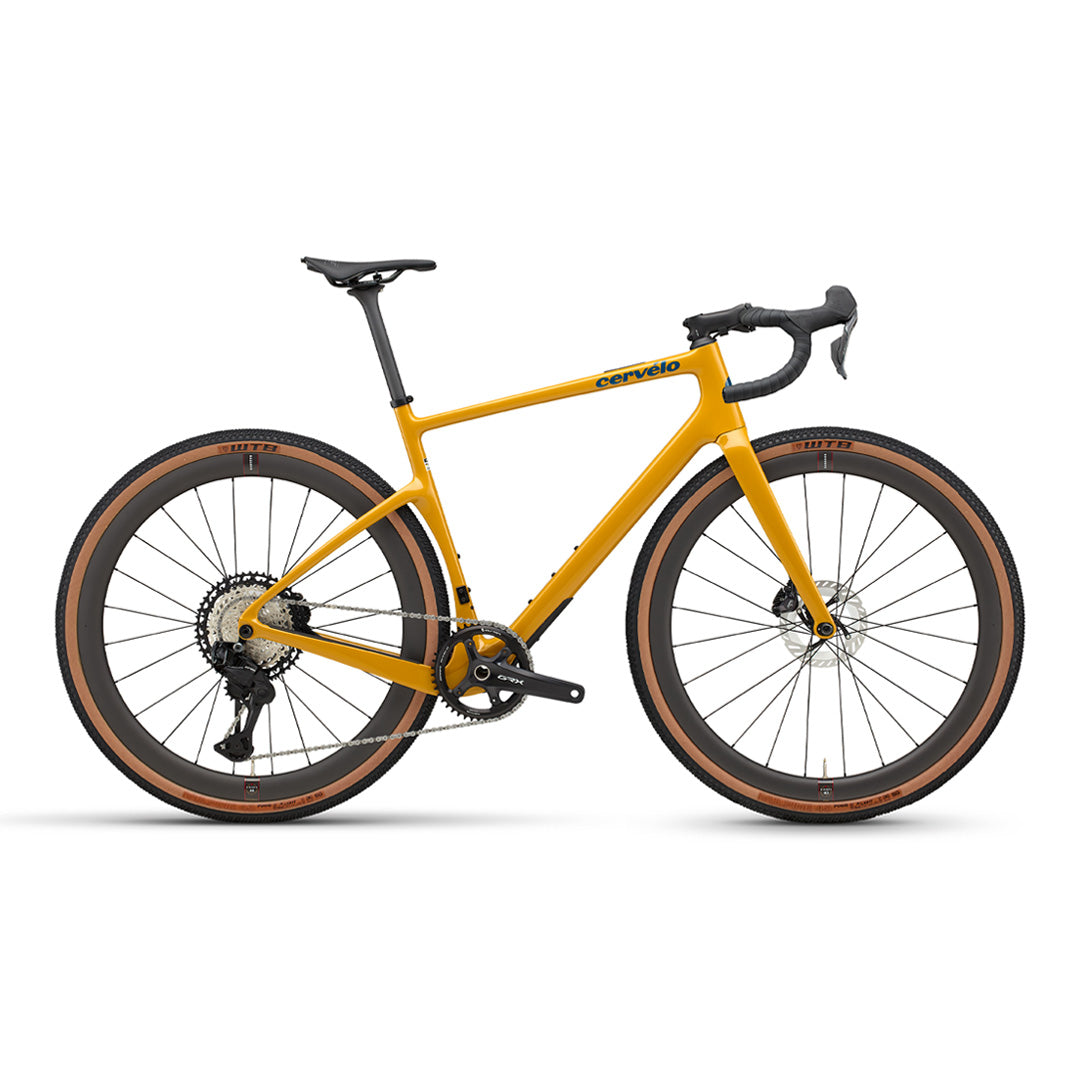

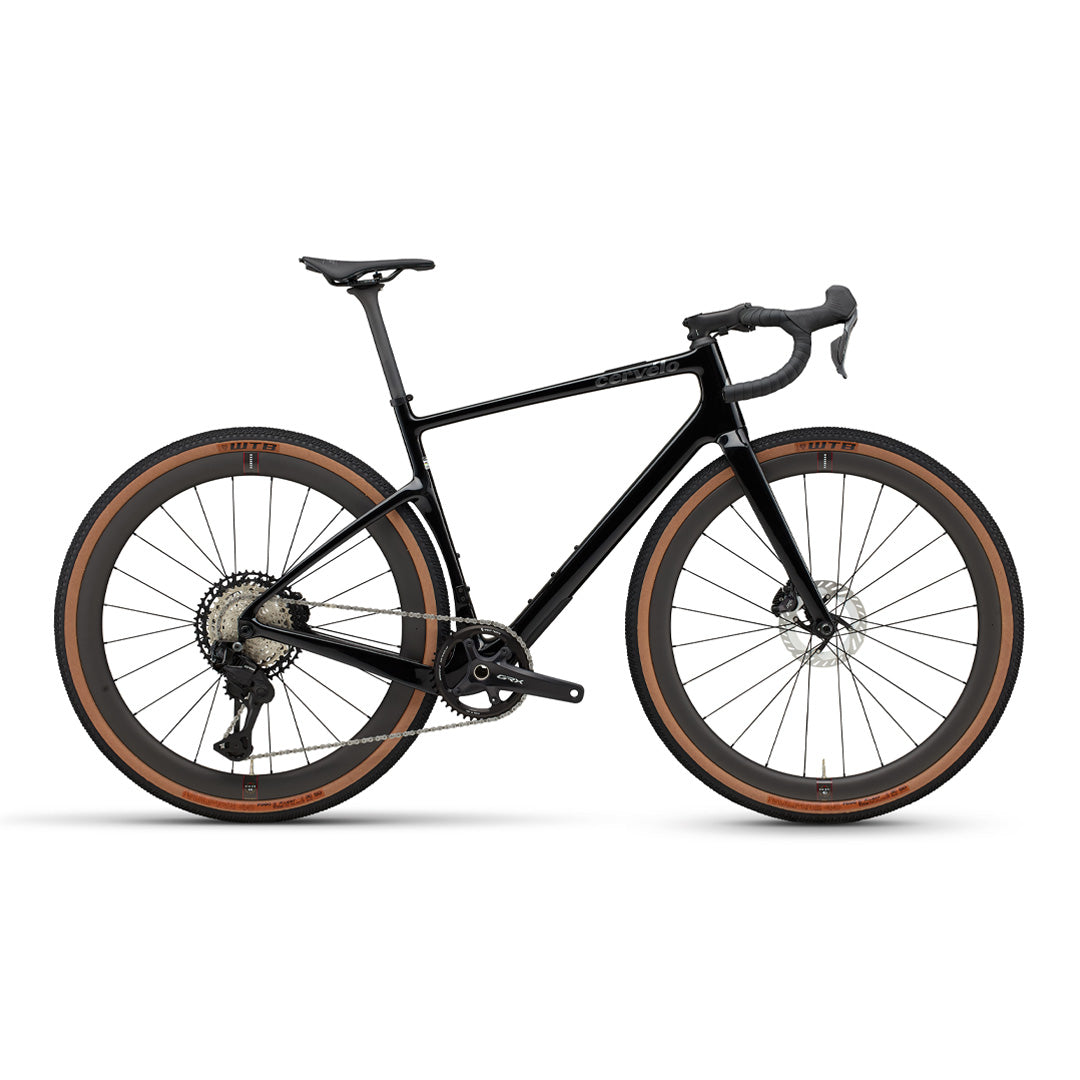

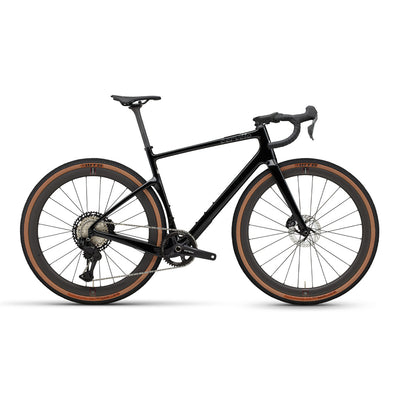

Cervélo Áspero GRX RX825 DI2 1
Specifications
FORKCervélo All-Carbon, Tapered ÁsperoFork
HEADSETFSA IS2 1-1/4, 45° x 45° / 1-1/2, 36° x 45°
HANDLEBARCervélo AB09 Carbon, 31.8mm clamp, 16 degree flare Cervélo Aero Thru Axle Rear, M12x-1.0mm, 169mm length
STEMCervélo ST36 Alloy
SHIFTER/BRAKEShimano GRX, RX825
CHAINRINGWolf Tooth Components 44T Chainring for GRX
CRANKSETShimano GRX, RX820
BOTTOM BRACKETFSA, T47 BBright for 24mm spindle
CHAINShimano M8100
REAR DERAILLEURShimano GRX, RX827 SGS
CASSETTEShimano XT, M8100, 10-51T, 12-Speed
FRONT THRU AXLECervélo Aero Thru Axle Front, M12x-1.5mm, 127mm length
REAR THRU AXLECervélo Aero Thru Axle Rear, M12x- 1.0mm, 169mm length
TIRESWTB Vulpine TCS Light Fast Rolling Dual DNA SG 120tpi 700x45c
FRONT WHEELReserve 40TA GR, DT Swiss 370,12x100mm, 24H centerlock, tubeless compatible
REAR WHEELReserve 44TA GR, DT Swiss 370, 12x142mm, MS freehub, 24H centerlock, tubeless compatible
BRAKE ROTORSShimano CL800 Centerlock
SADDLEPrologo Nago R4 PAS LIGHTWEIGHT STN
SEATPOSTCervélo SP19 Carbon 27.2
POWER METER4iiii Precision, GEN3+ Single Sided
ACCESSORIESCervélo Front Computer/Accessory Mount 810, Cervélo Rear Accessory Mount, Cervélo Smartpak Top Tube Storage Bag 400A
Geometry
| 48 | 51 | 54 | 56 | 58 | 61 | A | Reach | 370 | 379 | 388 | 397 | 406 | 415 | B | Stack | 505 | 530 | 555 | 580 | 605 | 630 | C | Head Tube Angle | 71° | 71.5° | 72° | 72° | 72° | 72° | D | Front Centre | 583 | 592 | 602 | 619 | 637 | 654 | E | Bottom Bracket Drop | 78.5 | 78.5 | 76 | 76 | 73.5 | 73.5 |
|---|---|---|---|---|---|---|---|
| F | |||||||
| 990 | 1000 | 1010 | 1027 | 1046 | 1063 | ||
| G | Chainstay Length | 425 | 425 | 425 | 425 | 425 | 425 |
| H | Head Tube Length (mm) | 83 | 107 | 133 | 159 | 188 | 214 |
| I | Top Tube Length (mm) | 512 | 532 | 553 | 575 | 591 | 608 |
| J | Seat Tube Angle | 74.5° | 74° | 73.5° | 73° | 73° | 73° |
| K | Standover Height | 681 | 704 | 733 | 757 | 784 | 808 |
| All measurements in degrees or millimetres | |||||||
Sizing Guide
The sizing chart is a great place to start when picking your next bike but everyone will fit a bike a bit differently. Your torso, arm, and leg lengths all play into what size of bike you may need. Plus, there's your own personal preference.
We always recommend swinging by the shop and taking the bike that you're looking for a spin to see how it feels. If you're unable to come by, looking at the geometry of your current bike and comparing it is a good place to start. If you have any further questions, our customer service team is there to help.
| Size | Height | Imperial | Metric |
|---|---|---|
| 48 | 4'11" - 5'3" | 150 - 160cm |
| 51 | 5'3" - 5'5" | 160 - 168cm |
| 54 | 5'5" - 5'9" | 168 - 176cm |
| 56 | 5'9 - 6'½" | 176 - 184cm |
| 58 | 6'½" - 6'3" | 184 - 192cm |
