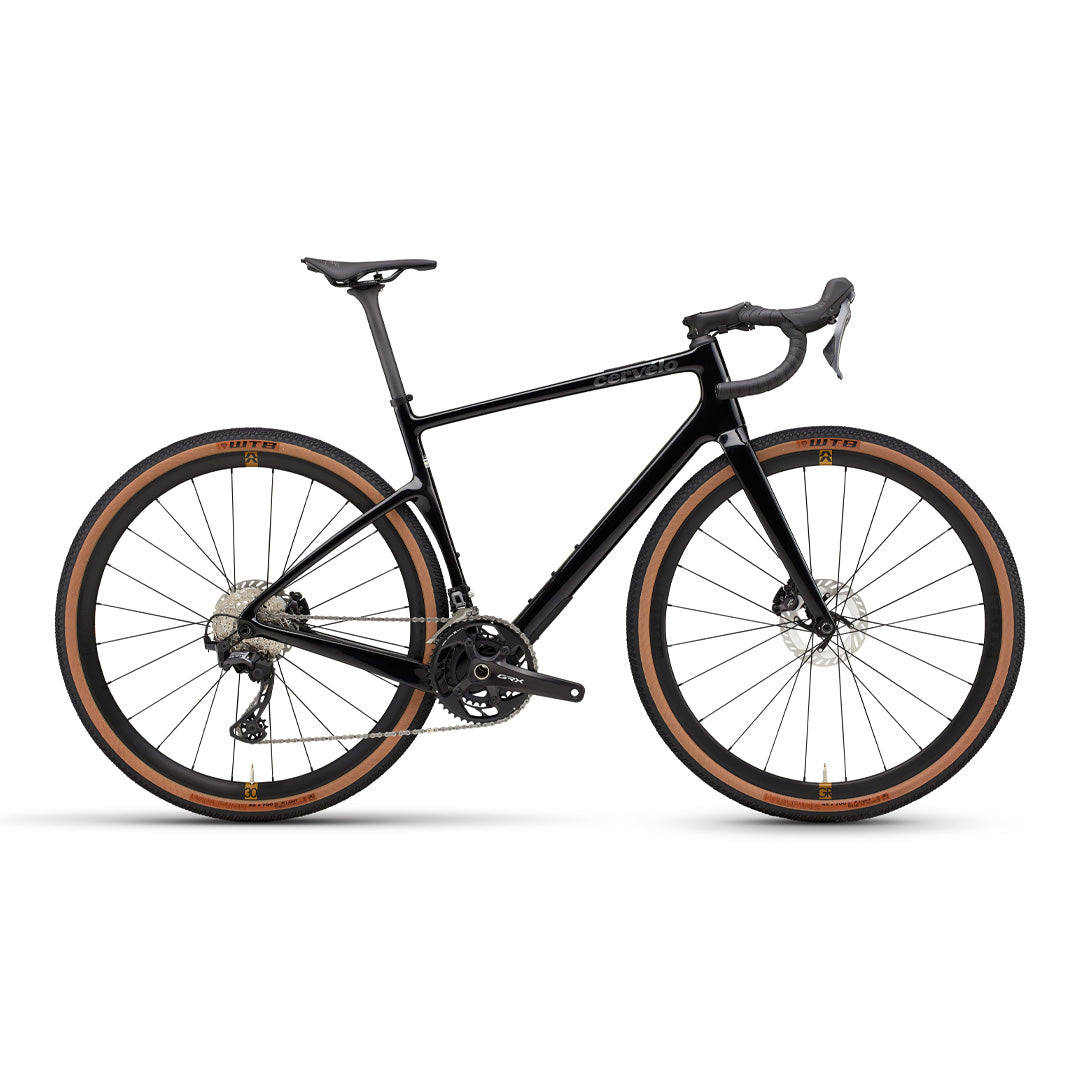

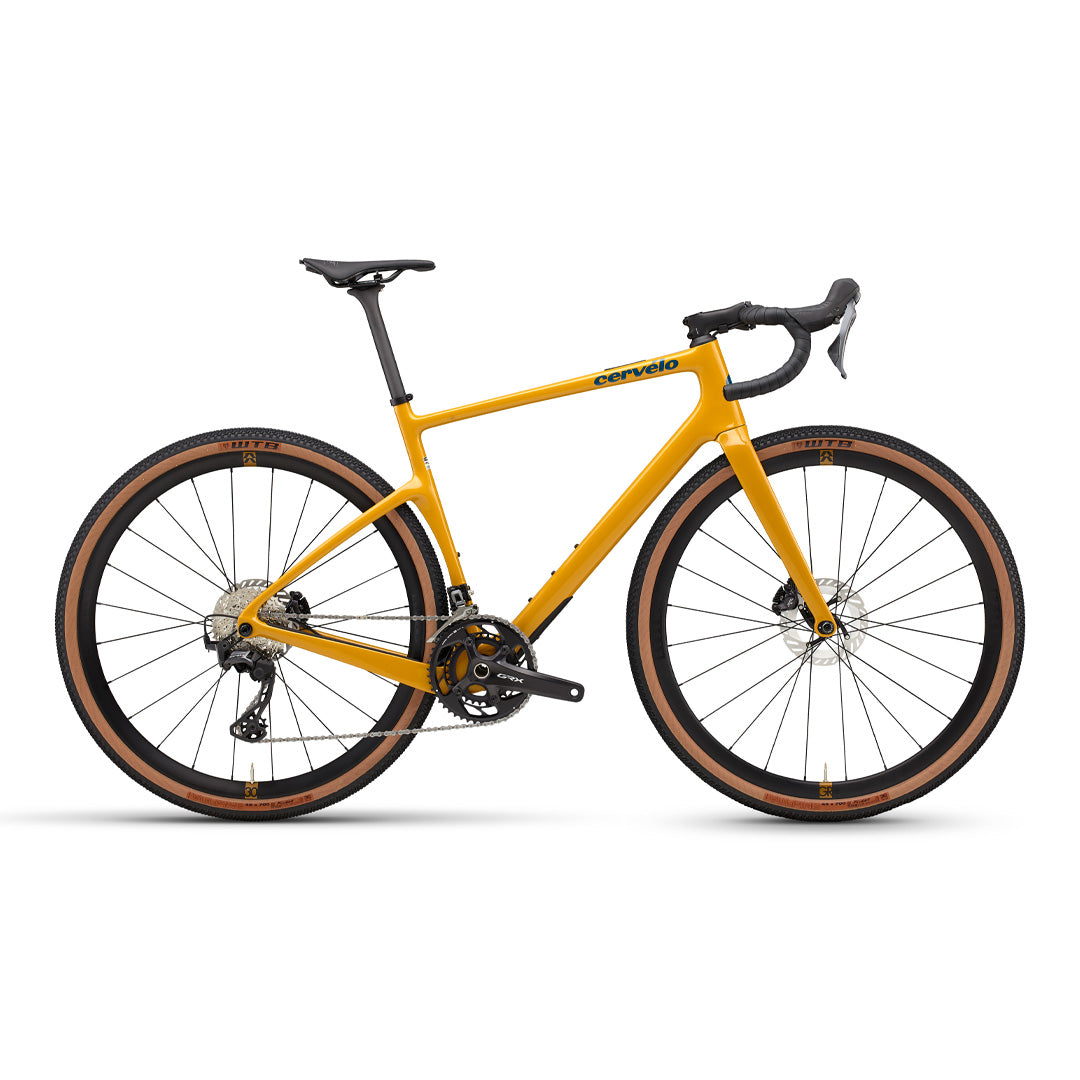

Cervélo Áspero GRX RX820
Specifications
FORK Cervélo All-Carbon, Tapered Áspero Fork
HEADSET FSA IS2 1-1/4, 45° x 45° / 1-1/2, 36° x 45°
HANDLEBAR Cervélo AB09 Carbon, 31.8mm clamp, 16 degree flare
STEM Cervélo ST36 Alloy
SHIFTER/BRAKE Shimano GRX, RX820
CRANKSETShimano GRX, RX820, 48/31T
BOTTOM BRACKET FSA, T47 BBright for 24mm spindle
CHAIN Shimano M8100
FRONT DERAILLEURShimano GRX, RX820
REAR DERAILLEURShimano GRX, RX820
CASSETTE Shimano HG710, 11-36T, 12-Speed
FRONT THRU AXLE Cervélo Aero Thru Axle Front, M12x-1.5mm, 127mm length
REAR THRU AXLE Cervélo Aero Thru Axle Rear, M12x-1.0mm, 169mm length
TIRES WTB Vulpine TCS Light Fast Rolling Dual DNA 60tpi 700x45c
FRONT WHEEL Reserve 30 GR AL, Reserve 4LD, 12x100mm, 24H, centerlock, tubeless compatible
REAR WHEEL Reserve 30 GR AL, Reserve 4LD, 12x142mm, XDR freehub, 24H, centerlock, tubeless compatible
BRAKE ROTORS Shimano CL800 Centerlock
SADDLE Prologo Nago R4 PAS LIGHTWEIGHT STN
SEATPOST Cervélo SP19 Carbon 27.2
ACCESSORIES Cervélo Front Computer/Accessory Mount 810, Cervélo Rear Accessory Mount, Cervélo Smartpak Top Tube Storage Bag 400A
Geometry
| 48 | 51 | 54 | 56 | 58 | 61 | A | Reach | 370 | 379 | 388 | 397 | 406 | 415 | B | Stack | 505 | 530 | 555 | 580 | 605 | 630 | C | Head Tube Angle | 71° | 71.5° | 72° | 72° | 72° | 72° | D | Front Centre | 583 | 592 | 602 | 619 | 637 | 654 | E | Bottom Bracket Drop | 78.5 | 78.5 | 76 | 76 | 73.5 | 73.5 |
|---|---|---|---|---|---|---|---|
| F | |||||||
| 990 | 1000 | 1010 | 1027 | 1046 | 1063 | ||
| G | Chainstay Length | 425 | 425 | 425 | 425 | 425 | 425 |
| H | Head Tube Length (mm) | 83 | 107 | 133 | 159 | 188 | 214 |
| I | Top Tube Length (mm) | 512 | 532 | 553 | 575 | 591 | 608 |
| J | Seat Tube Angle | 74.5° | 74° | 73.5° | 73° | 73° | 73° |
| K | Standover Height | 681 | 704 | 733 | 757 | 784 | 808 |
| All measurements in degrees or millimetres | |||||||
Sizing Guide
The sizing chart is a great place to start when picking your next bike but everyone will fit a bike a bit differently. Your torso, arm, and leg lengths all play into what size of bike you may need. Plus, there's your own personal preference.
We always recommend swinging by the shop and taking the bike that you're looking for a spin to see how it feels. If you're unable to come by, looking at the geometry of your current bike and comparing it is a good place to start. If you have any further questions, our customer service team is there to help.
| Size | Height | Imperial | Metric |
|---|---|---|
| 48 | 4'11" - 5'3" | 150 - 160cm |
| 51 | 5'3" - 5'5" | 160 - 168cm |
| 54 | 5'5" - 5'9" | 168 - 176cm |
| 56 | 5'9 - 6'½" | 176 - 184cm |
| 58 | 6'½" - 6'3" | 184 - 192cm |
