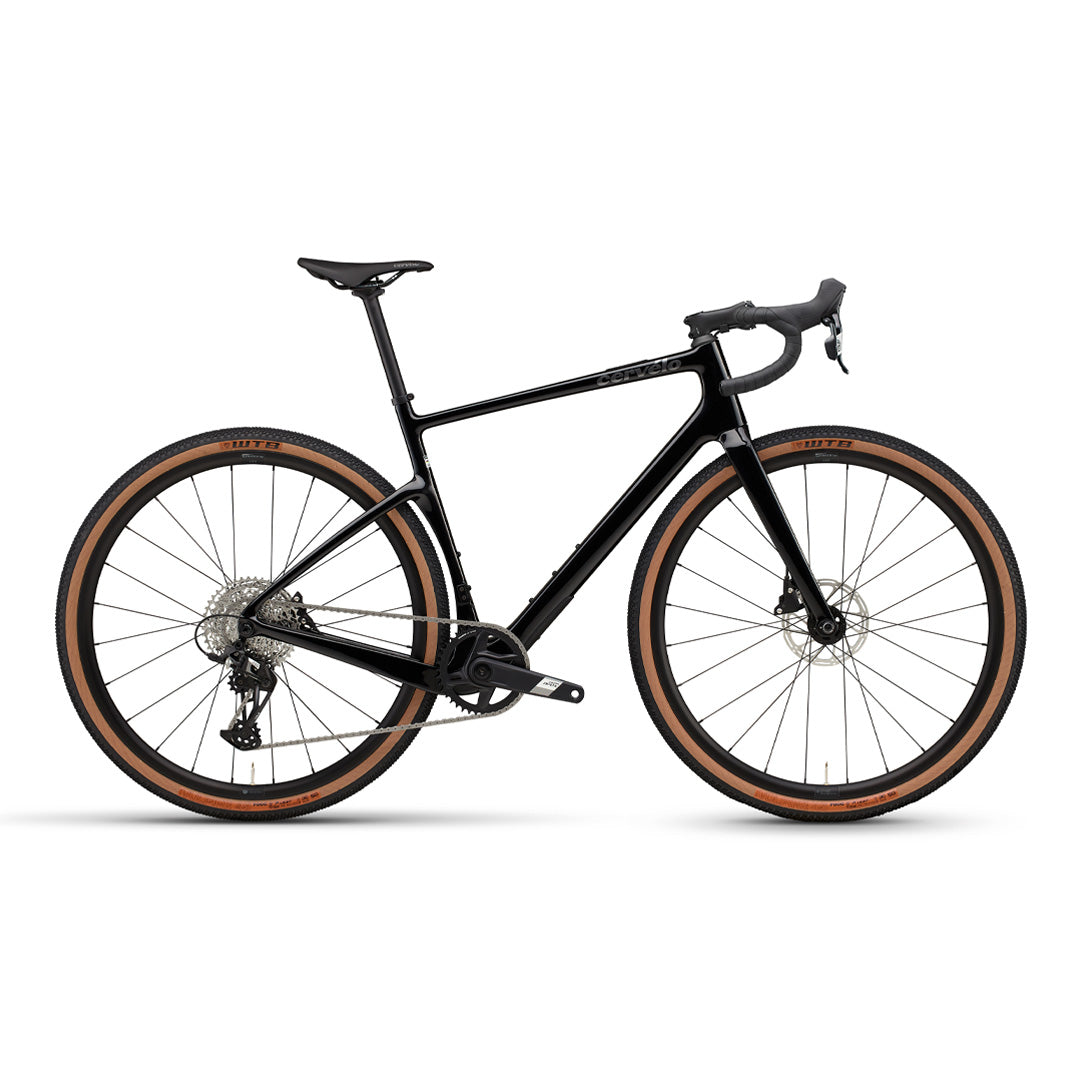

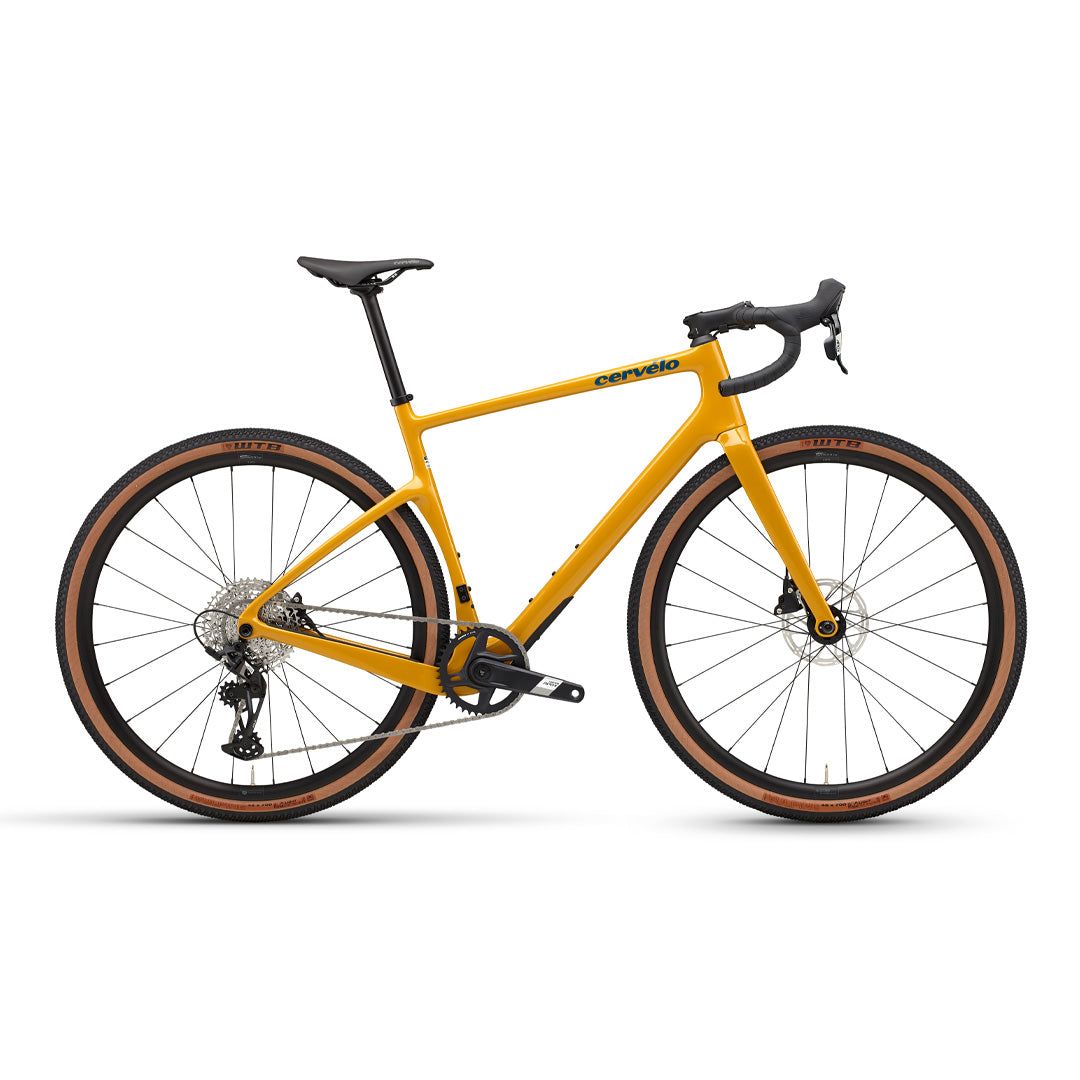

Cervélo Áspero Apex XPLR 1
Specifications
Fork Cervélo All-Carbon, Tapered Aspero Fork
Headset FSA IS2 1-1/4, 45° x 45° / 1-1/2, 36° x 45°
Seatpost Cervélo Alloy 27.2
Seatpost Sizing 48cm - 0mm, 51cm - 0mm, 54cm - 0mm, 56cm - 0mm, 58cm - 0mm, 61cm - 15mm
Left Shifter/Brake SRAM Apex D1
Right Shifter/Brake SRAM Apex D1
Rear Derailleur SRAM Apex XPLR D1
Brake Rotors SRAM Centerline 6-Bolt
Front Thru Axles Cervélo Aero Thru Axle Front, M12x1.5mm, 127mm length
Rear Thru Axles Cervélo Aero Thru Axle Rear, M12x1.0mm, 169mm length
Bottom Bracket SRAM DUB Wide, T47 BBright
Crankset SRAM Apex 1 D1, 40T, DUB Wide
Crank Sizing 48cm - 165mm SRAM, 170mm Shimano, 51cm - 165mm SRAM, 170mm Shimano, 54cm - 170mm, 56cm - 170mm, 58cm - 172.5mm, 61cm - 172.5mm
Handlebar Zipp Service Course 70 XPLR Alloy, 31.8mm clamp, 5 degree flare, 11 degree outsweep
Handlebar Sizing 48cm - 36cm, 51cm - 38cm, 54cm - 40cm, 56cm - 40cm, 58cm - 42cm, 61cm - 42cm
Stem Cervélo ST36 Alloy
Stem Sizing 48cm - 80mm, 51cm - 80mm, 54cm - 90mm, 56cm - 90mm, 58cm - 100mm, 61cm - 100mm
Saddle Cervélo Saddle
Cassette SRAM Apex XPLR D1, 11-44T, 12-Speed
Chain SRAM Apex D1
Front Wheel Alexrims GX7, 12x100mm, 24H, 25mm IW, 6 bolt, tubeless compatible
Rear Wheel Alexrims GX7, 12x142mm, 24H, 25mm IW, HG freehub, 6 bolt, tubeless compatible
Tire WTB Vulpine TCS Light Fast Rolling Dual DNA 60tpi 700x45c
Max Tire Width 700c - 45mm / 650c - 47mm
Accessories Cervélo Front Computer/Accessory Mount 810, Cervélo Smartpak Top Tube Storage Bag 400A
Geometry
| 48 | 51 | 54 | 56 | 58 | 61 | A | Reach | 370 | 379 | 388 | 397 | 406 | 415 | B | Stack | 505 | 530 | 555 | 580 | 605 | 630 | C | Head Tube Angle | 71° | 71.5° | 72° | 72° | 72° | 72° | D | Front Centre | 583 | 592 | 602 | 619 | 637 | 654 | E | Bottom Bracket Drop | 78.5 | 78.5 | 76 | 76 | 73.5 | 73.5 |
|---|---|---|---|---|---|---|---|
| F | |||||||
| 990 | 1000 | 1010 | 1027 | 1046 | 1063 | ||
| G | Chainstay Length | 425 | 425 | 425 | 425 | 425 | 425 |
| H | Head Tube Length (mm) | 83 | 107 | 133 | 159 | 188 | 214 |
| I | Top Tube Length (mm) | 512 | 532 | 553 | 575 | 591 | 608 |
| J | Seat Tube Angle | 74.5° | 74° | 73.5° | 73° | 73° | 73° |
| K | Standover Height | 681 | 704 | 733 | 757 | 784 | 808 |
| All measurements in degrees or millimetres | |||||||
Sizing Guide
The sizing chart is a great place to start when picking your next bike but everyone will fit a bike a bit differently. Your torso, arm, and leg lengths all play into what size of bike you may need. Plus, there's your own personal preference.
We always recommend swinging by the shop and taking the bike that you're looking for a spin to see how it feels. If you're unable to come by, looking at the geometry of your current bike and comparing it is a good place to start. If you have any further questions, our customer service team is there to help.
| Size | Height | Imperial | Metric |
|---|---|---|
| 48 | 4'11" - 5'3" | 150 - 160cm |
| 51 | 5'3" - 5'5" | 160 - 168cm |
| 54 | 5'5" - 5'9" | 168 - 176cm |
| 56 | 5'9 - 6'½" | 176 - 184cm |
| 58 | 6'½" - 6'3" | 184 - 192cm |
