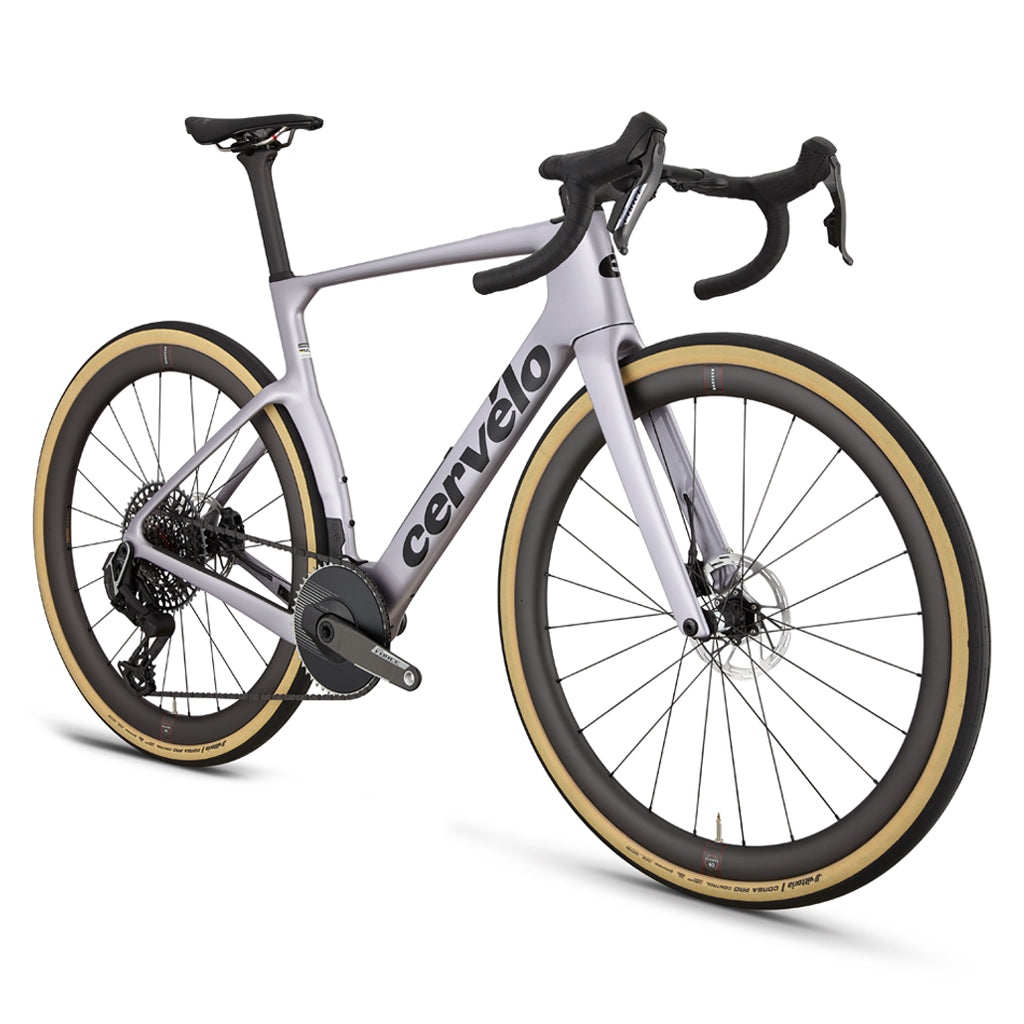

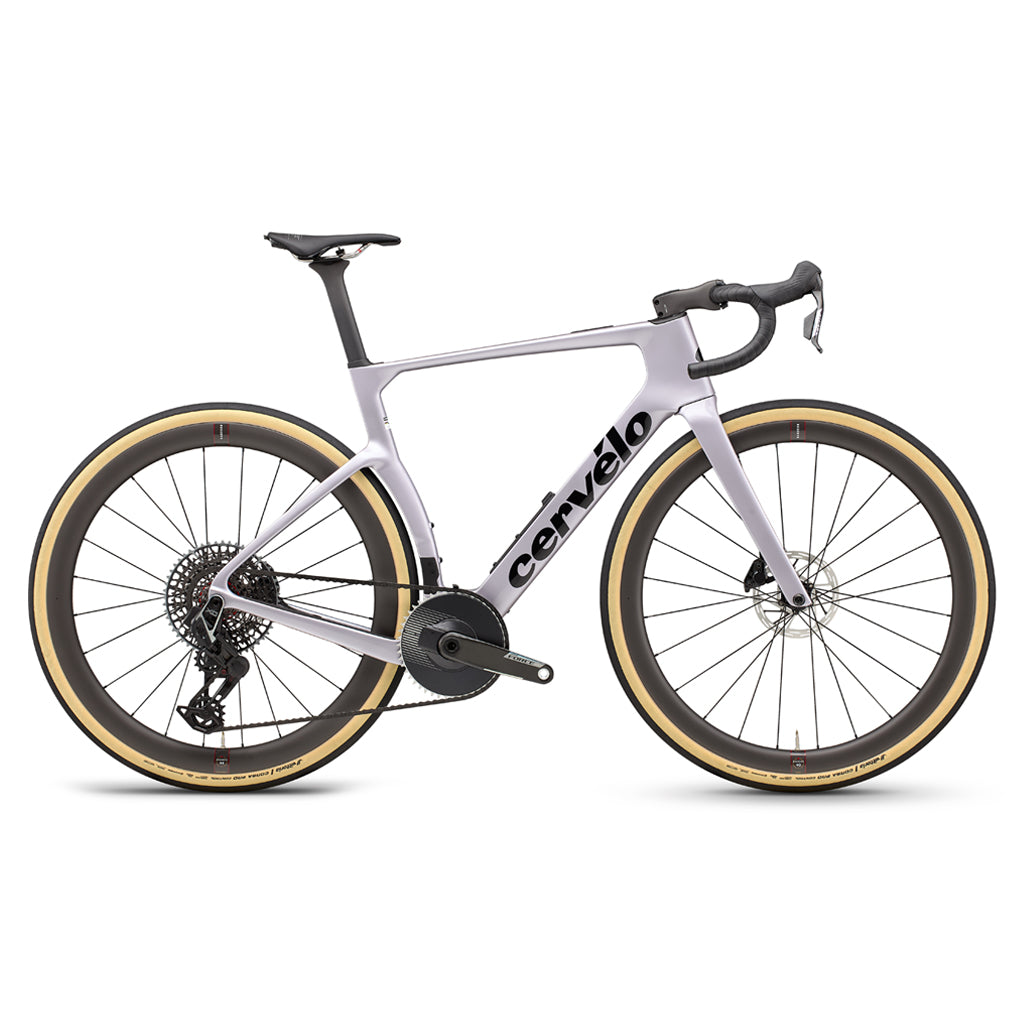

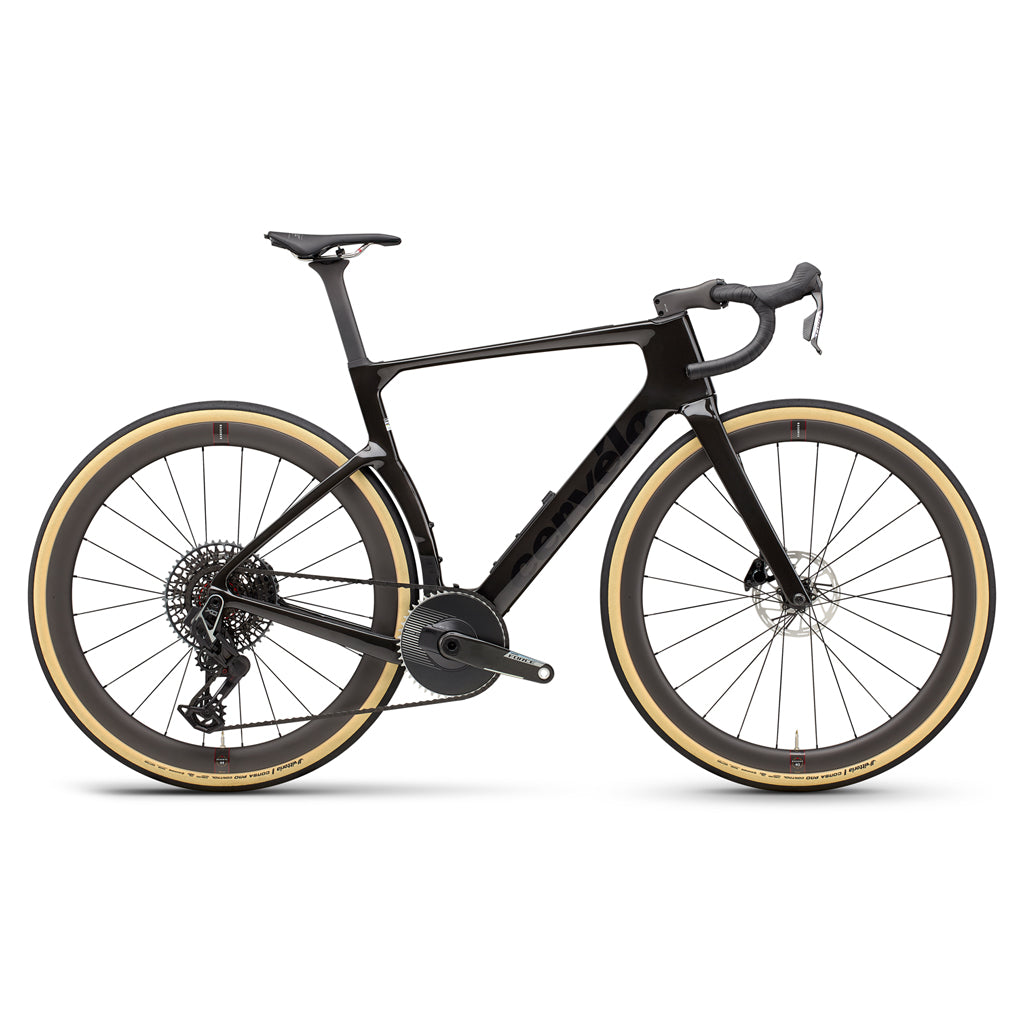

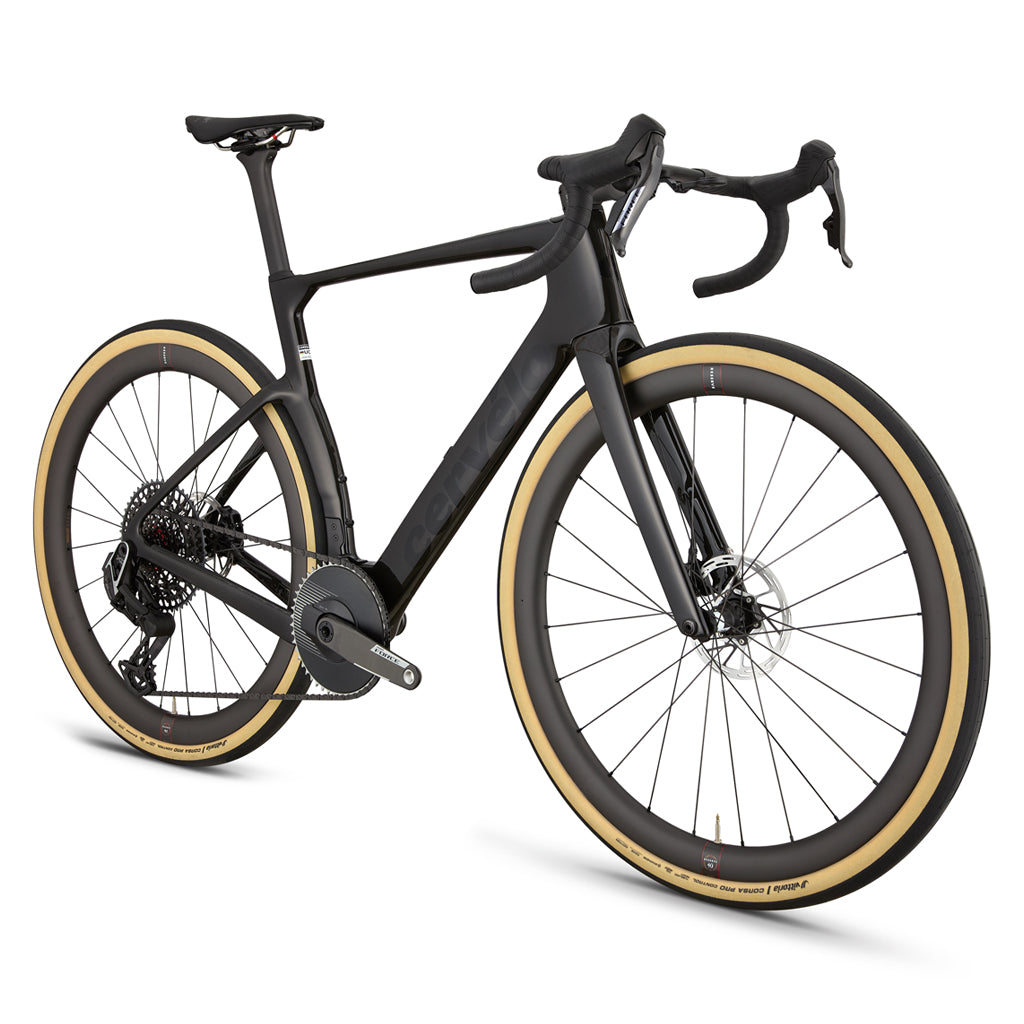

Cervélo Áspero-5 Force AXS 1
But the Áspero-5 isn't just about wind-tunnel numbers. It's a complete race weapon ready to attack from the moment it hits the dirt. Clearance for 45mm tires means you can run the rubber that suits the course. Integrated downtube storage keeps your essentials secure without external clutter. A threaded bottom bracket ensures reliability when conditions get gnarly. This bike rolls off the shop floor race-ready, no compromises required.
The Áspero-5 has already proven itself at the highest level. It made its debut under UCI Gravel World Champion Marianne Vos, carrying her to rainbow jersey glory. Now it's the weapon of choice for some of the world's most elite racers who know that when the pace goes nuclear and the field shatters, every advantage matters. The Áspero-5 gives you those advantages in spades.
Specifications
FORKCervélo All-Carbon, Tapered Aspero-5 Fork
BOTTOM BRACKETSRAM DUB Wide Ceramic, T47BBright
HEADSETFSA IS2 1-1/4, 45° x 45° / 1-1/2, 36° x
CHAINSRAM X0, 12-Speed45°
REAR DERAILLEURSRAM X0 Eagle AXS, 12-Speed
FRONT THRU AXLECervélo Aero Thru Axle Front, M12x-1.5mm, 122mm length
CASSETTESRAM X0 Eagle, 10-52, 12-Speed
SHIFTER/BRAKESRAM Force AXS E1, 12-Speed
REAR THRU AXLECervélo Aero Thru Axle Rear, M12x-1.0mm, 169mm length
HANDLEBARCervélo HB16 Carbon, 31.8mmclamp
FRONT WHEELReserve 40TA GR, DT Swiss 350,12x100mm, 24H, centerlock, tube-less compatible
STEMCervélo ST31 Carbon
SADDLEPrologo Nago R4 PAS TiRox
REAR WHEELReserve 44TA GR, DT Swiss350,12x142mm, XDR freehub, 24H,centerlock, tubeless compatible
SEATPOSTCervélo SP27 Carbon
BRAKE ROTORSSRAM Paceline Centerlock
TIRESCorsa Pro Control TLR G2.0 700x42c
SIZES48, 51, 54, 56, 58, 61
CRANKSETSRAM Force 1 AXS E1, 48T, DUBWide, with power meter
Geometry
| 48 | 51 | 54 | 56 | 58 | 61 | ||
|---|---|---|---|---|---|---|---|
| A | Reach | 369 | 377 | 386 | 395 | 404 | 413 |
| B | Stack | 500 | 525 | 550 | 575 | 600 | 625 |
| C | Head Tube Angle | 70.6 | 71.1 | 71.6 | 71.6 | 71.6 | 71.6 |
| D | Front Centre | 584 | 593 | 602 | 619 | 636 | 653 |
| E | Bottom Bracket Drop | 80 | 80 | 80 | 80 | 78 | 78 |
| F | Wheelbase | 993 | 1002 | 1012 | 1029 | 1047 | 1064 |
| G | Chainstay Length | 422.5 | 422.5 | 422.5 | 422.5 | 422.5 | 422.5 |
| H | Head Tube Length | 75 | 99 | 122 | 148 | 177 | 203 |
| I | Top Tube Length | 516 | 531 | 552 | 574 | 591 | 607 |
| J | Seat Tube Angle | 74.1 | 73.6 | 73.1 | 72.6 | 72.6 | 72.6 |
| K | Standover Height | 720 | 753 | 779 | 801 | 826 | 851 |
| All measurements in degrees or millimetres | |||||||
Sizing Guide
The sizing chart is a great place to start when picking your next bike but everyone will fit a bike a bit differently. Your torso, arm, and leg lengths all play into what size of bike you may need. Plus, there's your own personal preference.
We always recommend swinging by the shop and taking the bike that you're looking for a spin to see how it feels. If you're unable to come by, looking at the geometry of your current bike and comparing it is a good place to start. If you have any further questions, our customer service team is there to help.
| Size | Height | |
|---|---|---|
| Imperial | Metric | |
| 48 | 4'11" - 5'3" | 150 - 160cm |
| 51 | 5'3" - 5'5" | 160 - 168cm |
| 54 | 5'5" - 5'9" | 168 - 176cm |
| 56 | 5'9 - 6'0.5" | 176 - 184cm |
| 58 | 6'0.5" - 6'3" | 184 - 192cm |
| 61 | 6'3" - 6'7" | 192 - 200cm |
