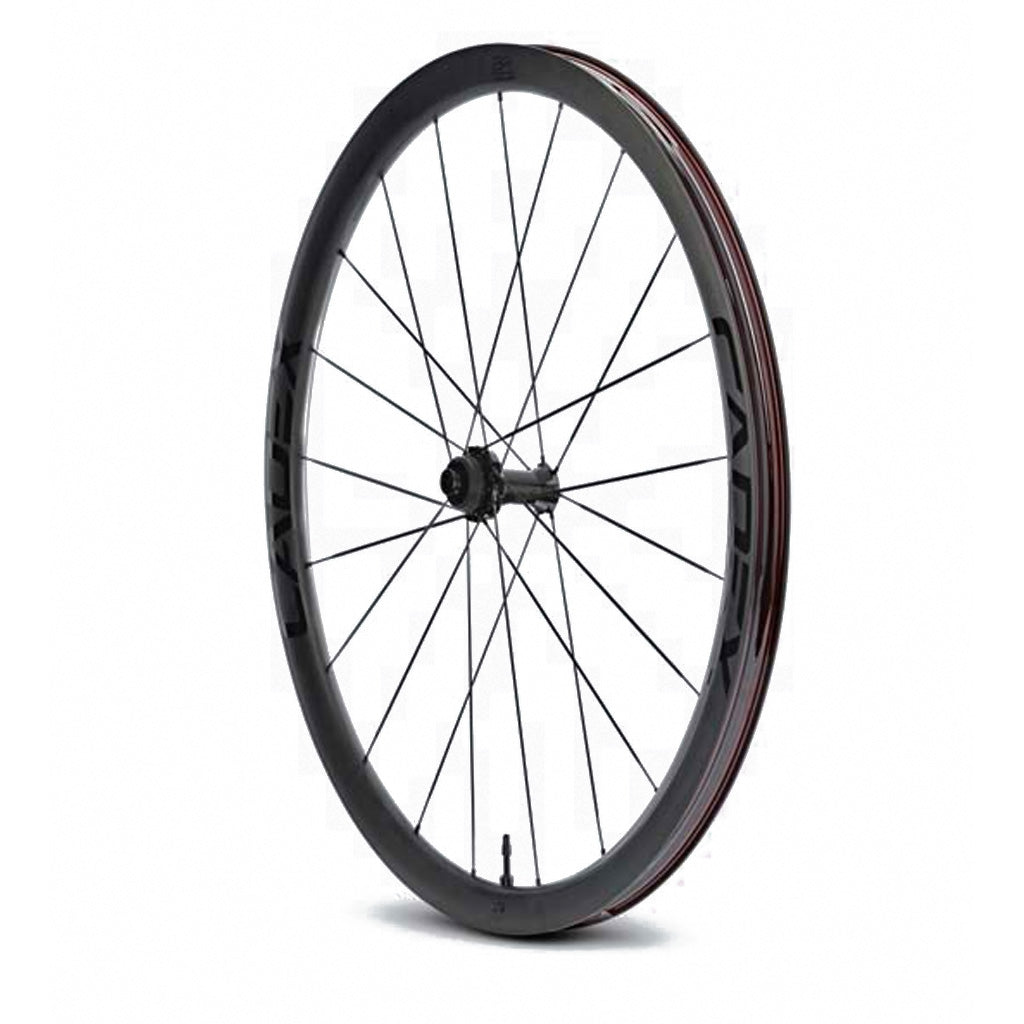

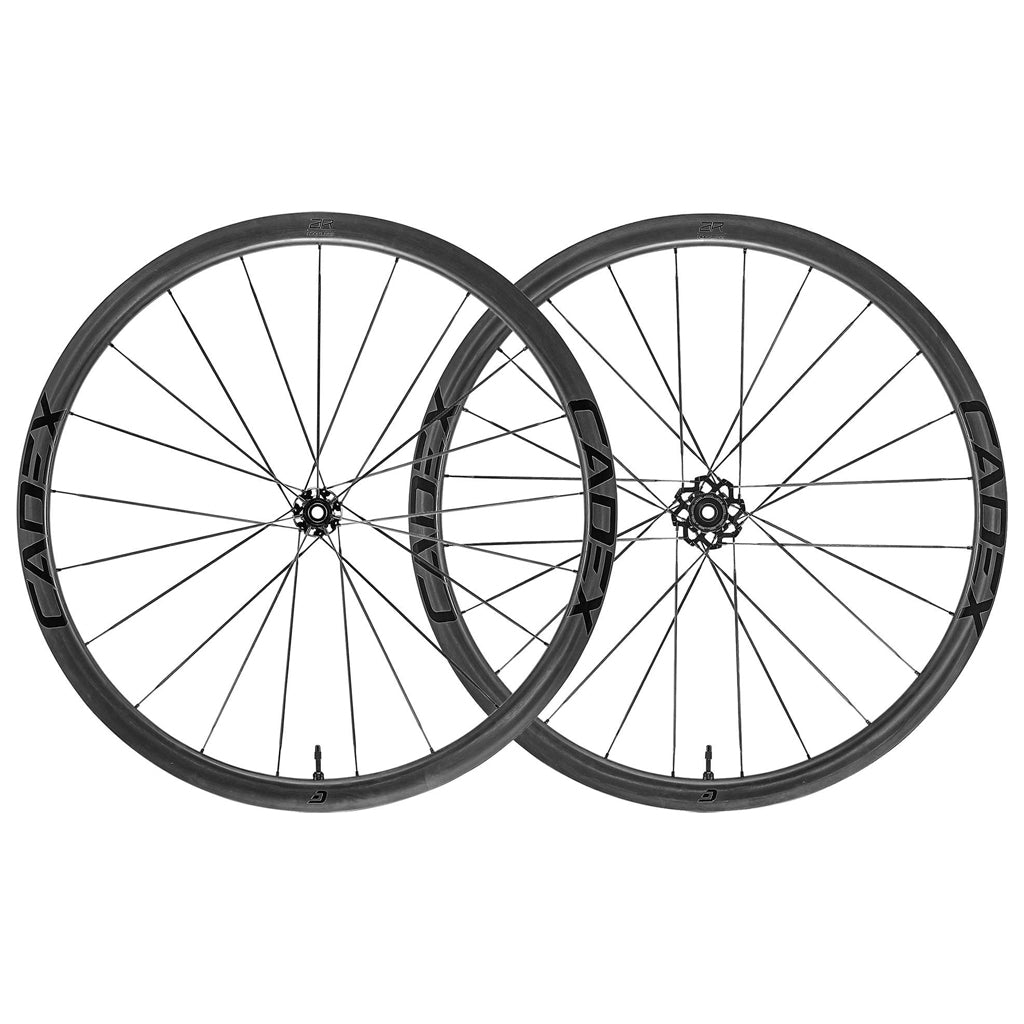

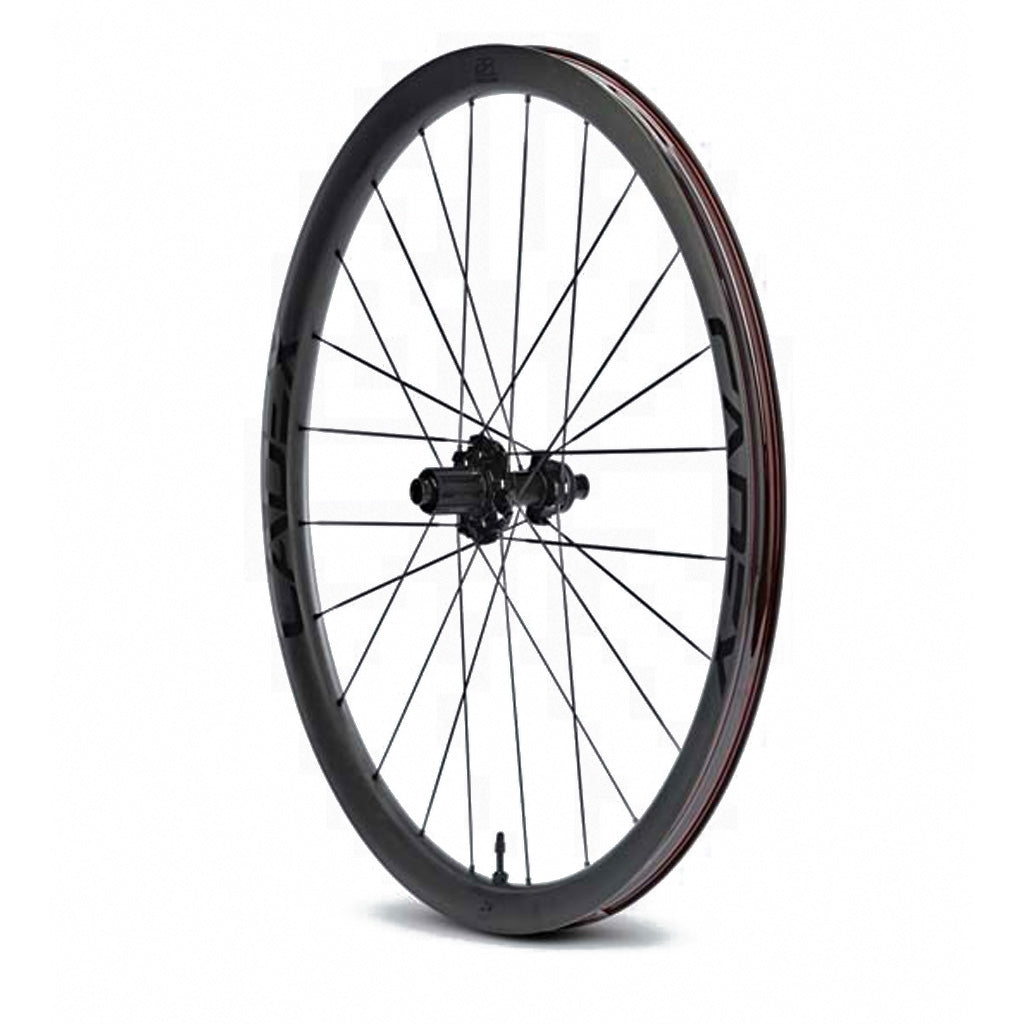

CADEX AR 35 Disc Brake Tubeless Wheels
210000050780
Must purchase Front AND Rear Wheel to receive a complete set
A hookless bead and precision reinforced carbon layup create an exceptionally strong structure with best-in-class weight. A 25mm inner rim width produces a more uniform tire shape and better handling. The innovative 60-tooth ratchet freehub and ultrasmooth ceramic bearings deliver a responsive feel, while high-tensile-strength carbon spokes and Dynamic Balanced Lacing boost lateral stiffness. It all adds up to class-leading speed, efficiency and durability for superior all-road performance.
- Hookless rim technology offers XC-level impact resistance by providing a more consistent carbon fiber structure at the rim wall. It also creates a
rounder tyre shape for better grip and sidewall support when cornering. - Precision reinforced carbon lay-up places carbon fiber only where needed, creating a super strong and lightweight rim.
- 25mm inner width and hookless rim construction offer a shorter, wider tyre contact patch for reduced power loss and increased impact absorption.
- A wide inner width supports higher volume 28–45mm road and gravel tyres, allowing lower tire pressures and more confident handling.
- High-tensile-strength, ultralight CADEX carbon spokes and precision reinforced carbon lay-up combine for class-leading stiffness-to-weight.
- Custom tuned Dynamic Balanced Lacing (DBL) technology sets spokes at a wider bracing angle and evens out tension under pedaling force, producing
a stiffer, more efficient wheel with outstanding power transfer. - CADEX ceramic bearings offer 1.5x smoother action than steel.
- Lightweight CADEX R2-C60 hub with R-Drive features a DLC 60-tooth ratchet driver, durable flat spring and redesigned dust cover for instant engagement and long-lasting efficiency.
- Integrated front hub design reinforces axle support and eliminates play by replacing end cap, bearing and bushing interface with an integrated
axle running the length of the hub.
Rim Material: Carbon
Rim Type: Hookless Clincher (Tubeless)
Suggested Tire Size: 700 x 28c - 700 x 45c
Rim Height: 35mm
Rim Outer Width: 31mm
Rim Inner Width: 25mm
ERTO: 622-25
Front Hub: CADEX R2-C60 Hub, Centerlock
Rear Hub: CADEX R2-C60 Hub, 60T Ratchet Drive Centerlock
Freehub System: R-Drive
Bearing: Cadex Ceramic Bearings
Spokes (Front): Aero Carbon Spoke
Lacing (Front): 21H
Lacing (Rear): 24H
Nipple Type: Alloy
Warranty: 2 year warranty
Incident Replacement: 5 year (registered original owner only)
Weight (Pair): 1270g
Item # 350000271 (Front)
Item # 350000282 (Rear)
