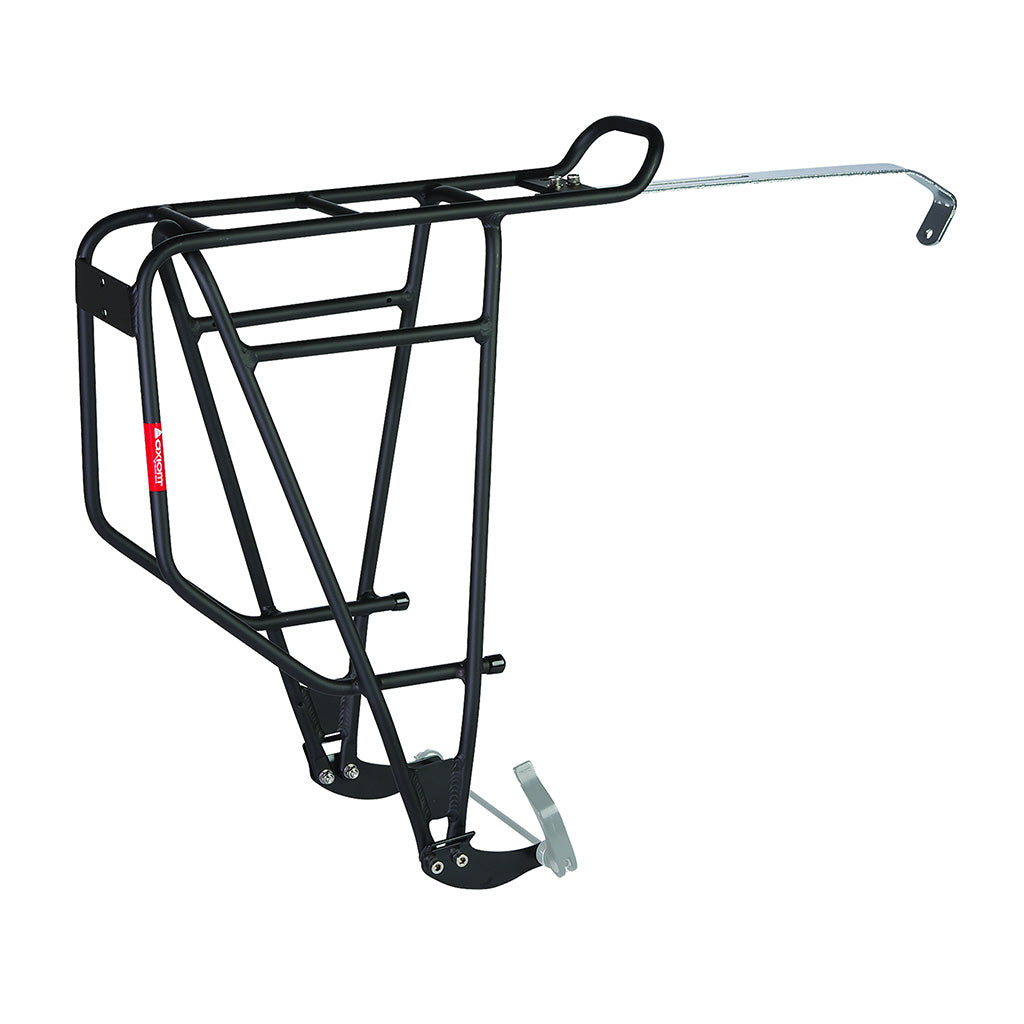

We threw 80’s blueprints (that everyone else copies) out the window and designed a rack that solves heel

clearance and compatibility issues that arise when trying to install traditional racks on modern large-wheeled bicycles. Install a Streamliner® rack on almost any 27.5” or 29” wheeled bike, and let your bike do the work for you.

Construction:

• Hand-welded, tubular 10.2mm 6061 T6 aluminum.
• High-strength steel modular feet.
• Durable anti-scratch coating.

Mounting System:

• Feet mount to a standard quick-release skewer* (not included) or to traditional eyelets.
• Extra-long (280mm), adjustable Versalock® arms (for frames with eyelets).
• Center bracket can be attached to a brake caliper or fender bridge.
• Optional (255120-01~04) ‘Trekk Seat Collar’ (not included) can be used to add upper eyelets to bikes that have none.
• Optional (171356-17) ‘Nutted Axle Kit’ can be used to fit bikes with bolted axles.

Vendor Item#: 171269-01
