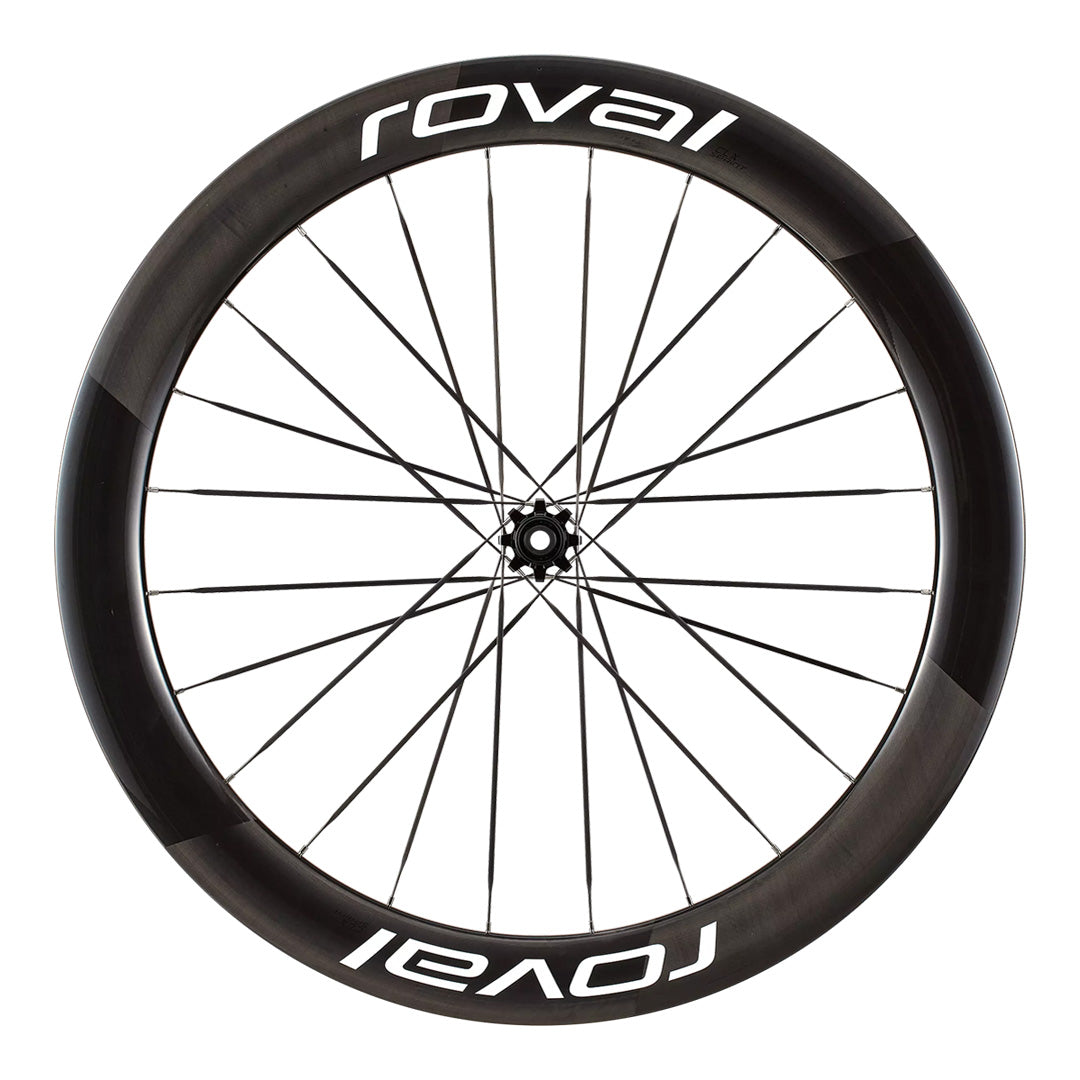

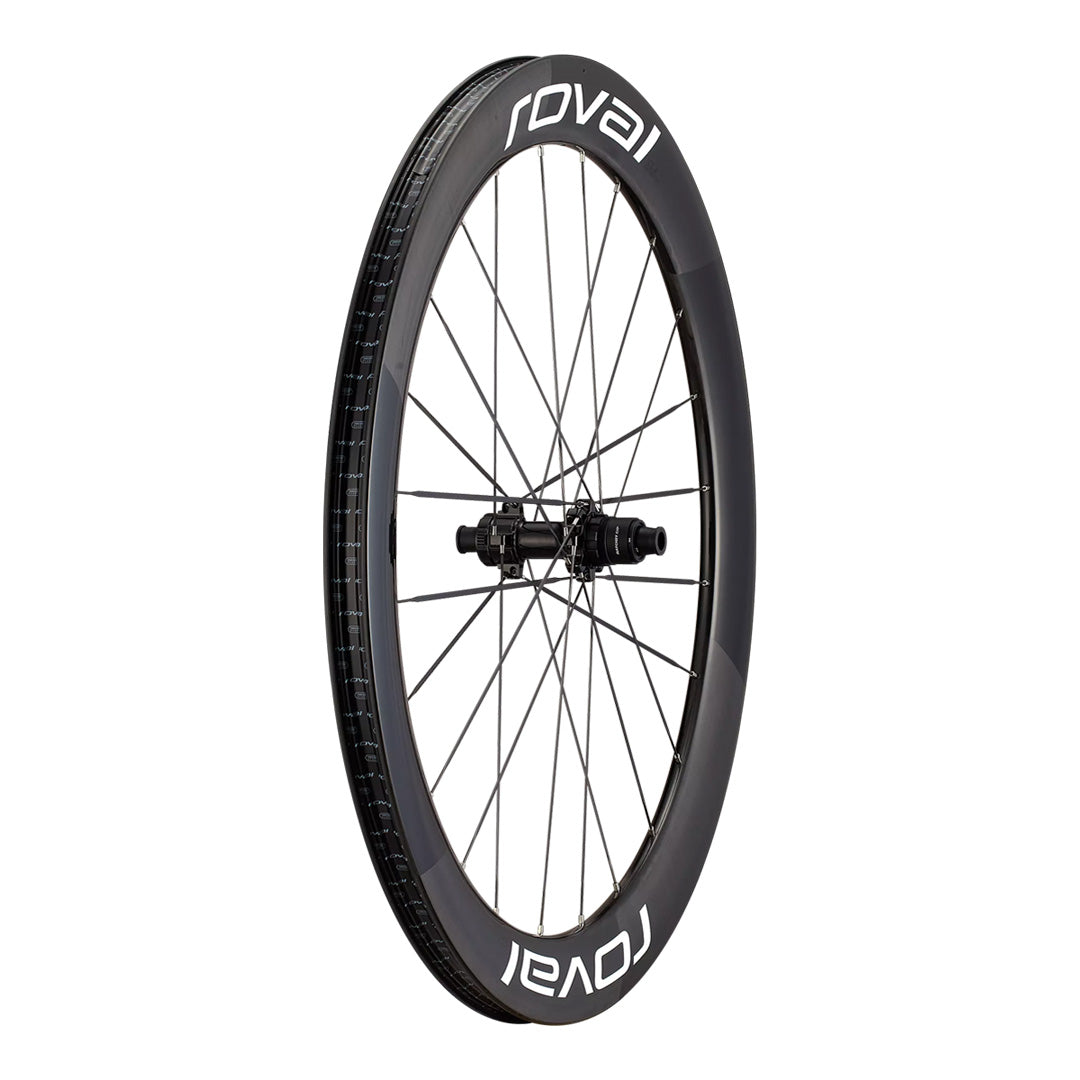

Meet the Roval Rapide CLX Sprint—built to get to the finish line first. Since 90% of aero benefit comes from the front wheel, we went all-in with a 63mm deep front rim to slice through the wind, and a lightweight 58mm rear with carbon spokes for blistering acceleration when it counts. Charge full gas with confidence: FlatStop bead hooks demand 39% more force to flat, delivering race-day reliability that lasts to the line. Roval is shifting the aero paradigm—depth redefined for absolute speed.
SPECIFICATIONS
Wheel Size / ETRTO: 622 × 21 (700c)
Tubeless Compatibility: Yes
Insert Compatibility: Yes
Brake Compatibility: Disc (Centerlock)
Rim Construction: Carbon Clincher Hooked
Valve Stem Length: Roval Tubeless Vlave, Alloy 80mm
Hole Count: Front: 18H, Rear: 24H

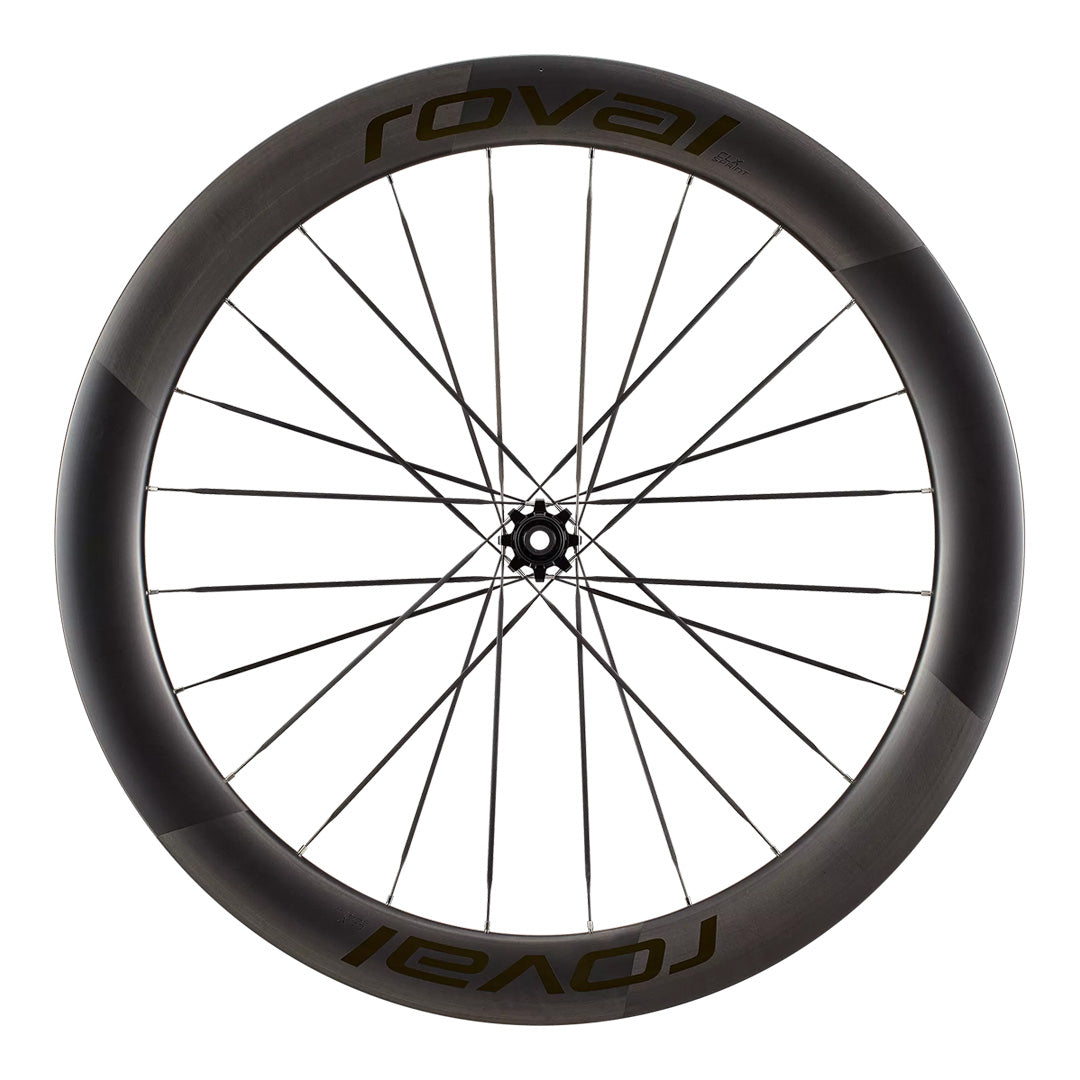

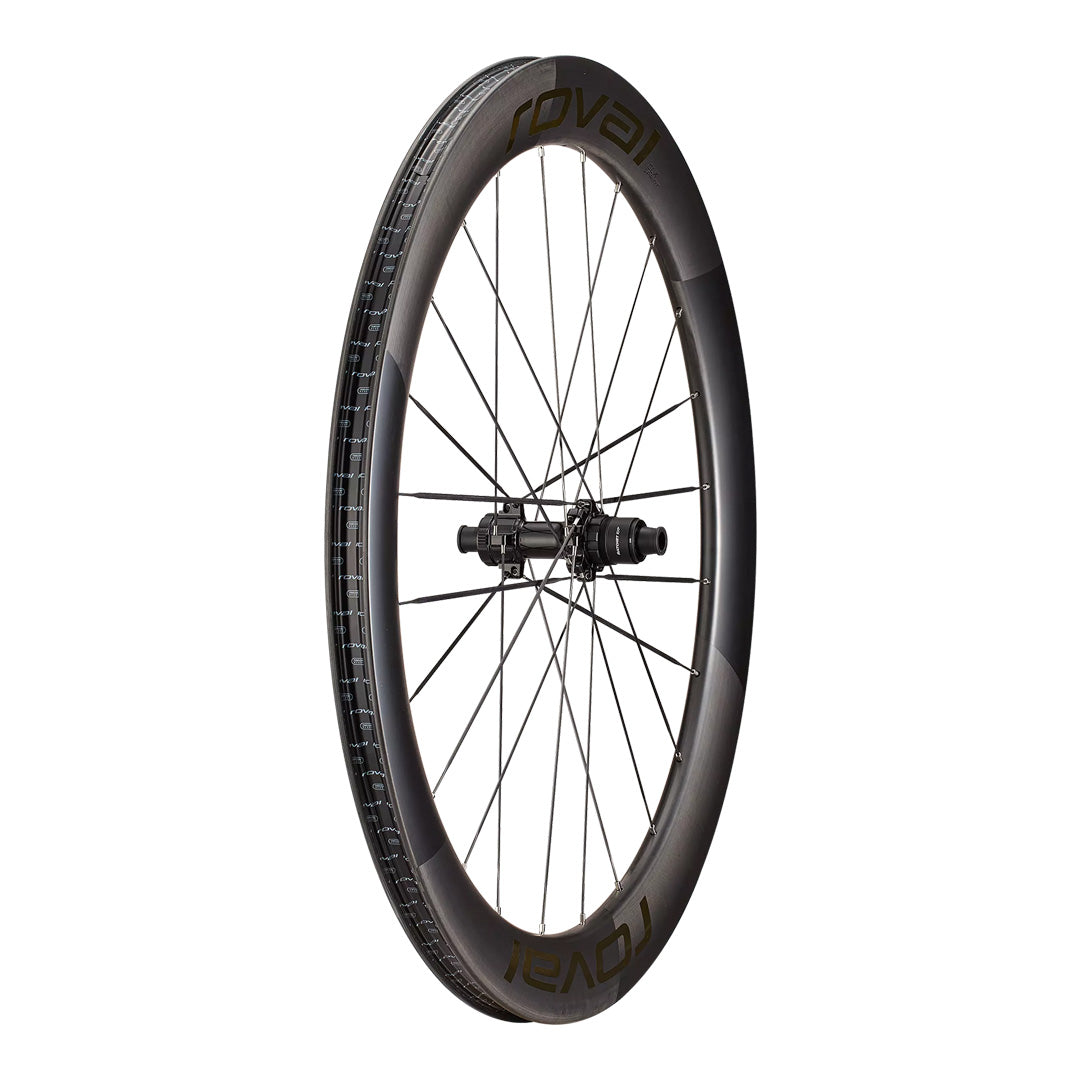

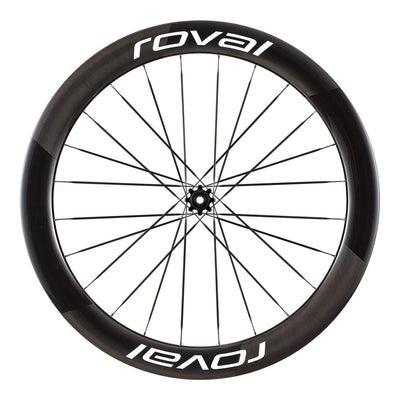

Rear Rim: Rapide Sprint CLX Carbon Clincher Rear, 700c (CR2375)
Rear Rim Dimensions: Depth: 58mm, External Width (at widest point): 34.4mm, Internal Width: 21mm, Bead Hook Width: (4.2)mm

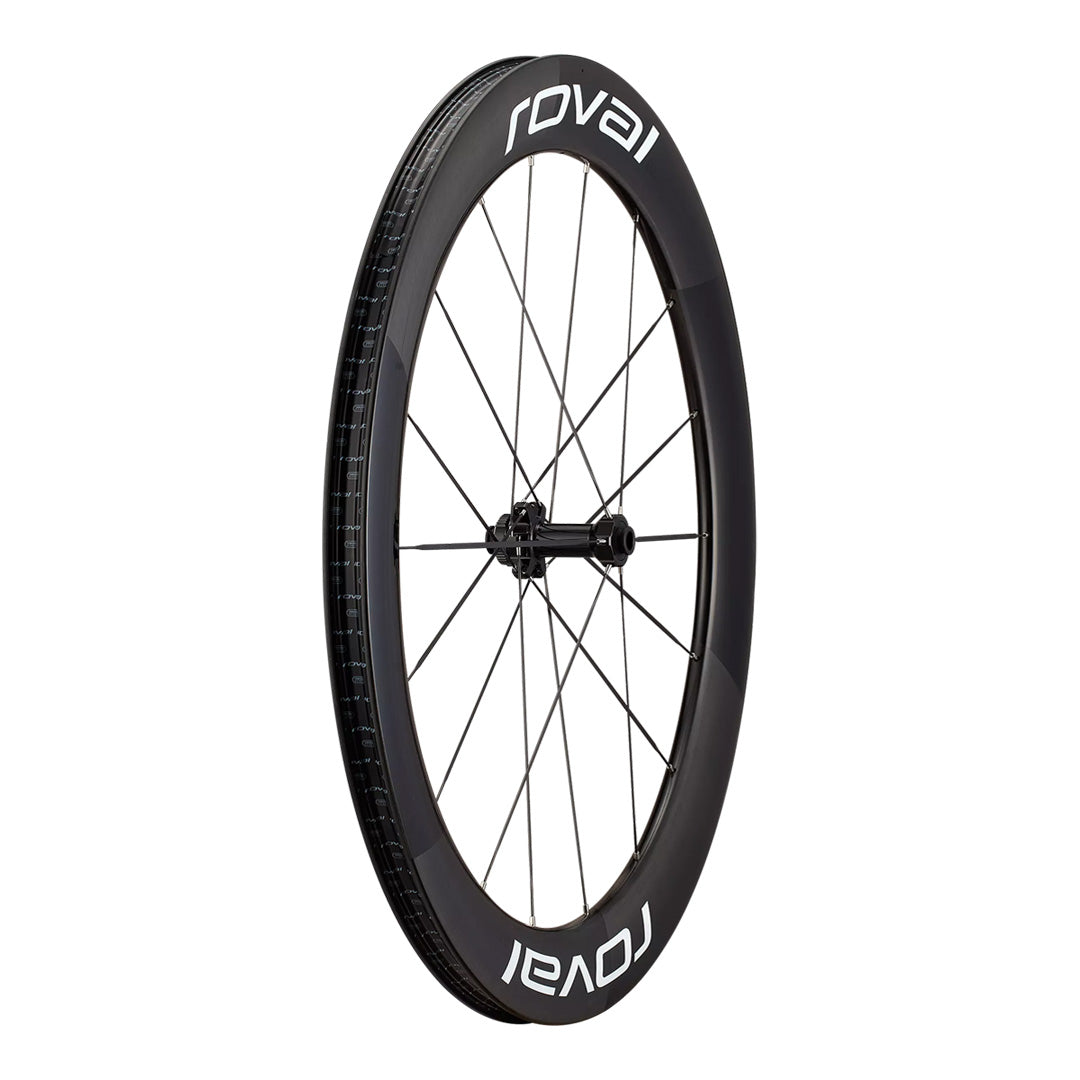

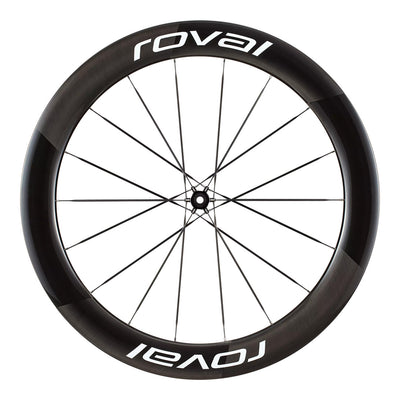

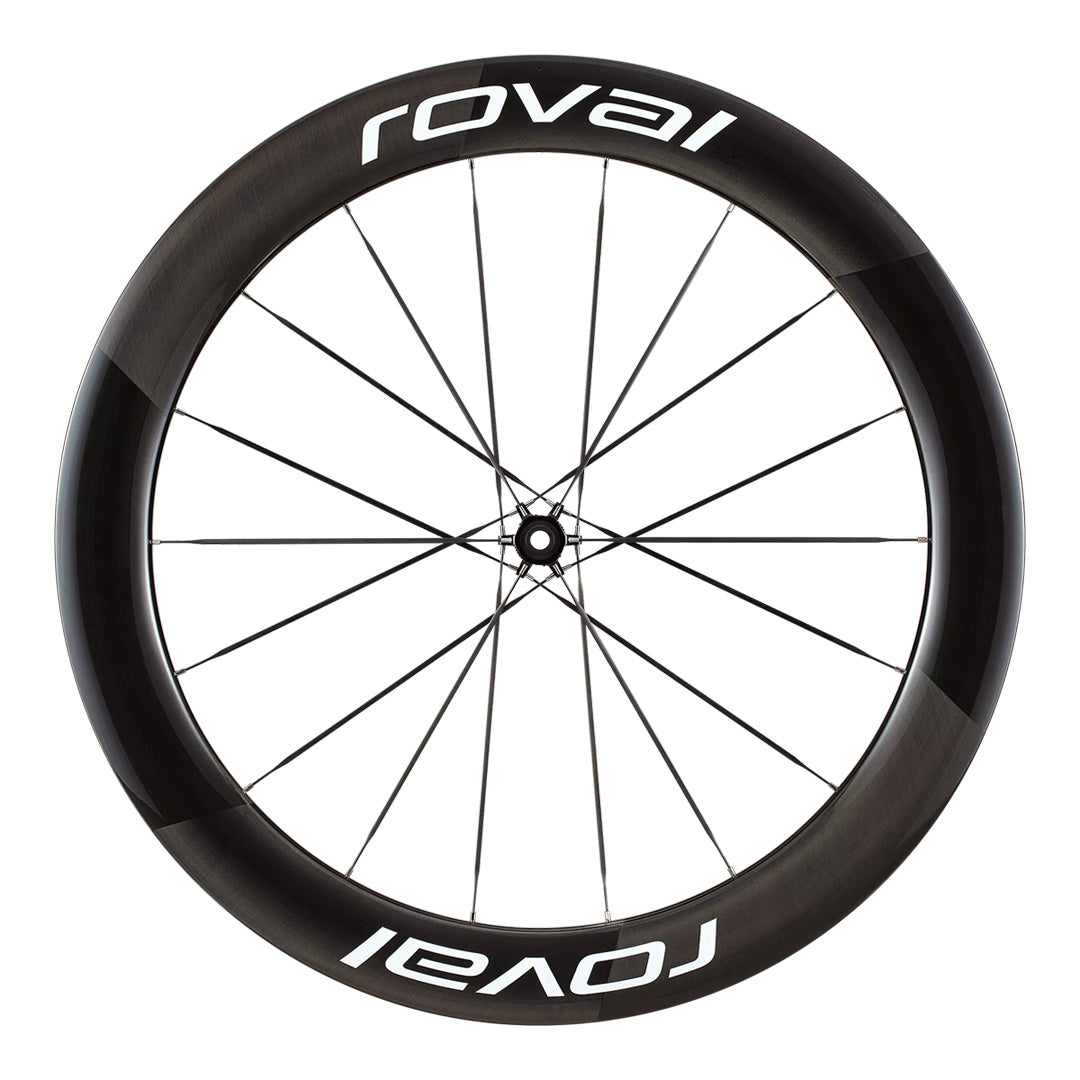

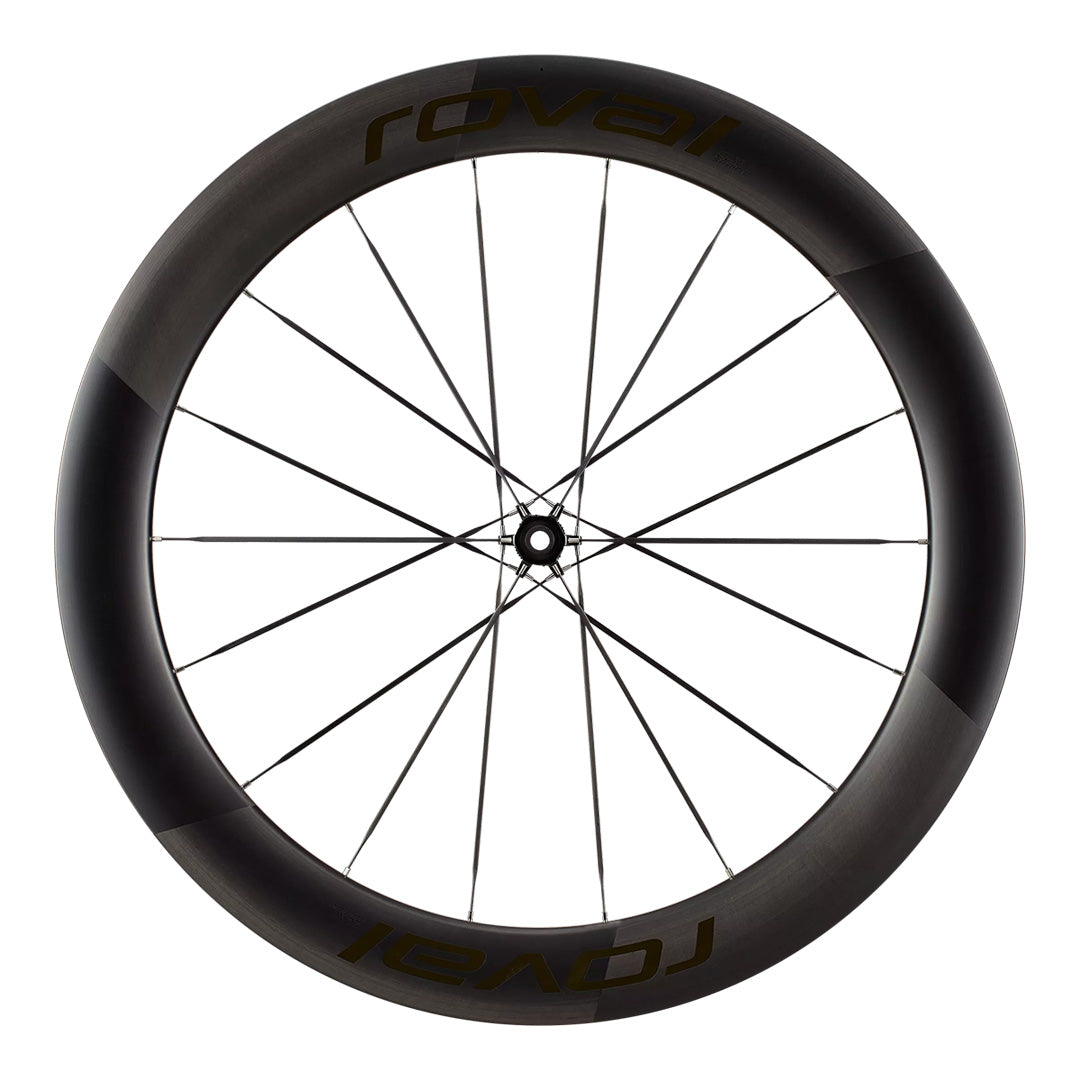

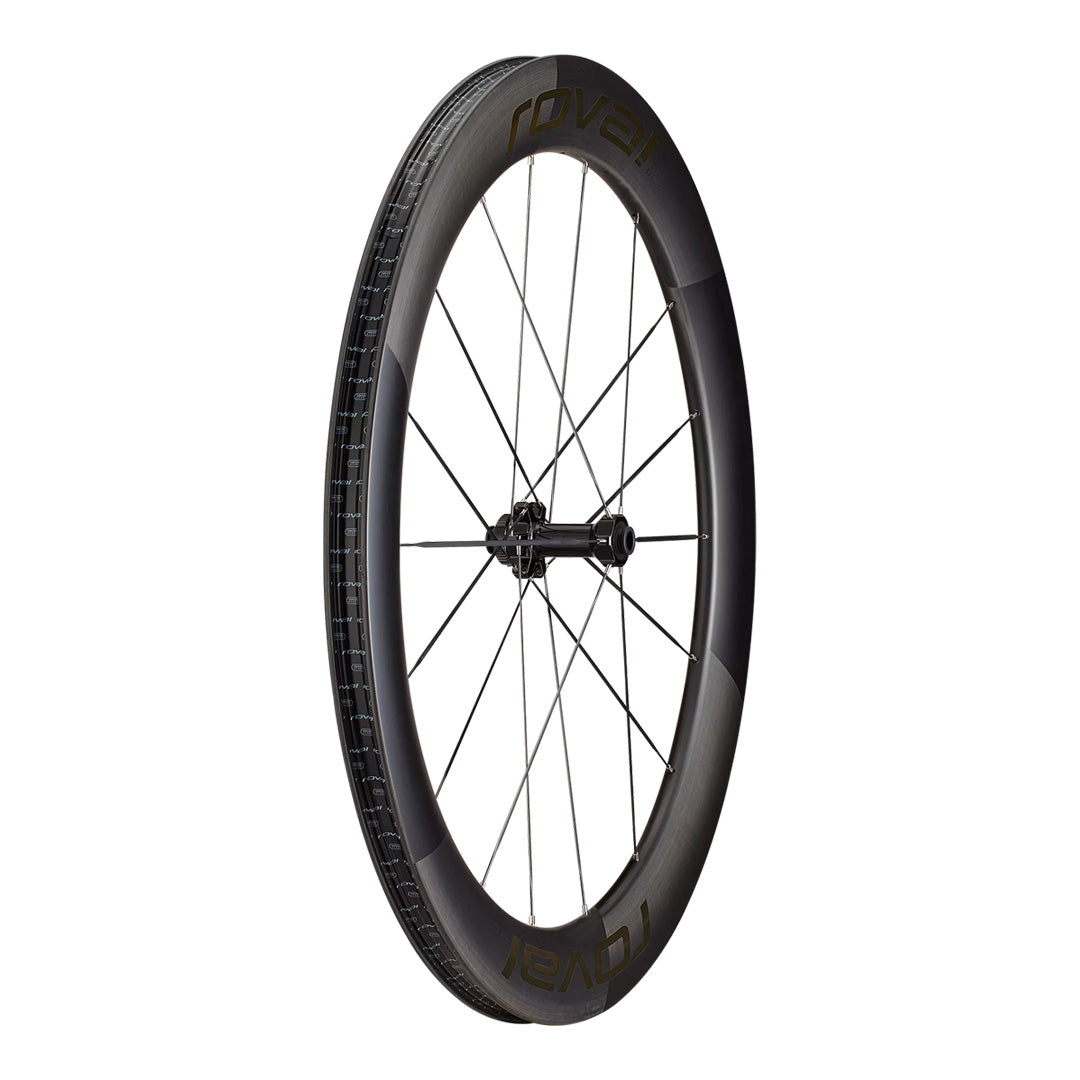

Front Rim: Rapide Sprint CLX Carbon Clincher Front, 700c (CR2374)
Front Rim Dimensions: Depth: 63mm, External Width (at widest point): 35mm, Internal Width: 21mm, Bead Hook Width: (4.3)mm
Rear Hub: Roval Low Flange Road Hub, Center Lock, 12x142mm, (LF19-R)
Rear Freehub Body: DT Swiss Ratchet EXP (36T ): Sram XD-R
Rear Hub Bearing: DT Sinc Ceramic Bearings - DS:1526 (15 x 26 x 7 mm), NDS: 6802 (15 x 24 x 5 mm)
Front Hub: Roval Low Flange Road Hub, Center Lock, 12x100mm, 19mm OD End Caps Installed (LF18-F)
Front Hub Bearing: DT Sinc Ceramic Bearings - DS: 6802 (15 x 24 x 5 mm), NDS: 6802 (15 x 24 x 5 mm)
Nipples: Arris MK4 Spoke Nipple Alloy, 6 mm
Rear Spokes: Roval by Arris, Composite Aero Spoke with Ti End Pieces: T-head, 24qty, (DS: 267mm, NDS: 263mm)
Rear Lacing Pattern: One-Cross / Three-Cross (2:1), Not Tucked
Front Spokes: Roval by Arris, Composite Aero Spoke with Ti End Pieces: T-head, 18qty, (DS: 251mm, NDS: 261mm)
Front Lacing Pattern: Two-Cross / Radial (2:1), Not Tucked
Tubeless Tape Width: 25mm
Tire Type: Clincher Tubeless and Clincher Tube Type
Design Tire: RapidAir TLR, 28mm
Approved Tire Widths : 24mm-38mm
Max Pressure: Tubeless (110psi) Tubed (130psi), 36mm-38mm: Tubeless (60psi) Tubed (60psi)
Wheelset Weight: 1395g (with valves and tape)
Rear Weight: 755g (with valves and tape)
Front Weight: 640g (with valves and tape)
Warranty: Limited Lifetime Warranty
Assembly Method: Hand Built
Weight Limit: 275 lbs. / 125 kg.
Certifications: ISO 5775-2, UCI Approved
E-bike Approved: No
Extras: 4 Extra Spokes and Nipples, Roval Wheel Bag, Shimano HG 11/12-Spd. Road Freehub & end Caps (rear wheel only)
SKUs
Gloss Carbon / Gloss White
Front: 30025-6503
Rear: 30025-6501
Satin Carbon / Gloss Black
Front: 30025-6500
Rear: 30025-6502
