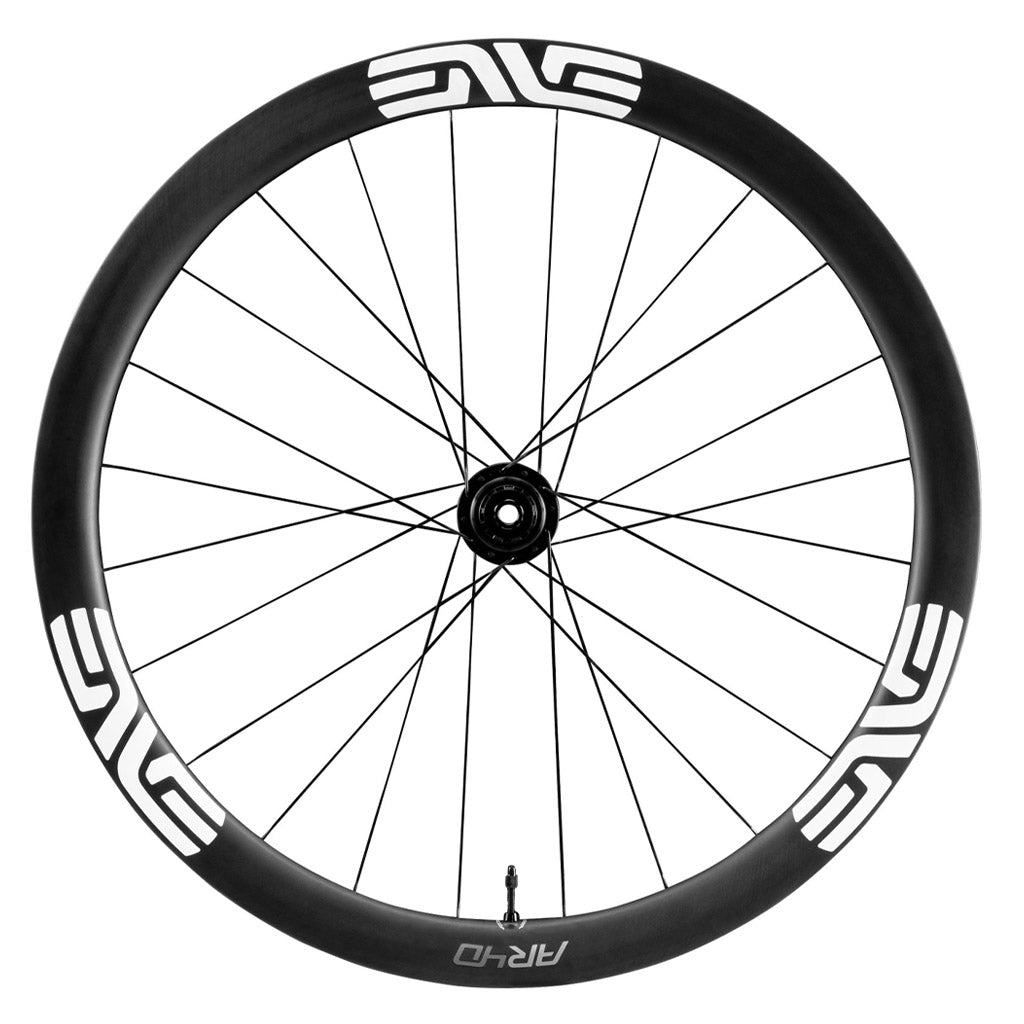

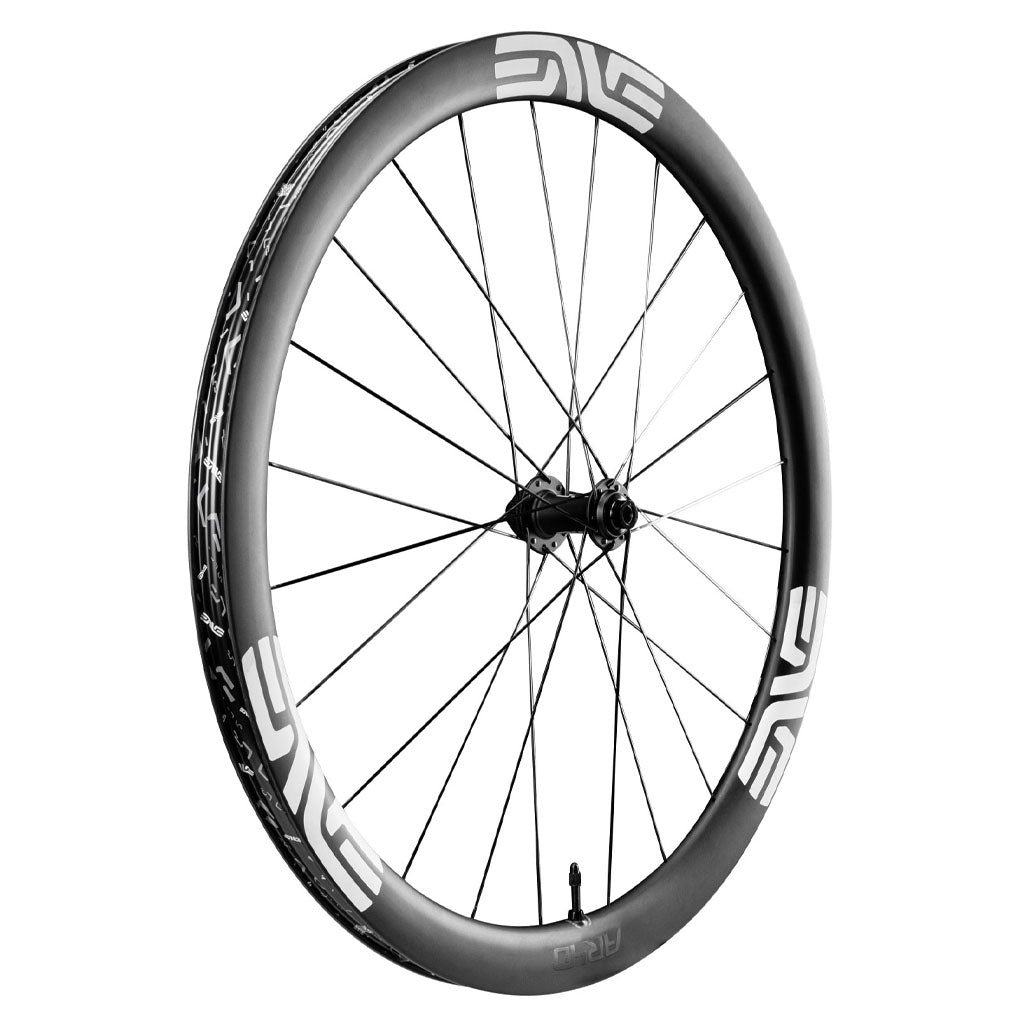

ENVE AR40 Wheels
ENVE AR40 Wheels
ENVE AR40 Wheels

ENVE AR40 Wheels

210000113480

Regular price$874.99 CAD
/

Size

The AR40 is the latest addition to the Foundation lineup. Featuring an aerodynamically optimized 40 mm rim depth front and rear, with a 25 mm internal rim width, the AR40 is designed to deliver ultimate versatility for the road rider and racer looking for performance on and off-road. Borrowing from SES rim design knowledge, the AR40 is aerodynamically tuned for 29 mm – 30 mm tires and delivers drag reduction that punches above its depth and price point. While designed primarily for on-road performance, the AR40 has been tested and qualified to ENVE’s gravel standards to ensure safety and speed for gravel riding and racing applications.

Specifications

  • Spokes: Sapim CX-Ray J-Bend
  • Hub:
    • Front: ENVE INNERDRIVE – Foundation
    • Rear: ENVE INNERDRIVE – Foundation
  • Hub Spacing: Front: 12x100 | Rear: 12x142
  • Nipples: Alpina Nylock Brass
  • Spoke Tension: 120kgf
  • Brake Type: Centerlock
  • Effective Rim Diameter (ERD): 579mm (+/- 3mm)
  • Internal Rim Width: 25mm
  • Sidewall Width: 3.6mm
  • Pinch Flat Technology: Wide Hookless Bead
  • Hole Count: 24h
  • Depth: 40mm
  • Tubeless Tape Width: 29mm
  • Tubeless Valve Length: Front: 61mm | Rear: 61mm
  • Spoke Tension: 120kgf
  • Brake Type: Centerlock
  • Spacing: Front: 12x100 | Rear: 12x142
  • Rim Weight: Front: 425g | Rear: 425g
  • Wheel Weight: Front: 690g | Rear: 825g
  • Wheelset Weight: 1515g (Includes Tape and Valves – HG Freehub)
  • Recommended Tire Size: 27–50mm
  • Minimum Tire Size: 27mm*
  • Maximum Tire Pressure (Minimum Tire): 80 psi | 5.5 bar
