DESCRIPTION

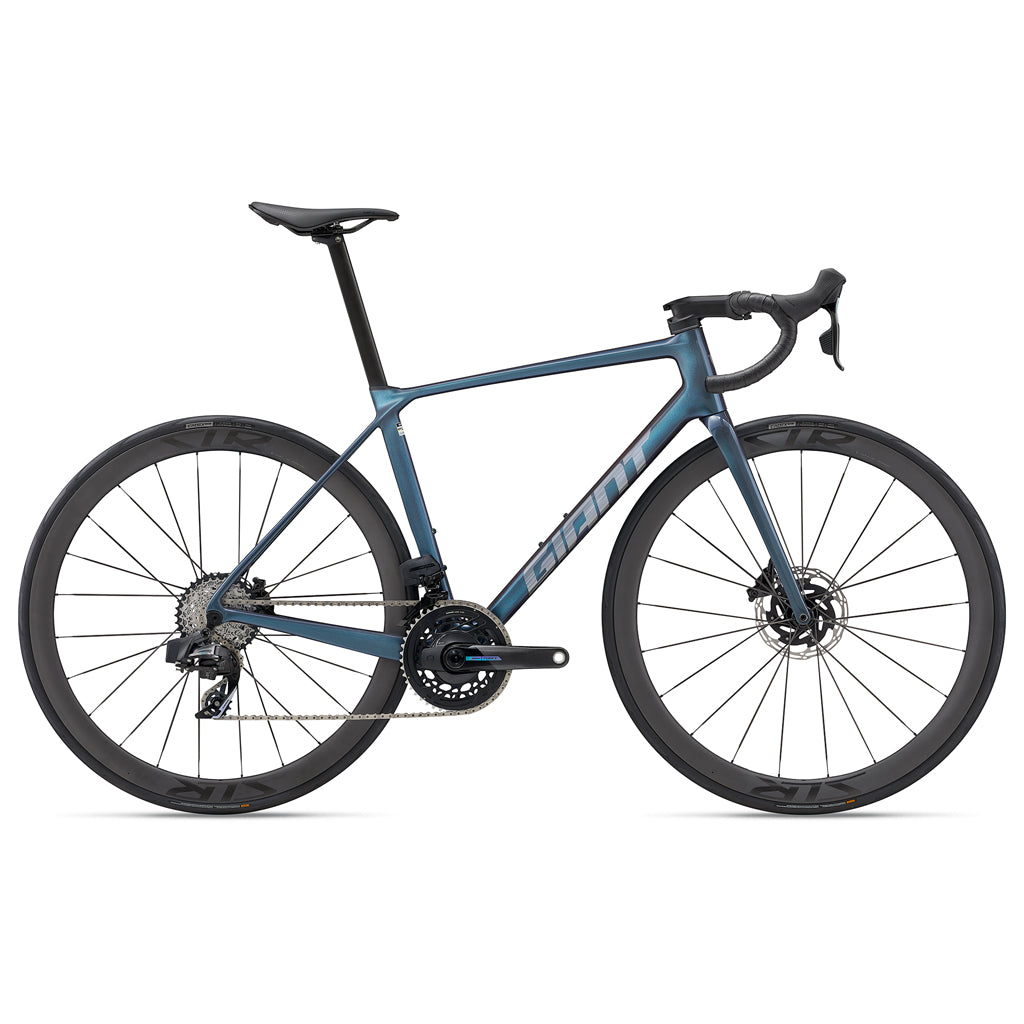

Superlight, ultra-efficient and rides like a dream. This well-rounded race bike blends industry-leading composite frame engineering with fully integrated components to help you climb, corner and descend with astonishing speed and sublime road handling.
This versatile road racer combines race-winning stiffness-to-weight with aerodynamic tube shaping and system integration. From the road-smoothing Variant seatpost to the composite WheelSystem, every piece is optimized as part of the system. The new OverDrive Aero steerer tube technology is combined with a Contact SL AeroLight stem and Contact SL handlebar to incorporate new internal cable routing for easy setup and adjustment, while integrated disc brakes and generous clearance for tires up to 33mm make it adaptable to all road conditions.
System Optimization
The frameset, wheels, cockpit and other parts are engineered, developed and tested together to perform as a system. The all-new OverDrive Aero steerer tube technology is combined with a Contact SL AeroLight stem and Contact SL handlebar to incorporate internal cable routing that integrates the top cap, cables and spacers in a more aerodynamic, user-friendly setup.
Winning Efficiency
Featuring a greater stiffness-to-weight ratio than the previous generation, along with new aero tube shaping and a lighter overall weight, this uncompromising race bike delivers explosive acceleration and unyielding pedaling stiffness. The result is race-winning performance in the moments that count.
Integrated Aerodynamics
All tube shapes are engineered and developed using Computational Fluid Dynamics (CFD) modeling and wind-tunnel testing. From the truncated ellipse shape of frameset tubing to a new cockpit design and component integration, it all adds up to a more streamlined profile that improves overall aero performance compared to the previous generation.
Specifications
Frame
Advanced-grade composite, 12x142mm thru-axle, disc
Fork
Advanced-grade composite, full-composite D-shaped OverDrive Aero steerer, 12x100mm thru-axle, disc
Handlebar
Giant Contact SLR
Grips
Stratus Lite 2.0
Stem
Giant Contact SL Aerolight XS:80mm, S:90mm, M:100mm, M/L, L:110mm, XL:120mm
Seatpost
Giant Variant, composite, -5/+15mm offset
Saddle
Giant Fleet SL
Shifters
SRAM Force AXS
Front Derailleurs
SRAM Force AXS
Rear Derailleurs
SRAM Force AXS
Brakes
SRAM Force AXS hydraulic, SRAM CenterLine XR rotors [F]160mm, [R]140mm
Brake Levers
SRAM Force AXS hydraulic
Cassette
SRAM Force, 12-speed, 10x36
Chain
SRAM Force D1
Crankset
SRAM Force, 33/46 with Quarq Dzero power meter S:170mm, M, M/L:172.5mm, L, XL:175mm
Bottom Bracket
SRAM DUB, press fit
Rims
Giant SLR 0 40 Carbon Disc WheelSystem, [F] 40mm, [R] 40mm
Hubs
[F] Giant Low Friction Hub, CenterLock, 12mm thru-axle
[R] Giant Low Friction Hub, 40t ratchet driver, CenterLock, 12mm thru-axle
Spokes
Giant Aero Carbon Spoke
Tires
CADEX Race GC, tubeless, 700x28c (28mm), 120 TPI, folding
Extras
Computer mount, Giant Airway ECO composite bottle cage, tubeless prepared, 33mm max tire size
* Specifications are subject to change without notice
Geometry
| XS | S | M | M/L | L | XL | ||
|---|---|---|---|---|---|---|---|
| A | Reach | 376 | 383 | 388 | 393 | 402 | 412 |
| B | Stack | 517 | 528 | 545 | 558 | 577 | 596 |
| C | Head Tube Angle | 71.0° | 72.25° | 73.0° | 73.0° | 73.0° | 73.0° |
| D | Bottom Bracket Drop | 72 | 70 | 69.5 | 69.5 | 67 | 67 |
| E | Wheelbase | 976 | 977 | 980 | 991 | 1006 | 1020 |
| F | Chainstay Length | 405 | 405 | 405 | 405 | 405 | 405 |
| G | Head Tube Length | 120 | 130 | 145 | 165 | 185 | 200 |
| H | Top Tube Length | 520 | 535 | 550 | 565 | 580 | 600 |
| I | Seat Tube Angle | 74.5° | 74.0° | 73.5° | 73.0° | 73.0° | 73.0° |
| J | Stand Over Height | 703 | 722 | 743 | 771 | 798 | 807 |
*All measurements in degrees or millimetres
Sizing Guide
| Size | Height | |
|---|---|---|
| Imperial | Metric | |
| XS | 5'2" - 5'7" | 157 - 169cm |
| S | 5'5" - 5'9" | 165 - 175cm |
| M | 5'7" - 5'11" | 171 - 181cm |
| M/L | 5'10" - 6'2" | 177 - 187cm |
| L | 6'0" - 6'4" | 183 - 193cm |
| XL | 6'2" - 6'6" | 189 - 199cm |
The sizing chart is a great place to start when picking your next bike but everyone will fit a bike a bit differently. Your torso, arm, and leg lengths all play into what size of bike you may need. Plus, there's your own personal preference.
We always recommend swinging by the shop and taking the bike that you're looking for a spin to see how it feels. If you're unable to come by, looking at the geometry of your current bike and comparing it is a good place to start. If you have any further questions, our customer service team is there to help.
