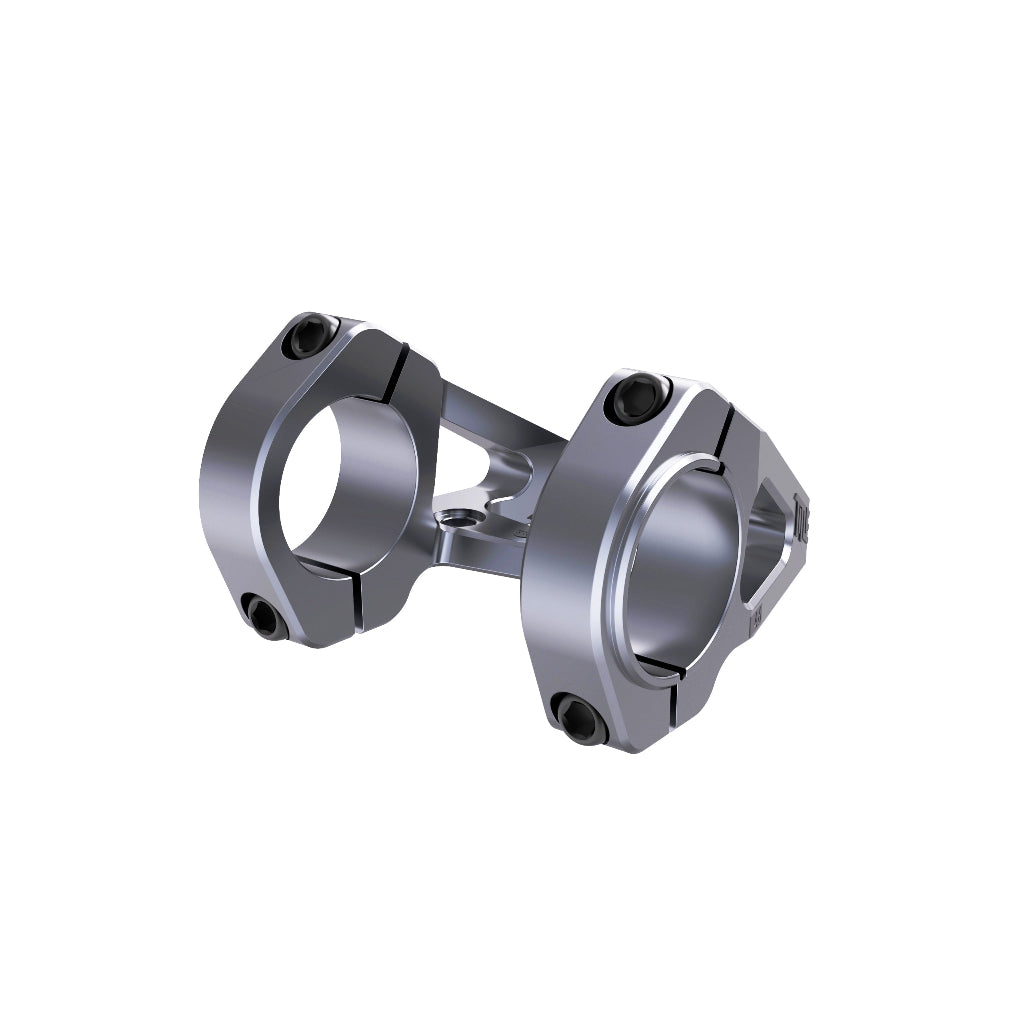

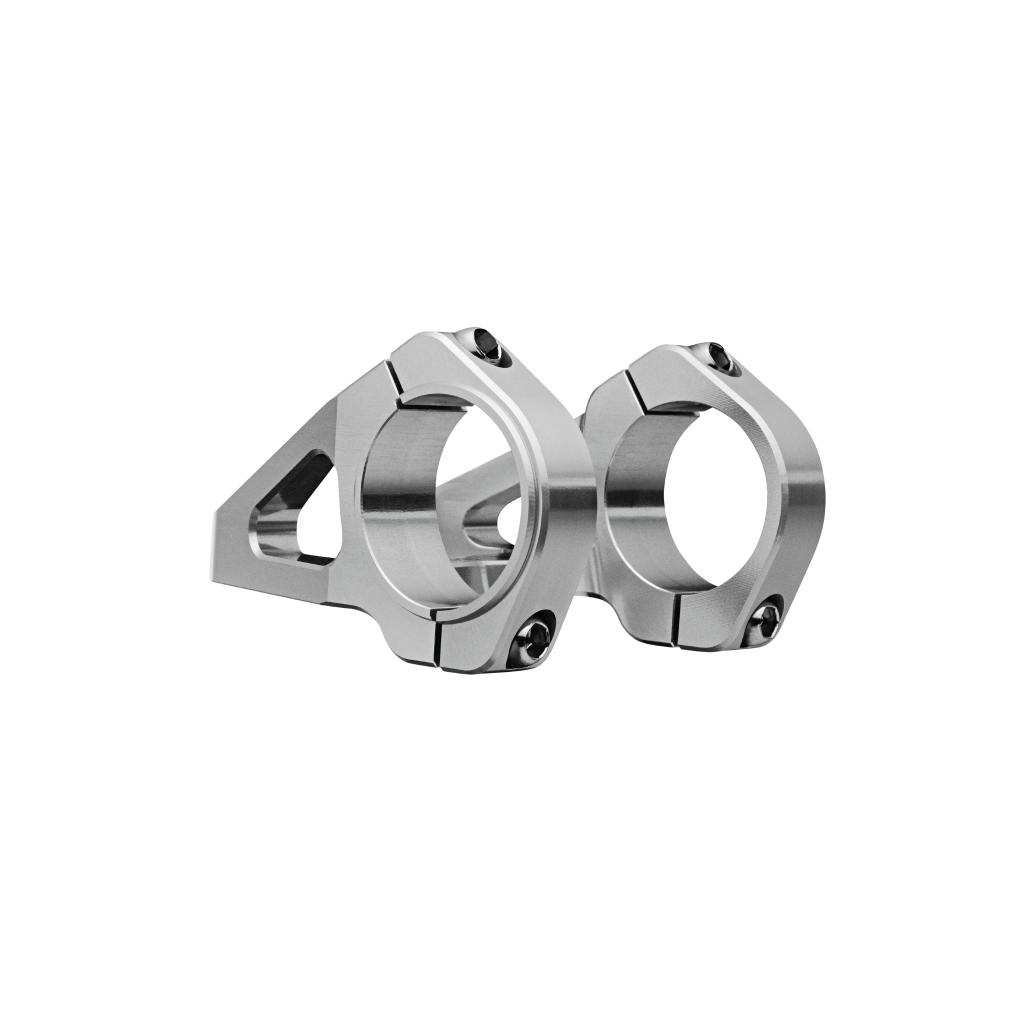

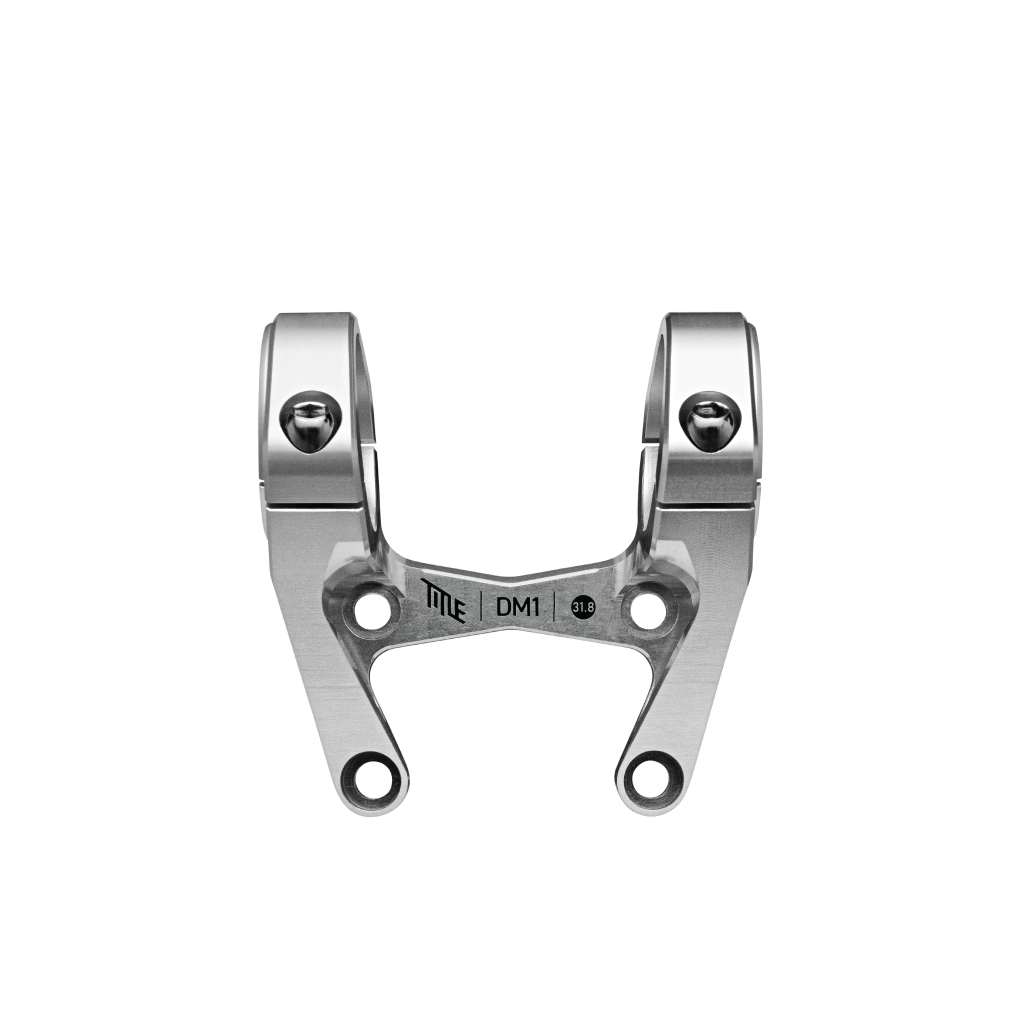

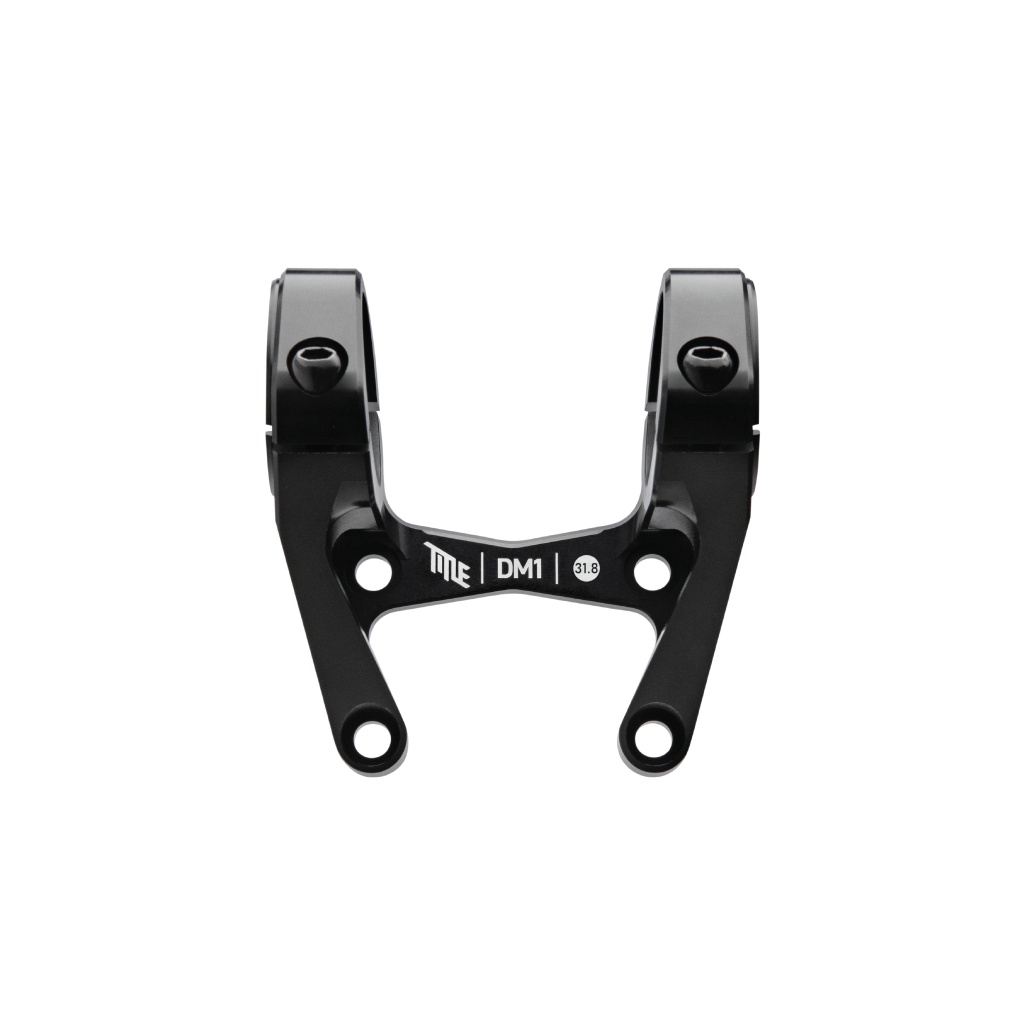

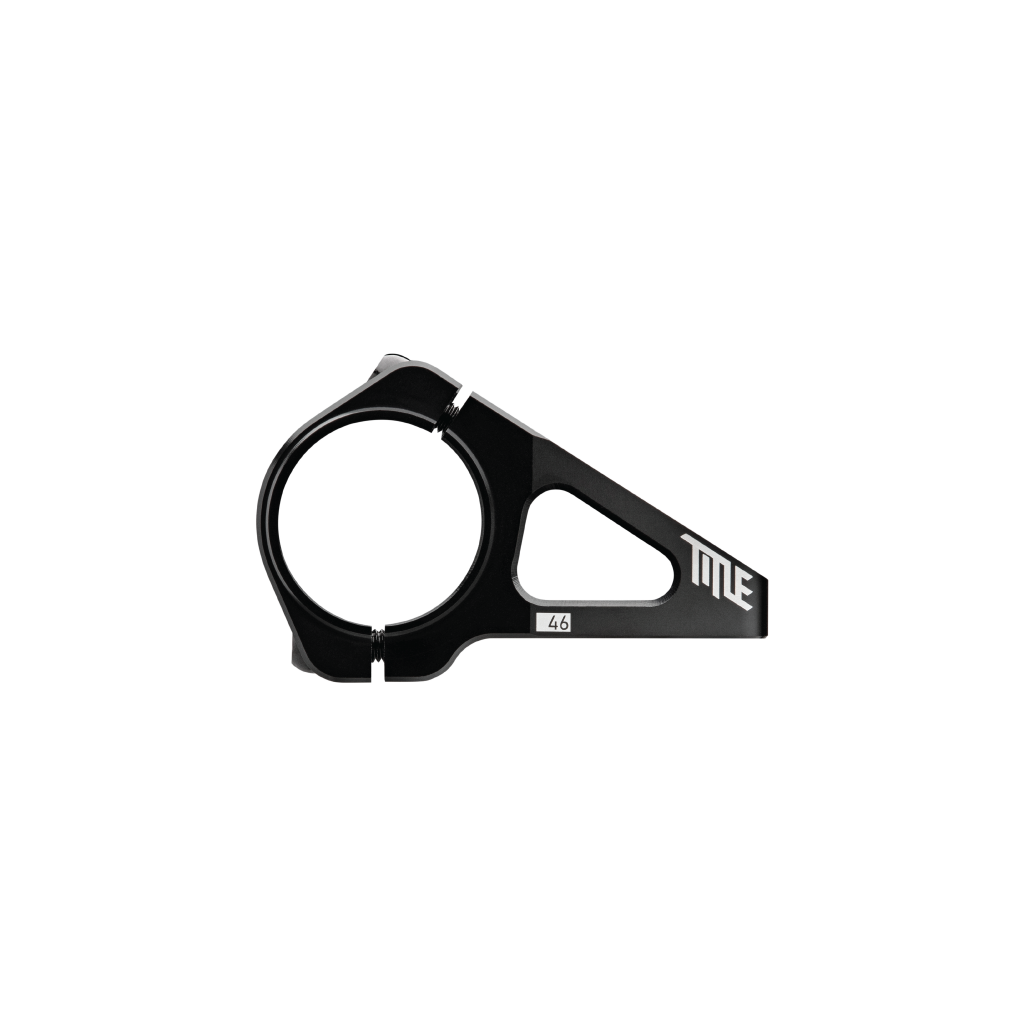

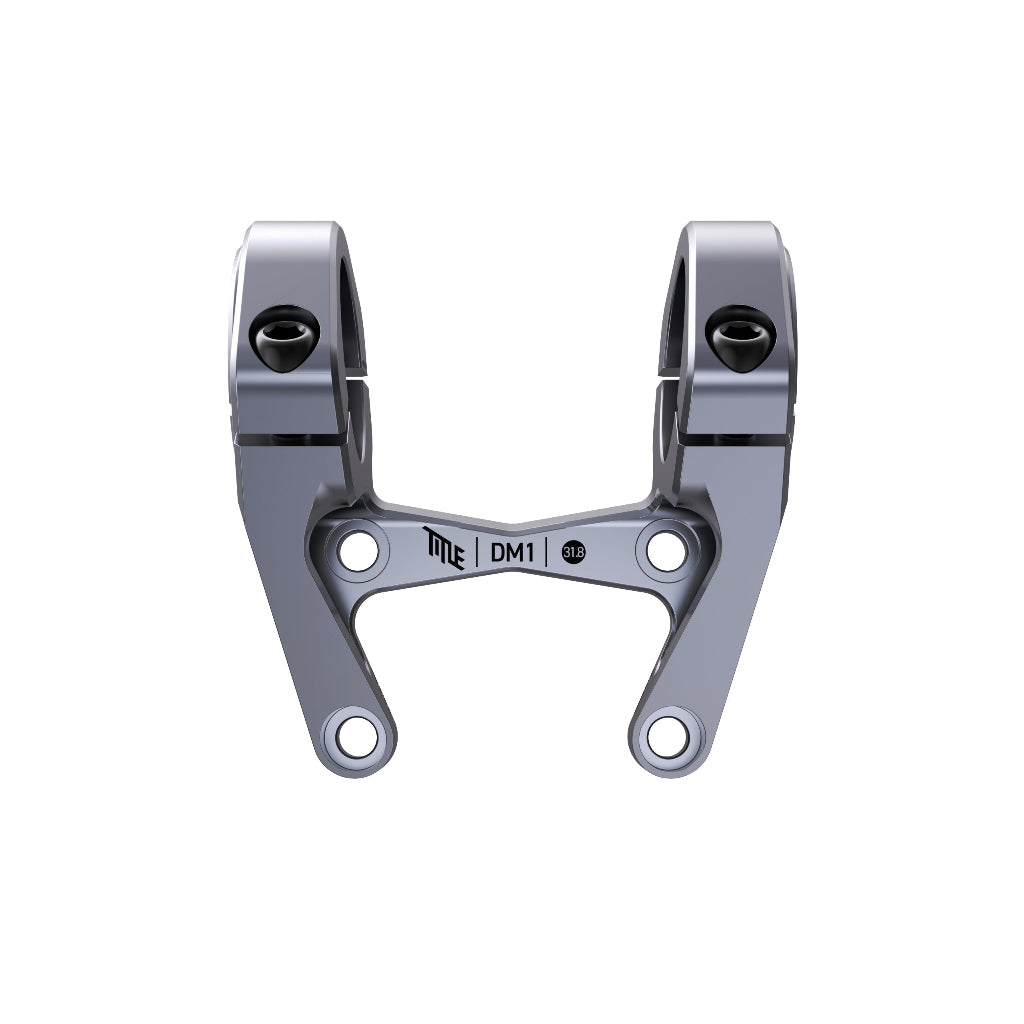

Title MTB DM1 31.8 Direct Mount Stem

Features:

• Rigorously tested by EFBE. Passed TRI-TEST® GR. Certified for freeride and downhill mountain bikes

• Machined from solid 7075 T73 aluminum

• Ultra-wide clamp

• Thin headset spacer is required

Specifications:

• 31.8mm clamp diameter

• 46mm length

• 85mm width

• 144g (190g including all 8 bolts)

• M6 x 1.0 x 18mm / 20mm stainless steel bolts

Intended Use: Downhill / Freeride

Recommendations:

Handlebar clamps to be tightened with equal gaps on top and bottom. All stems have MAX Torque specs etched onto the stem body. Note that MAX torque specs are just that, a maximum rating. For most purposes, 5-6nm should be adequate.
