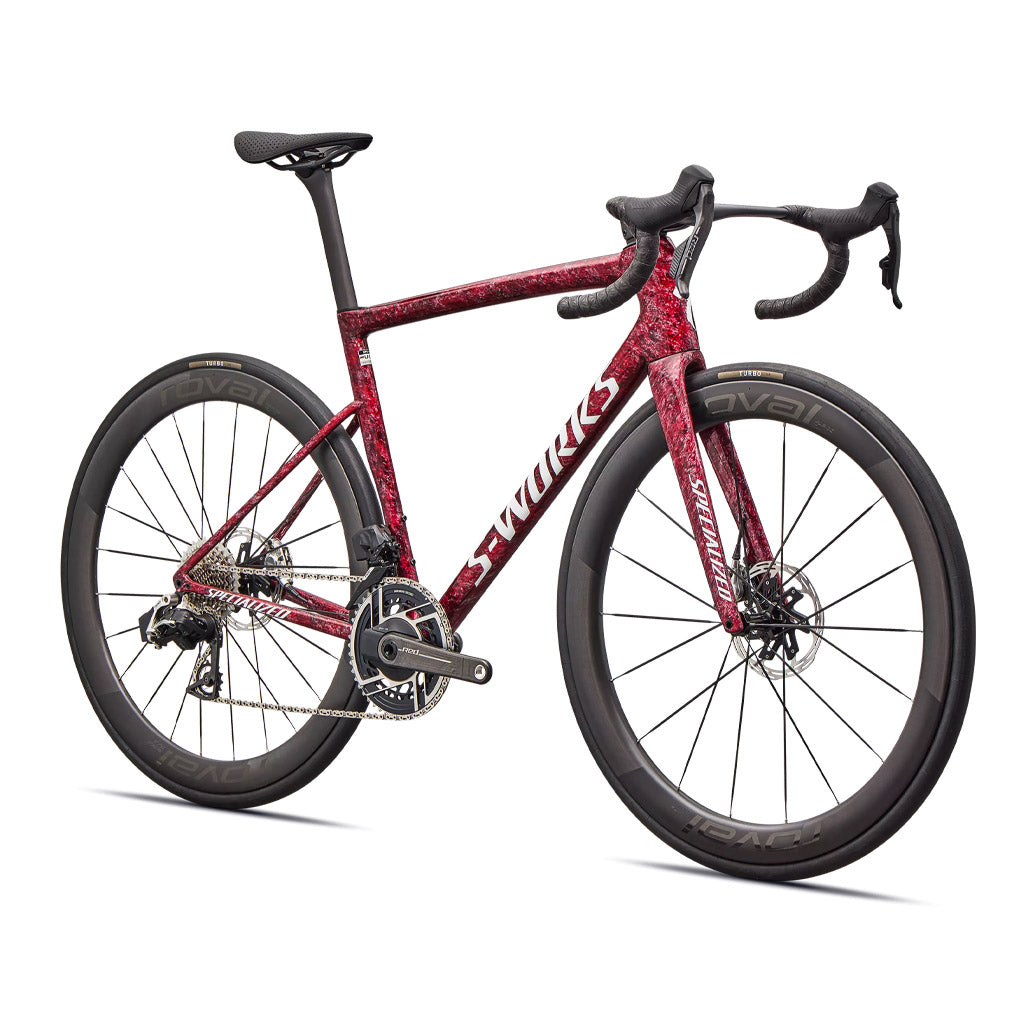

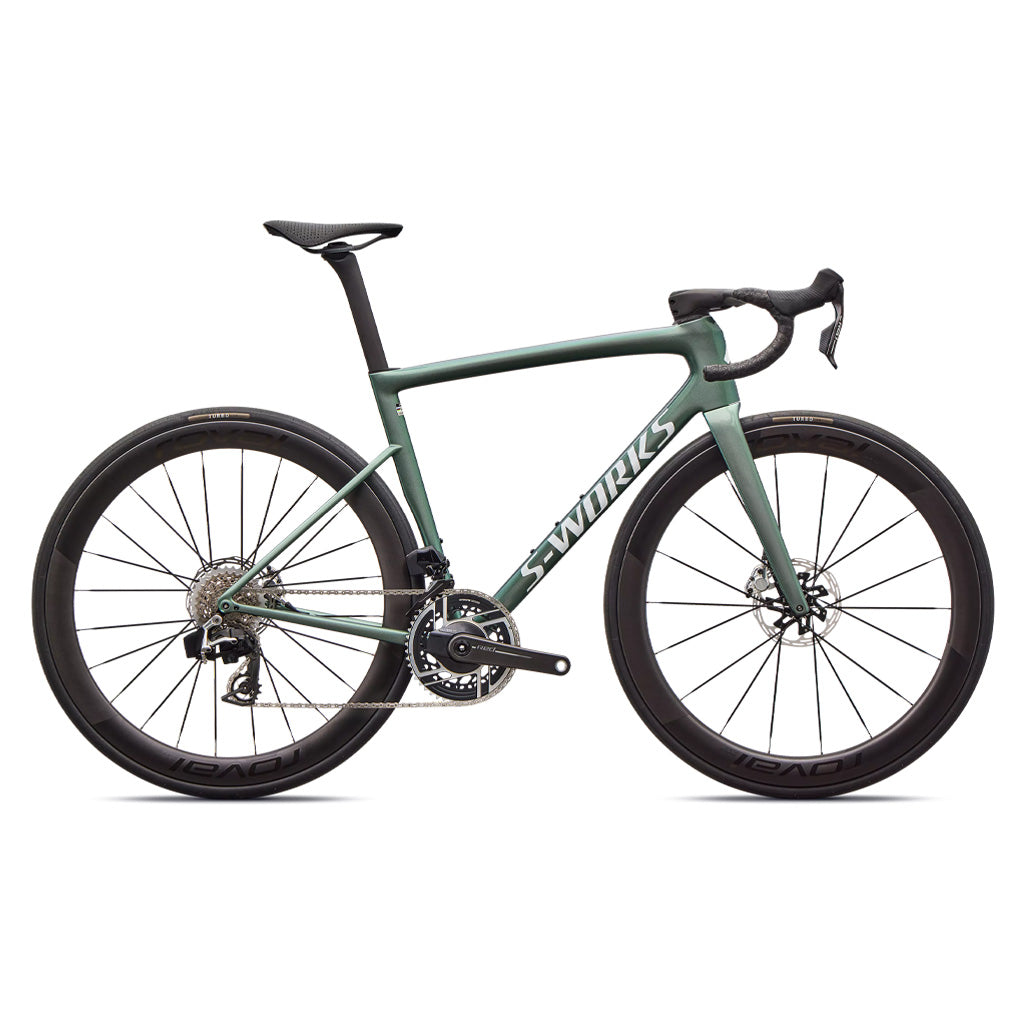

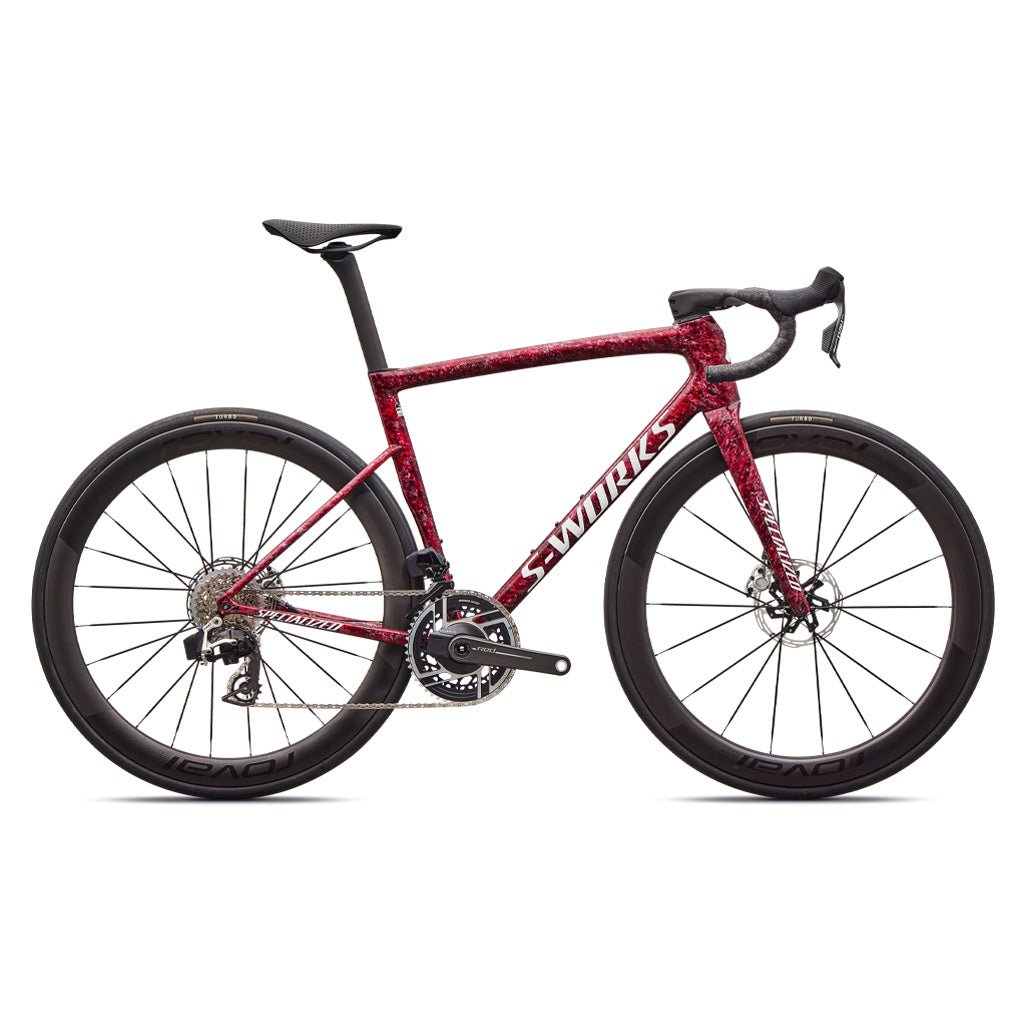

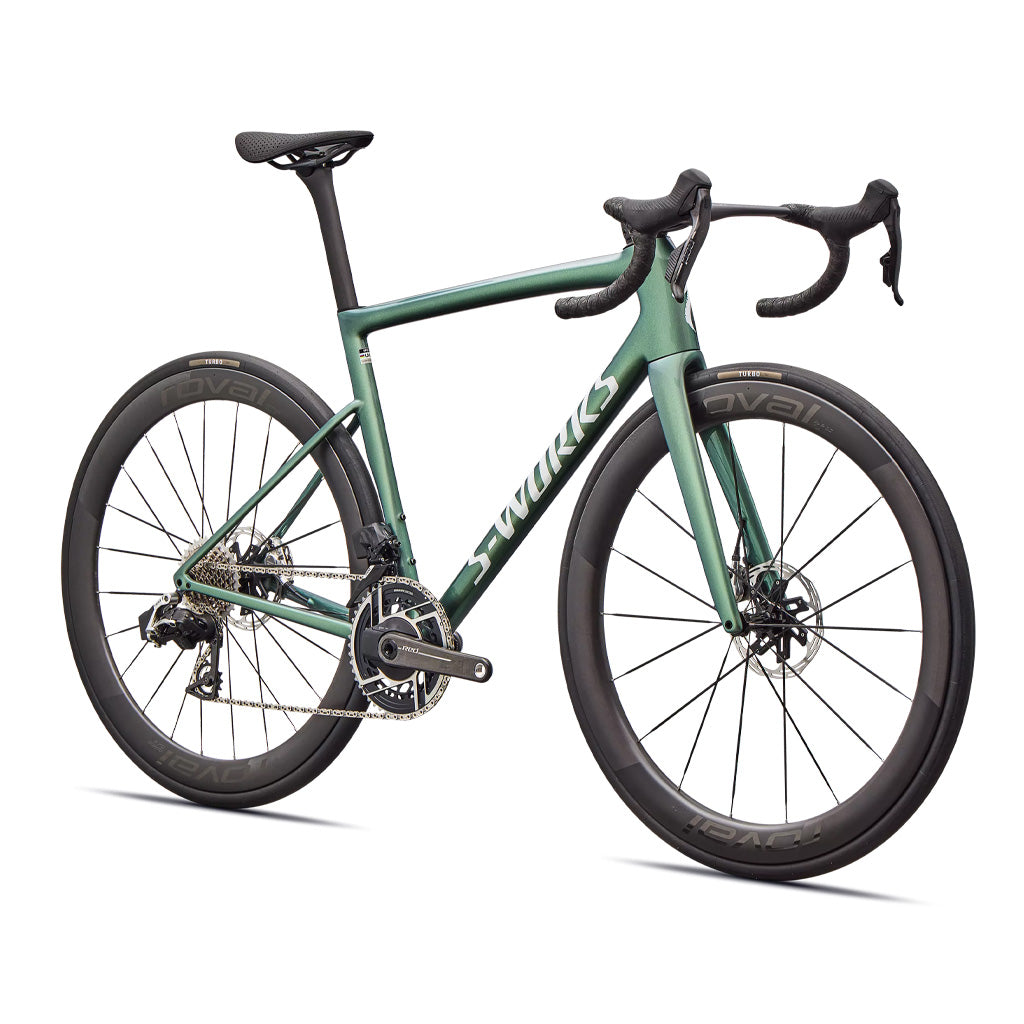

Specialized S-Works Tarmac SL8 SRAM RED AXS E1
Specifications
Frame S-Works Tarmac SL8 FACT 12r Carbon, Clean Routing, Threaded BB, 12x142mm thru-axle, flat-mount disc
Fork S-Works FACT 12r Carbon, 12x100mm thru-axle, flat-mount disc
Front Brake SRAM RED AXS, hydraulic disc
Rear Brake SRAM RED E1, hydraulic disc
Bottom Bracket SRAM DUB BSA 68
Chain SRAM RED 12-speed
Crankset SRAM RED AXS Power Meter 48/35t
Front Derailleur SRAM RED AXS, braze-on
Shift Levers SRAM RED AXS, hydraulic disc
Cassette SRAM RED XG-1290, 12-speed, 10-33t
Rear Derailleur SRAM RED AXS E1
Rear Wheel Roval Rapide CLX III, Tubeless, 21mm internal width carbon rim, 48.5mm depth, Win Tunnel Engineered, Roval LF19-R hub, 24h, ARRIS MTO-255 Straight Pull Spokes (Carbon Fiber reinforced BioNylon, Ti end fittings)
Front Wheel Roval Rapide CLX III, Tubeless, 21mm internal width carbon rim, 51mm depth, Win Tunnel Engineered, Roval LF18-F hub, 18h, ARRIS MTO-255 Straight Pull Spokes (Carbon Fiber reinforced BioNylon, Ti end fittings)
Front Tire S-Works Turbo TLR Race Tire, 700x28c
Rear Tire S-Works Turbo TLR Race Tire, 700x28c
Inner Tubes Standard 80mm PV
Handlebars Roval Rapide Cockpit, Integrated Bar/Stem
Saddle S-Works Power with Mirror
SeatPost S-Works Tarmac SL8 Carbon seat post, FACT Carbon, 15mm offset
Tape Supacaz Super Sticky Kush
Seat Binder Tarmac integrated wedge
Weight 6.62 kg (14 lb, 9.5 oz) - Size 56
Geometry
| 44 | 49 | 52 | 54 | 56 | 58 | 61 | ||
|---|---|---|---|---|---|---|---|---|
| A | Reach | 366 | 375 | 380 | 384 | 395 | 402 | 408 |
| B | Stack | 501 | 514 | 527 | 544 | 565 | 591 | 612 |
| C | Head Tube Angle | 70.5° | 70.5° | 70.5° | 70.5° | 70.5° | 70.5° | 70.5° |
| D | Front Centre | 572 | 574 | 577 | 579 | 592 | 606 | 613 |
| E | Bottom Bracket Drop | 74 | 74 | 74 | 72 | 72 | 72 | 72 |
| F | Wheelbase | 970 | 973 | 975 | 978 | 991 | 1006 | 1013 |
| G | Chainstay Length | 410 | 410 | 410 | 410 | 410 | 410 | 410 |
| H | Head Tube Length | 99 | 109 | 120 | 137 | 157 | 184 | 204 |
| I | Top Tube Length | 496 | 509 | 531 | 541 | 563 | 577 | 595 |
| J | Seat Tube Angle | 75.5° | 75.5° | 75.5° | 75.5° | 75.5° | 75.5° | 75.5° |
| K | Standover Height | 723 | 735 | 746 | 768 | 786 | 808 | 834 |
| All measurements in degrees or millimetres | ||||||||
Sizing Guide
The sizing chart is a great place to start when picking your next bike but everyone will fit a bike a bit differently. Your torso, arm, and leg lengths all play into what size of bike you may need. Plus, there's your own personal preference.
We always recommend swinging by the shop and taking the bike that you're looking for a spin to see how it feels. If you're unable to come by, looking at the geometry of your current bike and comparing it is a good place to start. If you have any further questions, our customer service team is there to help.
| Size | Height | Imperial | Metric |
|---|---|---|
| 44 | 4'8" - 5'1" | 142 - 155cm |
| 49 | 5'1" - 5'5" | 155 - 163cm |
| 52 | 5'4" - 5'7" | 163 - 170cm |
| 54 | 5'7" - 5'9" | 170 - 175cm |
| 56 | 5'9" - 5'11" | 175 - 180cm |
| 58 | 5'11" - 6'2" | 180 - 188cm |
| 61 | 6'2" - 6'5" | 188 - 196cm |
Part Numbers
| Size | Model Number | Gloss Premium Fjord Metallic | Gloss Red Sky |
|---|---|---|
| 44 | 94926-0244 | 94926-0344 |
| 49 | 94926-0249 | 94926-0349 |
| 52 | 94926-0252 | 94926-0352 |
| 54 | 94926-0254 | 94926-0354 |
| 56 | 94926-0256 | 94926-0356 |
| 58 | 94926-0258 | 94926-0358 |
| 61 | 94926-0261 | 94926-0361 |
