The Ultimate Getaway Vehicle

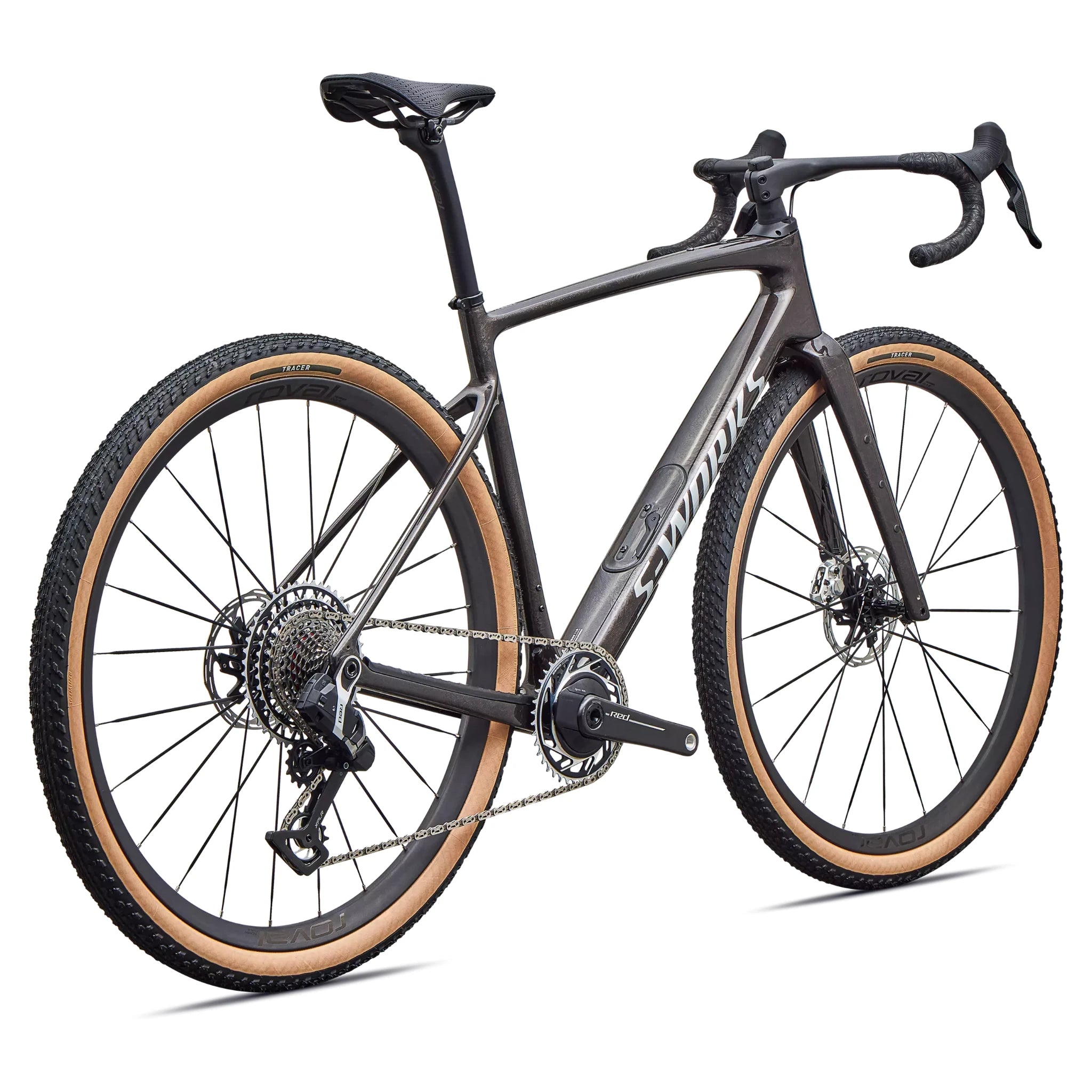

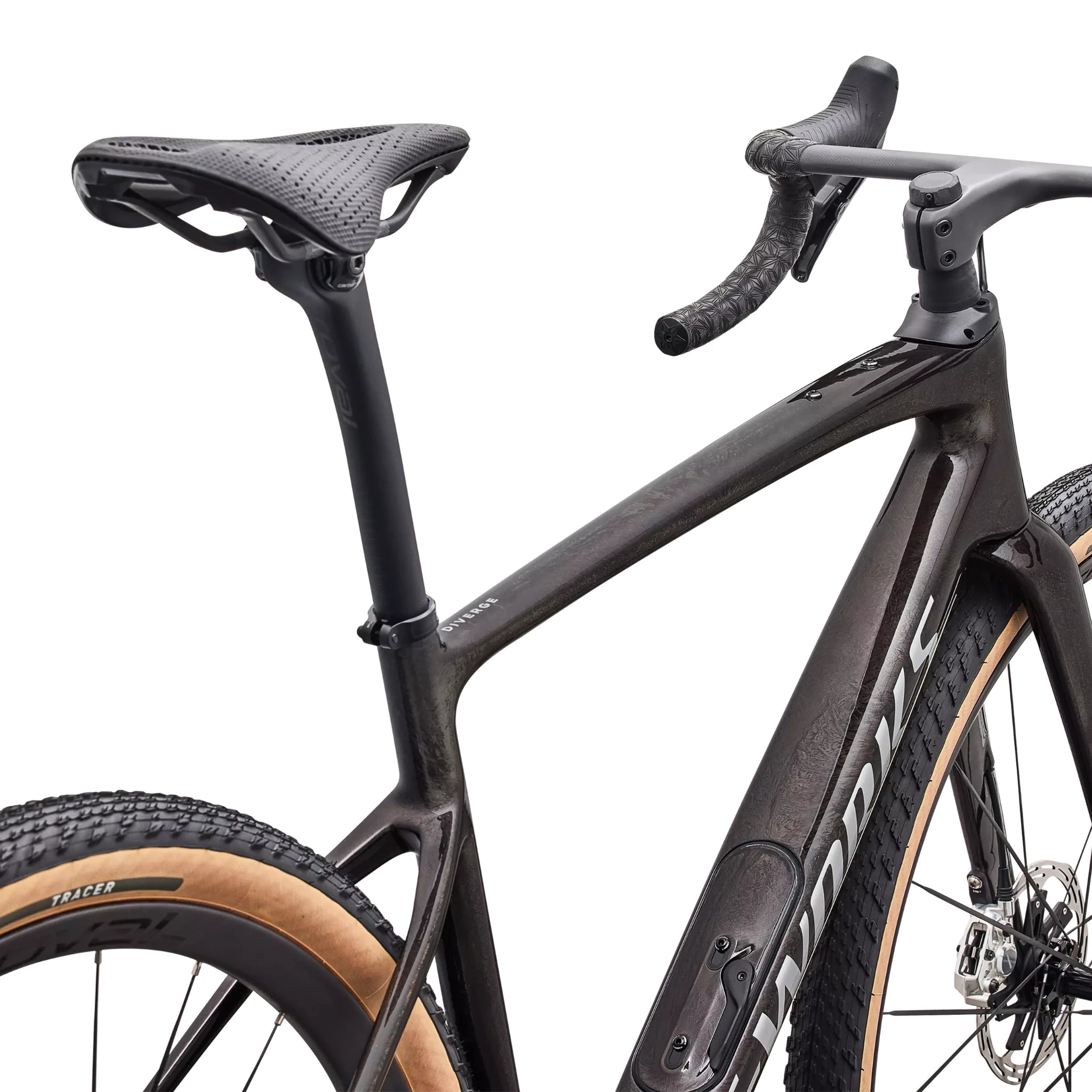

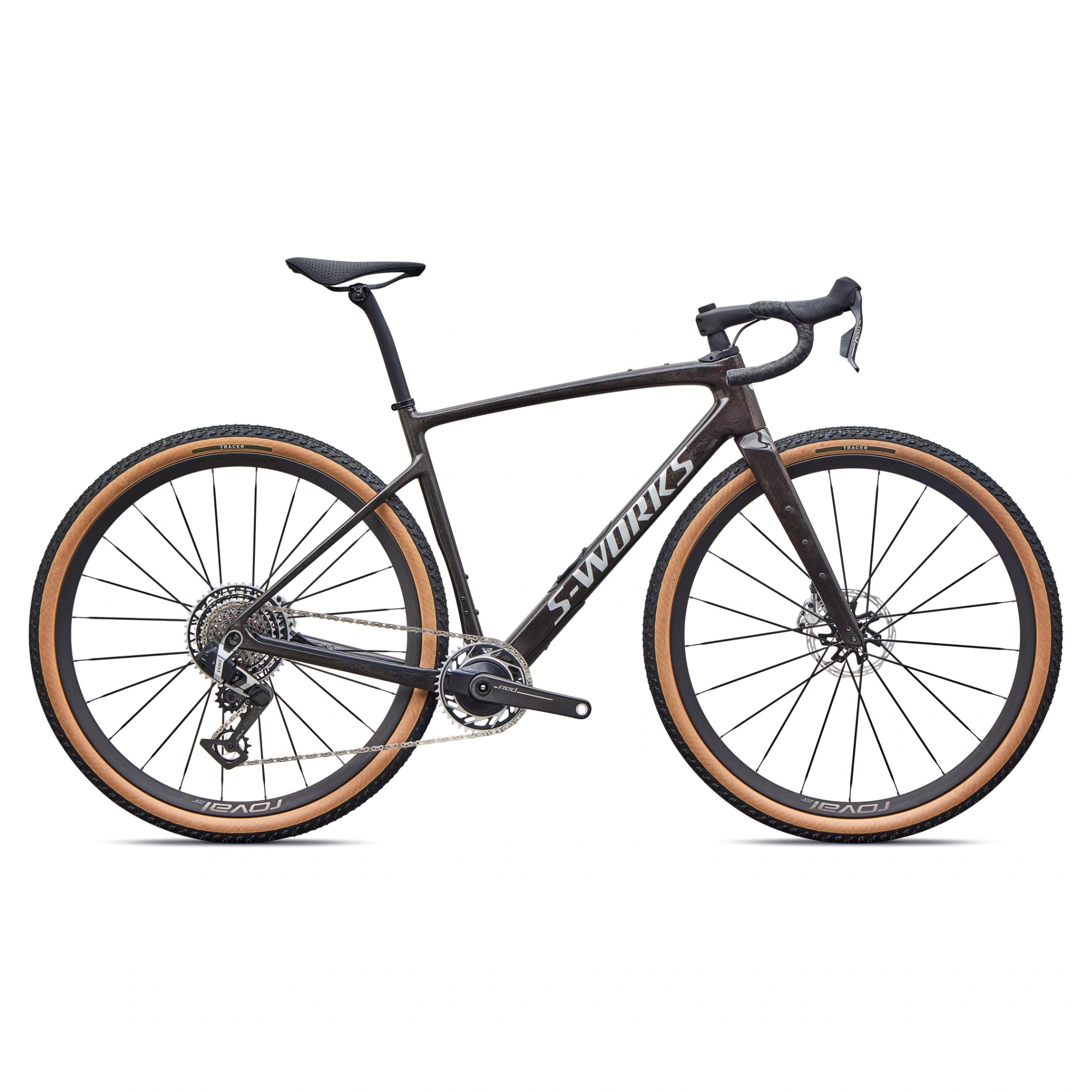

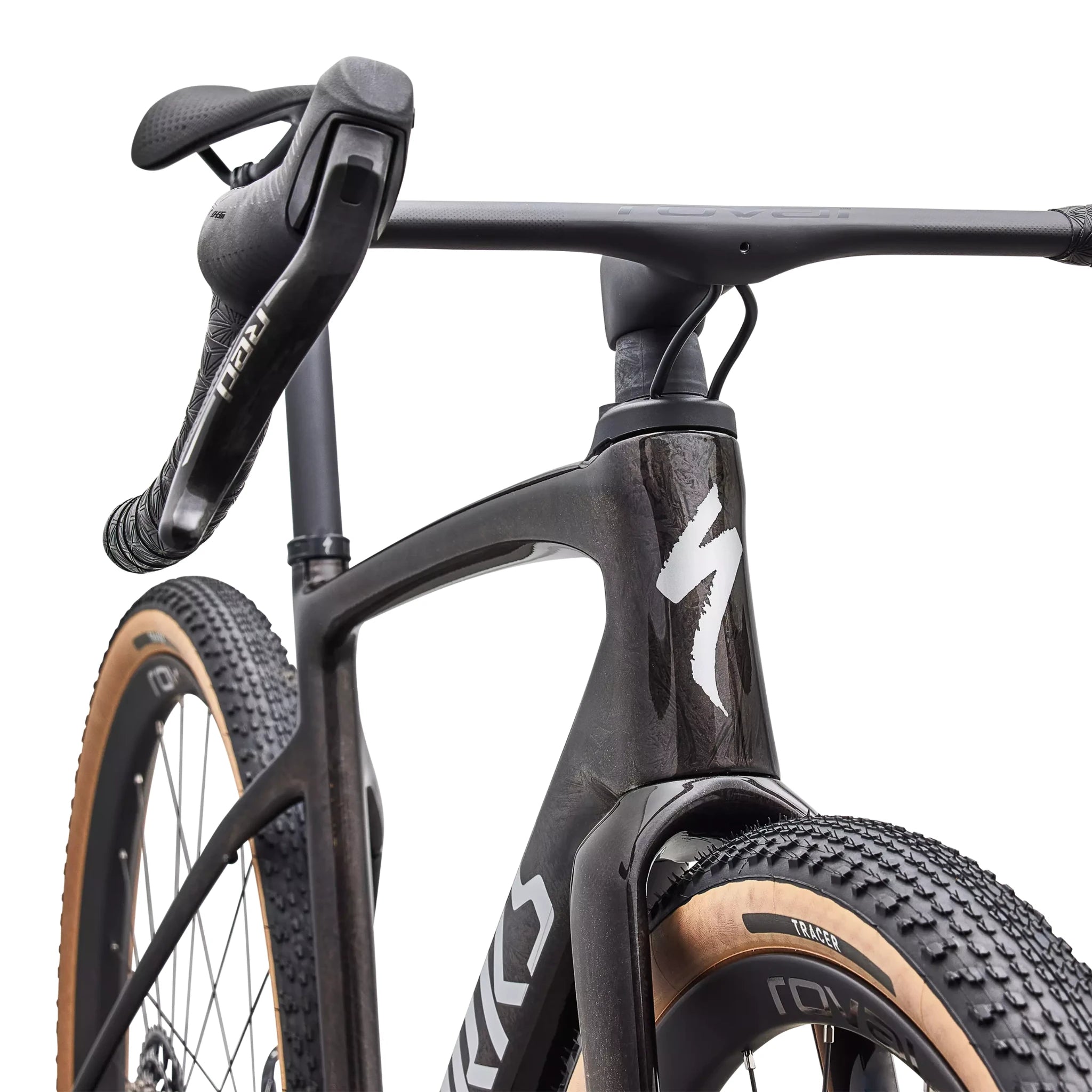

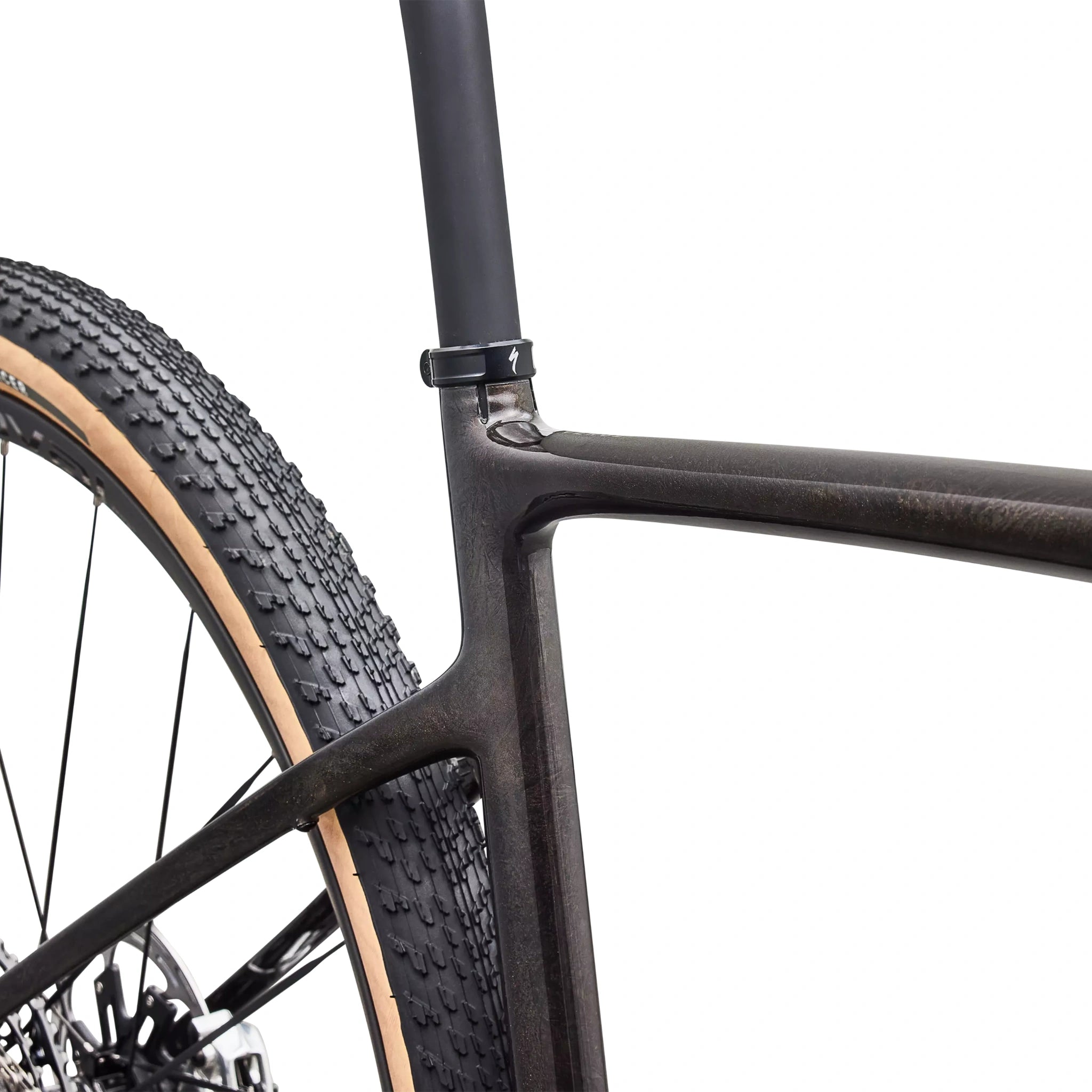

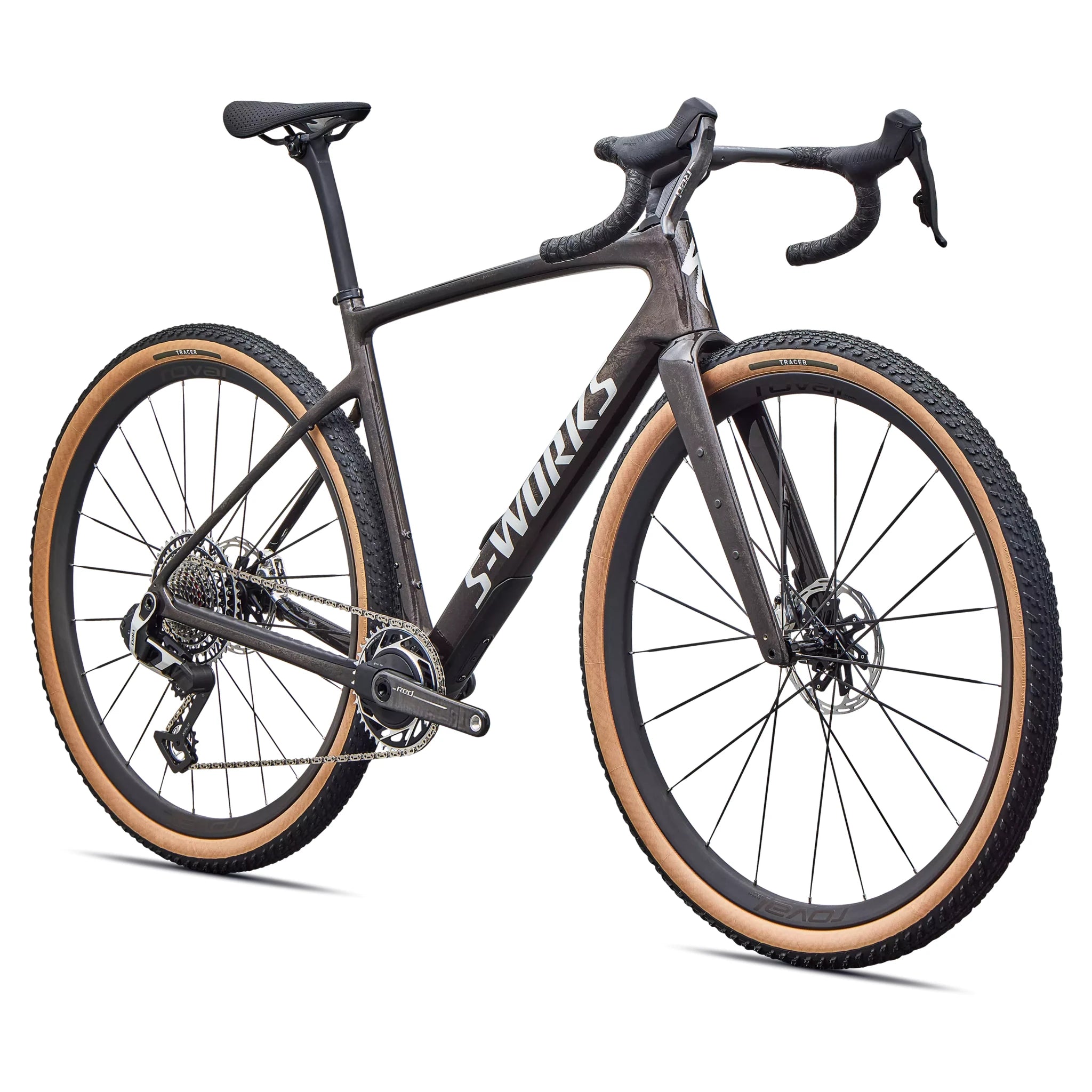

Specialized S-Works Diverge 4
Race-tuned. Adventure-approved. The Diverge 4 gravel bike is built for full-gas race days and off-grid epics. With Future Shock 3.3, Specialized's most responsive frame ever, massive tire clearance, and the biggest internal storage in gravel, the best gravel bike in the world just got better.
If you have any questions do not hesitate to reach out to us and we'll get back to within 24 hours.
The Ultimate Getaway Vehicle
Specialized S-Works Diverge 4
Features
Specifications
| Frame | Specialized Diverge FACT 12r carbon, SWAT™ Door integration, Future Shock suspension with integrated cable routing, threaded BB, 12x142mm thru-axle, flat-mount disc, UDH dropout |
|---|---|
| Fork | Future Shock 3.3 w/ Smooth Boot, FACT 12r Carbon 12x100mm, thru-axle, flat-mount disc |
| Front Brake | SRAM RED E1, hydraulic disc |
| Rear Brake | SRAM RED E1, hydraulic disc |
| Bottom Bracket | Ceramic Speed BB Alpha, BSA DUB |
| Shift Levers | SRAM RED AXS E1, hydraulic disc |
| Rear Derailleur | SRAM RED AXS XPLR E1, 13-speed |
| Chain | SRAM RED E1 |
| Crankset | SRAM RED E1 XPLR, DUB Wide, 40t, Quarq Power Meter |
| Cassette | SRAM RED XPLR E1, 13-speed, 10-46t |
| Inner Tubes | 700x32-50mm, 40mm Presta valve |
| Front Tire | Tracer TLR All Terrain Gravel Tire, 700x50c, Tubeless Ready |
| Rear Tire | Tracer TLR All Terrain Gravel Tire, 700x50c, Tubeless Ready |
| Front Wheel | Roval Terra CLX III, Tubeless, 27mm internal width carbon rim, 25.5 mm depth, 4.9mm bead hook width, Roval LF18-F hub, 21h, Roval by ARRIS Composite Straight Pull Spokes (Ti end fittings) |
| Rear Wheel | Roval Terra CLX III, Tubeless, 27mm internal width carbon rim, 25.5 mm depth, 4.9mm bead hook width, Roval LF19-R hub, 24h, Roval by ARRIS Composite Straight Pull Spokes (Ti end fittings) |
| Handlebars | Roval Terra Cockpit, Integrated Bar/Stem |
| SeatPost | Roval Terra Carbon Seat Post, 20mm Offset |
| Saddle | S-Works Power with Mirror |
| Seat Binder | Specialized Alloy, 30.8mm |
| Tape | Supacaz Super Sticky Kush |
| SWAT | SWAT 4.1 internal downtube storage |
| Weight Size | 56 |
| Weight | 8.2 kg (18 lb, 1.2 oz) |
*Specifications are subject to change without notice
Geometry
| 49 | 52 | 54 | 56 | 58 | 61 | ||
|---|---|---|---|---|---|---|---|
| A | Reach | 365 | 374 | 387 | 400 | 412 | 425 |
| B | Stack | 563 | 578 | 592 | 610 | 634 | 659 |
| C | Head Tube Angle | 70 | 70.5 | 71 | 71 | 71 | 71 |
| D | Front Center | 604 | 613 | 626 | 645 | 665 | 686 |
| E | Bottom Bracket Drop | 85 | 85 | 85 | 85 | 85 | 85 |
| F | Wheelbase | 1019 | 1031 | 1041 | 1060 | 1081 | 1102 |
| G | Chainstay Length | 430 | 430 | 430 | 430 | 430 | 430 |
| H | Head Tube Length | 90 | 104 | 116 | 135 | 161 | 187 |
| I | Top Tube Length | 521 | 537 | 556 | 575 | 593 | 613 |
| J | Seat Tube Angle | 74.5 | 74 | 74 | 74 | 74 | 74 |
| K | Bike Standover Height | 700 | 725 | 754 | 779 | 805 | 832 |
| All measurements in degrees or millimetres | |||||||
Sizing Guide
The sizing chart is a great place to start when picking your next bike but everyone will fit a bike a bit differently. Your torso, arm, and leg lengths all play into what size of bike you may need. Plus, there's your own personal preference.
We always recommend swinging by the shop and taking the bike that you're looking for a spin to see how it feels. If you're unable to come by, looking at the geometry of your current bike and comparing it is a good place to start. If you have any further questions, our customer service team is there to help.
| Size | Height | |
|---|---|---|
| Imperial | Metric | |
| 49 | 5'1" - 5'5" | 155 - 163cm |
| 52 | 5'4" - 5'7" | 163 - 170cm |
| 54 | 5'7" - 5'9" | 170 - 175cm |
| 56 | 5'9" - 5'11" | 175 - 180cm |
| 58 | 5'11" - 6'2" | 180 - 188cm |
| 61 | 6'2" - 6'5" | 188 - 196cm |
Model Numbers
| Size | Model Number | Warm Smoke Metallic / Carbon Silver Dust |
|---|---|
| 49 | 95427-0049 |
| 52 | 95427-0052 |
| 54 | 95427-0054 |
| 56 | 95427-0056 |
| 58 | 95427-0058 |
| 61 | 95427-0061 |
