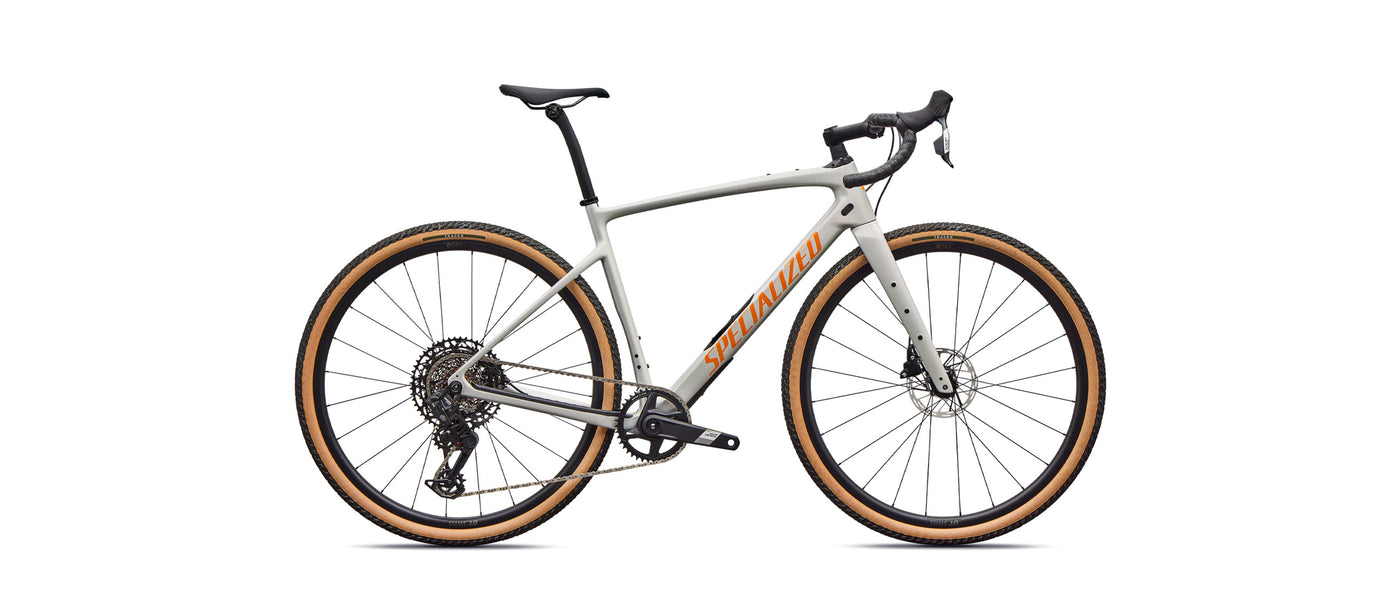

Why the Specialized Diverge 4?

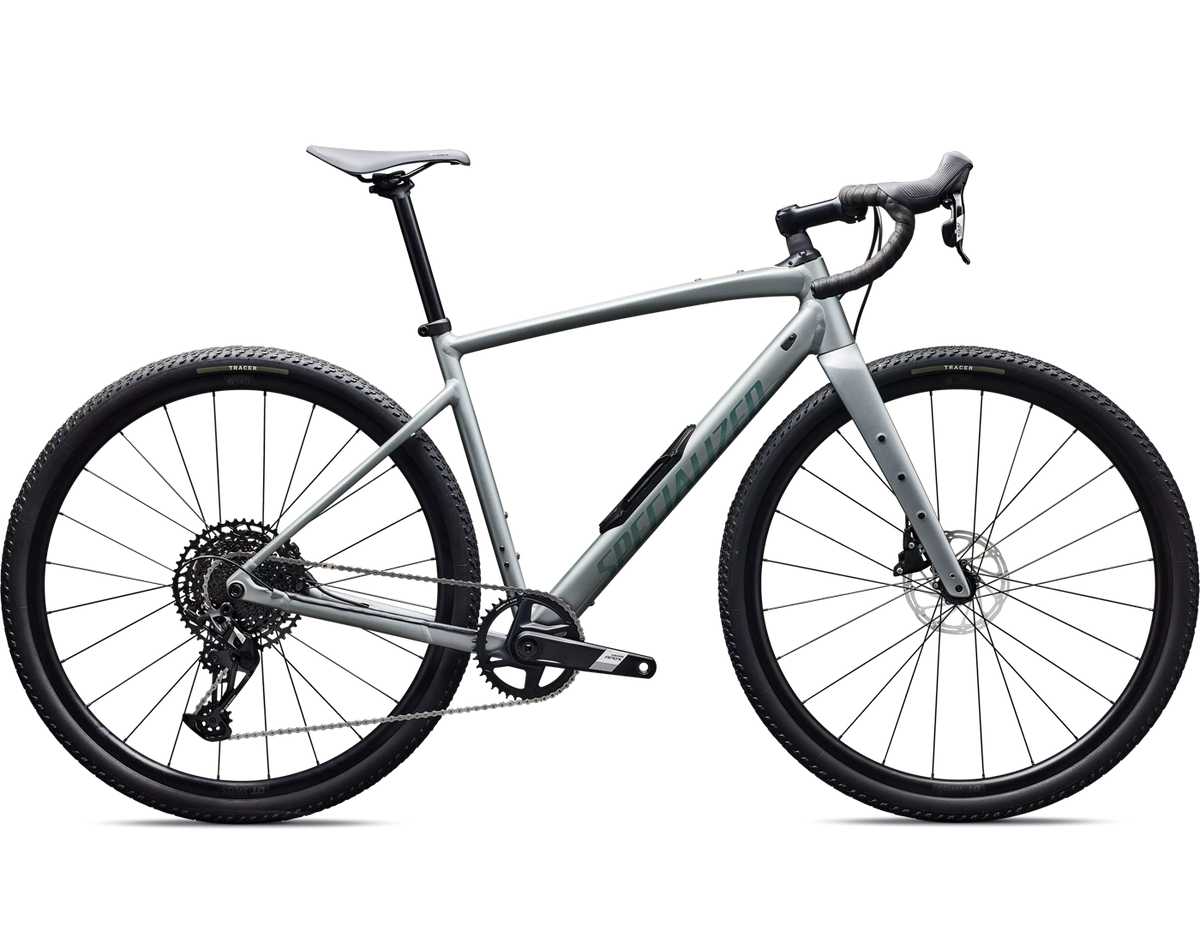

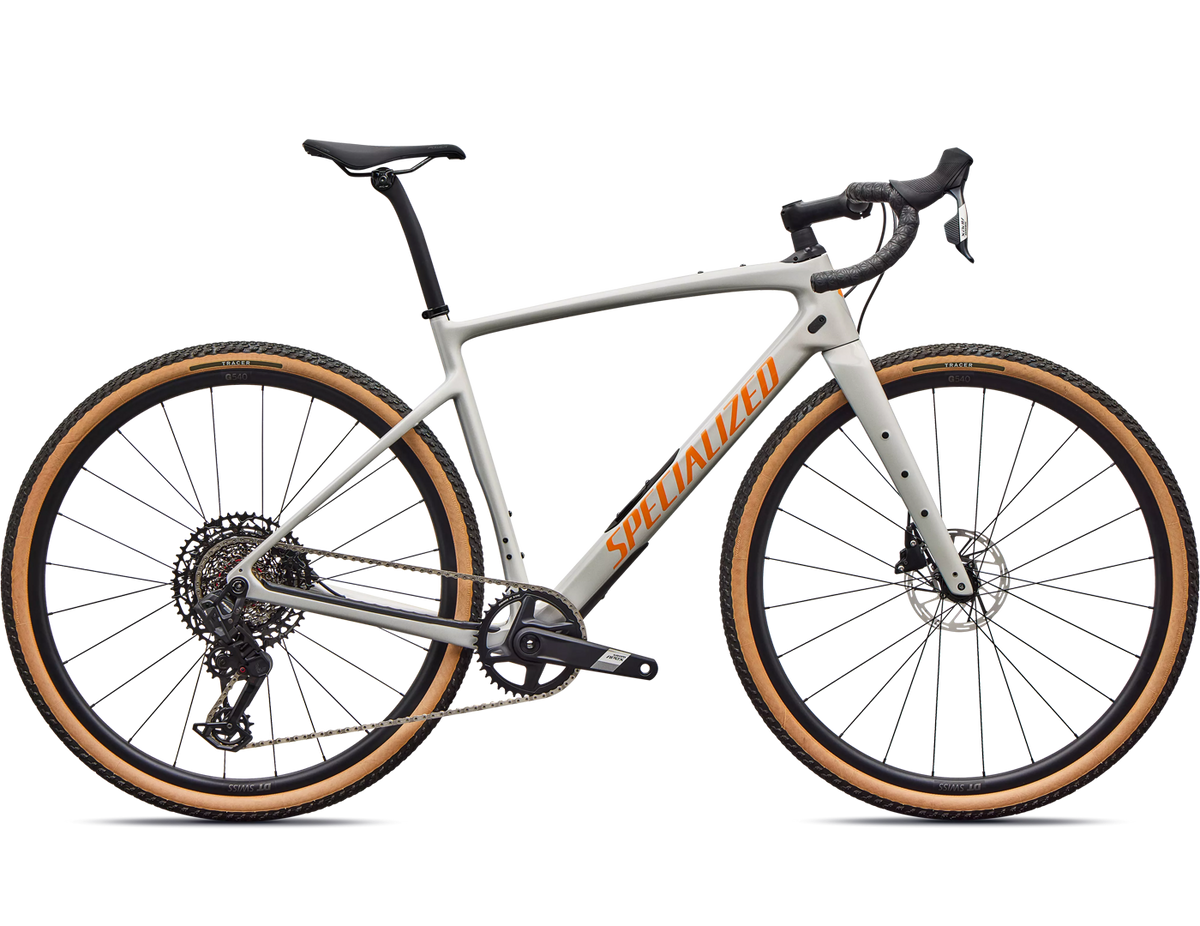

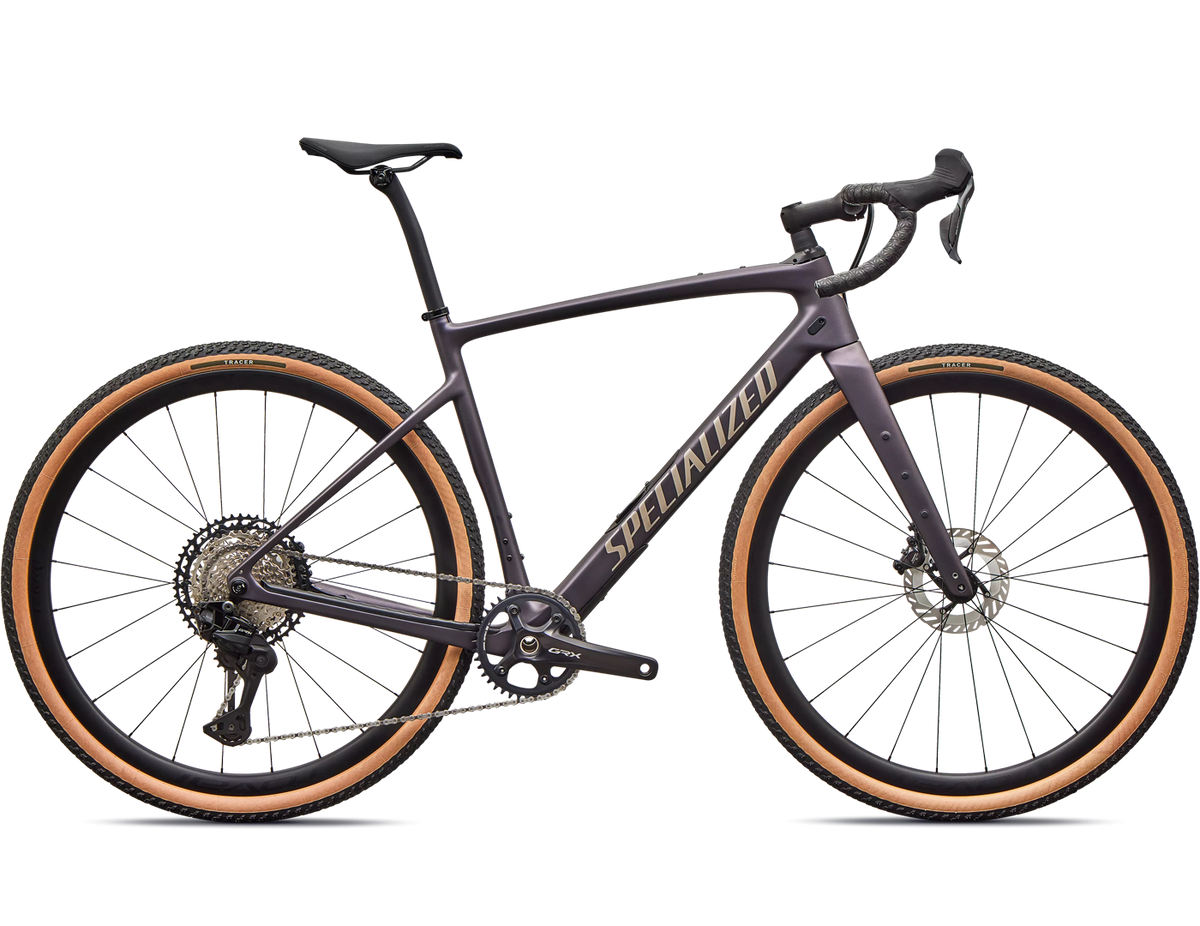

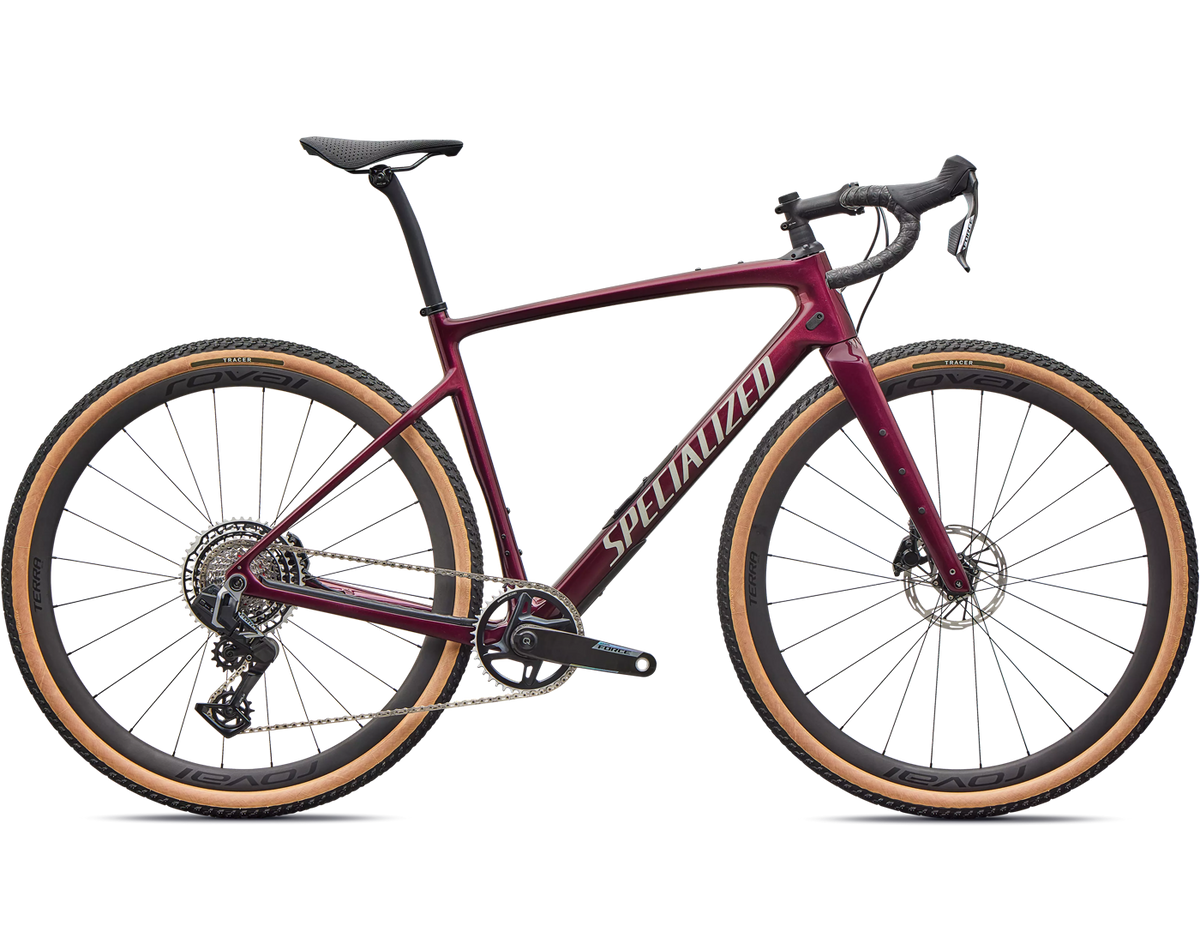

The Diverge 4 is built for riders who want it all—speed on race day, comfort on the long haul, and the confidence to take the road less traveled. With Future Shock 3.0 up front and a Roval Terra seatpost out back, it smooths the ride without dulling the feel, keeping you in control when the gravel gets rough. Add in SWAT 4.0 storage, now in on the alloy models, big enough for tools, snacks, and layers, plus clearance for up to 50mm tires, and you’ve got a bike that’s just as ready for a 200-mile sufferfest as it is for a weekend escape. Offered in both lightweight carbon and tough E5 alloy, Diverge 4 brings the same spirit of innovation to every rider, no matter the budget. It’s fast, it’s capable, and it’s ready when you are.
Technical Details

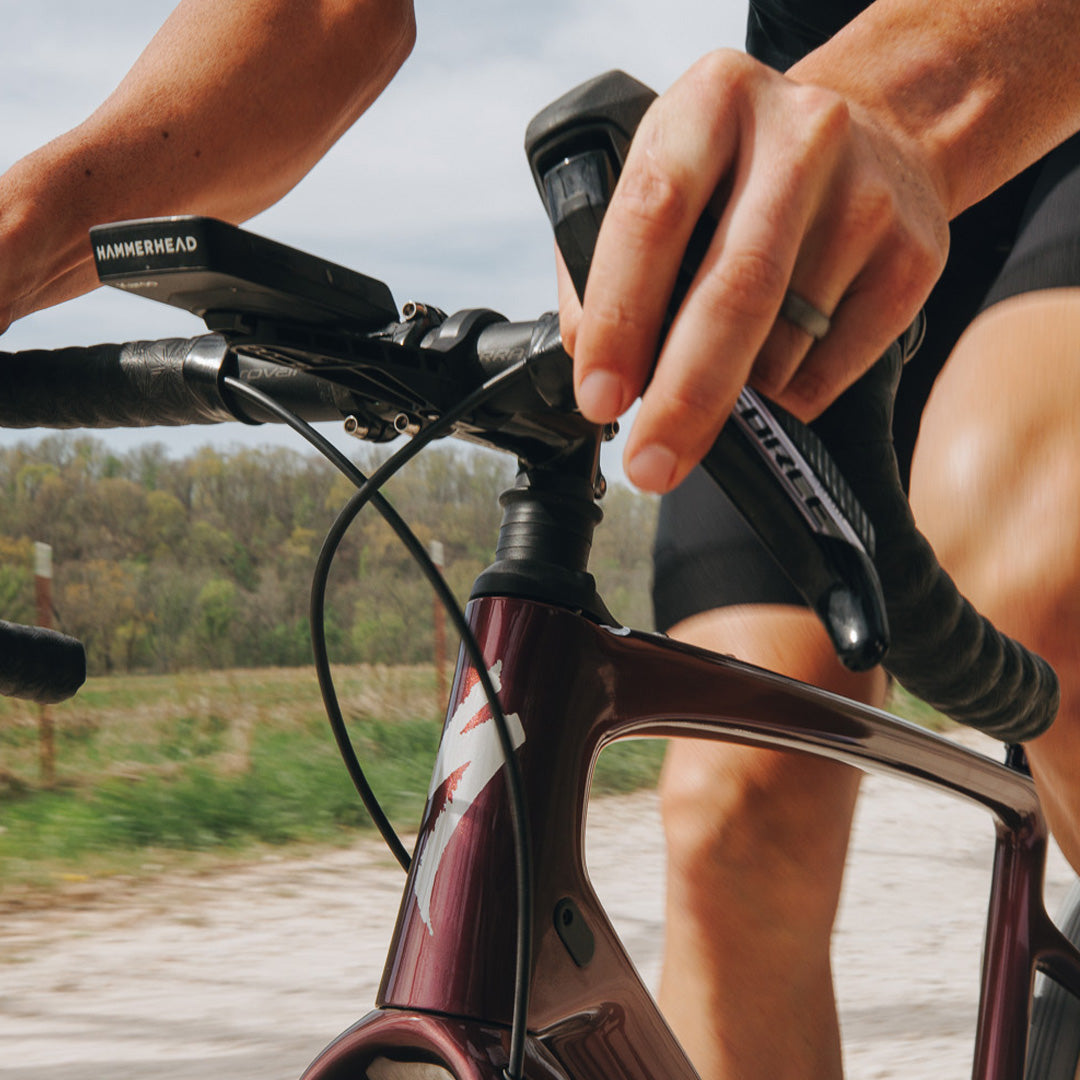

Positioned between the stem and headtube, Future Shock 3.0 delivers 20mm of hydraulically damped travel, smoothing impacts without sacrificing weight, handling, or responsiveness. More tunable and adjustable than ever, it’s built to work for more riders across all fits, with improved sealing that keeps you floating over chaos and powering forward season after season.
- Future Shock 3.0

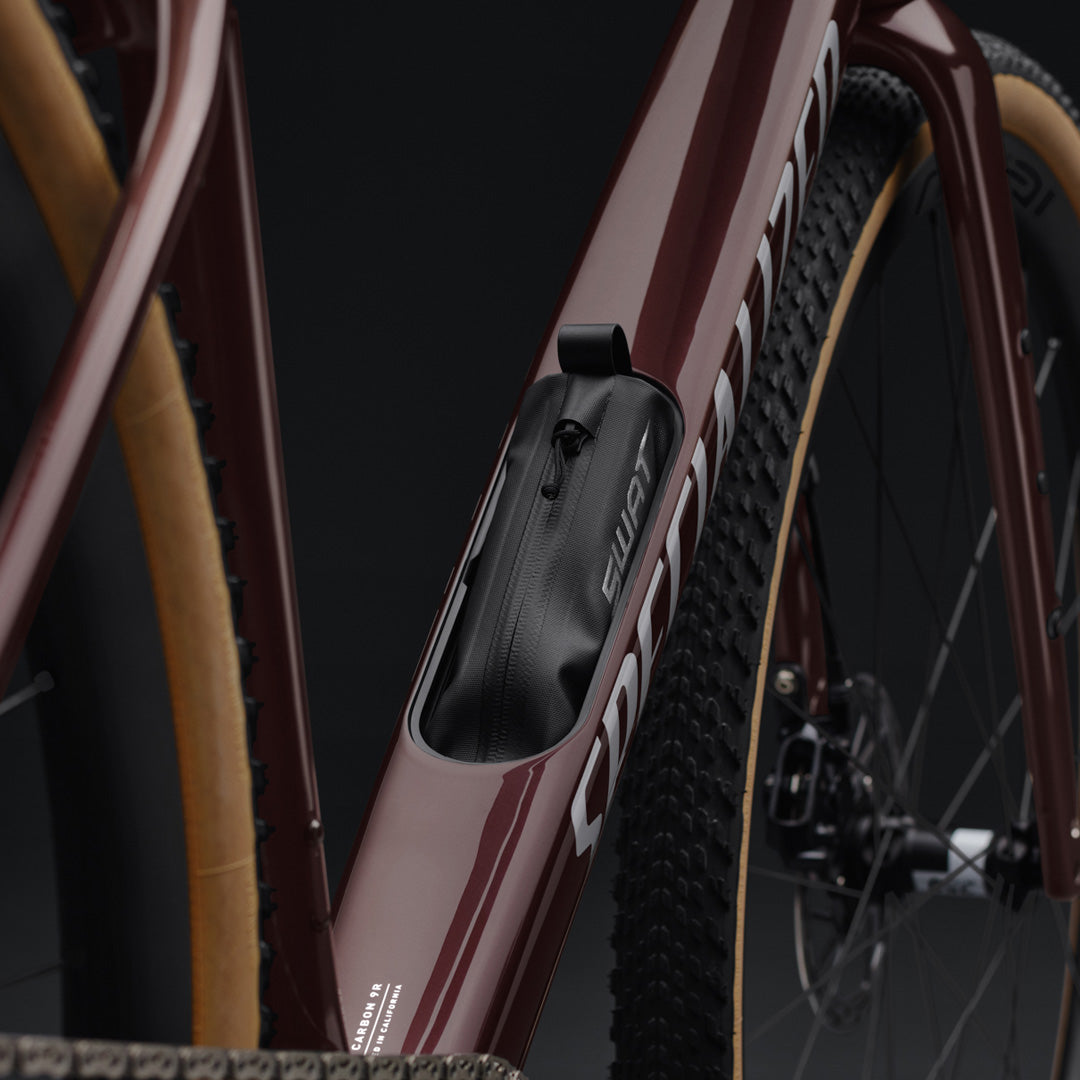

- SWAT Equipped
- A Whole Lotta Tire Clearance
- More Stable, More Confidence




Geometry
| 49 | 52 | 54 | 56 | 58 | 61 | ||
|---|---|---|---|---|---|---|---|
| A | Reach | 365 | 374 | 387 | 400 | 412 | 425 |
| B | Stack | 563 | 578 | 592 | 610 | 634 | 659 |
| C | Head Tube Angle | 70 | 70.5 | 71 | 71 | 71 | 71 |
| D | Front Center | 604 | 613 | 626 | 645 | 665 | 686 |
| E | Bottom Bracket Drop | 85 | 85 | 85 | 85 | 85 | 85 |
| F | Wheelbase | 1019 | 1031 | 1041 | 1060 | 1081 | 1102 |
| G | Chainstay Length | 430 | 430 | 430 | 430 | 430 | 430 |
| H | Head Tube Length | 90 | 104 | 116 | 135 | 161 | 187 |
| I | Top Tube Length | 521 | 537 | 556 | 575 | 593 | 613 |
| J | Seat Tube Angle | 74.5 | 74 | 74 | 74 | 74 | 74 |
| K | Bike Standover Height | 700 | 725 | 754 | 779 | 805 | 832 |
| All measurements in degrees or millimetres | |||||||
Sizing Guide
The sizing chart is a great place to start when picking your next bike but everyone will fit a bike a bit differently. Your torso, arm, and leg lengths all play into what size of bike you may need. Plus, there's your own personal preference.
We always recommend swinging by the shop and taking the bike that you're looking for a spin to see how it feels. If you're unable to come by, looking at the geometry of your current bike and comparing it is a good place to start. If you have any further questions, our customer service team is there to help.
| Size | Height | Imperial | Metric |
|---|---|---|
| 49 | 5'1" - 5'5" | 155 - 163cm |
| 52 | 5'4" - 5'7" | 163 - 170cm |
| 54 | 5'7" - 5'9" | 170 - 175cm |
| 56 | 5'9" - 5'11" | 175 - 180cm |
| 58 | 5'11" - 6'2" | 180 - 188cm |
| 61 | 6'2" - 6'5" | 188 - 196cm |
