Why the Santa Cruz V10?
Welcome to the eighth generation of V10 – one of the winningest downhill bikes ever. Constantly refined, not redefined. Two decades in, the VPP™ suspension design continues to win races and attract imitators. The V10 is the pinnacle of the pyramid of our bikes. Its presence (and success) at the World Cup informs the rest of our bike range.
- Front Travel: 203 mm
- Rear Travel: 208mm
- Wheel size SM - LG : MX
- Wheel size XL : 29"
Technical Details

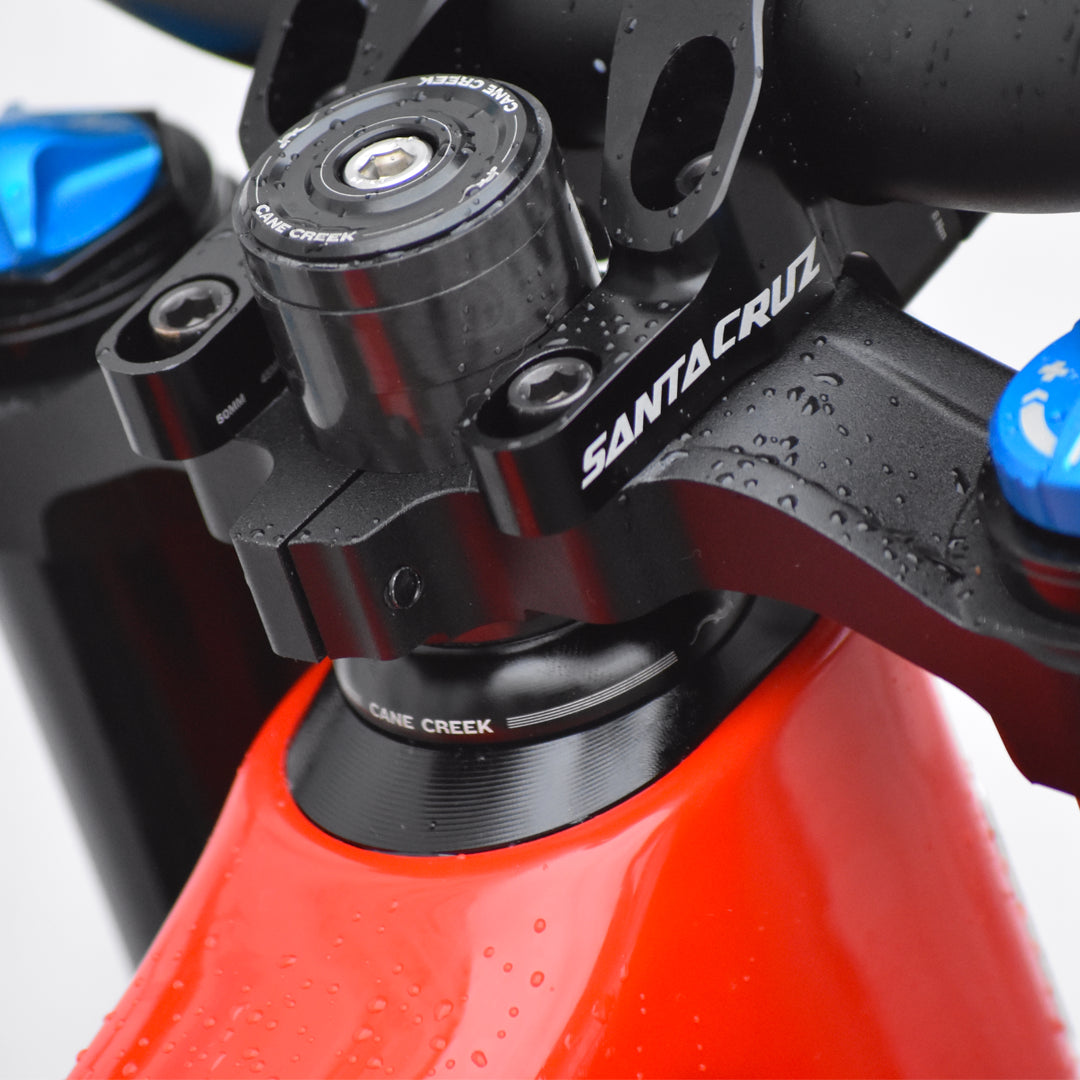

Adjustable reach via replaceable 3-position headset cups.
- Adjustable Reach

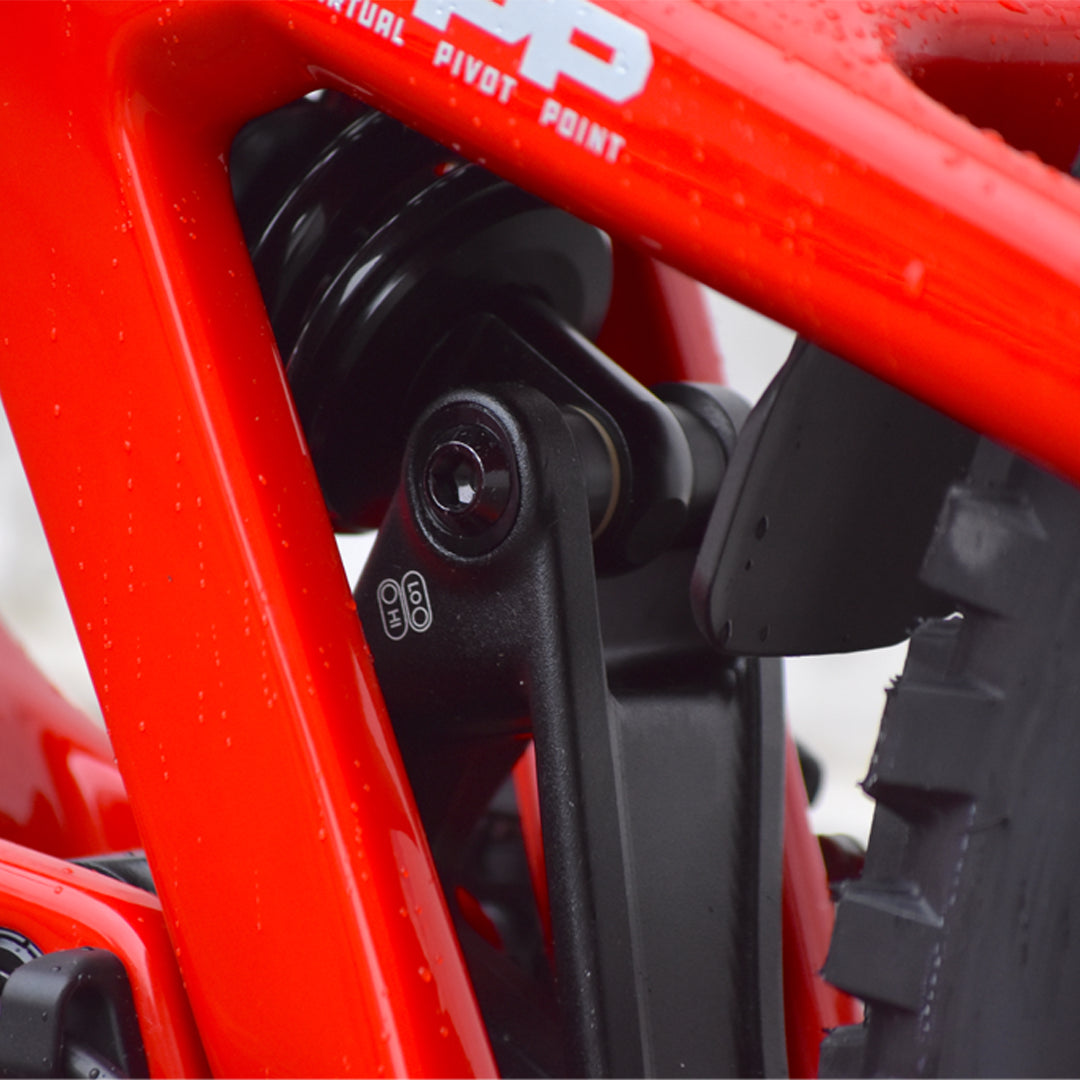

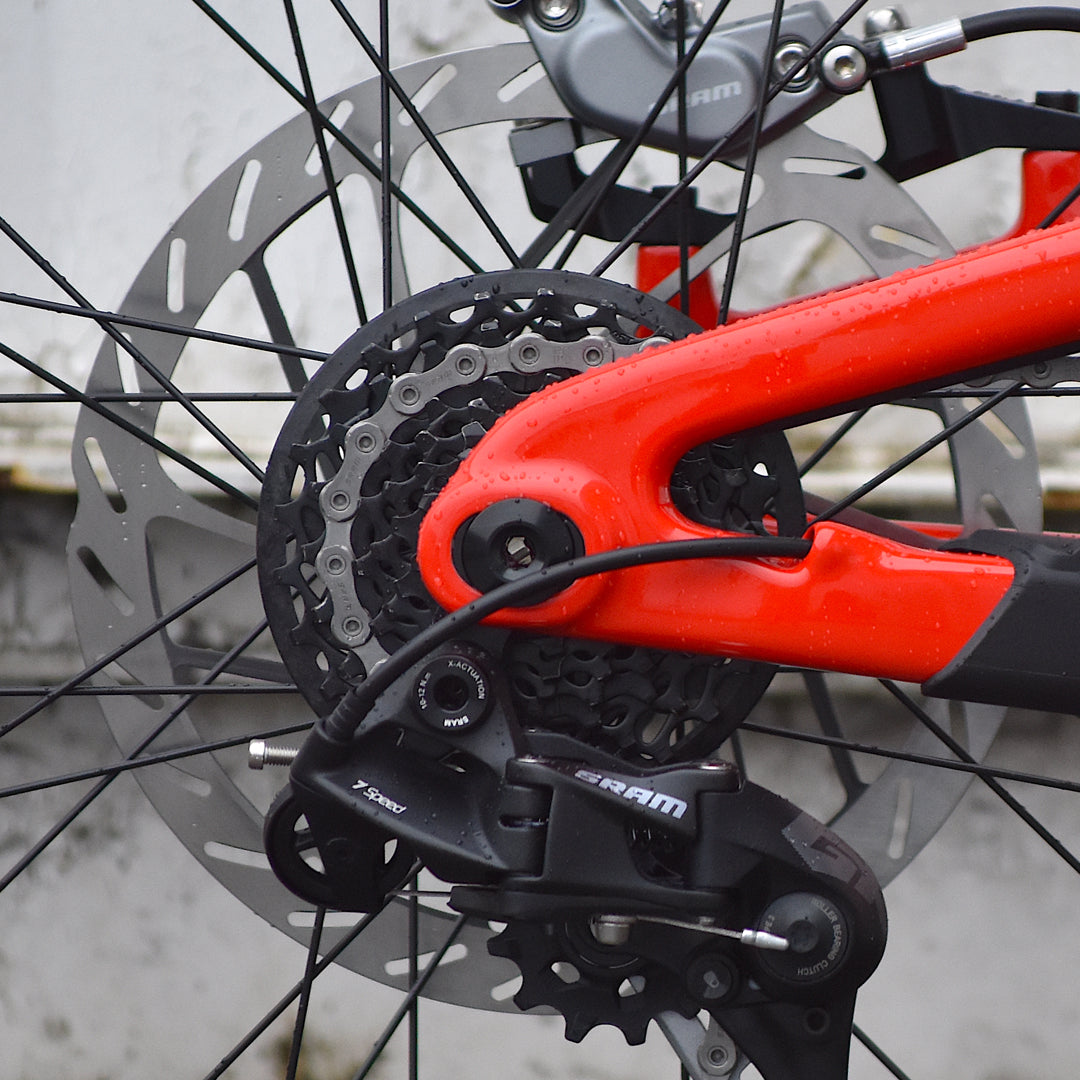

- Three Position Rear Axle
- Adjustable Geometry
- Attention to Detail
Get the Full Breakdown
Read all about why the V10 8 is the newest and best evolution of one of the winningest race bikes in downhill history
Geometry
| S | M | L | XL | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| hi | mid | lo | hi | mid | lo | hi | mid | lo | hi | mid | lo | ||
| A | Reach | 412/420/428 | 411/419/427 | 409/417/425 | 447/455/463 | 446/454/462 | 444/452/460 | 467/475/483 | 466/474/482 | 464/472/480 | 492/500/508 | 491/499/507 | 489/497/506 |
| B | Stack | 624 | 625 | 626 | 633 | 634 | 635 | 637 | 638 | 639 | 642 | 643 | 644 |
| C | HT Angle | 63° | 62.9° | 62.7° | 63° | 62.9° | 62.7° | 63° | 62.9° | 62.7° | 63° | 62.9° | 62.7° |
| D | Seat Tube Length | 435 | 435 | 435 | 445 | 445 | 445 | 455 | 455 | 455 | 465 | 465 | 465 |
| E | Front Center | 785 | 785 | 785 | 825 | 825 | 825 | 847 | 847 | 847 | 874 | 874 | 874 |
| F | BB Height | 356 | 353 | 351 | 356 | 353 | 351 | 356 | 353 | 351 | 356 | 353 | 351 |
| G | BB Drop | -1 | 1 | 3 | -7 | 1 | 3 | -1 | 1 | 3 | 17 | 19 | 21 |
| H | Wheelbase Mid | 1230 | 1231 | 1231 | 1275 | 1275 | 1276 | 1302 | 1303 | 1303 | 1334 | 1335 | 1335 |
| I | Rear Center | 440/445/450 | 442/447/452 | 442/447/452 | 445/450/455 | 445/450/455 | 445/450/455 | 450/455/460 | 451/456/461 | 451/456/461 | 455/460/465 | 456/461/466 | 456/461/466 |
| J | HT Length | 63° | 62.9° | 62.7° | 63° | 62.9° | 62.7° | 63° | 62.9° | 62.7° | 63° | 62.9° | 62.7° |
| K | Seat Tube Angle | 77.9° | 77.8° | 77.6° | 77.4° | 77.3° | 77.1° | 77.3° | 77.2° | 77° | 77° | 76.9° | 76.7° |
| L | Standover Height | 729 | 726 | 724 | 730 | 728 | 726 | 731 | 729 | 726 | 731 | 729 | 726 |
*All measurements in degrees or millimetres
Frame Sizing
The sizing chart is a great place to start when picking your next bike but everyone will fit a bike a bit differently. Your torso, arm, and leg lengths all play into what size of bike you may need. Plus, there's your own personal preference.
We always recommend swinging by the shop and taking the bike that you're looking for a spin to see how it feels. If you're unable to come by, looking at the geometry of your current bike and comparing it is a good place to start. If you have any further questions, our customer service team is there to help.
| Size | Height | Imperial | Metric |
|---|---|---|
| S | 5'1" - 5'5" | 155 - 165cm |
| M | 5'5" - 5'9" | 165 - 175cm |
| L | 5'9 - 6'1" | 175 - 185cm |
| XL | 6'1" - 6'4" | 185 - 196cm |
