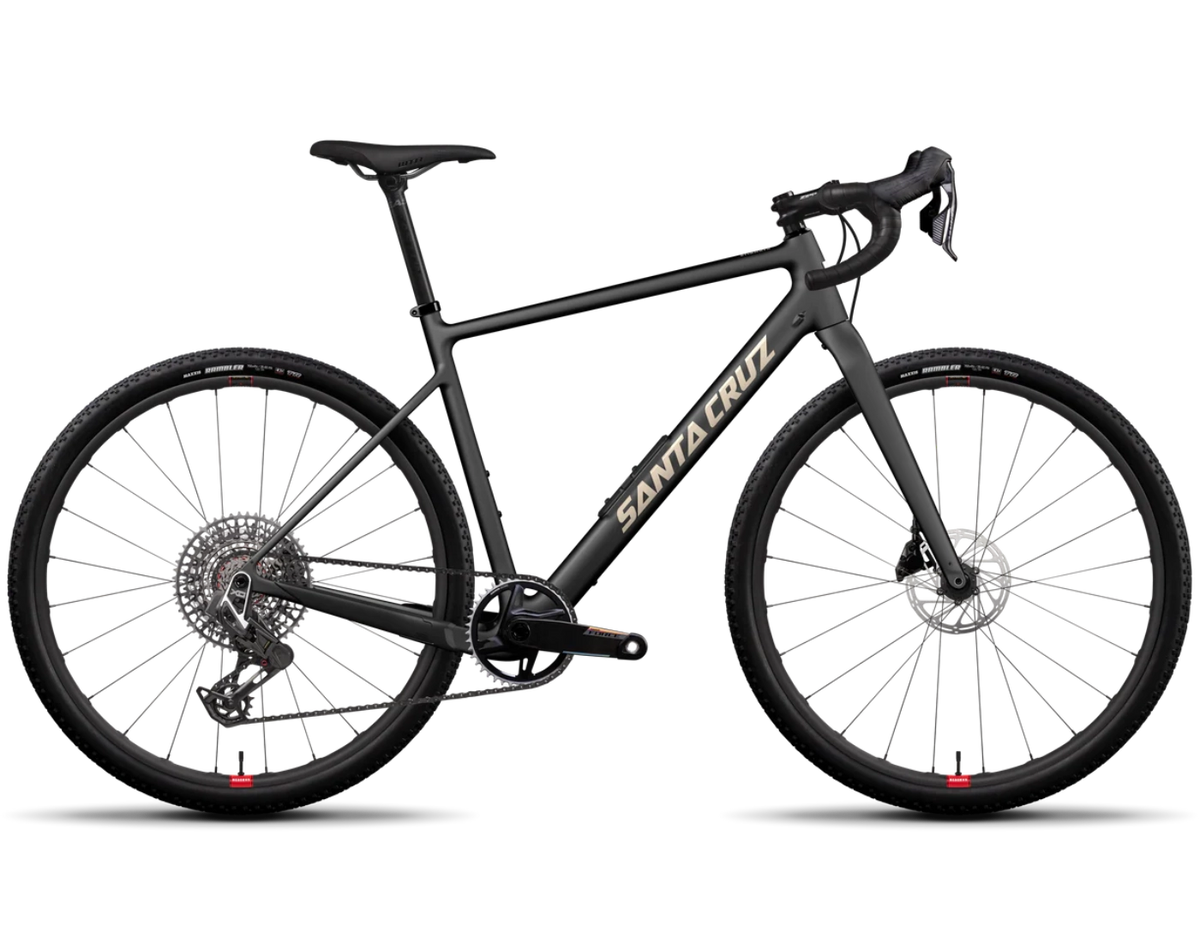

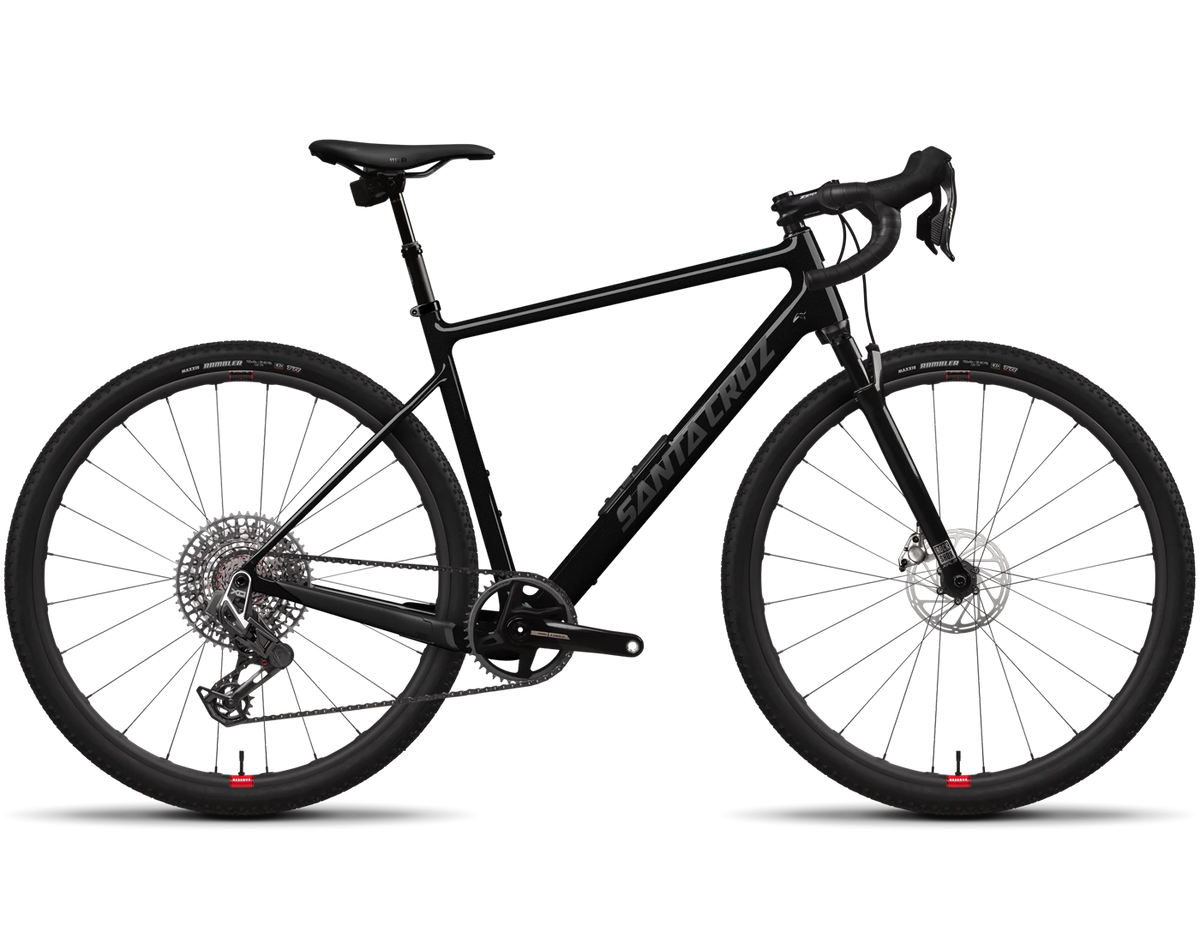

Why the Stigmata?
The Stigmata erases the boundaries between a versatile drop-bar bike that conquers singletrack with freedom and a no-nonsense, race-proven gravel champion. It's tailor-made for the rider taking on The Big Event, embarking on uncharted roads, or instinctively choosing the most challenging path. No matter your preference for loose or snug attire, the Stigmata is the agile and spirited companion always prepared to meet the challenge head-on.
- Wheel size: 700c up to 50mm wide
- Frame Materials: CC Carbon
Technical Details

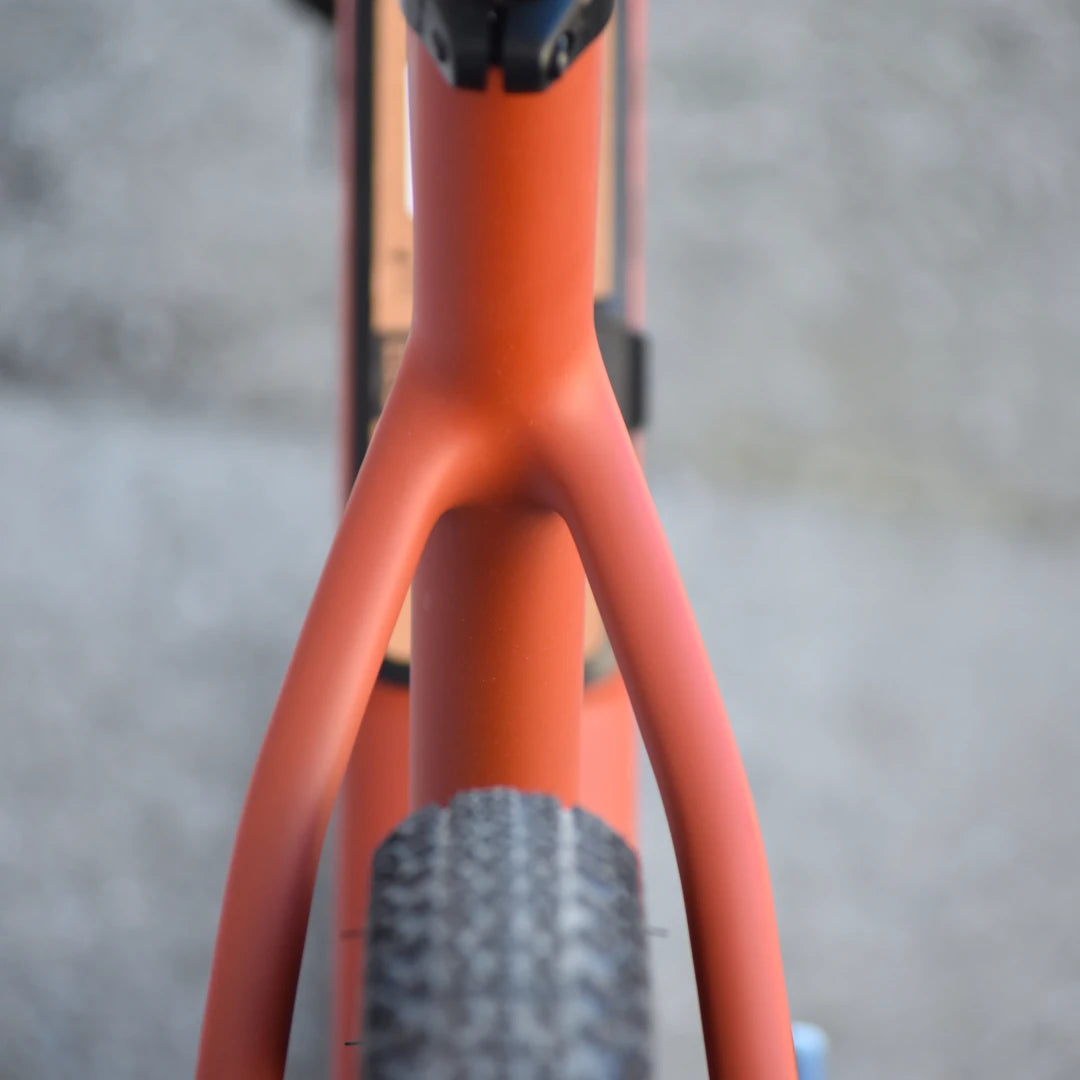

Clearance for 700x50c tires means you can choose fast or fun. Or fast and fun.
- Tire Clearance

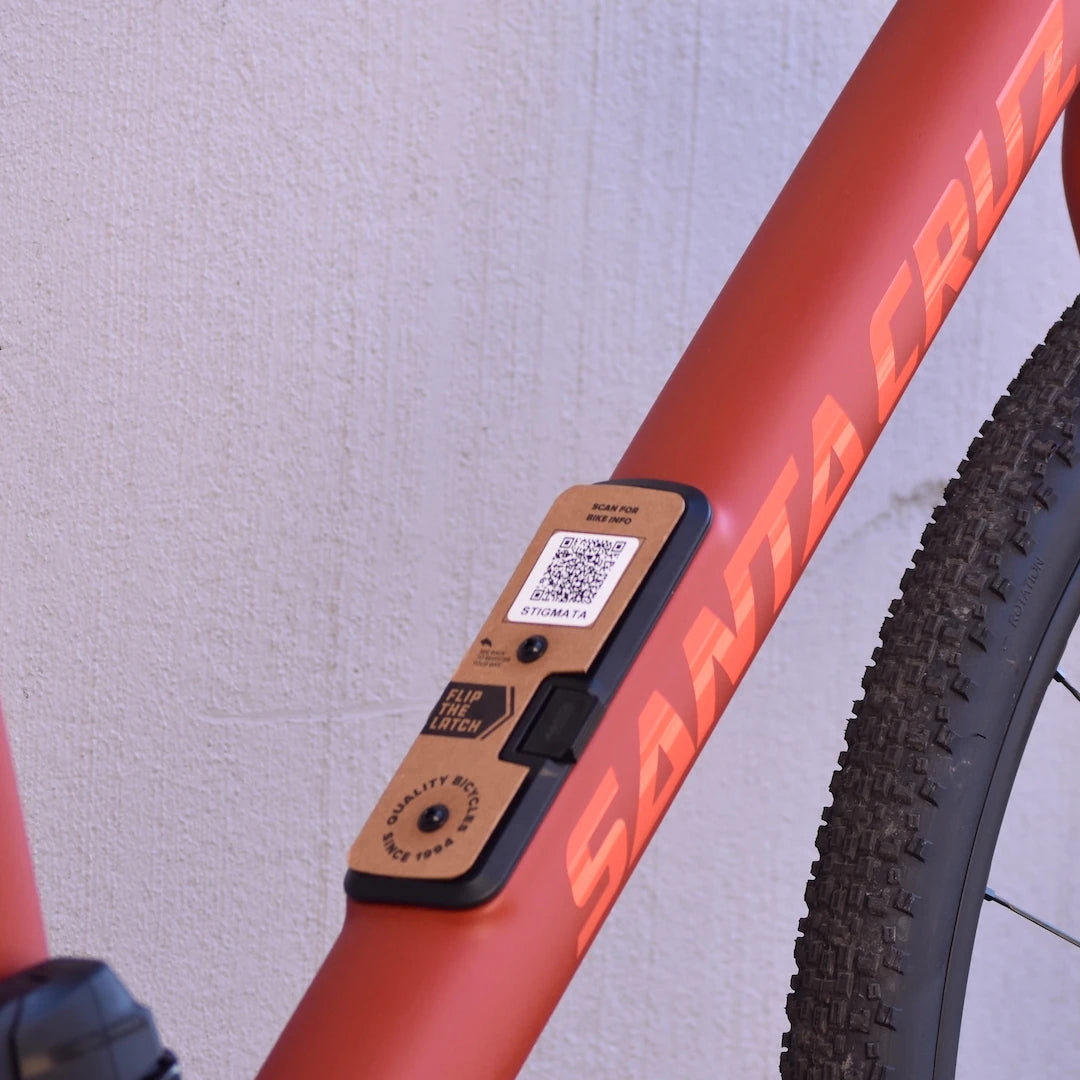

- The Glovebox
- MTB Inspired Geometry
- SRAM UDH
Geometry
| S | M | L | XL | XXL | ||
|---|---|---|---|---|---|---|
| A | Reach | 390 | 405 | 420 | 435 | 450 |
| B | Stack | 564 | 576 | 600 | 612 | 631 |
| C | Head Tube Angle | 69.5° | 69.5° | 69.5° | 69.5° | 69.5° |
| D | Seat Tube Length | 455 | 485 | 515 | 545 | 575 |
| E | Front Center | 625 | 645 | 668 | 688 | 710 |
| F | Bottom Bracket Height | 278 | 280 | 280 | 282 | 282 |
| G | Bottom Bracket Drop | 78 | 76 | 76 | 74 | 74 |
| H | Wheelbase | 1043 | 1063 | 1087 | 1108 | 1130 |
| I | Rear Center | 423 | 423 | 423 | 423 | 423 |
| J | Head Tube Length | 105 | 120 | 145 | 160 | 180 |
| K | Top Tube Length | 552 | 570 | 592 | 610 | 631 |
| L | Seat Tube Angle | 74° | 74° | 74° | 74° | 74° |
| M | Standover Height | 728 | 753 | 778 | 804 | 830 |
Frame Sizing
The sizing chart is a great place to start when picking your next bike but everyone will fit a bike a bit differently. Your torso, arm, and leg lengths all play into what size of bike you may need. Plus, there's your own personal preference.
We always recommend swinging by the shop and taking the bike that you're looking for a spin to see how it feels. If you're unable to come by, looking at the geometry of your current bike and comparing it is a good place to start. If you have any further questions, our customer service team is there to help.
| Size | Height | Imperial | Metric |
|---|---|---|
| S | 5'3" - 5'5" | 160 - 165cm |
| M | 5'6" - 5'9" | 165 - 175cm |
| L | 5'9 - 6'0" | 175 - 183cm |
| XL | 6'0" - 6'2" | 183 - 188cm |
| XXL | 6'2" - 6'6" | 188 - 198cm |
