Santa Cruz Nomad 7 CC MX Frameset

$5,499.00 CAD

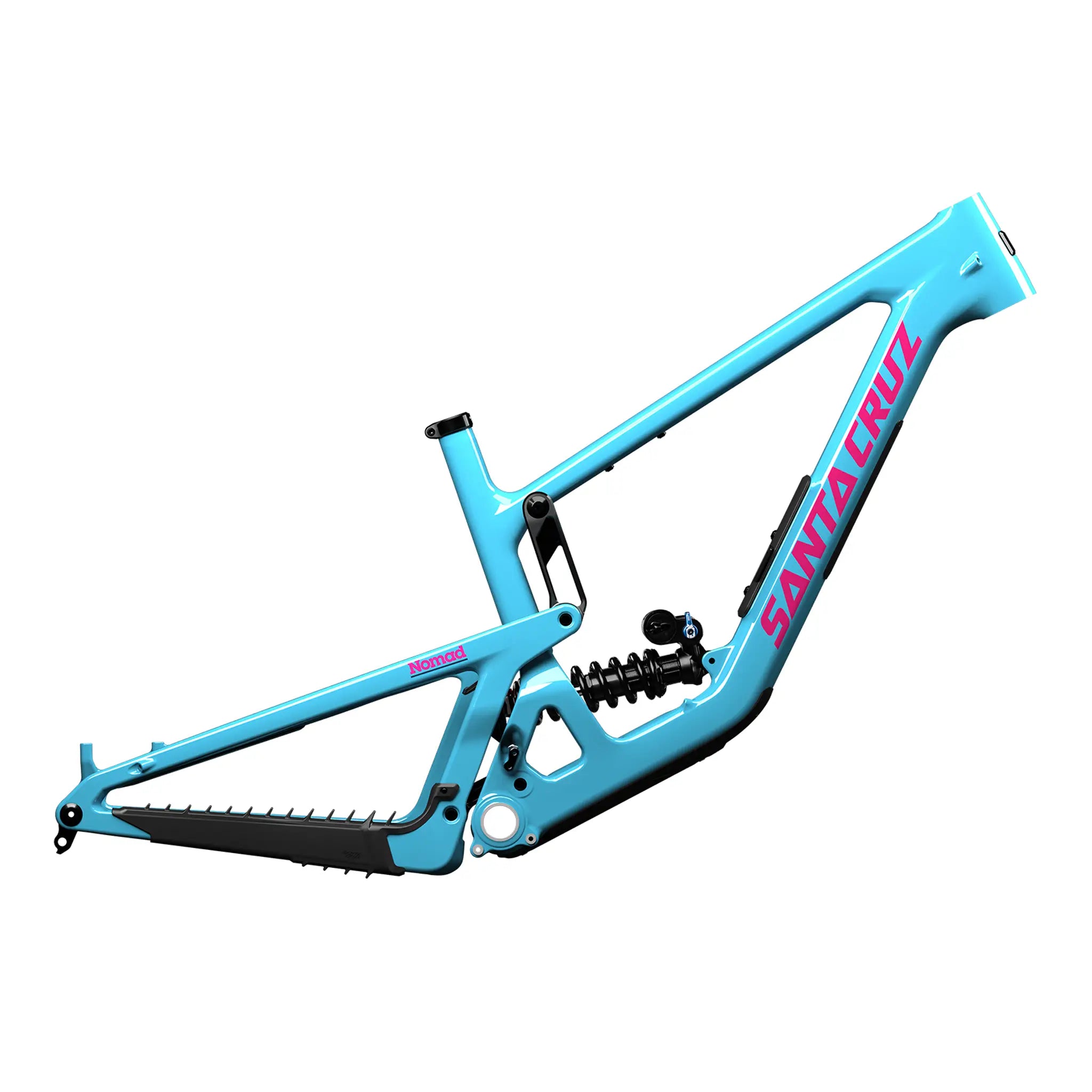

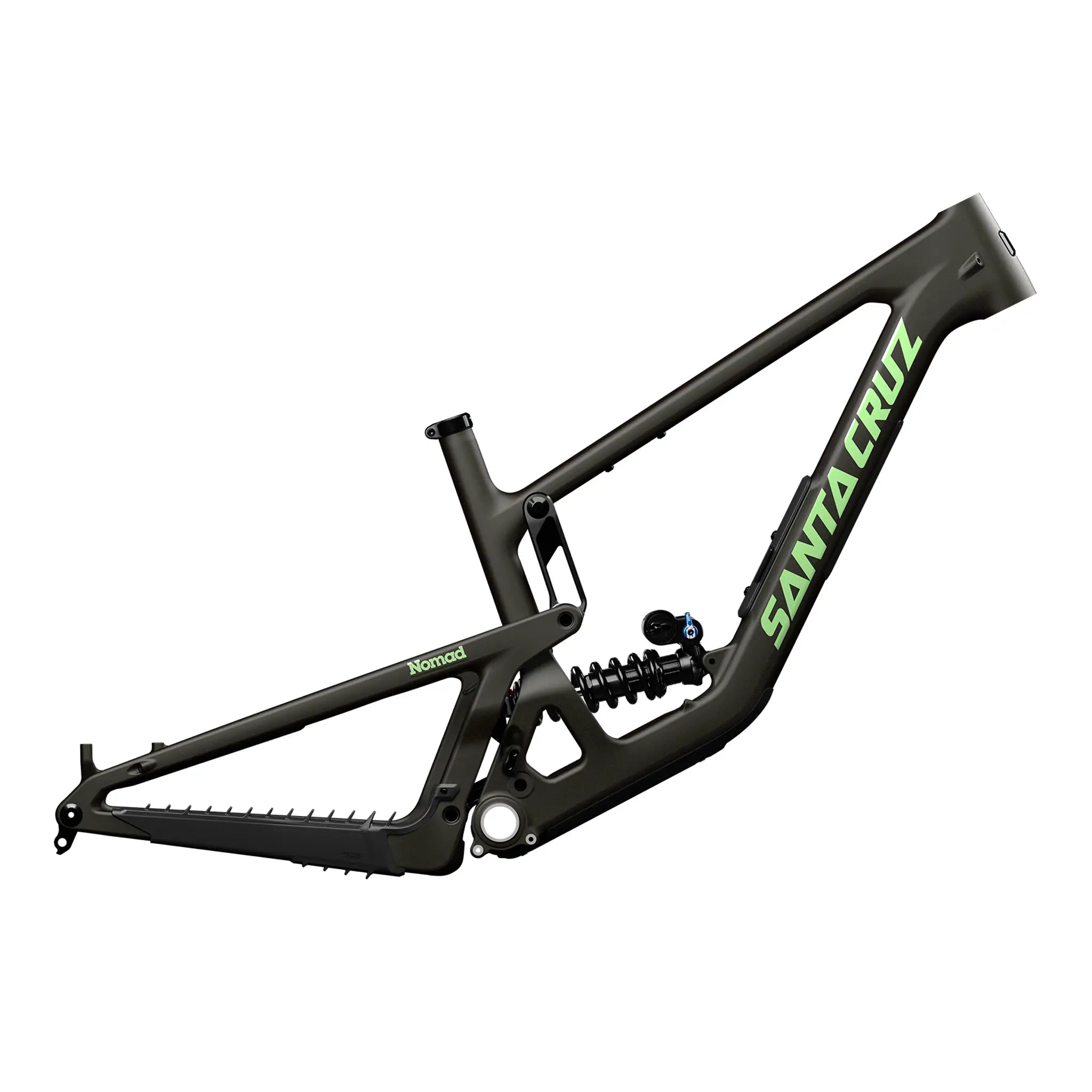

Build your dream machine from the ground up with the Santa Cruz Nomad frame. With 170mm of VPP™ travel, MX wheel compatibility, and the iconic Glovebox storage compartment. With coil or air shock compatibility and geometry dialed in for wherever the trail takes you, the Nomad frame is a blank canvas for riders who know exactly what they want. Backed by Santa Cruz's lifetime warranty and free pivot bearings for life, it's the last frame you'll ever need.


210000118582
Quantity
Have a question?

If you have any questions do not hesitate to reach out to us and we'll get back to within 24 hours.


Contact Us

Santa Cruz Nomad 7 CC MX Frameset

Santa Cruz Nomad 7 CC MX Frameset

$5,499.00 CAD

Single Crown, Double Black

Santa Cruz Nomad 7 CC MX Frameset

The Santa Cruz Nomad is built for riders who refuse to be limited by the trail in front of them. With 170mm of VPP™ suspension soaking up the biggest hits and MX wheels delivering the perfect balance of traction and agility, it's a bike that inspires confidence whether you're threading tight technical lines or sending massive gaps. The geometry is tuned for riders who like to go fast and charge hard, yet the Nomad never loses sight of the fact that the best rides are long ones. Thoughtful details like the built-in Glovebox storage keep your essentials close at hand, coil and air shock compatibility means you can tune the ride to your exact preference, and a range of builds ensures there's a Nomad for every budget and riding style. Backed by Santa Cruz's lifetime warranty and free pivot bearings for life, this is a bike designed to go the distance in every sense of the word. Load up the van, point it somewhere wild, and trust that the Nomad will handle whatever comes next, because that's exactly what it was made for.

Features

Specifications

Frame Carbon CC MX 170mm Travel VPP™

Rear Shock RockShox Super Deluxe Select, 230x65

*Specifications are subject to change without notice

Geometry

S M L XL XXL
hi | lo hi | lo hi | lo hi | lo hi | lo
A Reach 435 | 427 455 | 452 475 | 472 495 | 492 520 | 517
B Stack 624 | 618 633 | 627 643 | 640 660 | 658 670 | 672
C Head Tube Angle 63.6 | 63.3 63.6 | 63.3 63.6 | 63.3 63.6 | 63.3 63.6 | 63.3
D Seat Tube Length 380 | 380 405 | 405 430 | 430 460 | 460 500 | 500
E Front Centre 770 | 770 799 | 799 826 | 826 855 | 855 886 | 886
F Bottom Bracket Height 346 | 343 346 | 343 346 | 343 346 | 343 346 | 343
G Bottom Bracket Drop 8 | 11 8 | 11 8 | 11 8 | 11 8 | 11
H Wheelbase 1209 | 1209 1239 | 1240 1269 | 1270 1301 | 1302 1336 | 1337
I Rear Centre 439 | 440 440 | 441 443 | 444 446 | 447 450 | 451
J Head Tube Length 90 | 90 100 | 100 115 | 115 135 | 135 150 | 150
K Top Tube Length 570 | 571 594 | 594 612 | 613 637 | 638 666 | 667
L Seat Tube Angle 77.4 | 77 77.4 | 77.2 77.4 | 77.6 77.4 | 77.5 77.4 | 77.5
M Standover Height 712 | 705 720 | 713 723 | 719 727 | 717 733 | 720
All measurements in degrees or millimetres

Sizing Guide

The sizing chart is a great place to start when picking your next bike but everyone will fit a bike a bit differently. Your torso, arm, and leg lengths all play into what size of bike you may need. Plus, there's your own personal preference.

We always recommend swinging by the shop and taking the bike that you're looking for a spin to see how it feels. If you're unable to come by, looking at the geometry of your current bike and comparing it is a good place to start. If you have any further questions, our customer service team is there to help.

Size Height
Imperial Metric
S 5'1" - 5'5" 155 - 165cm
M 5'5" - 5'9" 165 - 175cm
L 5'9 - 6'1" 175 - 185cm
XL 6'1" - 6'4" 185 - 193cm
XXL 6'4" - 6'7" 193 - 201cm
