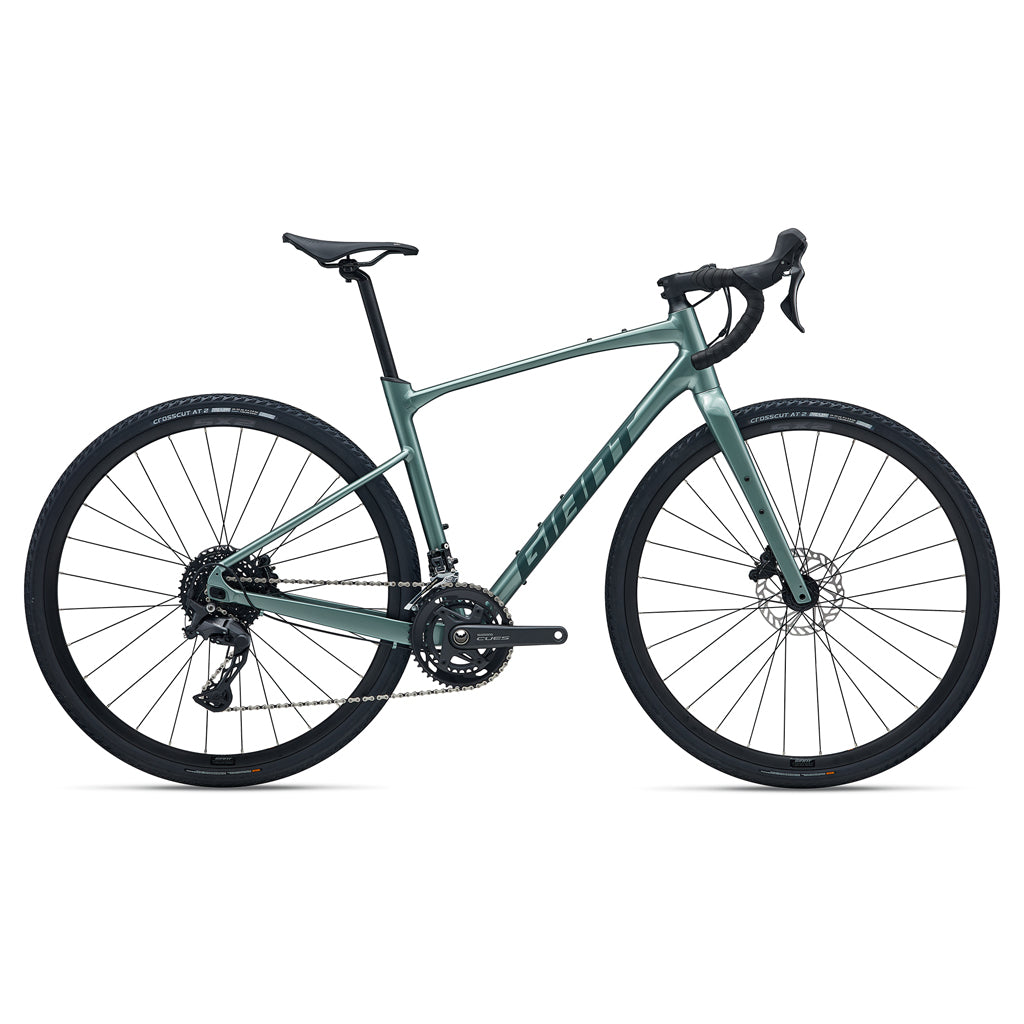

Giant Revolt 1
Giant Revolt 1
Giant Revolt 1
Giant Revolt 1

Giant Revolt 1

210000105826

$2,199.99 CAD
/
Local Pickup Only

Ride roads, gravel or dirt with this versatile aluminum all-rounder. A composite fork gives it a smooth ride, and a flip chip lets you adjust wheelbase and tire clearance.

Colour
Size

EMAIL: sales@steedcycles.com

PHONE: 604-987-2168

This site is protected by hCaptcha and the hCaptcha Privacy Policy and Terms of Service apply.

Giant Revolt 1

The Giant Revolt is your gateway to adventure, whether you’re cruising roads, exploring gravel, or tackling dirt trails. Its composite fork smooths out the ride, while the innovative flip chip lets you fine-tune wheelbase and tire clearance to match your terrain and riding style.

Engineered for confidence and control, the frame features endurance positioning, shorter chainstays, and a longer reach for precise handling and stability on rugged ground. Dropped seatstays and thin tubing absorb road vibrations, while the D-Fuse handlebar and seatpost enhance compliance without compromising stiffness. With the flip chip adjusting for quick handling or long-distance stability, and the ability to accommodate tires up to 53mm, this bike adapts effortlessly to wherever your journey takes you.

Specifications

FrameALUXX-grade aluminum, 12x142mm thru-axle, disc, flip chip dropout

ForkAdvanced-grade composite, full-composite OverDrive steerer, 12mm thru-axle, disc

HandlebarGiant Contact XR D-Fuse, 31.8mm

GripsCork tape with gel

StemGiant Contact, 8-degree

SeatpostGiant D-Fuse, alloy, 14mm offset

SaddleGiant Grit

ShiftersShimano CUES U3030, 2x9

Front DerailleurShimano CUES FD-U6030

Rear DerailleurShimano CUES RD-U6020

BrakesShimano CUES U6030 hydraulic Giant MPH rotors [F] 160mm, [R] 160mm

Brake LeversShimano CUES U6030

CassetteShimano CUES LinkGlide, 10-speed, 11x39

ChainKMC X11

CranksetShimano CUES, 32/46

Bottom BracketShimano RS501, threaded

RimsGiant S-X2 Disc wheelset, alloy

HubsGiant alloy, 12mm thru-axle

Spokes Stainless

TiresGiant CrossCut AT 2, tubeless, 700x38c

ExtrasTubeless prepared, 53mm max tire size in "long" flip chip position, 45mm max tire size in "short" flip chip position

*Specifications are subject to change without notice

Geometry

S M ML L XL
AReach381387391397407
BStack570586602616630
CHead Tube Angle71.0°71.5°72.0°72.0°72.0°
DBottom Bracket Drop80 | 8180 | 8180 | 8180 | 8180 | 81
EWheelbase1025 | 10351030 | 10401035 | 10451045 | 10551061 | 1071
FChainstay Length430 | 440430 | 440430 | 440430 | 440430 | 440
GHead Tube Length135150165180195
HTop Tube Length550560575585600
ISeat Tube Angle73.5°73.5°73.0°73.0°73.0°
JStandover Height734 | 741752 | 759769 | 776786 | 793801 | 810
All measurements in degrees or millimetres

Sizing Guide

The sizing chart is a great place to start when picking your next bike but everyone will fit a bike a bit differently. Your torso, arm, and leg lengths all play into what size of bike you may need. Plus, there's your own personal preference.

We always recommend swinging by the shop and taking the bike that you're looking for a spin to see how it feels. If you're unable to come by, looking at the geometry of your current bike and comparing it is a good place to start. If you have any further questions, our customer service team is there to help.

Start a chat with our team
Size Height
Imperial Metric
S 5'3" - 5'7" 159 - 171cm
M 5'7" - 5'11" 169 - 181cm
ML 5'9" - 6'1" 174 - 186cm
L 5'10" - 6'3" 179 - 191cm
L 6'2" - 6'7" 189 - 200cm
