Why the Revolt X?
For over a decade, the Revolt range has been at the forefront of pushing the limits of gravel and mixed-terrain cycling. As one of the pioneering production bikes crafted for high-performance drop-bar riding on rugged roads, gravel, and dirt, the Revolt played a pivotal role in shaping this dynamic cycling category.

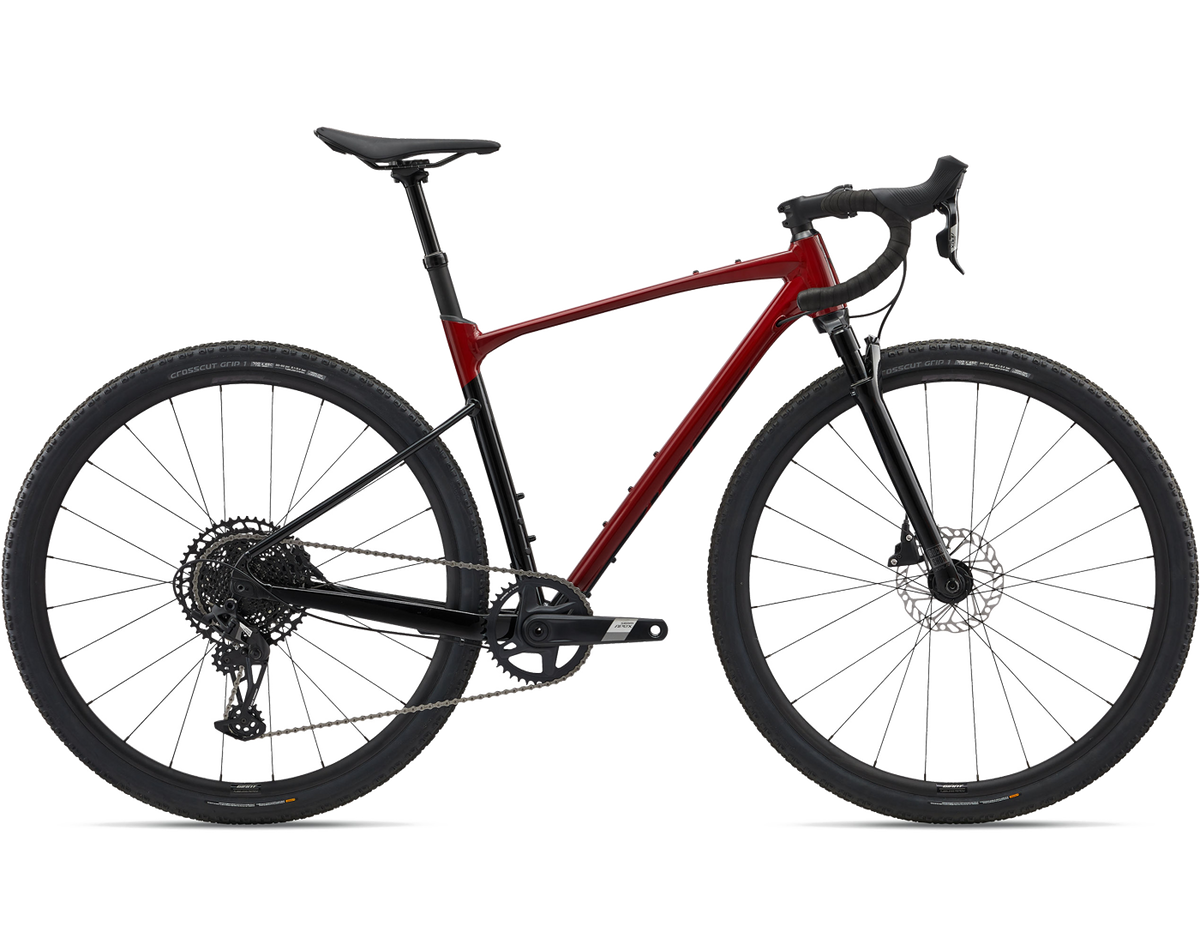

Now introducing the all-new Revolt X range. Geared towards the more adventurous side of gravel riding, it seamlessly blends the renowned efficiency and control associated with the Revolt series with enhanced capabilities for tackling challenging terrain. Available in both composite and aluminum models, the frameset boasts innovative suspension-optimized geometry, further elevating its prowess in conquering rough terrain.
Technical Details

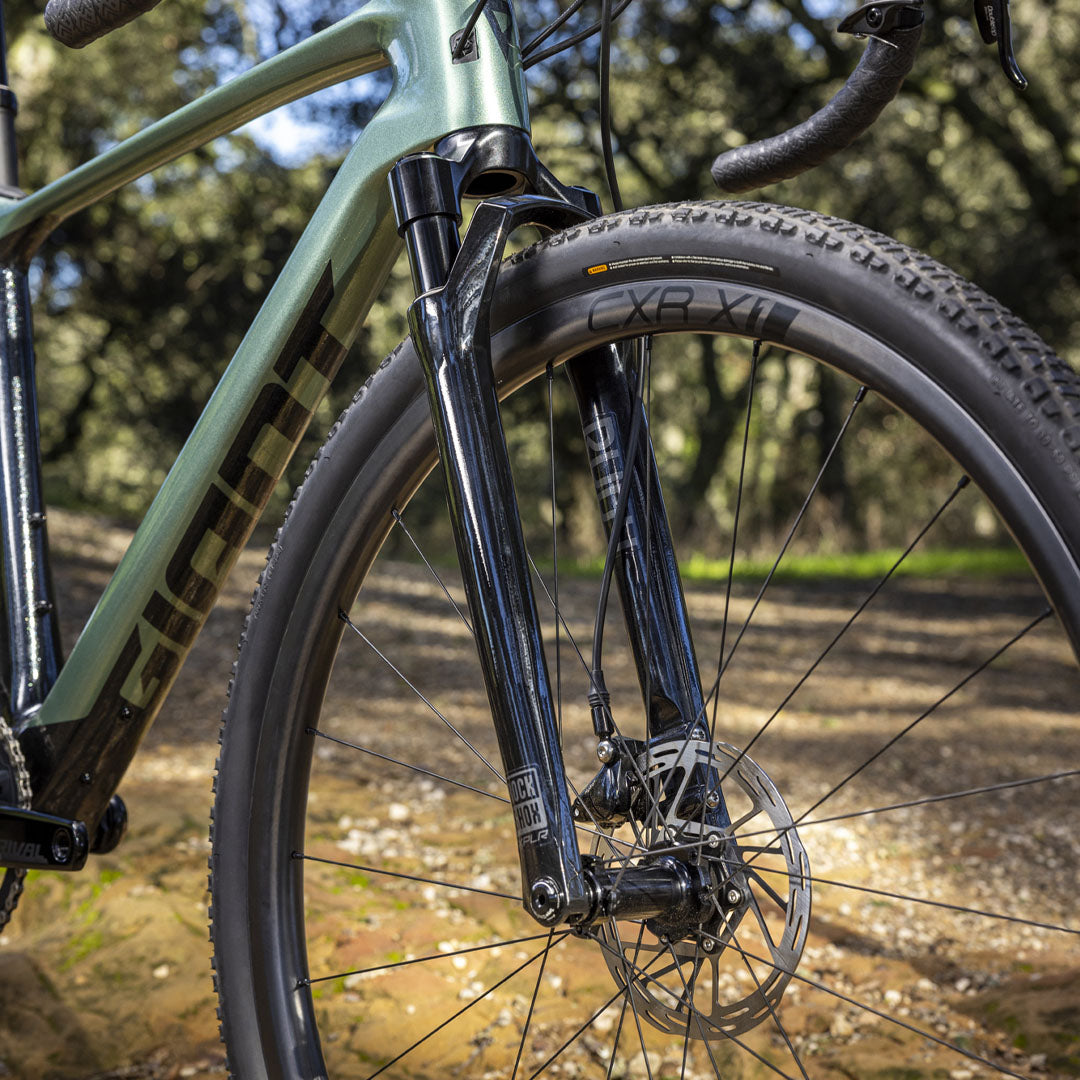

All models within the range come equipped with a short-travel suspension fork meticulously crafted for gravel riding. Featuring 40mm of front travel and complemented by a frameset and cockpit engineered to prioritize compliance, the Revolt X caters to riders envisioning themselves effortlessly navigating descents with the agility of a drop-bar bike and the assurance of a mountain bike. It's a fusion of efficiency and control, promising a thrilling and enjoyable ride that's both fast and fun.
- Front Suspension Equipped

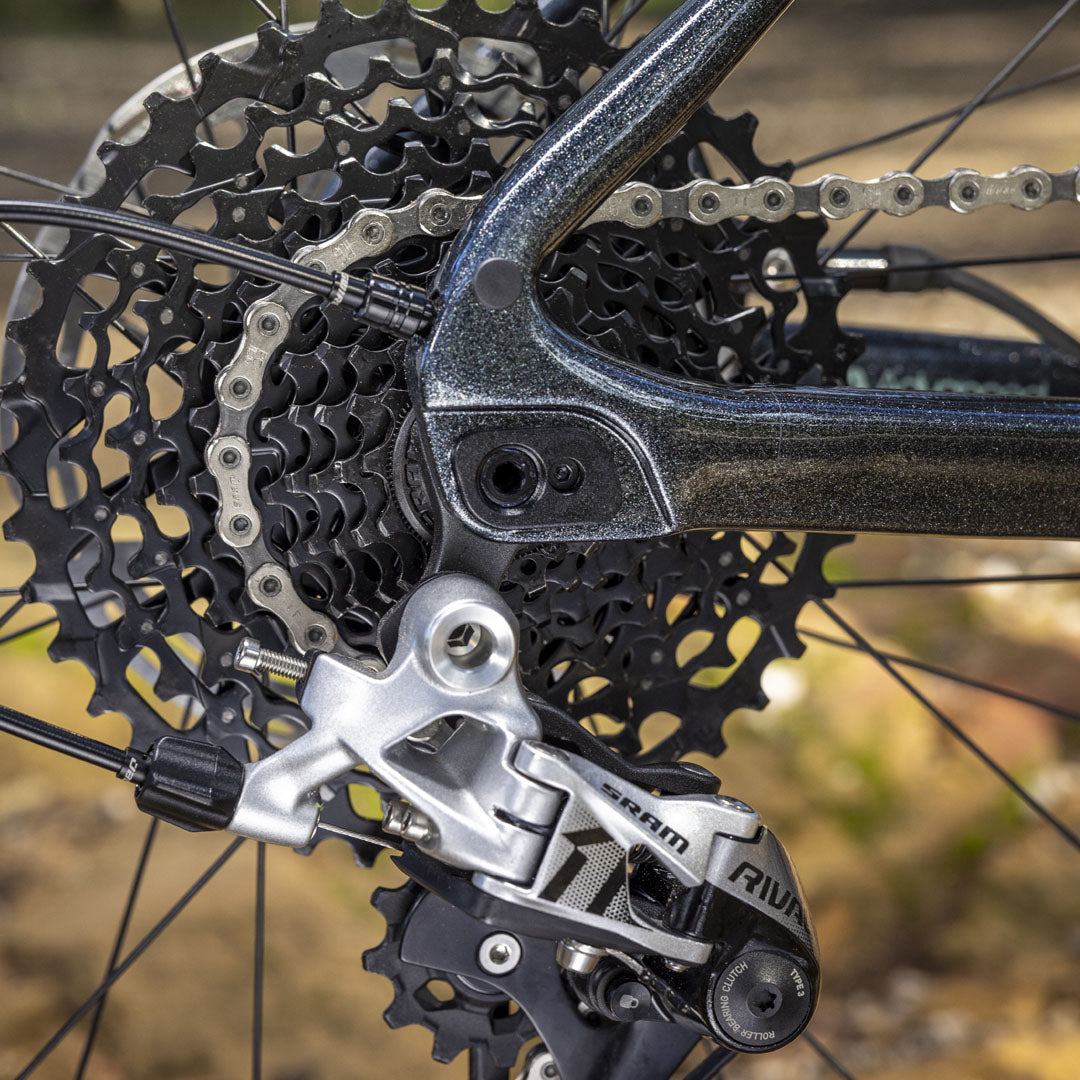

- Adjustable Chainstay Lengths

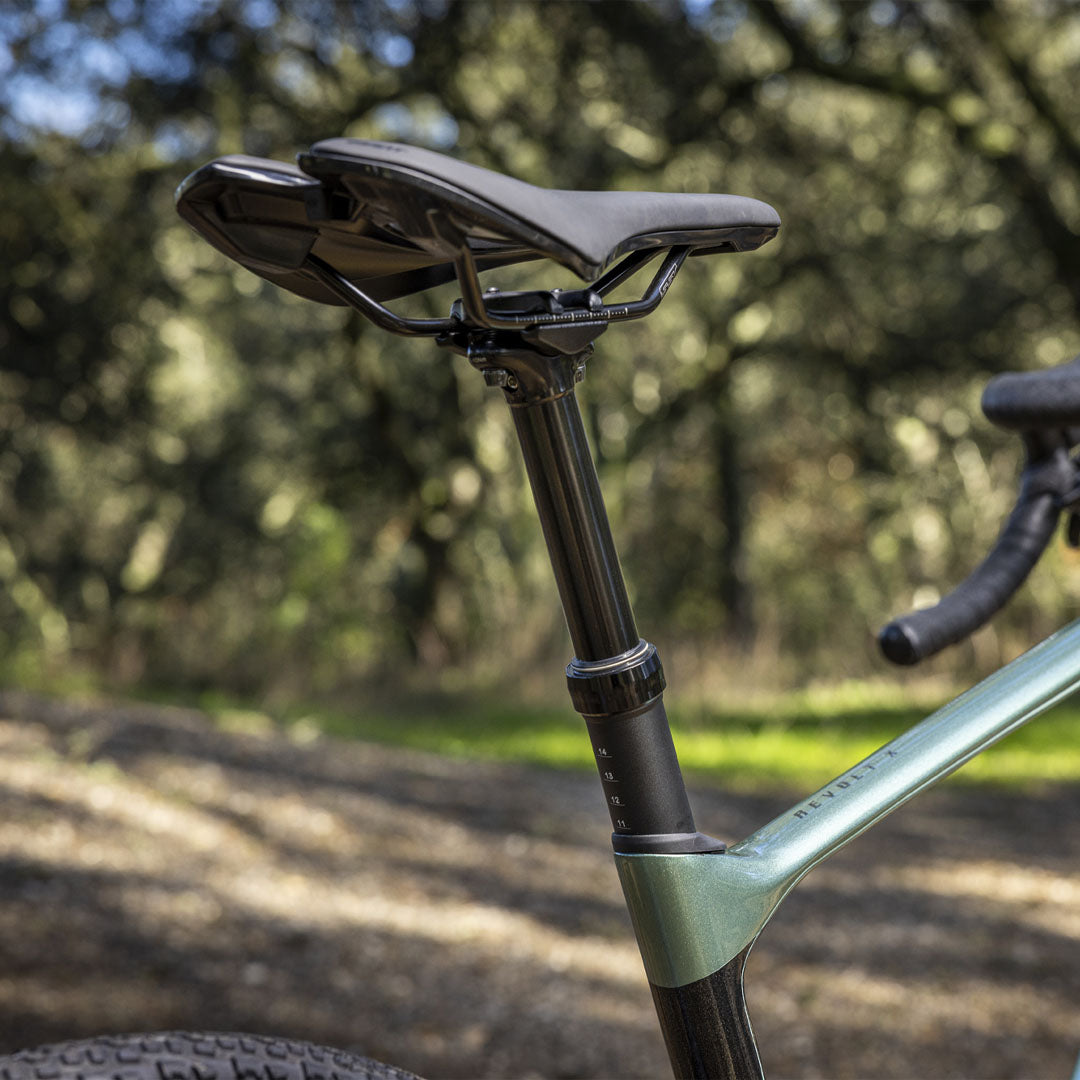

- Dropper Ready
Geometry
S | M | M/L | L | XL | ||
---|---|---|---|---|---|---|
Short | Long | Short | Long | Short | Long | Short | Long | Short | Long | ||
A | Reach | 387 | 389 | 393 | 399 | 410 |
B | Stack | 560 | 576 | 592 | 607 | 621 |
C | Head Tube Angle | 71.0° | 70.9° | 71.5° | 71.4° | 72.0° | 71.9° | 72.0° | 71.9° | 72.0° | 71.9° |
D | Bottom Bracket Drop | 68 | 69 | 68 | 69 | 68 | 69 | 68 | 69 | 68 | 69 |
E | Wheelbase | 1024 | 1034 | 1026 | 1036 | 1031 | 1041 | 1041 | 1051 | 1057 | 1067 |
F | Chainstay Length | 425 | 435 | 425 | 435 | 425 | 435 | 425 | 435 | 425 | 435 |
G | Head Tube Length | 100 | 115 | 130 | 145 | 160 |
H | Top Tube Length | 553 | 560 | 575 | 585 | 600 |
I | Seat Tube Angle | 73.5° | 73.4° | 73.5° | 73.4° | 73.0° | 72.9° | 73.0° | 72.9° | 73.0° | 72.9° |
J | Stand Over Height | 734 | 737 | 750 | 756 | 767 | 773 | 785 | 792 | 803 | 810 |
*ALL MEASUREMENTS IN DEGREES OR MILLIMETRES
Frame Sizing
The sizing chart is a great place to start when picking your next bike but everyone will fit a bike a bit differently. Your torso, arm, and leg lengths all play into what size of bike you may need. Plus, there's your own personal preference.
We always recommend swinging by the shop and taking the bike that you're looking for a spin to see how it feels. If you're unable to come by, looking at the geometry of your current bike and comparing it is a good place to start. If you have any further questions, our customer service team is there to help.
Size | Height | Imperial | Metric |
---|---|---|
XS | 5'1" - 5'5" | 155 - 166cm |
S | 5'3" - 5'7" | 159 - 171cm |
M | 5'7" - 5'11" | 169 - 181cm |
M/L | 5'9" - 6'1" | 174 - 186cm |
L | 5'10" - 6'3" | 179 - 191cm |
XL | 6'2" - 6'7" | 189 - 200cm |
