Why the MOG?
The ENVE MOG epitomizes versatility and capability, offering a plethora of possibilities from adventurous outings to competitive racing. Boasting ample tire clearance, storage solutions, and performance-oriented geometry, it surpasses expectations. Designed to excel as a modern gravel bike, the MOG accommodates up to 700c x 50 mm tires and features innovative in-frame storage via the Cargo Bay. With rack mounts on the fork, it caters to weekend bikepacking trips without compromising performance.
Technical Details
The MOG debuts ENVE’s Cargo Bay, an integrated downtube storage solution that makes efficient use of unused space for stashing your flat tire repair kit, windbreaker, or anything else you choose to carry. Under the Cargo Door, two Cargo Bags allow for 36 cubic inches/0.6 liters of storage. It’s a fast and simple storage solution that can be appreciated by racers and adventurers alike.
- Cargo Box
- A Cleaner Front End
- Ample Tire Clearance

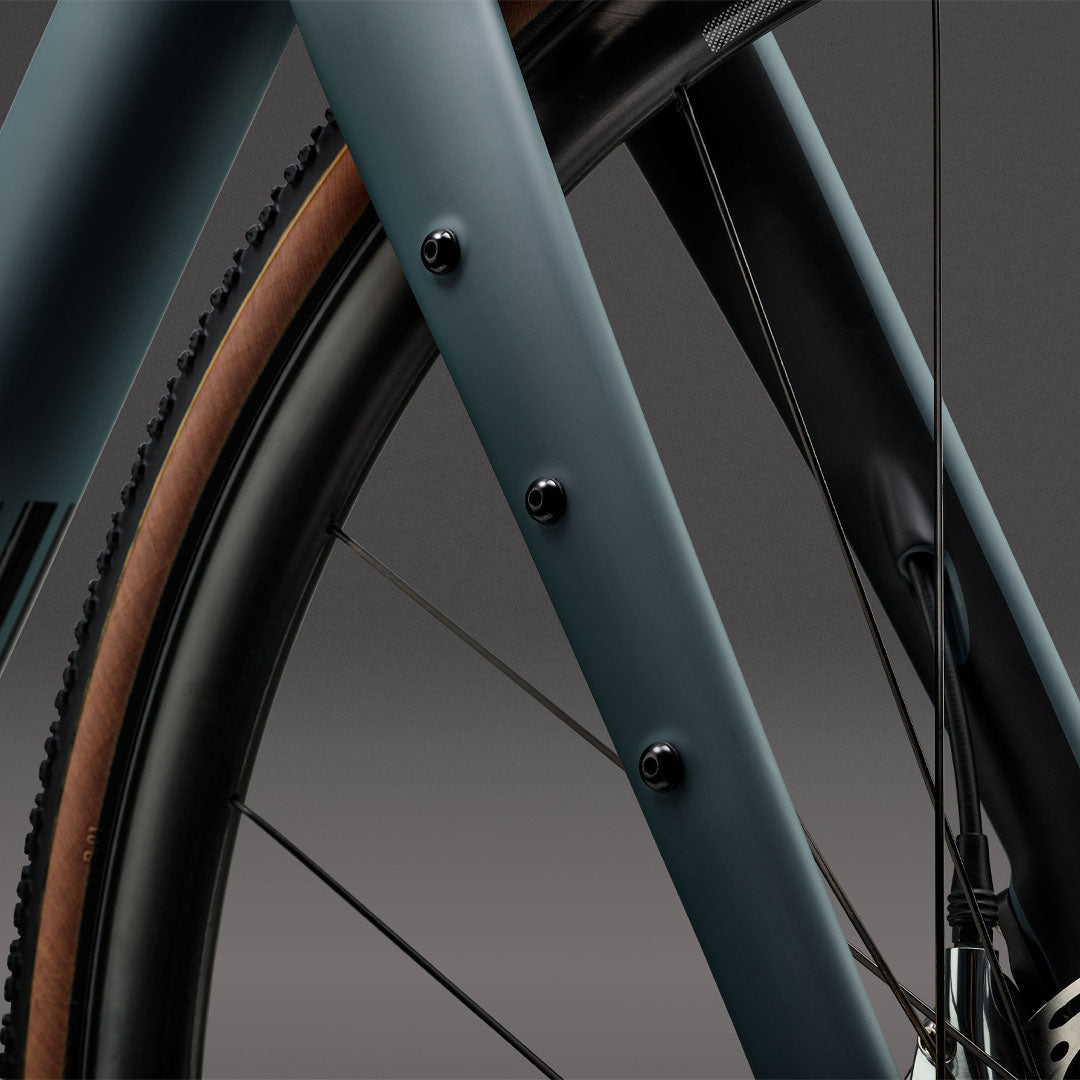

- Load it up
Geometry
| 49 | 52 | 54 | 56 | 58 | 60 | ||
|---|---|---|---|---|---|---|---|
| A | Reach | 367 | 378 | 389 | 397 | 405 | 415 |
| B | Stack | 520 | 543 | 565 | 587 | 605 | 630 |
| C | Head Tube Angle | 71° | 71° | 71.25° | 71.25° | 71.5° | 71.5° |
| D | Front Centre | 580 | 599 | 613 | 629 | 639 | 657 |
| E | Bottom Bracket Drop | 77 | 77 | 75 | 73.75 | 73.2 | 72.75 |
| F | Wheelbase | 993 | 1012 | 1027 | 1042 | 1053 | 1071 |
| G | Chainstay Length | 420 | 420 | 420 | 420 | 420 | 420 |
| H | Head Tube Length | 92 | 117 | 140 | 163 | 183 | 209 |
| I | Top Tube Length | 511 | 534 | 554 | 571 | 588 | 611 |
| J | Seat Tube Angle | 74.5° | 74° | 73.75° | 73.5° | 73.2° | 72.75° |
| K | Standover Height | 705 | 725 | 747 | 767 | 787 | 809 |
*All measurements in degrees or millimetres
