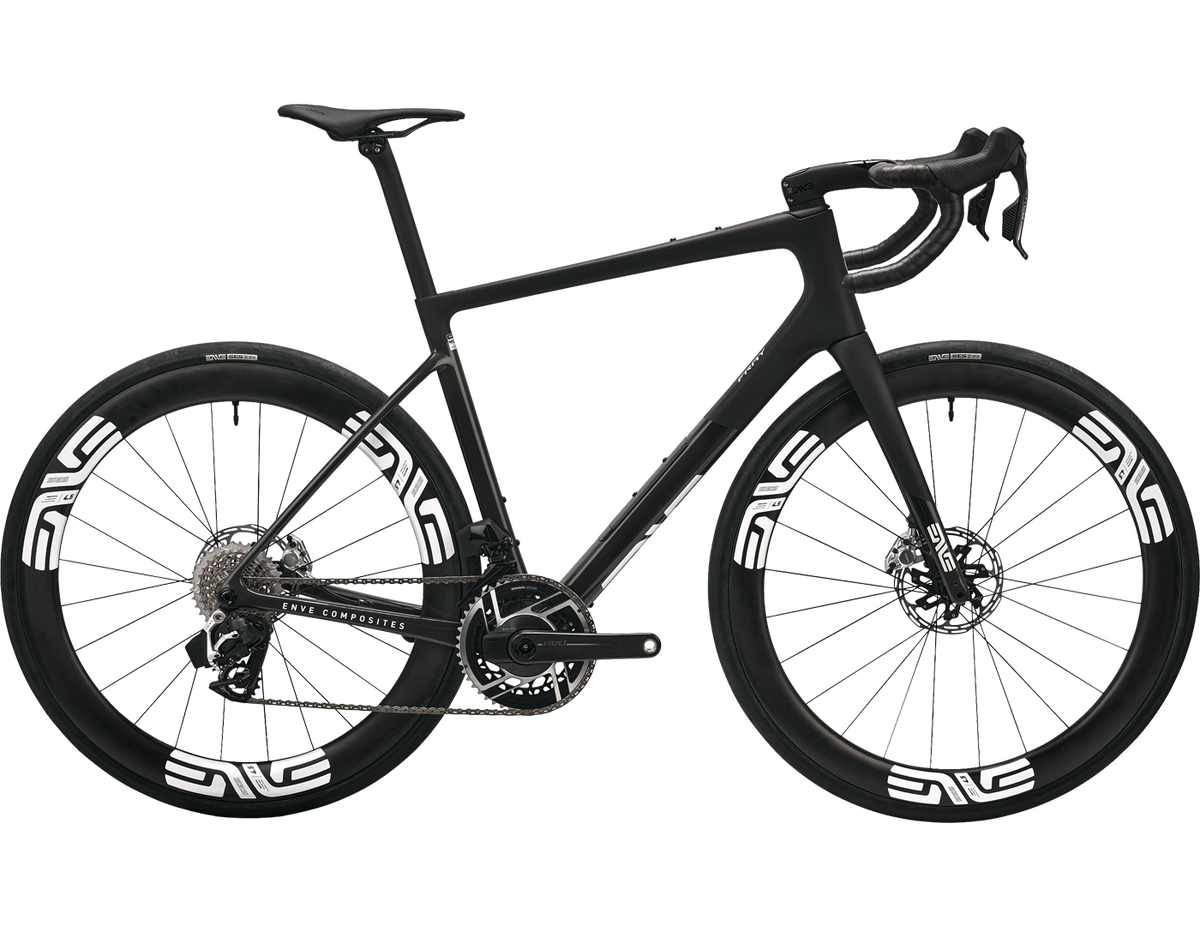

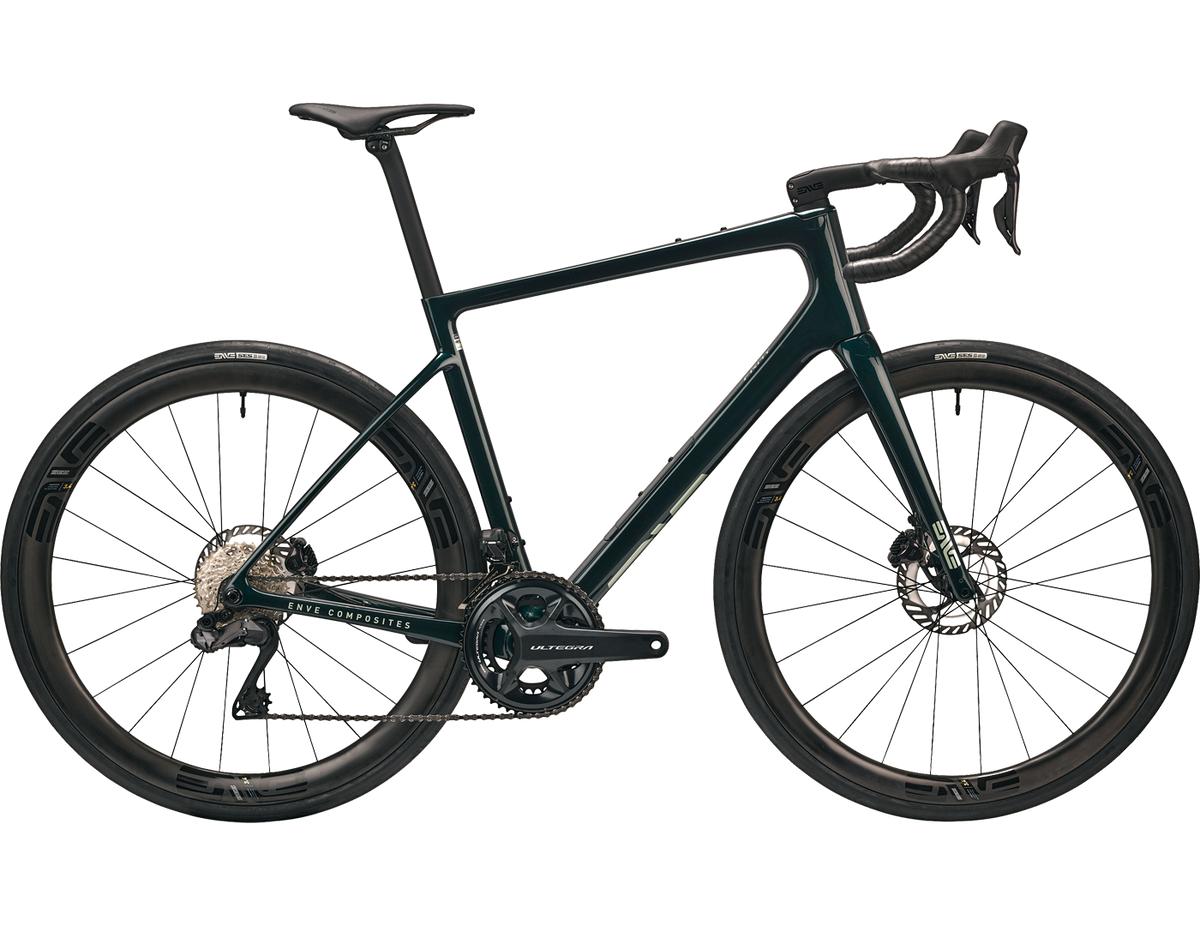

Why the Fray?
Fitting into the all-road category, the Fray blends elements of the Melee’s performance race features such as aerodynamics, lightweight, and power transfer efficiency, along with some of the MOG’s design details to create one of the most capable bikes on the road. Through geometry optimization around 31 to 35 mm tires, max clearance up to 40 mm, progressive endurance geometry, and the ENVE Cargo Bay for in-frame downtube storage, the Fray brings road race performance to those seeking a wider range of surfaces and terrain. In terms of aerodynamics, the Fray features and all-new fork design and tube shapes borrowed from ENVE’s aerodynamically optimized Melee. As is standard for all ENVE frame models, the Fray’s hoses and wires are hidden via ENVE’s IN-Route System.
Technical Details
Building on ENVE's foundation of Real-World Fast aero-technologies, the Fray has been designed to complement the aerodynamic benchmark setting SES wheel line and to deliver maximum aerodynamic efficiencies and stability.
- Real World Fastâ„¢
- Integrated for Speed
- Ample Tire Clearance

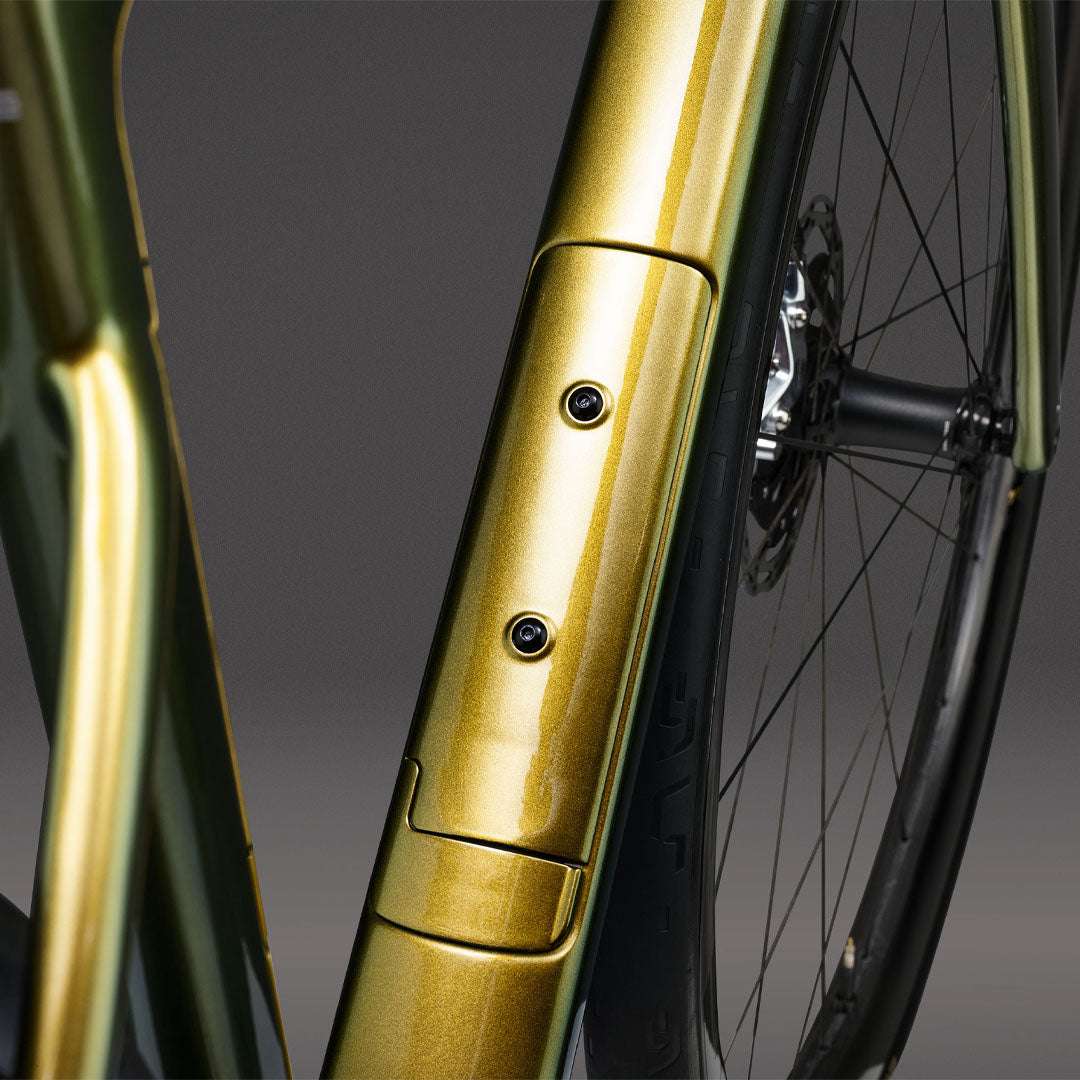

- ENVE Cargo Bay
Geometry
47 | 50 | 52 | 54 | 56 | 58 | 60 | ||
---|---|---|---|---|---|---|---|---|
A | Reach | 365 | 371 | 377 | 383 | 389 | 396 | 403 |
B | Stack | 522 | 540 | 556 | 573 | 591 | 610 | 633 |
C | Headtube Angle | 70.9 | 71.3 | 72 | 72 | 72.6 | 72.6 | 73.3 |
D | Front Center | 577 | 586 | 586 | 598 | 600 | 613 | 616 |
E | Bottom Bracket Drop | 78 | 78 | 78 | 76 | 76 | 74 | 74 |
F | Wheelbase | 985 | 994 | 994 | 1006 | 1008 | 1024 | 1029 |
G | Chainstay Length | 415 | 415 | 415 | 415 | 415 | 417 | 420 |
H | Headtube Length | 107 | 125 | 137 | 157 | 172 | 194 | 215 |
I | Top Tube Length | 510 | 524 | 539 | 552 | 565 | 581 | 599 |
J | Seat Tube Angle | 75 | 74.5 | 74 | 73.75 | 73.5 | 73.2 | 72.75 |
K | Standover Height | 699 | 718 | 738 | 756 | 777 | 797 | 824 |
*All measurements in degrees or millimetres
