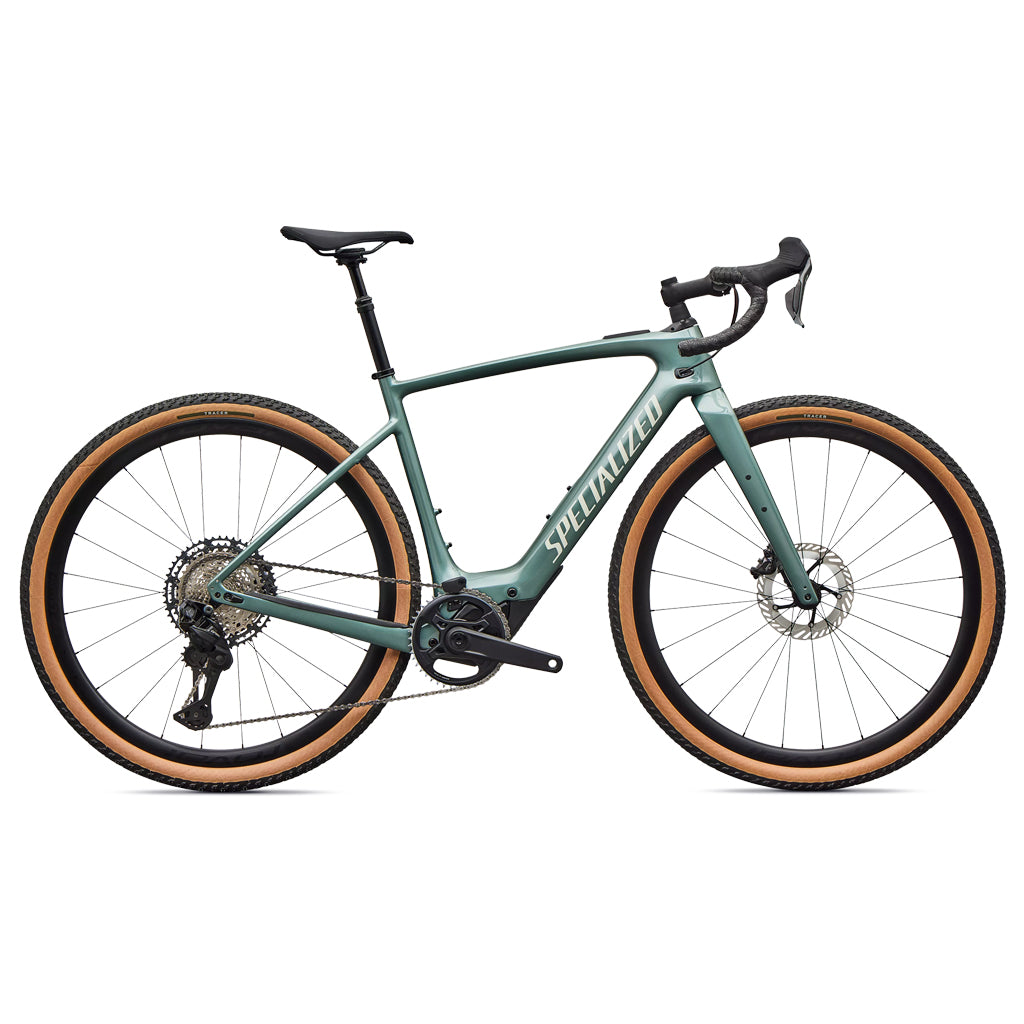

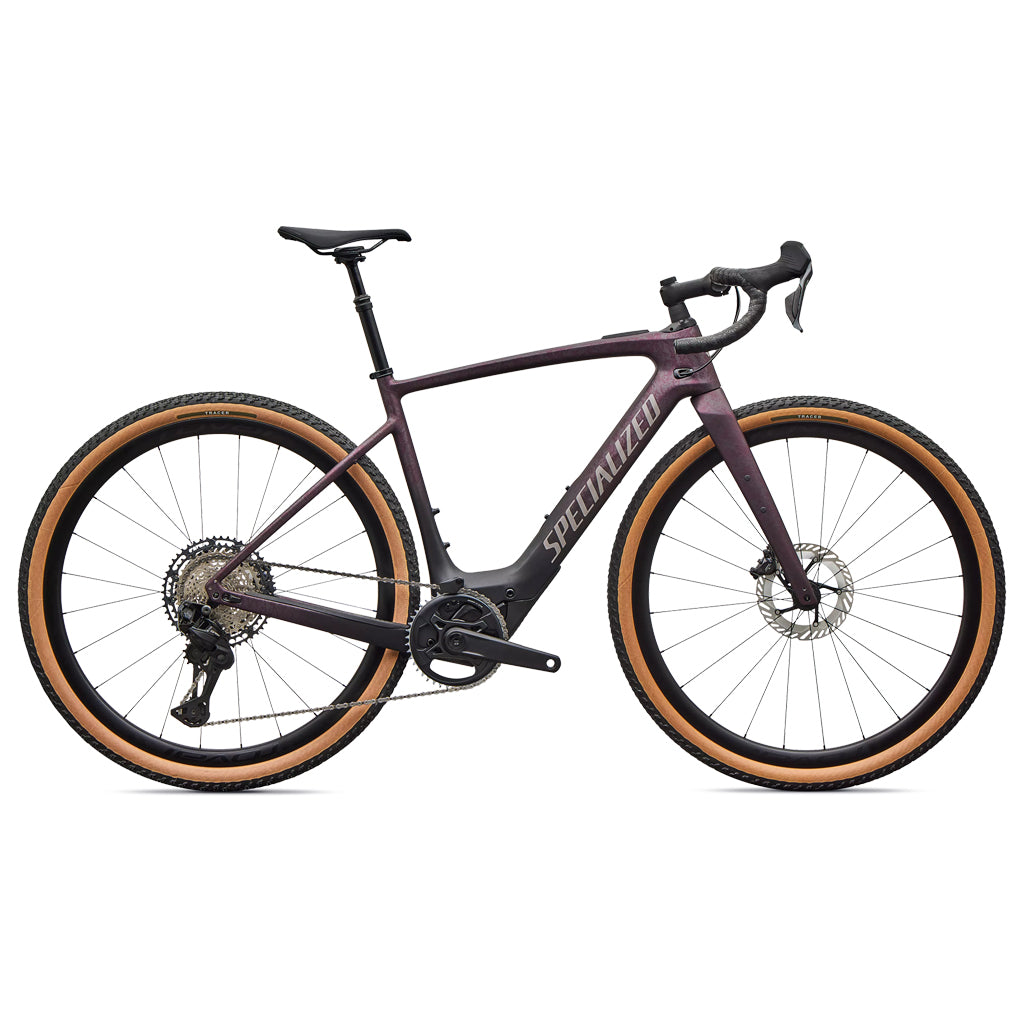

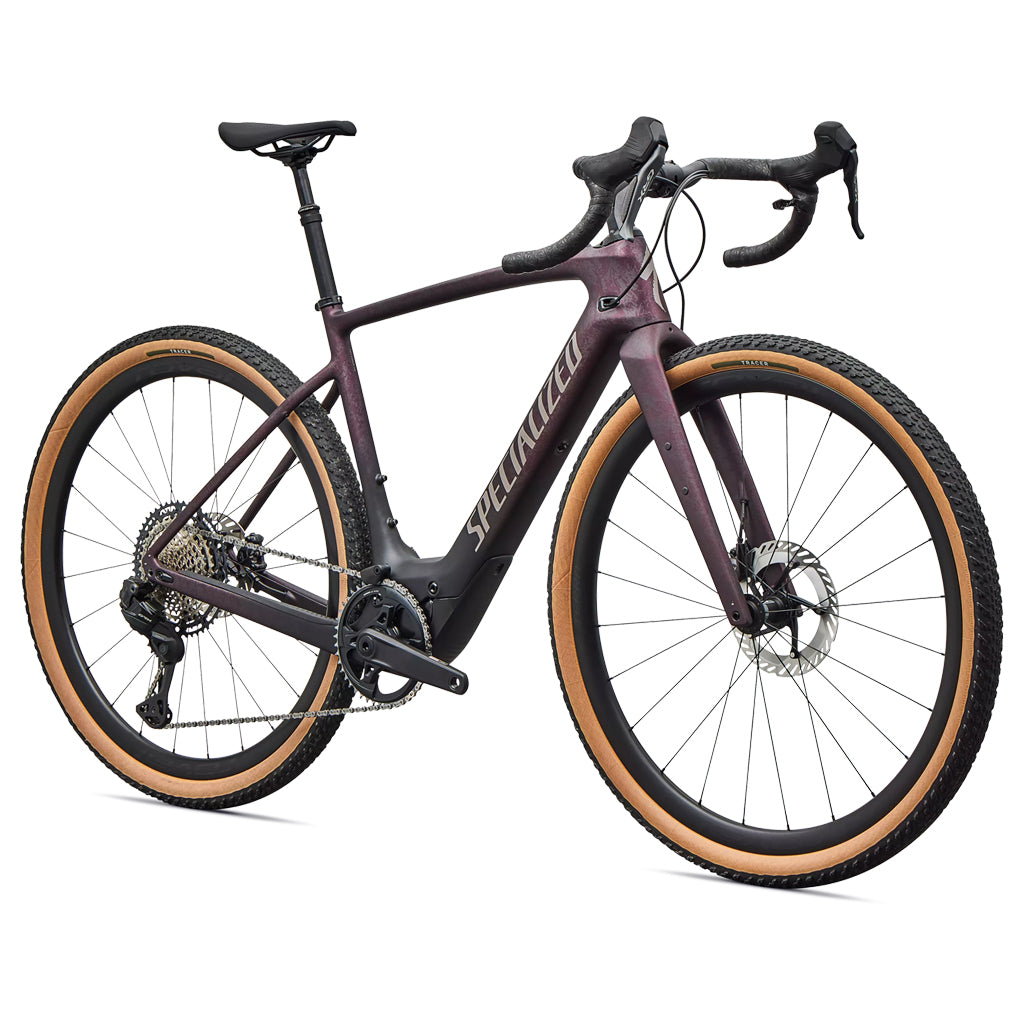

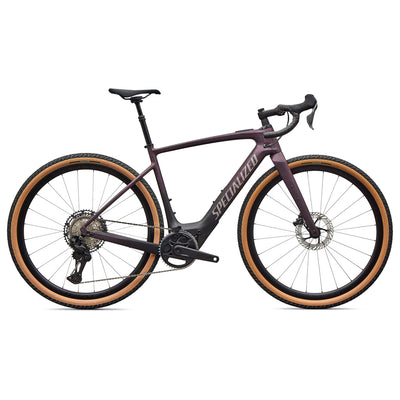

Specialized Turbo Creo 2 Expert Shimano GRX Di2
Specifications
FrameFACT 11r carbon, front/rear thru-axles, fully integrated down tube battery, internal cable routing, fender/rack mounts, 12x142mm
ForkFuture Shock 3.3 w/ Smooth Boot, 12x100mm thru-axle, flat-mount disc
Seat BinderSpecialized Alloy, 31.8
SaddleBody Geometry Power Expert
StemFuture Stem Pro
HandlebarsSpecialized Adventure Gear Hover, 103mm drop x 70mm reach x 12º flare
TapeSupacaz Super Sticky Kush
SeatPostX-Fusion Manic Dropper, 50mm travel
Front BrakeNEW Shimano GRX Di2 RX825, 180mm Rotor
Rear BrakeNEW Shimano GRX Di2 RX825, 180mm Rotor
ChainringsNew SL 1.2 spider, 104BCD w/SRAM 107BCD 44T
Rear DerailleurNEW Shimano GRX Di2 1x12sp RX827
CranksetSRAM Alloy Crankset, Dub interface
Shift LeversNEW Shimano GRX Di2 RX825
ChainShimano XT M8100, 12-speed w/ quick link
CassetteShimano XT M8200, 12-speed, 10-51T
Front WheelRoval Terra C, 25mm inner width carbon tubeless ready rim, 32mm depth, DT 370 hub, 24h, DT Swiss Comp Race spokes
Rear WheelRoval Terra C, 25mm inner width carbon tubeless ready rim, 32mm depth, DT 370 hub, 24h, DT Swiss Comp Race spokes
Inner Tubes700x32/50mm, 48mm Presta valve
Front TireTracer TLR All Terrain Gravel Tire, 700x50c, GRIPTON T5
Rear TireTracer TLR All Terrain Gravel Tire, 700x50c, GRIPTON T5
Wiring HarnessCustom Specialized wiring harness w/ charge port
ChargerCustom charger, 48V System w/ SL system charger plug
MotorSpecialized 1.2 SL Custom Lightweight Motor
UI/RemoteSpecialized MasterMind TCU, percentage of remaining charge, 120 possible display configurations, MicroTune assist adjustment, over-the-air updates, ANT+/Bluetooth®, w/Handlebar remote
BatterySpecialized SL1-320, fully integrated, 320Wh
Weight13.8 kg (30 lb, 6.8 oz) - Size 56
Geometry
| 49 | 52 | 54 | 56 | 58 | 61 | ||
|---|---|---|---|---|---|---|---|
| A | Reach | 365 | 374 | 383 | 392 | 401 | 410 |
| B | Stack | 578 | 578 | 595 | 607 | 638 | 663 |
| C | Headtube Angle | 71° | 71° | 71° | 71° | 71° | 71° |
| D | Front Centre | 600.1 | 609 | 623.8 | 636.6 | 656.2 | 673.8 |
| E | Botto Bracket Drop | 80 | 80 | 80 | 80 | 80 | 80 |
| F | Wheelbase | 1022 | 1031 | 1046 | 1059 | 1079 | 1097 |
| G | Chainstay Length | 435 | 435 | 435 | 435 | 435 | 435 |
| H | Head Tube Length | 90 | 90 | 108 | 120 | 153 | 180 |
| I | Top Tube Length | 531 | 540 | 554 | 572 | 590 | 613 |
| J | Seat Tube Angle | 74° | 74° | 74° | 73.5° | 73.5° | 73° |
| K | Standover Height | 731 | 743 | 773 | 793 | 824 | 852 |
| All measurements in degrees or millimetres | |||||||
Sizing Guide
The sizing chart is a great place to start when picking your next bike but everyone will fit a bike a bit differently. Your torso, arm, and leg lengths all play into what size of bike you may need. Plus, there's your own personal preference.
We always recommend swinging by the shop and taking the bike that you're looking for a spin to see how it feels. If you're unable to come by, looking at the geometry of your current bike and comparing it is a good place to start. If you have any further questions, our customer service team is there to help.
| Size | Height | Imperial | Metric |
|---|---|---|
| 49 | 5'1" - 5'5" | 155 - 163cm |
| 52 | 5'4" - 5'7" | 163 - 170cm |
| 54 | 5'7" - 5'9" | 170 - 175cm |
| 56 | 5'9" - 5'11" | 175 - 180cm |
| 58 | 5'11" - 6'2" | 180 - 188cm |
| 61 | 6'2" - 6'5" | 188 - 196cm |
Part Numbers
| Size | Model Number | Satin Nebula Metallic | Gloss Fjord Metallic |
|---|---|---|
| 49 | 98126-3049 | 98126-3149 |
| 52 | 98126-3052 | 98126-3152 |
| 54 | 98126-3054 | 98126-3154 |
| 56 | 98126-3056 | 98126-3156 |
| 58 | 98126-3058 | 98126-3158 |
| 61 | 98126-3061 | 98126-3161 |
