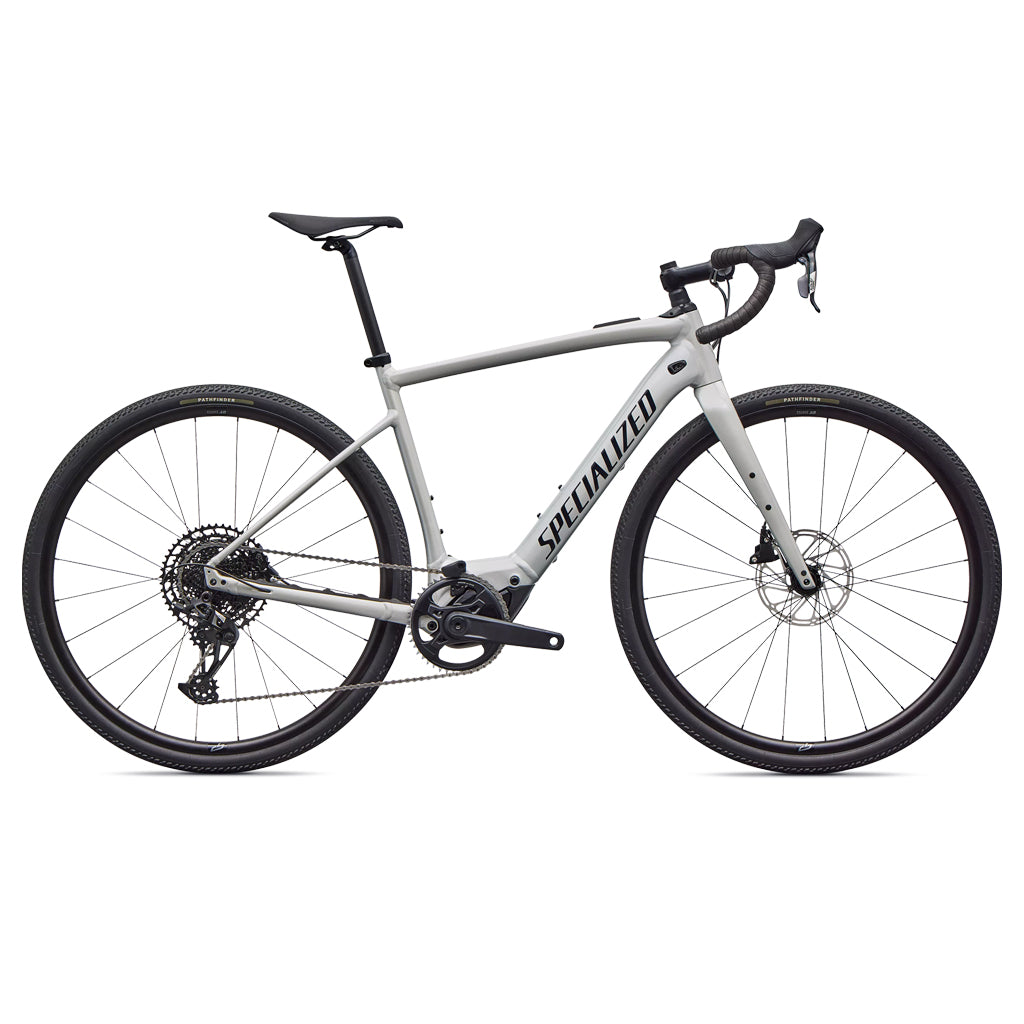

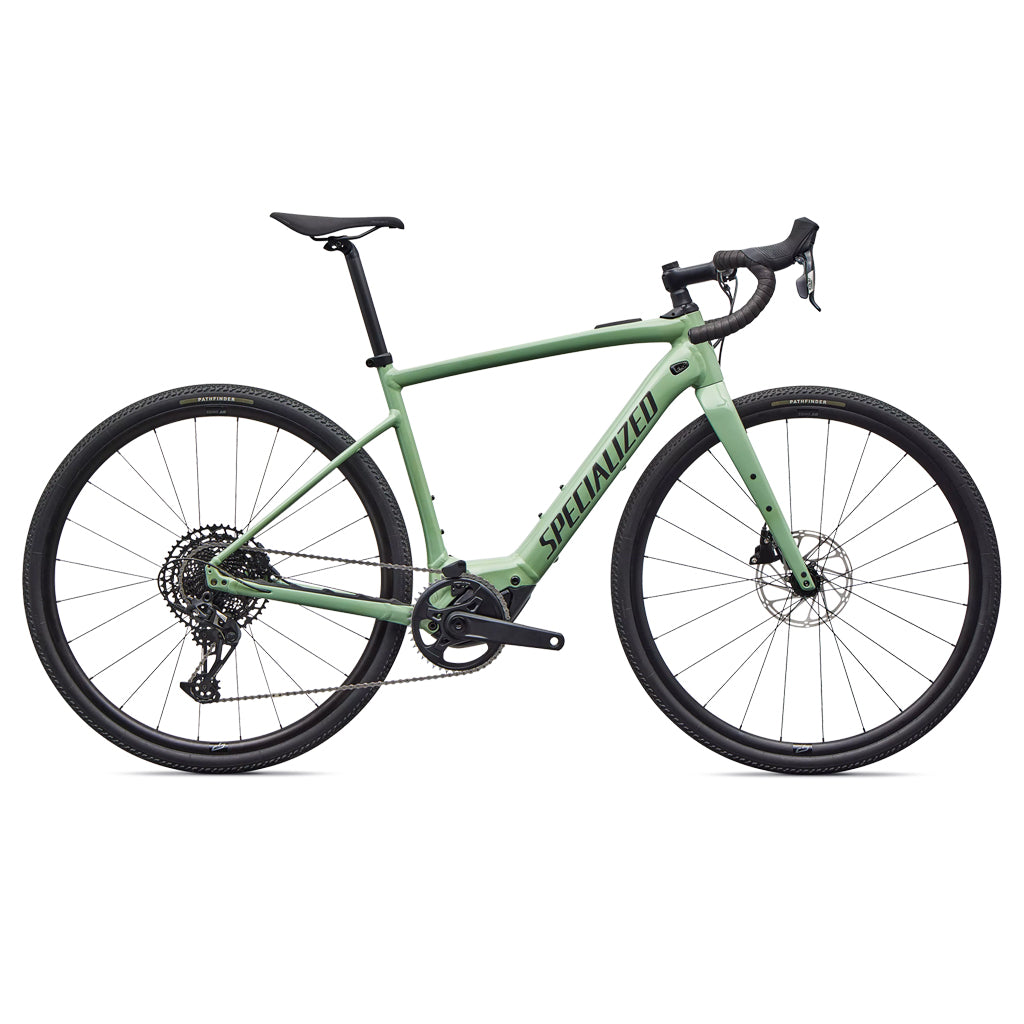

Specialized Turbo Creo 2 Comp E5
Specifications
FrameSpecialized E5 Premium Aluminum frame, front/rear thru-axles, fully integrated down tube battery, internal cable routing, fender/rack mounts, 12x142mm, flat-mount disc brakes
Seat BinderSpecialized Alloy, 30.8
SaddleBody Geometry Power Sport, steel rails
StemFuture Stem Comp
HandlebarsSpecialized Adventure Gear Hover, 103mm drop x 70mm reach x 12º flare
TapeSupacaz Suave
SeatPostCarbon, single-bolt, 27.2mm
Front BrakeSRAM APEX, hydraulic disc, 180mm
Rear BrakeSRAM APEX, hydraulic disc, 180mm
ChainringsSRAM X-Sync Eagle, 107 BCD, 44T
Rear DerailleurSRAM Apex Eagle 12-speed
CranksetSRAM Alloy Crankset, Dub interface
Shift LeversSRAM Apex 12-speed
ChainSRAM NX Eagle, 12-Speed
CassetteSRAM PG-1210 Eagle, 11-50t
Front WheelDT G540 DISC ASVN
Rear WheelDT G540 DISC ASVN
Inner TubesPresta, 700X32-50mm
Front TirePathfinder TLR Fast Gravel Tire 700x40c, GRIPTON T2/T5
Rear TirePathfinder TLR Fast Gravel Tire 700x40c, GRIPTON T2/T5
Wiring HarnessCustom Specialized wiring harness w/ charge port
ChargerCustom charger, 48V System w/ SL system charger plug
MotorSpecialized 1.2 SL Custom Lightweight Motor
UI/RemoteSpecialized MasterMind TCU, percentage of remaining charge, 120 possible display configurations, MicroTune assist adjustment, over-the-air updates, ANT+/Bluetooth®, w/Handlebar remote
BatterySpecialized SL1-320, fully integrated, 320Wh
Weight14.99 kg (33 lb, 0.8 oz) - Size 56
Geometry
| 49 | 52 | 54 | 56 | 58 | 61 | ||
|---|---|---|---|---|---|---|---|
| A | Reach | 365 | 374 | 383 | 392 | 401 | 410 |
| B | Stack | 578 | 578 | 595 | 607 | 638 | 663 |
| C | Headtube Angle | 71° | 71° | 71° | 71° | 71° | 71° |
| D | Front Centre | 600.1 | 609 | 623.8 | 636.6 | 656.2 | 673.8 |
| E | Botto Bracket Drop | 80 | 80 | 80 | 80 | 80 | 80 |
| F | Wheelbase | 1022 | 1031 | 1046 | 1059 | 1079 | 1097 |
| G | Chainstay Length | 435 | 435 | 435 | 435 | 435 | 435 |
| H | Head Tube Length | 90 | 90 | 108 | 120 | 153 | 180 |
| I | Top Tube Length | 531 | 540 | 554 | 572 | 590 | 613 |
| J | Seat Tube Angle | 74° | 74° | 74° | 73.5° | 73.5° | 73° |
| K | Standover Height | 731 | 743 | 773 | 793 | 824 | 852 |
| All measurements in degrees or millimetres | |||||||
Sizing Guide
The sizing chart is a great place to start when picking your next bike but everyone will fit a bike a bit differently. Your torso, arm, and leg lengths all play into what size of bike you may need. Plus, there's your own personal preference.
We always recommend swinging by the shop and taking the bike that you're looking for a spin to see how it feels. If you're unable to come by, looking at the geometry of your current bike and comparing it is a good place to start. If you have any further questions, our customer service team is there to help.
| Size | Height | Imperial | Metric |
|---|---|---|
| 49 | 5'1" - 5'5" | 155 - 163cm |
| 52 | 5'4" - 5'7" | 163 - 170cm |
| 54 | 5'7" - 5'9" | 170 - 175cm |
| 56 | 5'9" - 5'11" | 175 - 180cm |
| 58 | 5'11" - 6'2" | 180 - 188cm |
| 61 | 6'2" - 6'5" | 188 - 196cm |
Part Numbers
| Size | Model Number | Gloss Dolomite Metallic | Gloss Pistachio |
|---|---|---|
| 49 | 98126-5249 | 98126-5349 |
| 52 | 98126-5252 | 98126-5352 |
| 54 | 98126-5254 | 98126-5354 |
| 56 | 98126-5256 | 98126-5356 |
| 58 | 98126-5258 | 98126-5358 |
| 61 | 98126-5261 | 98126-5361 |
