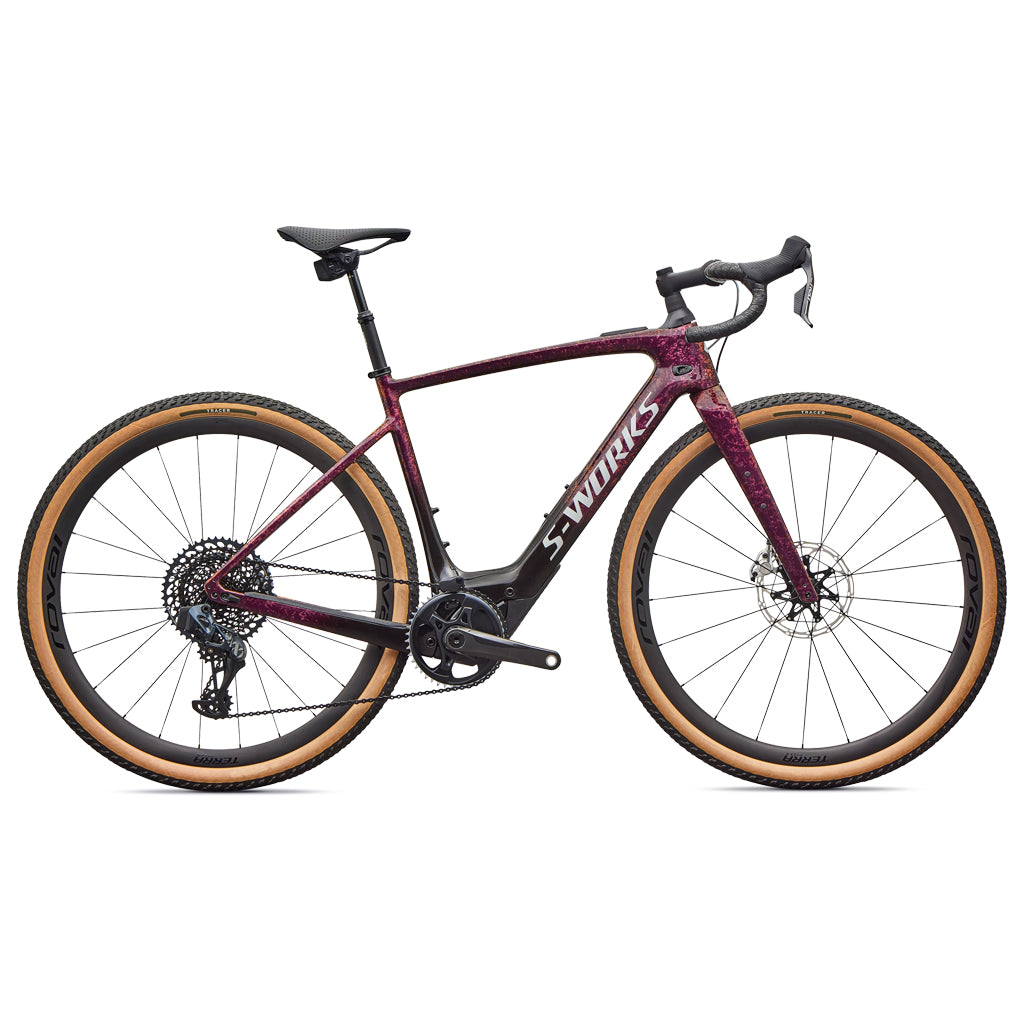

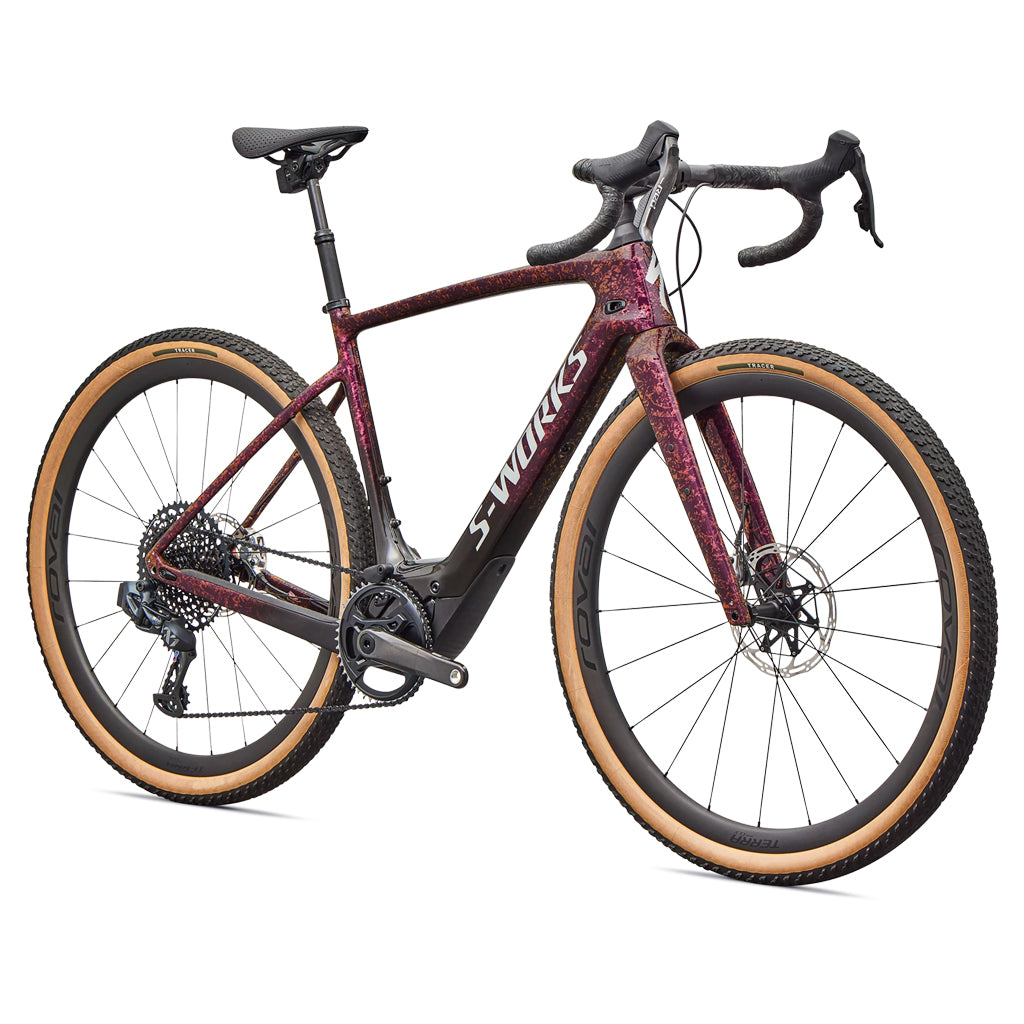

Specialized S-Works Turbo Creo 2
Specifications
FrameFACT 11r carbon, front/rear thru-axles, fully integrated down tube battery, internal cable routing, fender/rack mounts, 12x142mm
ForkFuture Shock 3.3 w/ Smooth Boot, 12x100mm thru-axle, flat-mount disc
Seat BinderSpecialized Alloy, 31.8
SaddleS-Works Power with Mirror
StemS-Works Future Stem w/Integrated Computer mount
HandlebarsRoval Terra, carbon, 103mm drop x 70mm reach x 12º flare
TapeSupacaz Super Sticky Kush
SeatPostSRAM Reverb AXS XPLR Dropper, 49cm-52cm: 50mm drop
Front BrakeSRAM RED AXS, hydraulic disc
Rear BrakeSRAM RED AXS, hydraulic disc
ChainringsSRAM X-Sync Eagle, 107 BCD, 44T
Rear DerailleurSRAM XX1 Eagle AXS
CranksetSRAM Carbon DUB Crank Arms
Shift LeversSRAM Red AXS E1
ChainSRAM XX1 Eagle
CassetteSRAM XX1 Eagle
Front WheelRoval Terra CLX II, 25mm internal width, Tubeless Ready, 32mm depth, 21h, Roval LF13 hub with ceramic SINC bearings, Centerlock disc, DT Swiss Aerolite spokes
Rear WheelRoval Terra CLX II, 25mm internal width, Tubeless Ready, 32mm depth, 24h, Roval LF14R2, Centerlock, DT Swiss EXP internals, SRAM XDR, DT Swiss Aerolite spokes
Inner Tubes700x32/50mm, 48mm Presta valve
Front TireTracer TLR All Terrain Gravel Tire, 700x50c, GRIPTON T5
Rear TireTracer TLR All Terrain Gravel Tire, 700x50c, GRIPTON T5
Wiring HarnessCustom Specialized wiring harness w/charge port
ChargerCustom charger, 48V System w/SL system charger plug
MotorNew Specialized 1.2 SL Custom Lightweight Motor
UI/RemoteSpecialized MasterMind TCU, percentage of remaining charge, 120 possible display configurations, MicroTune assist adjustment, over-the-air updates, ANT+/Bluetooth®, w/Handlebar remote
BatterySpecialized SL1-320, fully integrated, 320Wh
Weight12.87 kg (28 lb, 6.0 oz) - Size 56
Geometry
| 49 | 52 | 54 | 56 | 58 | 61 | ||
|---|---|---|---|---|---|---|---|
| A | Reach | 365 | 374 | 383 | 392 | 401 | 410 |
| B | Stack | 578 | 578 | 595 | 607 | 638 | 663 |
| C | Headtube Angle | 71° | 71° | 71° | 71° | 71° | 71° |
| D | Front Centre | 600.1 | 609 | 623.8 | 636.6 | 656.2 | 673.8 |
| E | Botto Bracket Drop | 80 | 80 | 80 | 80 | 80 | 80 |
| F | Wheelbase | 1022 | 1031 | 1046 | 1059 | 1079 | 1097 |
| G | Chainstay Length | 435 | 435 | 435 | 435 | 435 | 435 |
| H | Head Tube Length | 90 | 90 | 108 | 120 | 153 | 180 |
| I | Top Tube Length | 531 | 540 | 554 | 572 | 590 | 613 |
| J | Seat Tube Angle | 74° | 74° | 74° | 73.5° | 73.5° | 73° |
| K | Standover Height | 731 | 743 | 773 | 793 | 824 | 852 |
| All measurements in degrees or millimetres | |||||||
Sizing Guide
The sizing chart is a great place to start when picking your next bike but everyone will fit a bike a bit differently. Your torso, arm, and leg lengths all play into what size of bike you may need. Plus, there's your own personal preference.
We always recommend swinging by the shop and taking the bike that you're looking for a spin to see how it feels. If you're unable to come by, looking at the geometry of your current bike and comparing it is a good place to start. If you have any further questions, our customer service team is there to help.
| Size | Height | Imperial | Metric |
|---|---|---|
| 49 | 5'1" - 5'5" | 155 - 163cm |
| 52 | 5'4" - 5'7" | 163 - 170cm |
| 54 | 5'7" - 5'9" | 170 - 175cm |
| 56 | 5'9" - 5'11" | 175 - 180cm |
| 58 | 5'11" - 6'2" | 180 - 188cm |
| 61 | 6'2" - 6'5" | 188 - 196cm |
Part Numbers
| Size | Model Number | Gloss Bordeaux Metallic |
|---|---|
| 49 | 98126-0049 |
| 52 | 98126-0052 |
| 54 | 98126-0054 |
| 56 | 98126-0056 |
| 58 | 98126-0058 |
| 61 | 98126-0061 |
