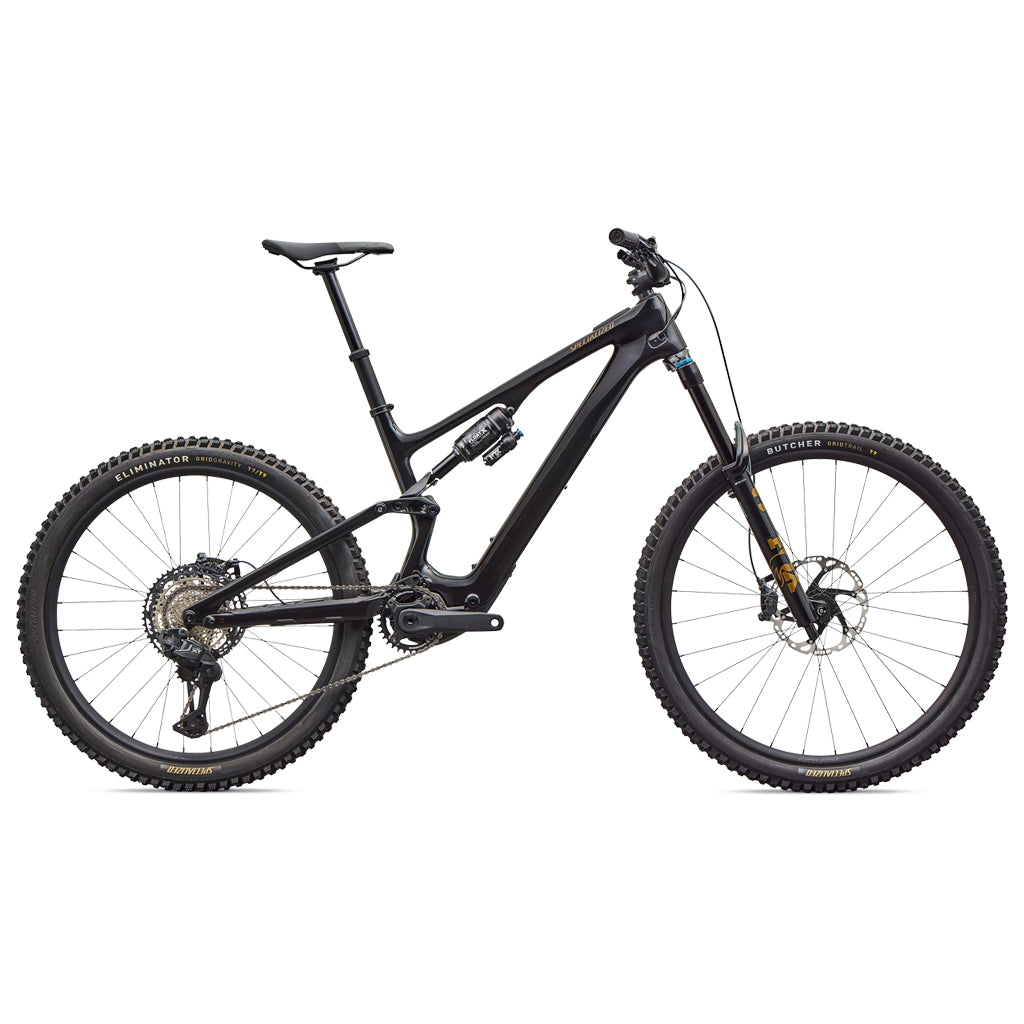

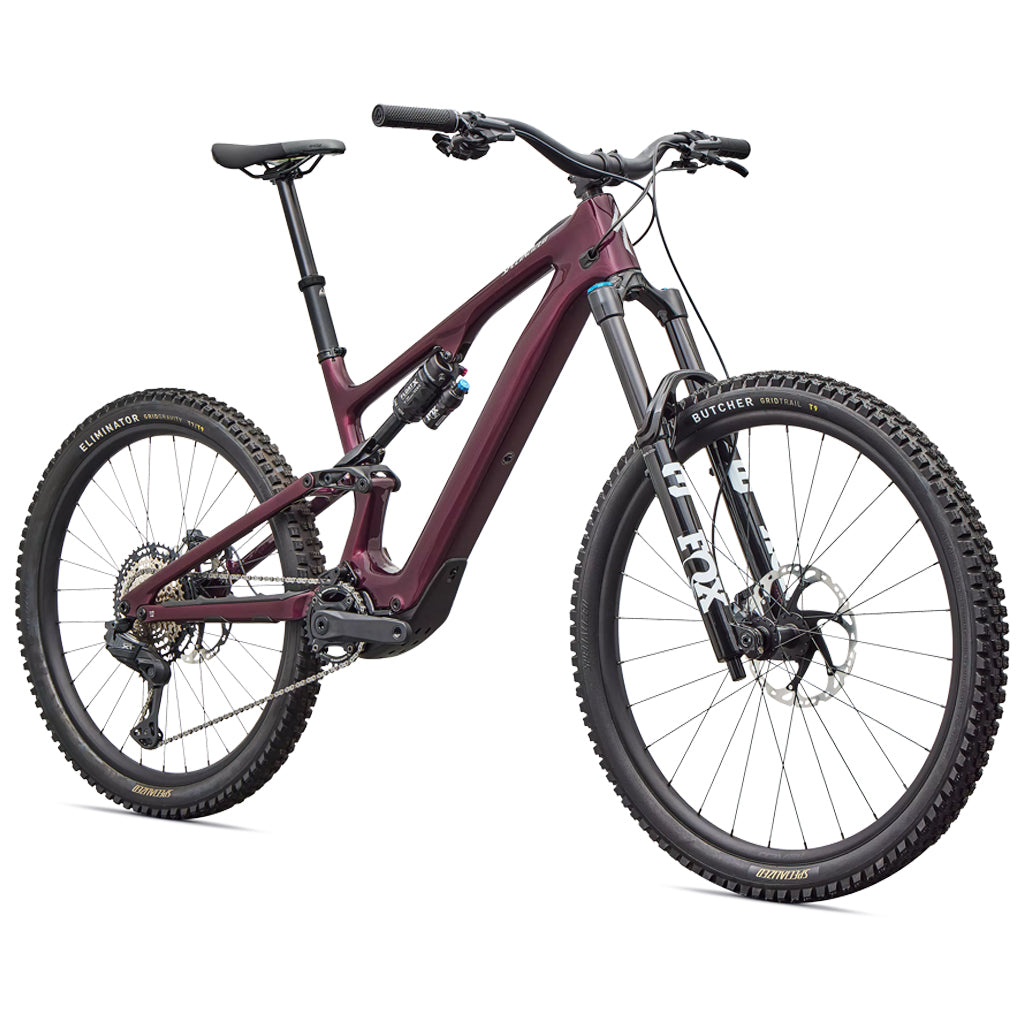

Specialized Turbo Levo SL Expert Di2
Specifications
Wiring Harness Custom Specialized wiring harness
Charger Custom charger, 48V System w/ SL system charger plug
UI/Remote Specialized MasterMind TCU, percentage of remaining charge, 120 possible display configurations, MicroTune assist adjustment, over-the-air updates, ANT+/Bluetooth®, w/Handlebar remote
Motor Specialized SL 1.2 Custom Rx Trail Tuned Motor
Battery Specialized SL1-320, fully integrated, 320Wh
Seat Binder Alloy, 38.6mm
Frame Levo SL carbon Frame, Fact 11m carbon, alloy shock extension, 150mm travel, adjustable head angle, BB height, and compatible with 27.5 or 29" wheels.
Fork FOX FLOAT 36 Performance Elite, GRIP X2 damper, HS and LS rebound and compression adjustment, 15x110mm QR axle, 44mm offset
Rear Shock FOX FLOAT X Performance Elite with Specialized GENIE Shock Tech, Ride Dynamics Trail Tune, 2-position lever , LSR adjustment, S2-S6:210x55mm, S1: FOX FLOAT Performance Elite 210x52.5mm
Front Brake Shimano Deore XT brake, 4 piston, Metal pad w/fin
Rear Brake Shimano Deore XT brake, 4 piston, Metal pad w/fin
Chainrings Race Face alloy chainring, 104 BCD, 32T
Crankset SRAM Alloy Crankset, 165mm, Dub interface
Shift Levers Shimano XT Di2
Rear Derailleur Shimano XT Di2, 12-speed
Chain Shimano XT M8100, 12-speed w/ quick link
Cassette Shimano XT M8200, 12-speed, 10-51
Front Tire Butcher, GRID TRAIL casing, Gripton T9 compound, 29X2.4
Rear Tire Eliminator, GRID GRAVITY casing, Gripton T7/T9 compound, 27.5X2.4
Inner Tubes Standard, Presta Valve
Front Wheel Traverse Alloy 370, 29, 28H, alloy rim, 30mm inner width
Rear Wheel Traverse Alloy 370, 27.5, 32H, alloy rim, 30mm inner width, DT Swiss 370 rear hub, 12x148
Stem Alloy Trail Stem, 35mm bar bore
Handlebars Alloy handlebars, 35mm diameter, 8 degree back sweep, 6 degree up sweep, S1/S2: 780mm/30mm rise, S3-S6: 800mm/50mm rise
Grips Deity Lockjaw Grips
SeatPost PNW Loam Dropper, tool-less travel adjust, Range lever, 34.9, S1: 125mm, S2: 150mm, S3: 175mm, S4-S5: 200mm, S6: 225mm
Saddle Specialized Bridge Comp with Mimic
SWAT SWAT CC steerer tube integrated tool with chain tool and link
Weight 18.92 kg (41 lb, 11.4 oz) - Size S4
Geometry
Sizing Guide
The sizing chart is a great place to start when picking your next bike but everyone will fit a bike a bit differently. Your torso, arm, and leg lengths all play into what size of bike you may need. Plus, there's your own personal preference.
We always recommend swinging by the shop and taking the bike that you're looking for a spin to see how it feels. If you're unable to come by, looking at the geometry of your current bike and comparing it is a good place to start. If you have any further questions, our customer service team is there to help.
Part Numbers
| Size | Model Number | Bordeaux | Carbon |
|---|---|---|
| S1 | 96826-3001 | 96826-3101 |
| S2 | 96826-3002 | 96826-3102 |
| S3 | 96826-3003 | 96826-3103 |
| S4 | 96826-3004 | 96826-3104 |
| S5 | 96826-3005 | 96826-3105 |
| S6 | 96826-3006 | 96826-3106 |
