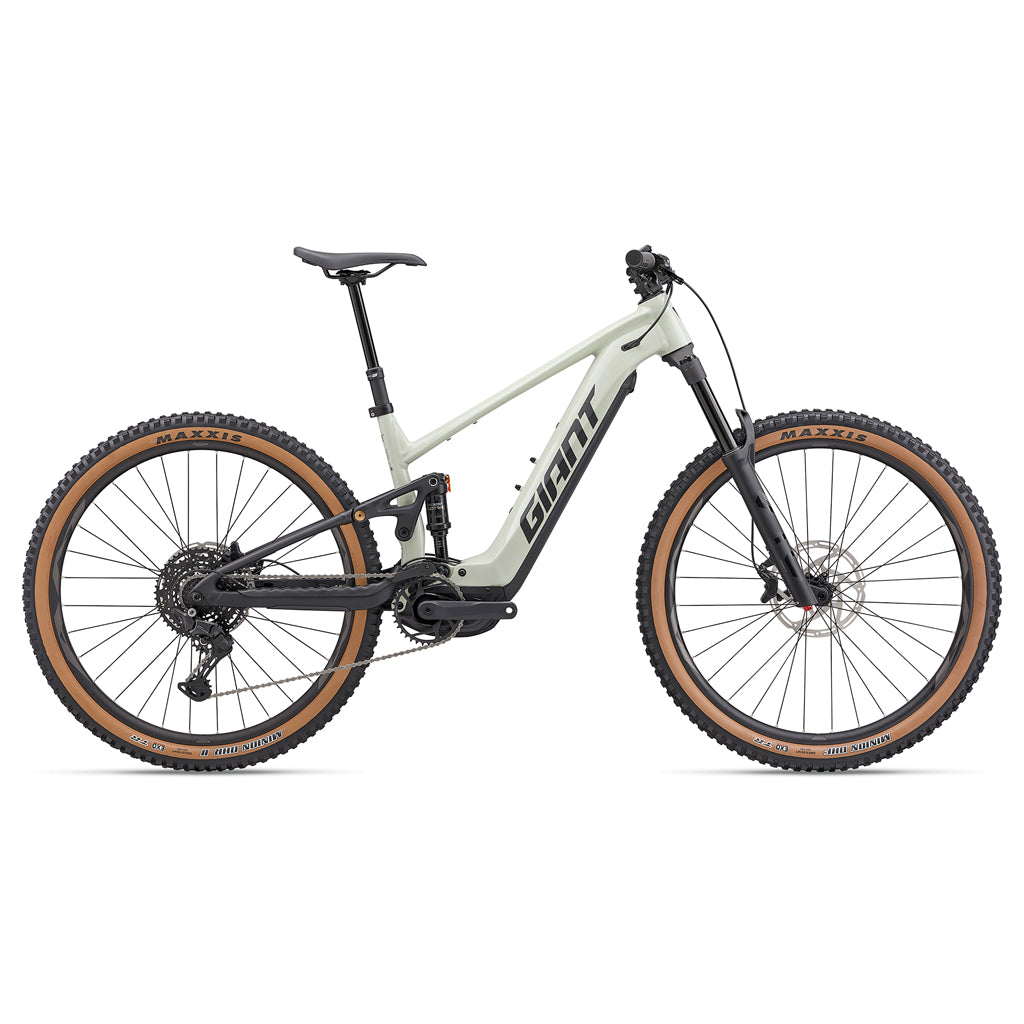

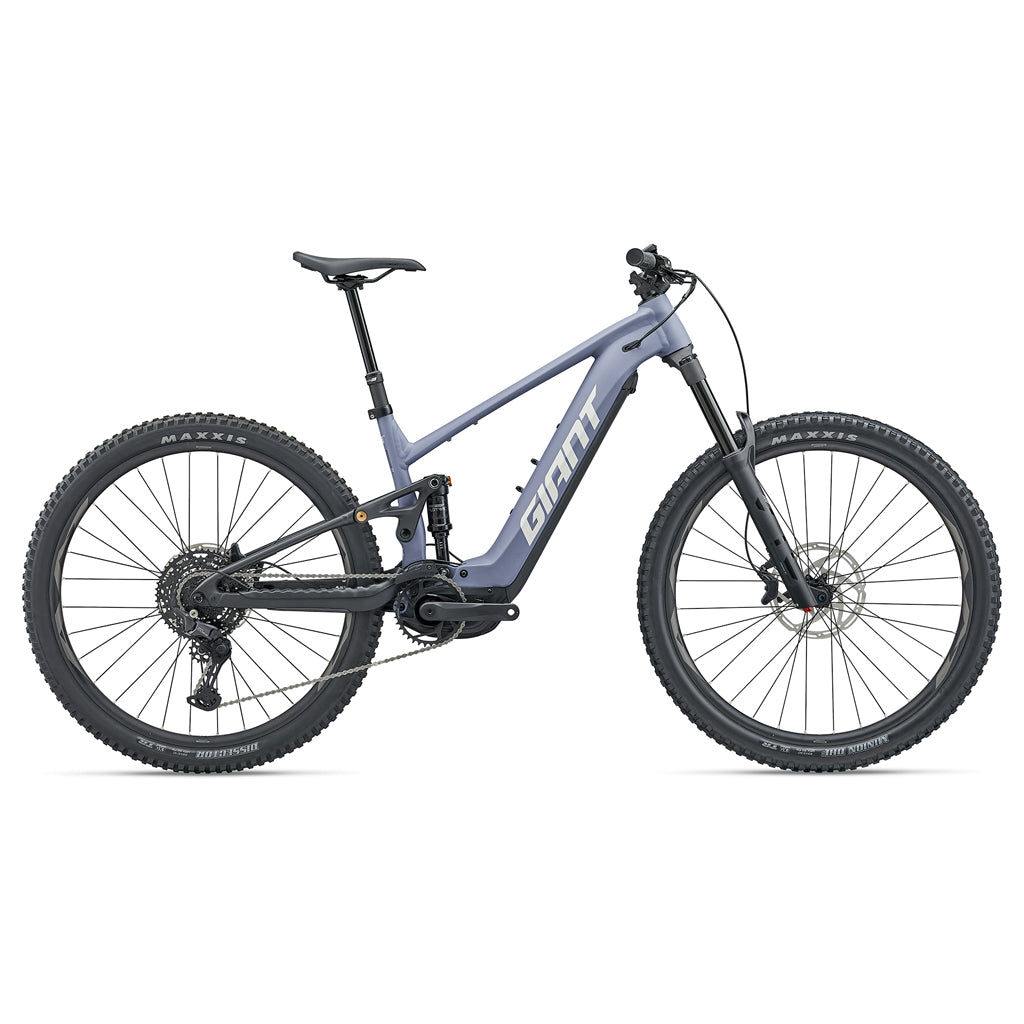

Giant Stance E+ 2
Specifications
FrameALUXX SL-grade aluminum, 140mm FlexPoint suspension, 12x148 thru-axle, integrated KSA40 kickstand mount
ForkGiant STL 36 Air, 150mm, 44mm offset, 110x15mm thru-axle
ShockGiant Crest FloTrac, 3-position lever, e-bike optimized, 185/52.5
HandlebarGiant Contact TR35, 20mm rise, 35mm
GripsGiant Sole-O lock-on
StemGiant Contact SL 35
SeatpostGiant Contact Switch AT adjustable dropper, remote S:110-140mm travel / 30.9 x 395 M:140-170mm travel / 30.9 x 470mm L/XL: 170-200mm travel / 30.9 x 530mm
SaddleGiant ErgoContact Trail
PedalsPlatform
ShiftersShimano CUES, 1x10
Rear DerailleurShimano CUES RD-U6000
BrakesTektro Orion, HDM6040, 4-piston, hydraulic Tektro [F] 220mm, [R] 203mm rotors
Brake LeversTektro Orion
CassetteShimano LinkGlide, 10-speed, 11-48
ChainShimano LinkGlide, LG500
CranksetForged alloy crank direct-mount steel chain ring, 36t MRP 1x HD chain guide
RimsGiant AM30, 6061 alloy, sleevejoint, tubeless ready, 30mm IW
HubsShimano TC500 Boost, Center-Lock, [F] 15x110mm thru-axle, [R] 12x148mm thru-axle
SpokesStainless
Tires[F] Maxxis Minion DHF 29X2.50" WT, folding, TLR, EXO [R] Maxxis Dissector 29X2.40" WT, folding TLR EXO
MotorSyncDrive Sport3, 85Nm, powered by Yamaha
ControlsRideControl Dash 2, Smart Assist automatic mode, 5 support levels
DisplayRideControl Dash 2, full color LCD screen
BatteryEnergyPak Smart 625Wh, alloy casing with highest safety standard (EN50604), CO2 neutral production EnergyPak Plus 250Wh range extender compatible
ChargerEnergyPak 4A smart charger
ExtrasOptional: - Giant Recon series e-bike lights available and direct connectable
Geometry
| S | M | L | XL | |||
|---|---|---|---|---|---|---|
| A | Reach | 425 | 450 | 480 | 510 | |
| B | Stack | 618 | 627 | 636 | 646 | |
| C | Head Tube Angle | 65.5° | 65.5° | 65.5° | 65.5° | |
| D | Bottom Bracket Drop | 40 | 40 | 40 | 40 | |
| E | Wheelbase | 1204 | 1233 | 1267 | 1301 | |
| F | Chainstay Length | 468 | 468 | 468 | 468 | |
| G | Head Tube Length | 105 | 115 | 125 | 135 | |
| H | Top Tube Length | 580 | 607 | 639 | 671 | |
| I | Seat Tube Angle | 76.0° | 76.0° | 76.0° | 76.0° | |
| J | Standover Height | 760 | 760 | 780 | 796 | |
| All measurements in degrees or millimetres | ||||||
Sizing Guide
The sizing chart is a great place to start when picking your next bike but everyone will fit a bike a bit differently. Your torso, arm, and leg lengths all play into what size of bike you may need. Plus, there's your own personal preference.
We always recommend swinging by the shop and taking the bike that you're looking for a spin to see how it feels. If you're unable to come by, looking at the geometry of your current bike and comparing it is a good place to start. If you have any further questions, our customer service team is there to help.
| Size | Height | |
|---|---|---|
| Imperial | Metric | |
| S | 5'4" - 5'8" | 163 - 172cm |
| M | 5'7" - 5'11" | 171 - 180cm |
| L | 5'10" - 6'2" | 179 - 188cm |
| XL | 6'2" - 6'6" | 187 - 198cm |
