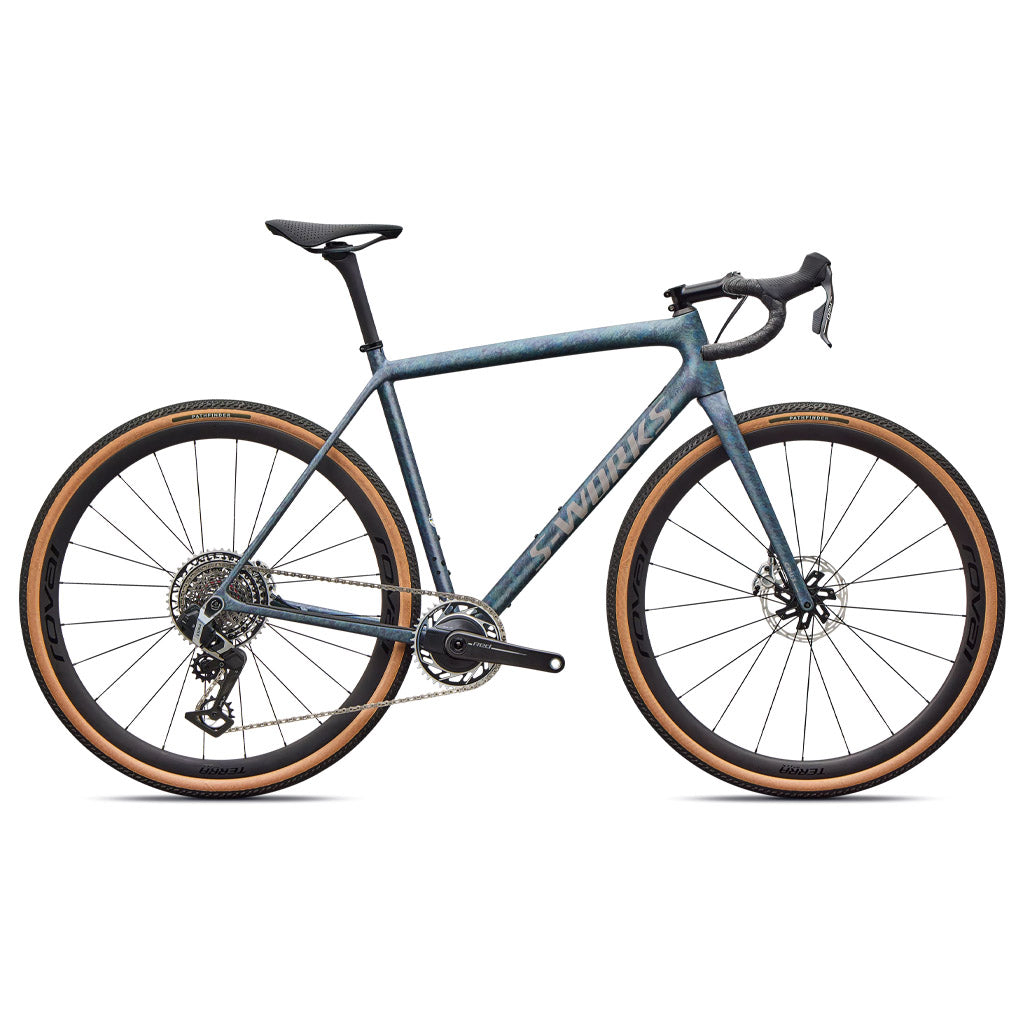

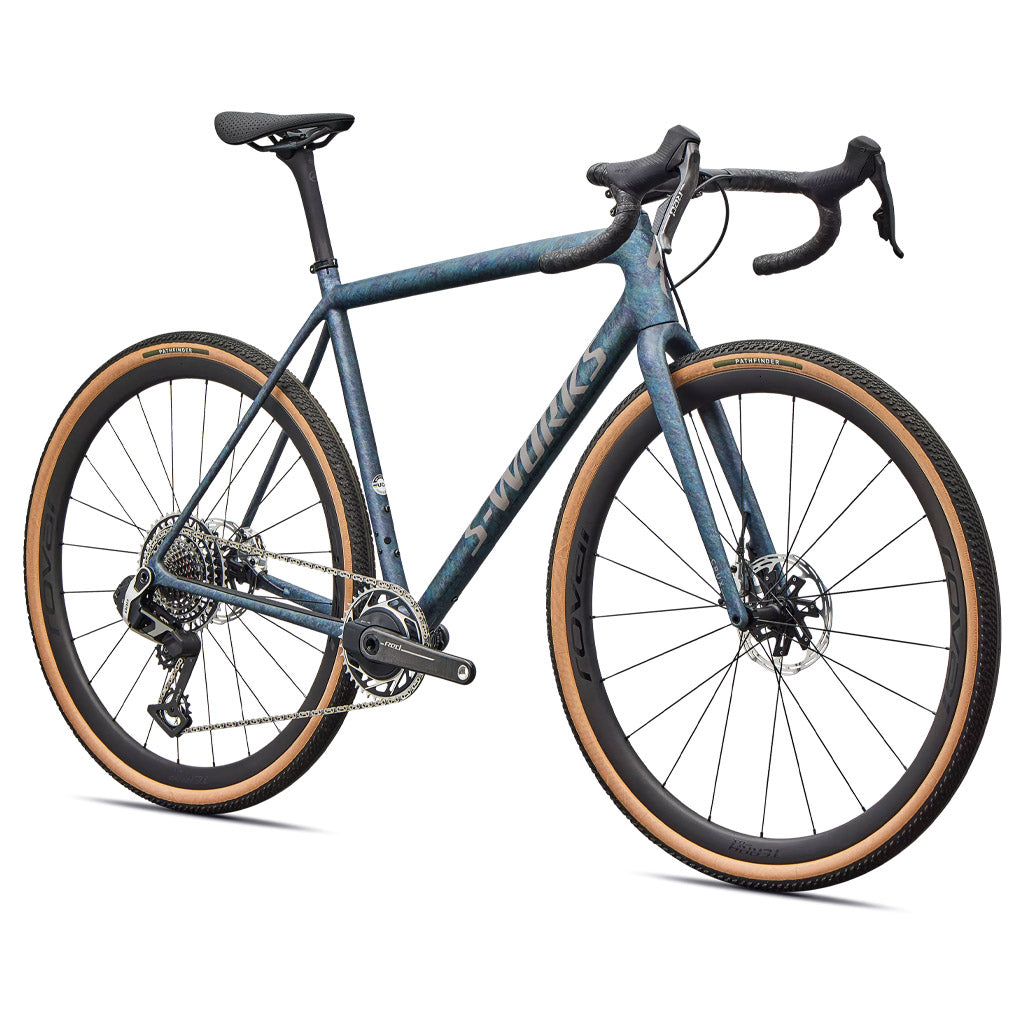

Specialized S-Works Crux SRAM RED XPLR
Specifications
Frame S-Works Crux FACT 12r Carbon, UDH dropout, Rider First Engineered™, Threaded BB, 12x142mm thru-axle, flat-mount disc
Fork S-Works FACT Carbon, 12x100mm thru-axle, flat-mount disc
Saddle S-Works Power with Mirror
Seat Post Roval Alpinist Carbon Seatpost
Stem S-Works SL, alloy, titanium bolts, 6-degree rise
Seat Binder Specialized Alloy, 30.0mm, titanium bolt
Tape Supacaz Super Sticky Kush
Handlebars Roval Terra, carbon, 103mm drop x 70mm reach x 12º flare
Front Brake SRAM Red XPLR, Hydraulic Disc
Rear Brake SRAM Red XPLR, Hydraulic Disc
Chain SRAM Red XPLR, 13sp
Bottom Bracket SRAM DUB BSA
Crankset SRAM Red AXS Power Meter
Rear Derailleur SRAM Red XPLR, 13sp
Shift Levers SRAM Red AXS
Cassette SRAM Red XPLR, 13sp, 10-46t
Chainrings 40T
Inner Tubes 700x28/38mm, 48mm Presta valve
Front Tire Pathfinder 700x40c
Front Wheel Roval Terra CLX II, 25mm internal width, Tubeless ready, 32mm depth, 21h, Roval AFD1, Centerlock, DT Swiss Aerolite spokes
Rear Wheel Roval Terra CLX II, 25mm internal width, Tubeless Ready, 32mm depth, 24h, Roval AFD2, Centerlock, DT Swiss EXP internals, SRAM XDR, DT Swiss Aerolite spokes
Weight 7.28kg (16 lb, 0.8 oz) - Size 56cm
Geometry
Sizing Guide
The sizing chart is a great place to start when picking your next bike but everyone will fit a bike a bit differently. Your torso, arm, and leg lengths all play into what size of bike you may need. Plus, there's your own personal preference.
We always recommend swinging by the shop and taking the bike that you're looking for a spin to see how it feels. If you're unable to come by, looking at the geometry of your current bike and comparing it is a good place to start. If you have any further questions, our customer service team is there to help.
Part Numbers

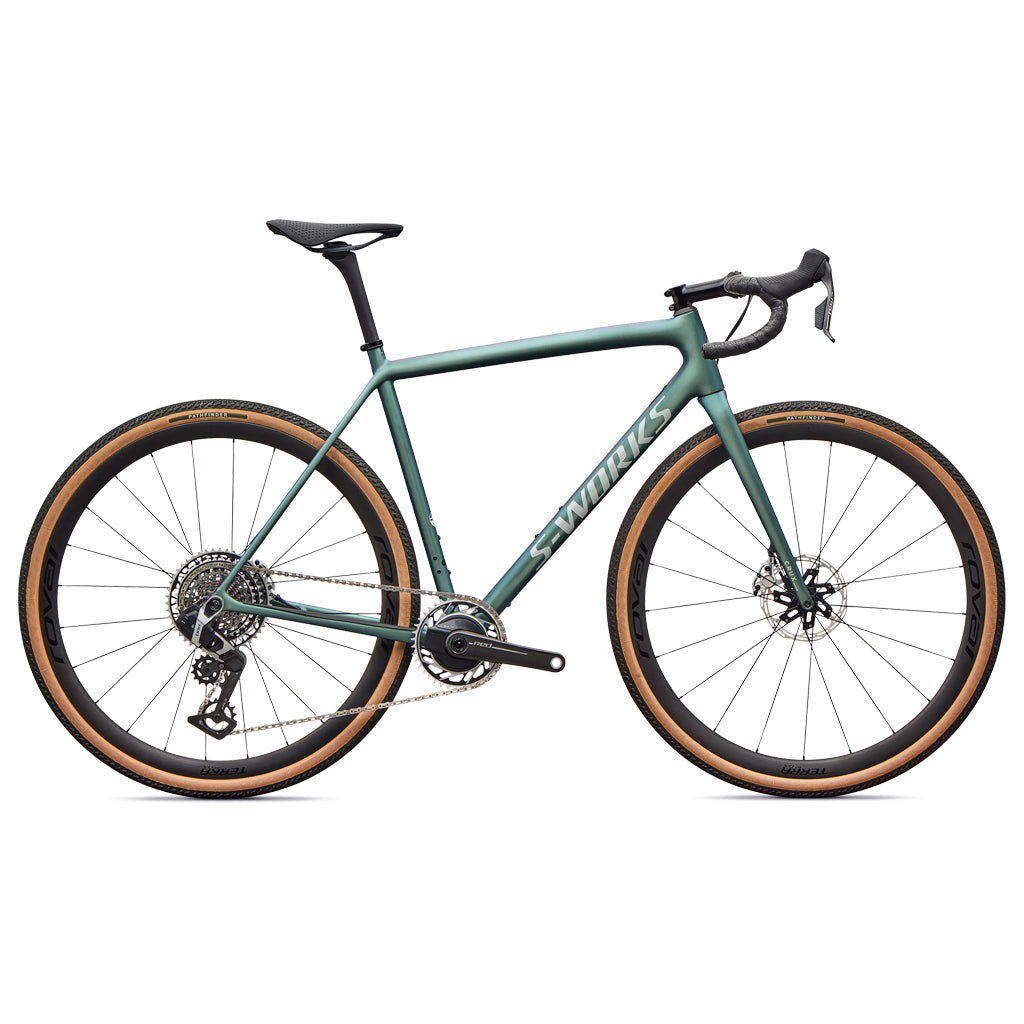

| Size | Model Number | Premium Fjord/Dolomite Metallic |
|---|---|
| 49 | 91426-0049 |
| 52 | 91426-0052 |
| 54 | 91426-0054 |
| 56 | 91426-0056 |
| 58 | 91426-00589 |
| 61 | 91426-0061 |
