The Darco rolls on 29” wheels and has 160mm of travel up front paired with a stout 120mm in the rear, a hardtailers full-suser if you will. Chromag's geometry philosophy has carried right over onto this bike, pairing slack head tube angles (64°) and steep seat tube angles (78°), with ample room up front (490mm reach on M/L).
*Builds may vary from images shown
If you have any questions do not hesitate to reach out to us and we'll get back to within 24 hours.

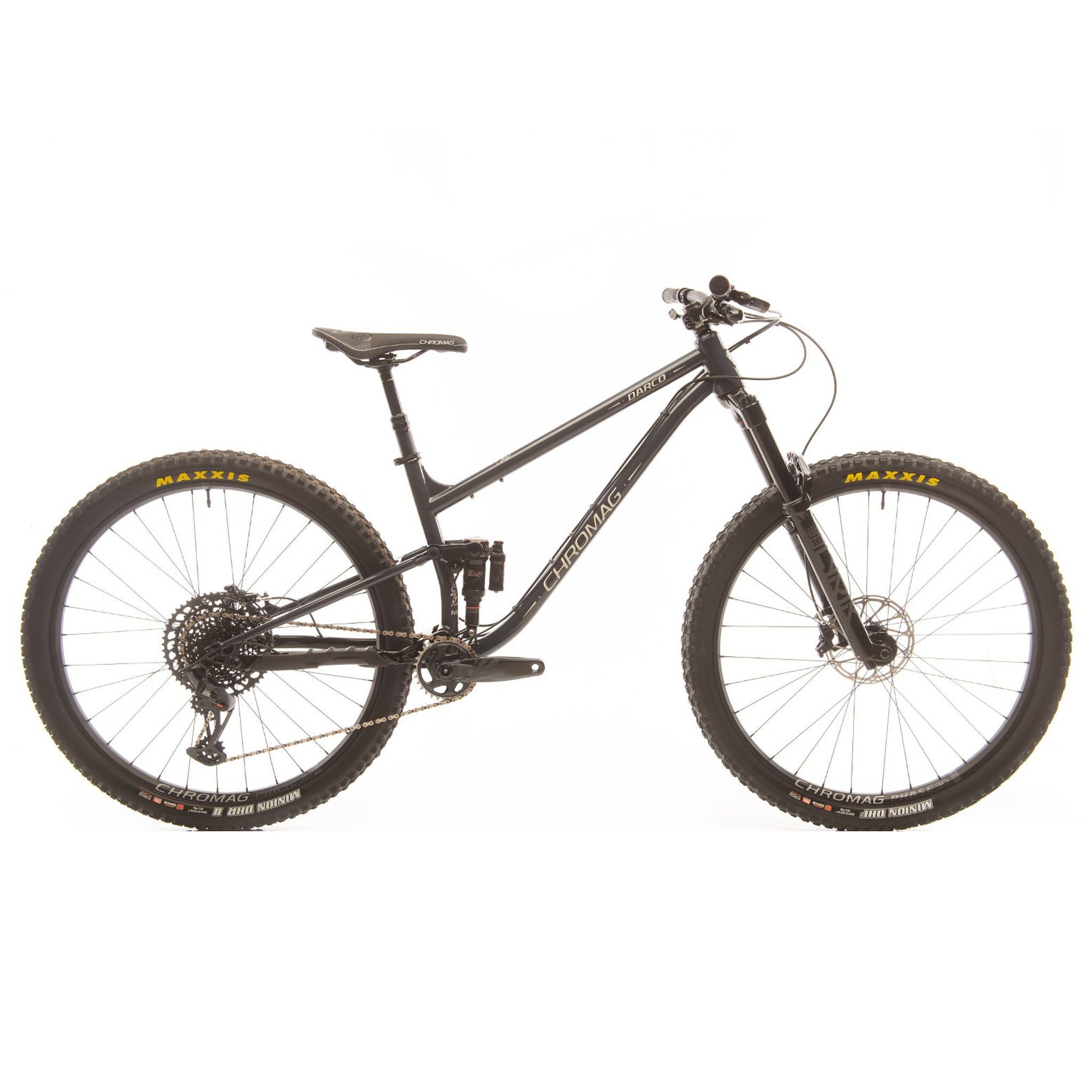

Chromag Darco
The Darco rolls on 29” wheels and has 160mm of travel up front paired with a stout 120mm in the rear, a hardtailers full-suser if you will. Chromag's geometry philosophy has carried right over onto this bike, pairing slack head tube angles (64°) and steep seat tube angles (78°), with ample room up front (490mm reach on M/L).
*Builds may vary from images shown
Specifications
ForkRockshox Lyrik Select + 160mm, 0 Tokens
ShockRockshox Super Deluxe Air Ultimate, 2 Tokens
StemChromag HiFi BSX 40mm
Bar Chromag OSX 25mm Rise, 800mm
HeadsetCane Creek Forty ZS
CrankSRAM GX 170mm
BrakesSRAM Code RSC
RotorsSRAM 180mm
ShifterSRAM GX Eagle
CassetteSRAM GX Eagle 10-52t
DerailleurSRAM GX Eagle
RimsChromag 29" Phase30
HubsChromag R4
TiresMaxxis Minion DHF/DHR
SeatpostRockShox Reverb (150mm - S, M) (175mm - M/L) (200mm - L, XL)
SaddleChromag Trailmaster DT
GripsChromag Format
ChainSRAM GX Eagle
*Specifications are subject to change without notice
Geometry
| S | M | M/L | L | XL | ||
|---|---|---|---|---|---|---|
| A | Reach | 450 | 472 | 490 | 514 | 530 |
| B | Stack | 617 | 617 | 622 | 631 | 640 |
| C | Head Tube Angle | 64° | 64° | 64° | 64° | 64° |
| D | Bottom Bracket Drop | 39 | 39 | 39 | 39 | 39 |
| E | Wheelbase | 1214 | 1236 | 1256 | 1284 | 1305 |
| F | Chainstay Length | 435 | 435 | 435 | 435 | 435 |
| G | Head Tube Length | 100 | 100 | 105 | 115 | 125 |
| H | Top Tube Length | 581 | 603 | 622 | 648 | 666 |
| I | Seat Tube Angle | 78° | 78° | 78° | 78° | 78° |
| J | Standover Height | 677 | 707 | 736 | 765 | 795 |
| All measurements in degrees or millimetres | ||||||
Sizing Guide
The sizing chart is a great place to start when picking your next bike but everyone will fit a bike a bit differently. Your torso, arm, and leg lengths all play into what size of bike you may need. Plus, there's your own personal preference.
We always recommend swinging by the shop and taking the bike that you're looking for a spin to see how it feels. If you're unable to come by, looking at the geometry of your current bike and comparing it is a good place to start. If you have any further questions, our customer service team is there to help.
| Size | Height | |
|---|---|---|
| Imperial | Metric | |
| S | 5'1" - 5'6" | 157 - 169cm |
| M | 5'4" - 5'9" | 165 - 175cm |
| ML | 5'7" - 6'1" | 171 - 181cm |
| L | 5'11" - 6'4" | 177 - 187cm |
| XL | 6'2" - 6'7" | 189 - 199cm |
