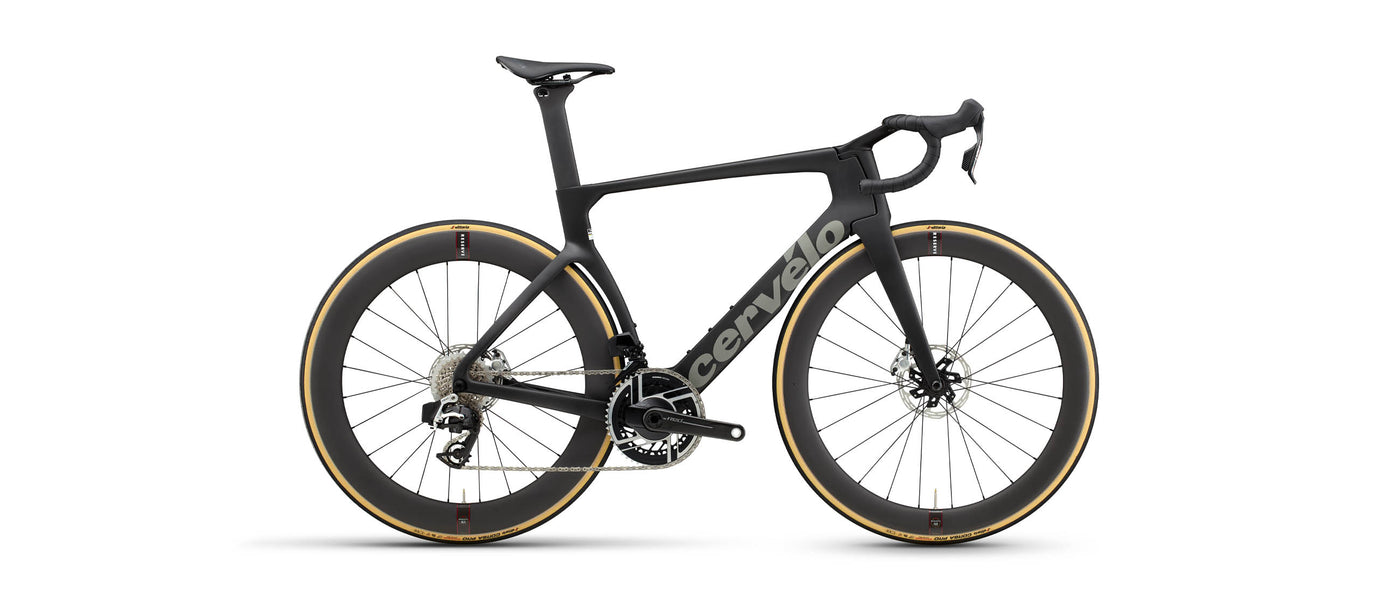

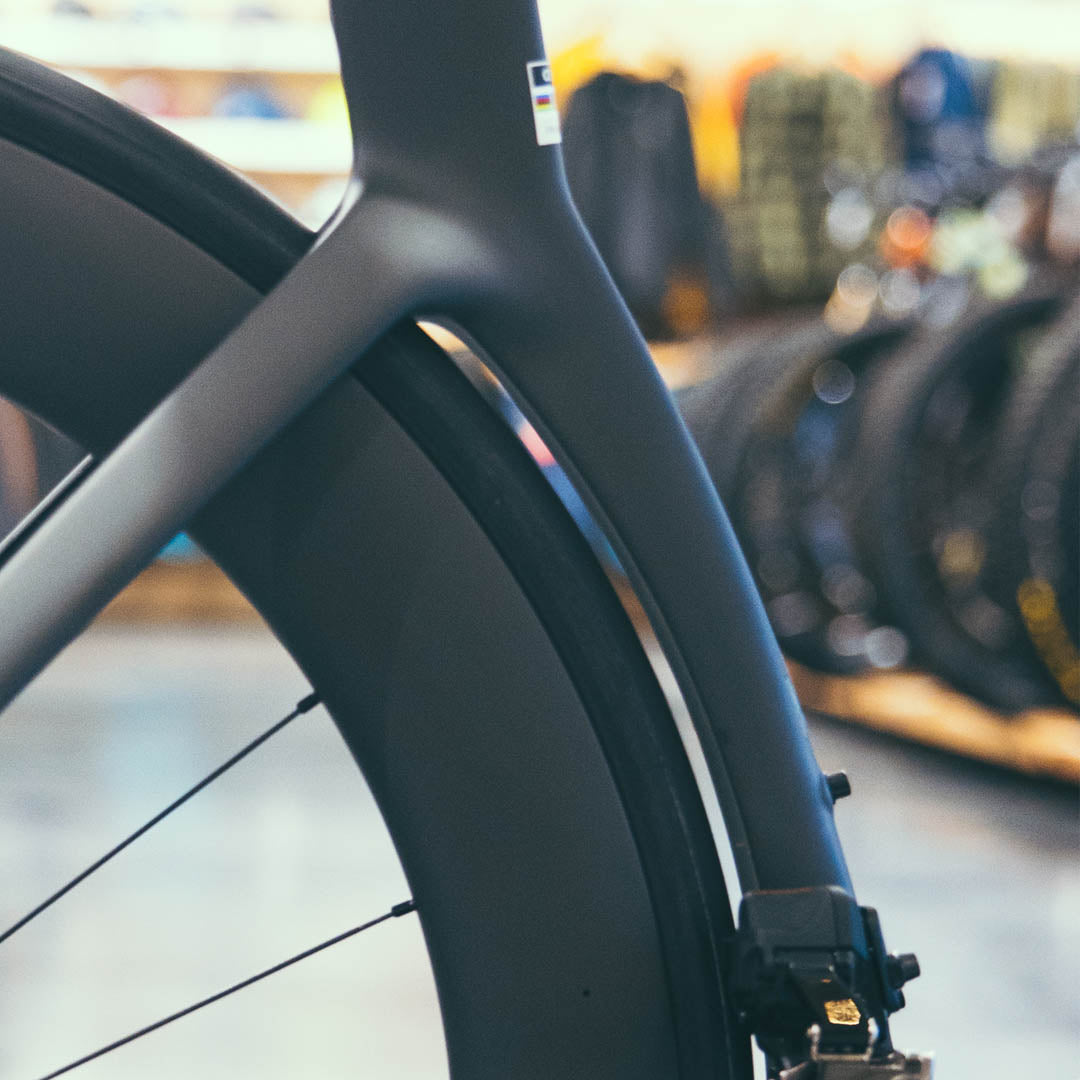

The S5 has proven itself on cycling's biggest stages time and time again. During its tenure under the Jumbo-Visma team, it has snagged the Pink, Red, Green, and Yellow jerseys. Standing out from the crowd, the S5 boasts custom Reserve wheels and the iconic V-stem. These components, combined with its sleek tapered tubing, provide unmatched aero gains.

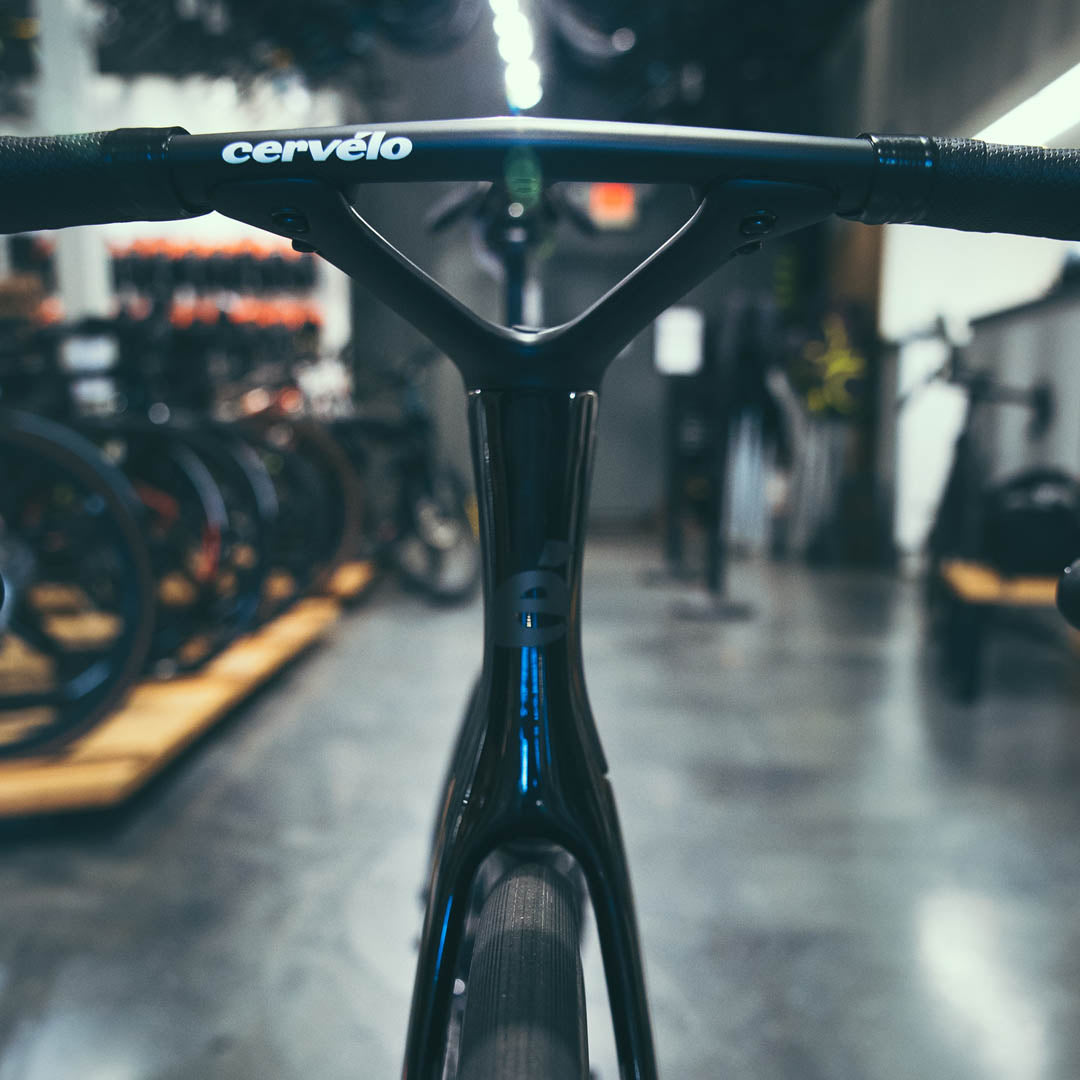

When looking at the S5 you can see it's something special. Standing out is it's iconic V-stem. The V-stem offers better handling at higher speeds and comes with everything you need to dial in the fit.
| 48 | 51 | 54 | 56 | 58 | |
|---|---|---|---|---|---|
| A | Reach (mm) | 367 | 376 | 384 | 392 | 401 |
| B | Stack (mm) | 496 | 519 | 542 | 565 | 588 |
| C | Head Tube Angle | 71° | 72° | 73° | 73.5° | 73.5° |
| D | Front Center (mm) | 579 | 580 | 581 | 588 | 604 |
| E | Bottom Bracket Drop (mm) | 72.5 | 72.5 | 70 | 70 | 67.5 |
| F | Wheelbase (mm) | 973 | 974 | 975 | 982 | 999 |
| G | Chainstay Length (mm) | 405 | 405 | 405 | 405 | 405 |
| H | Head Tube Length (mm) | 69 | 87 | 109 | 130 | 157 |
| I | Top Tube Length (mm) | 520 | 535 | 550 | 565 | 581 |
| J | Seat Tube Angle | 73° | 73° | 73° | 73° | 73° |
| K | Standover Height (mm) | 715 | 736 | 754 | 782 | 813 |
The sizing chart is a great place to start when picking your next bike but everyone will fit a bike a bit differently. Your torso, arm, and leg lengths all play into what size of bike you may need. Plus, there's your own personal preference.
We always recommend swinging by the shop and taking the bike that you're looking for a spin to see how it feels. If you're unable to come by, looking at the geometry of your current bike and comparing it is a good place to start. If you have any further questions, our customer service team is there to help.
| Size | Height |
|---|---|
| 48 | 150 - 160cm |
| 51 | 160 - 168cm |
| 54 | 168 - 176cm |
| 56 | 176 - 184cm |
| 58 | 184 - 192cm |
