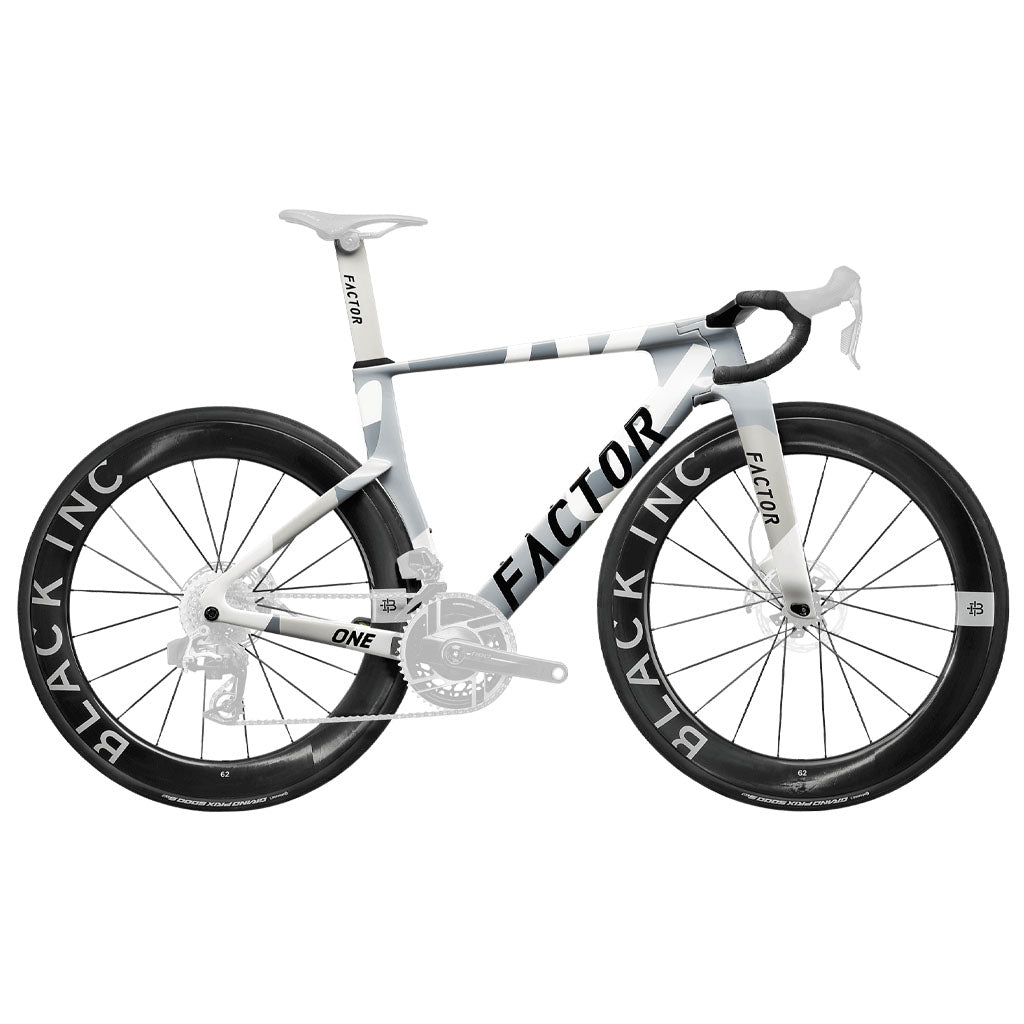

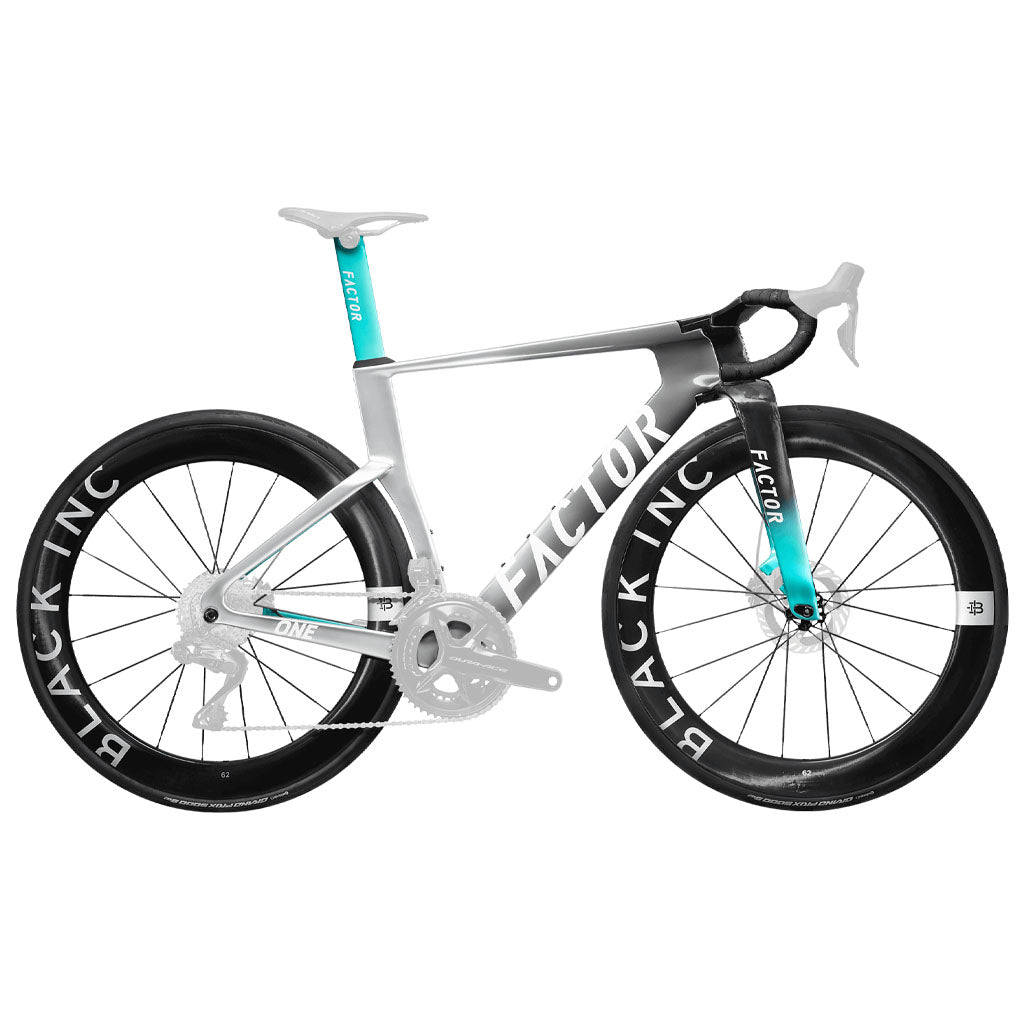

Cadre Factor ONE avec jeu de roues
Specifications
SIZES
47, 52, 54, 56, 58
FORK
Factor ONE Wide Stance Fork
HEADSET
CeramicSpeed
Cockpit
Factor ONE Handlebar
SEATPOST
ONE Carbon Post 0mm Offset, Colour matched to the frame
BOTTOM BRACKET
CeramicSpeed BB Alpha
FRONT WHEEL
Black Inc SIXTY TWO, 23mm IW, HU-08 High Flange Alloy Body, 20H,
CeramicSpeed WT, centerlock, tubeless compatible
REAR WHEEL
Black Inc SIXTY TWO, 23mm IW, HU-08 High Flange Alloy Body, CeramicSpeed
WT, 20H Carbon Spokes, centerlock, tubeless compatible
MAX TIRE WIDTH (ACTUAL)
31mm Measured
Geometry
| 47 | 52 | 54 | 56 | 58 | ||||
|---|---|---|---|---|---|---|---|---|
| A | Reach | 390 | 396 | 404 | 412 | 421 | ||
| B | Stack | 503 | 523 | 542 | 565 | 587 | ||
| C | Head Tube Angle | 72.5° | 73.3° | 73.3° | 73.3° | 73.3° | ||
| D | Trail | 57.4 | 57.5 | 57.5 | 57.5 | 57.5 | ||
| E | Bottom Bracket Drop | 77 | 77 | 75 | 75 | 75 | ||
| F | Wheelbase | 972 | 972 | 988 | 1002 | 1020 | ||
| G | Chainstay Length | 405 | 405 | 405 | 405 | 408 | ||
| H | Seat Tube Angle | 76.5° | 76° | 76° | 76° | 75.5° | ||
| All measurements in degrees or millimetres | ||||||||
