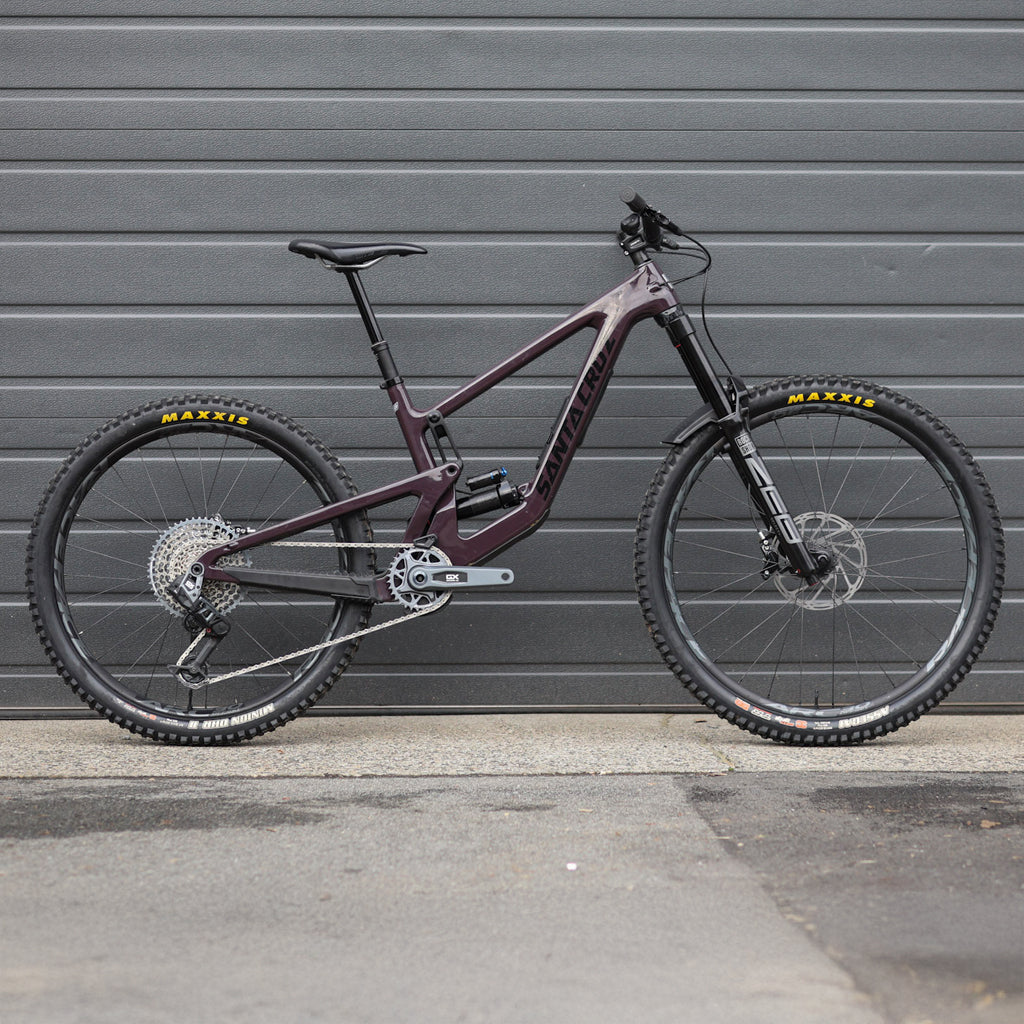

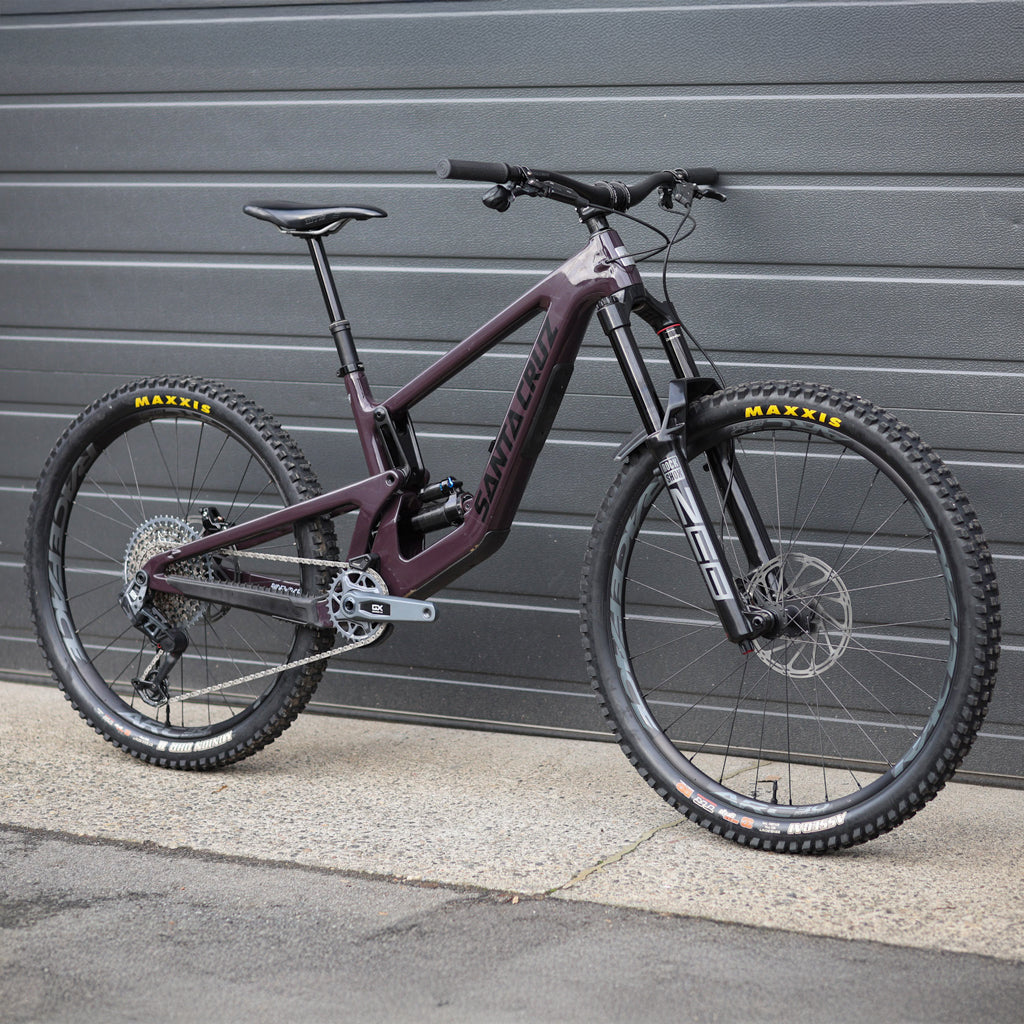

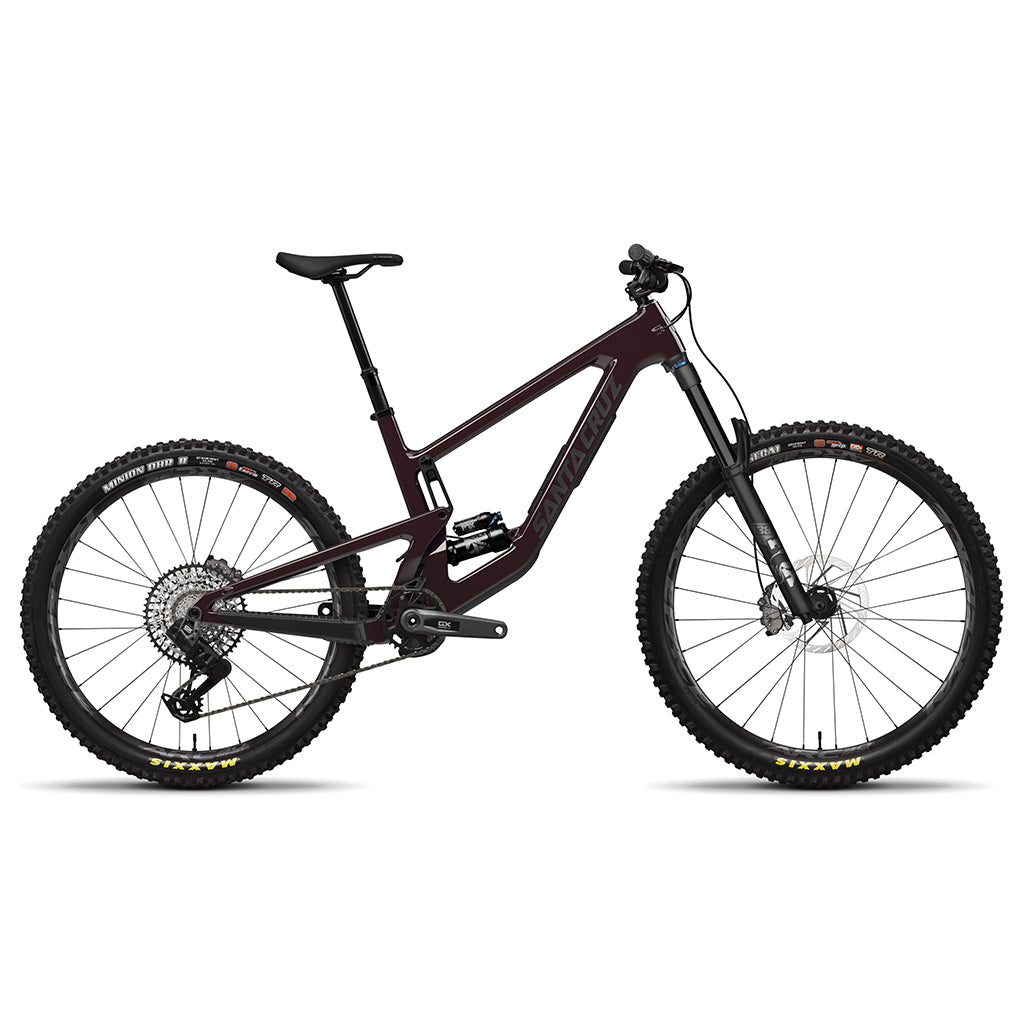

Santa Cruz Nomad 6 C MX GX AXS (Démo)
Specifications

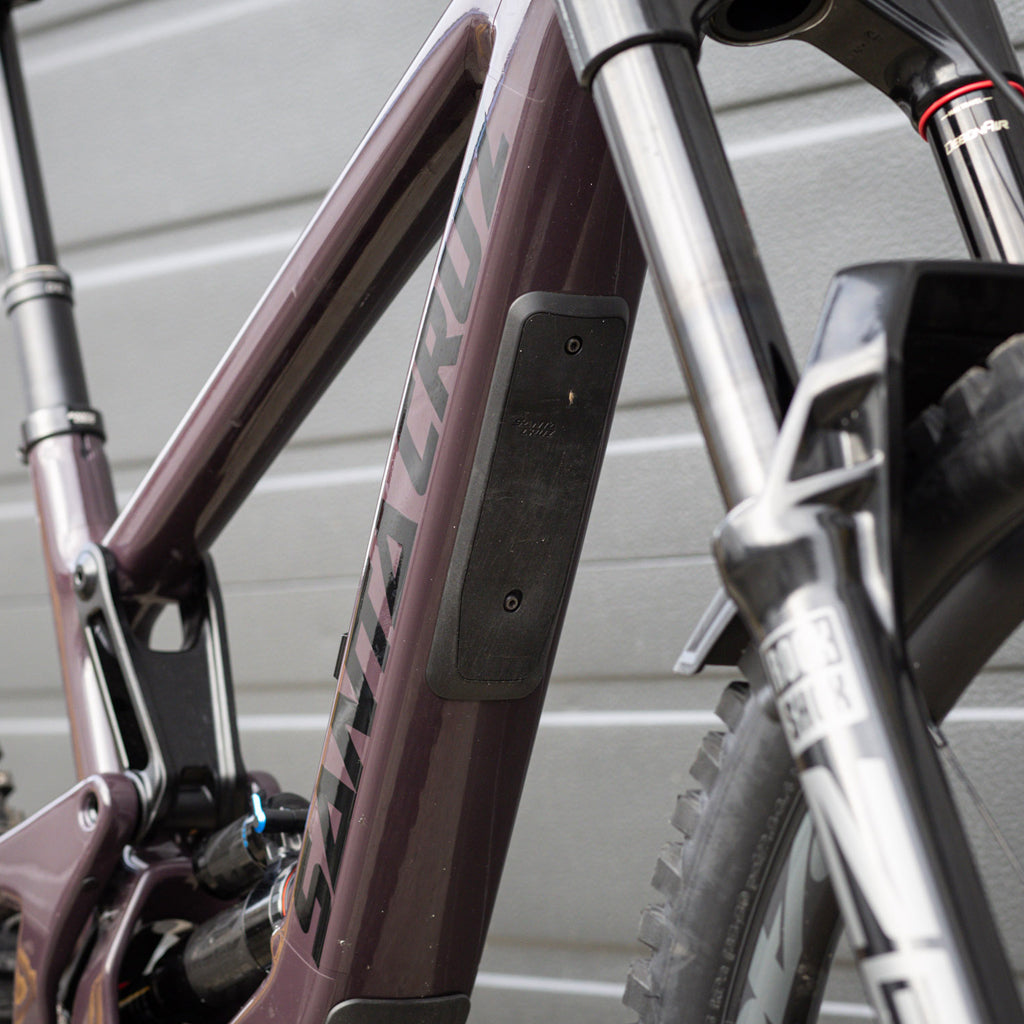

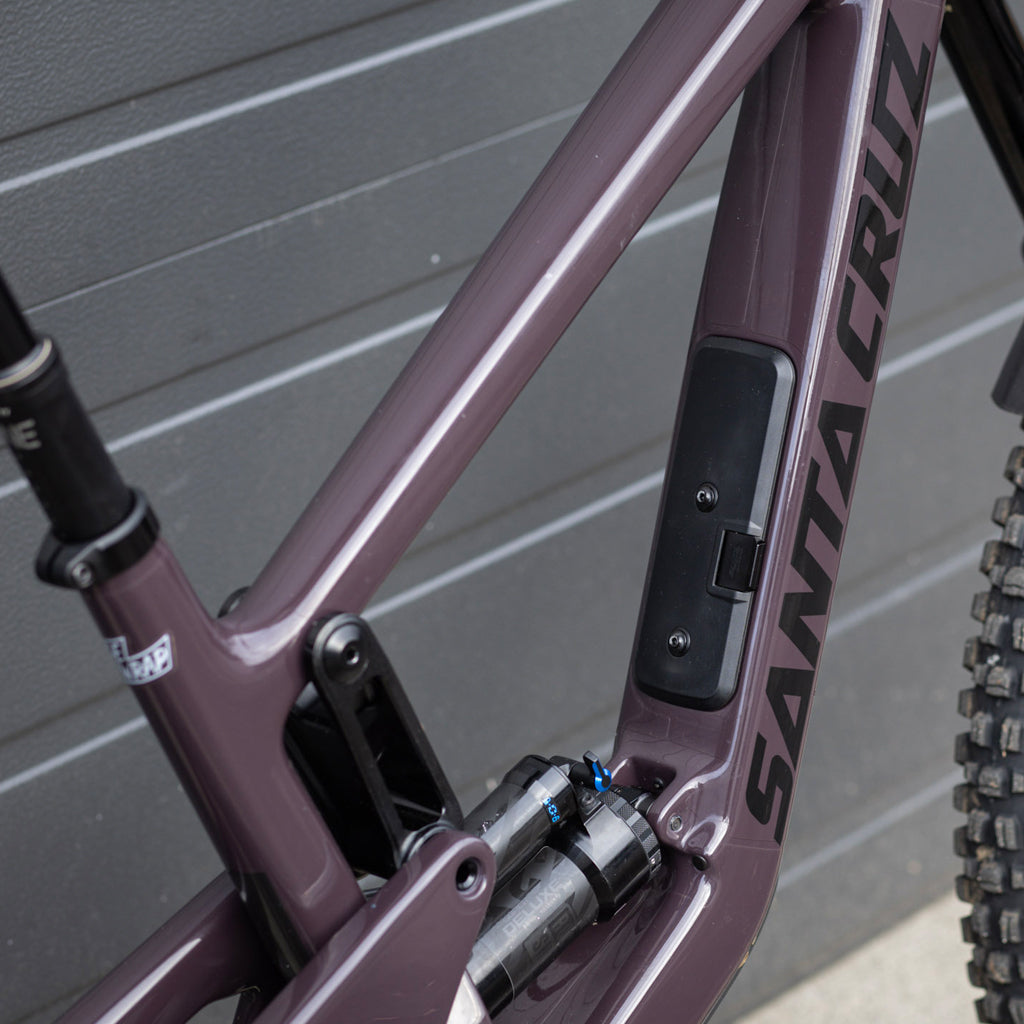

Frame Carbon C MX 170mm Travel VPP™
Rear Shock Rockshox Super Deluxe Select+, 230x65
Fork Rockshox Zeb Select+ 170mm

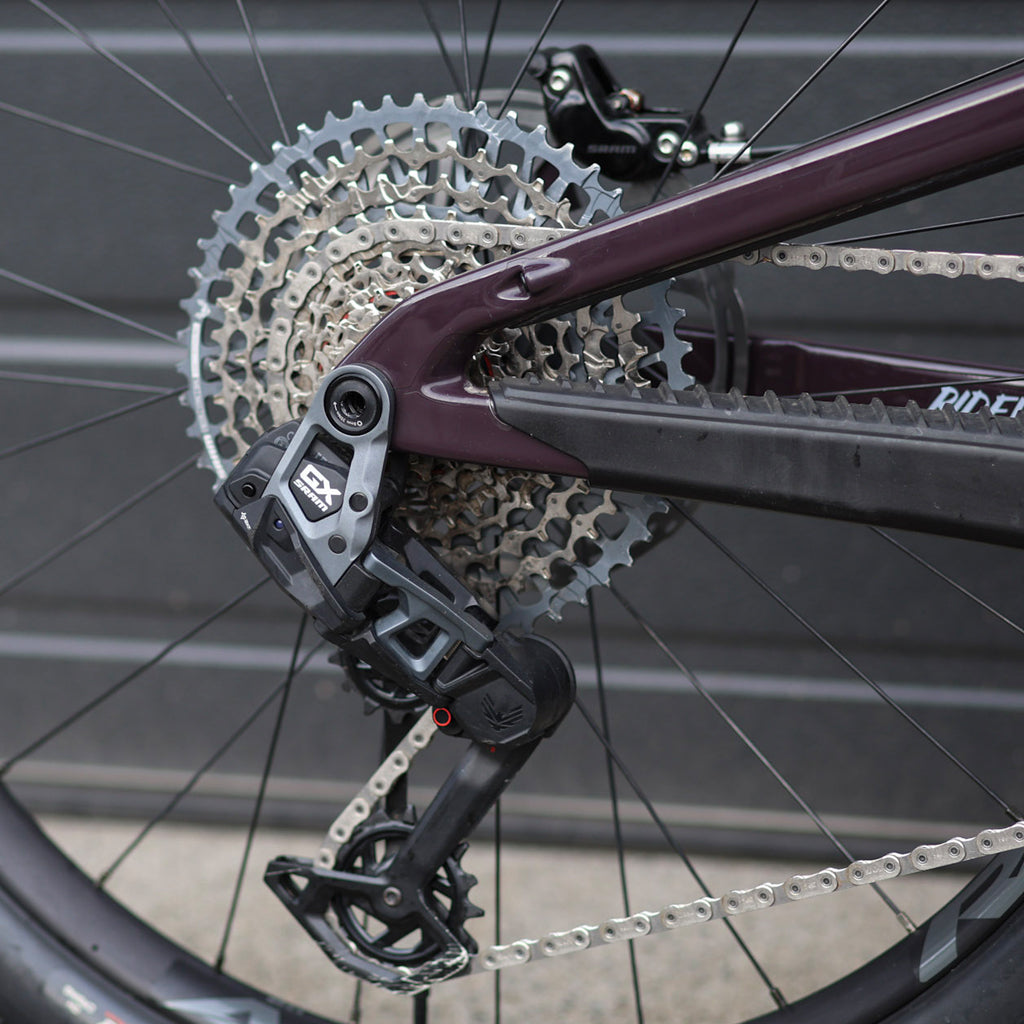

Rear Derailleur SRAM GX Eagle AXS T-Type, 12spd
Shifter SRAM AXS Pod Bridge
Cassette SRAM GX Eagle T-Type, 10-52t
Chain SRAM GX Eagle T-Type, Flattop, 12spd
Chain Guide OneUp Bash Guide
Bottom Bracket SRAM DUB 73mm MTB Wide BB
Headset Cane Creek 40 IS Integrated Headset
Rear Tire Maxxis Minion DHR II 27.5"x2.5", 3C MaxxGrip, DH
Front Tire Maxxis Assegai 29"x2.5", 3C, MaxxGrip, DD
Front Hub DT Swiss 370, 15x110, Torque Cap, 6-Bolt, 28h
Front Rim Reserve 30|SL AL 6069 -or- Raceface ARC 30
Rear Hub DT Swiss 370, 12x148, XD, 6-Bolt, 36t, 28h
Rear Rim Reserve 30|HD AL 6069 -or- Raceface ARC 30 HD
Front Rotor SRAM Centreline 200mm
Rear Rotor SRAM Centreline 200mm

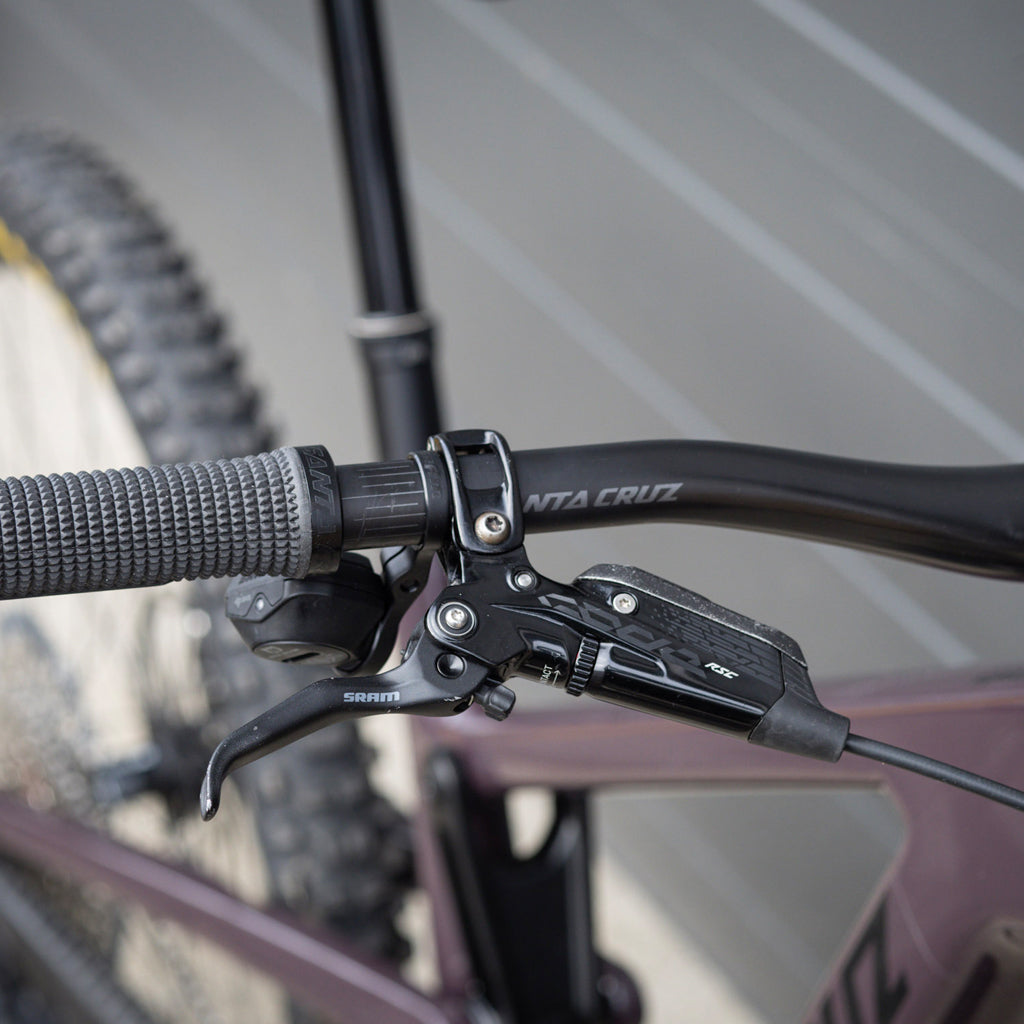

Brakes SRAM Code RSC

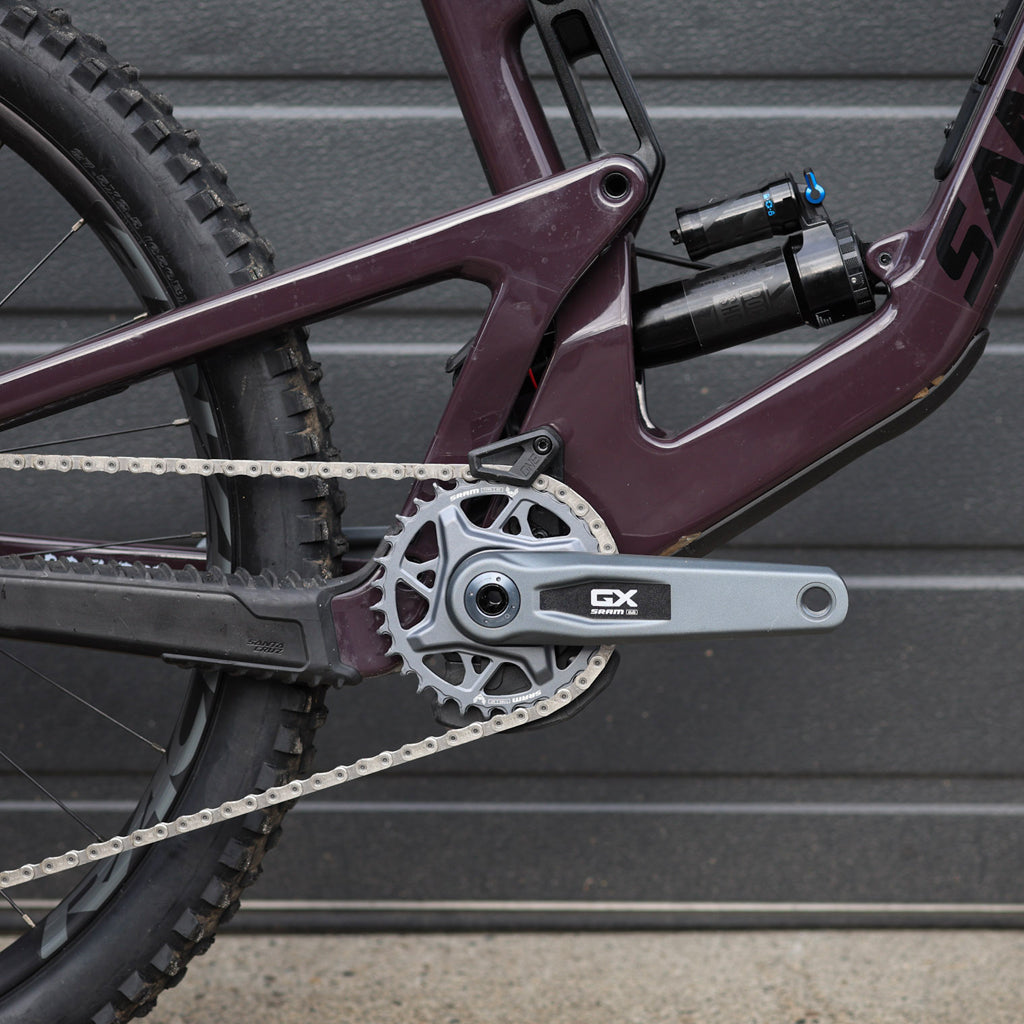

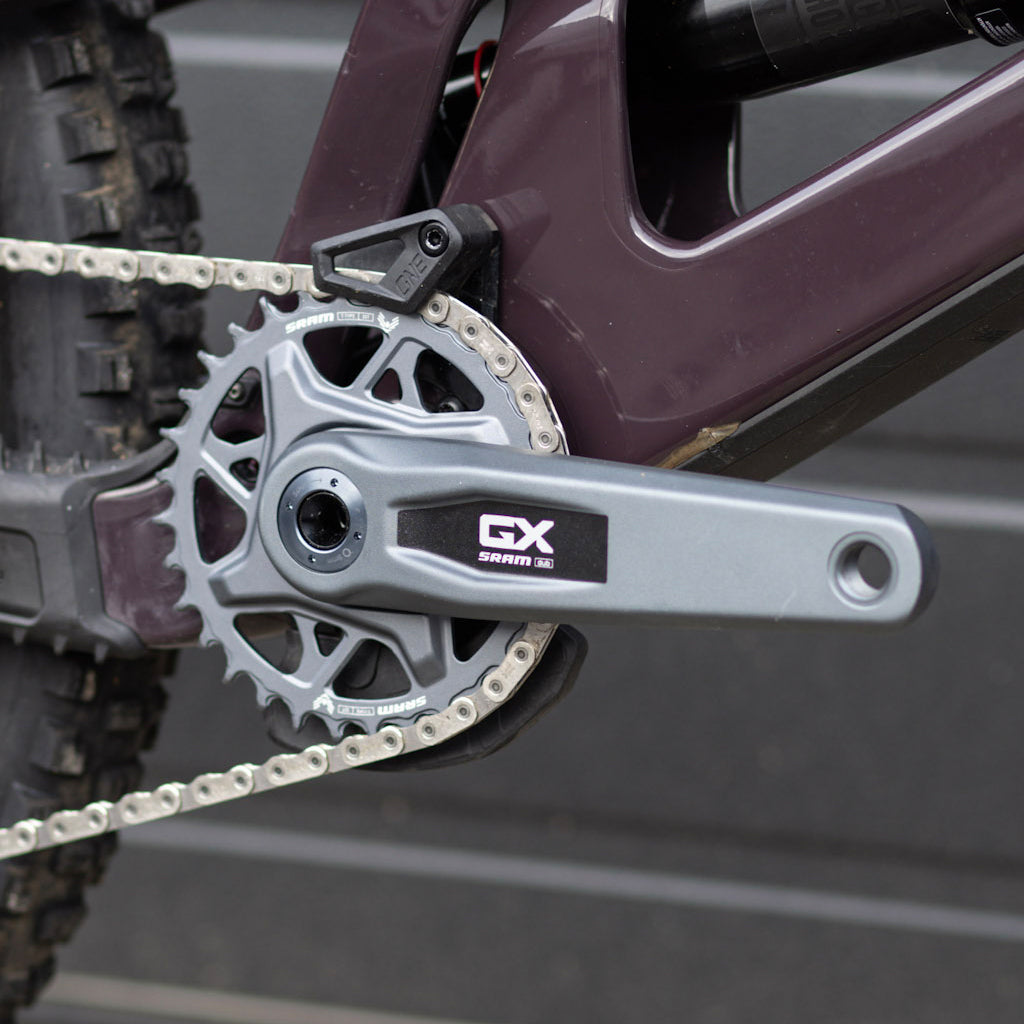

Crankset SRAM GX Eagle DUB T-Type Crankset, 32t
Handlebar Santa Cruz 35 Carbon Bar, 760mm

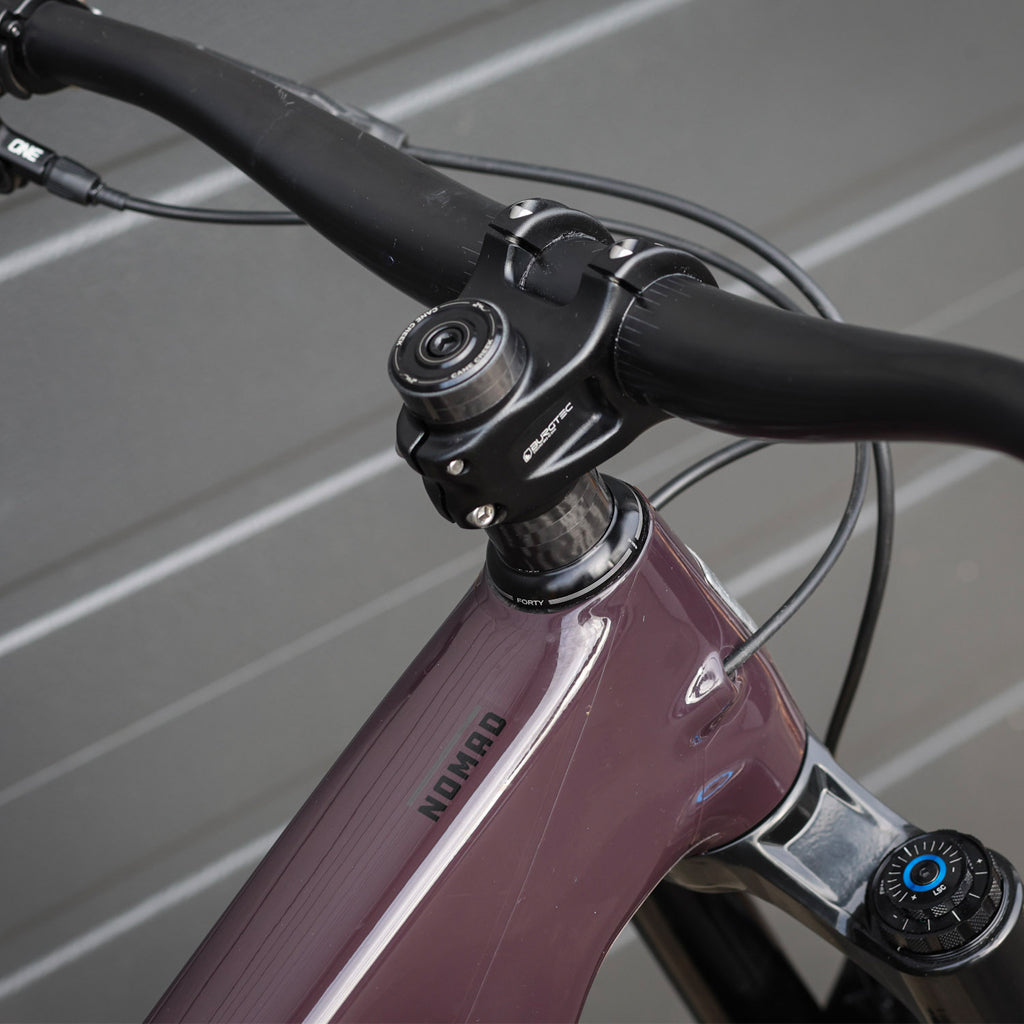

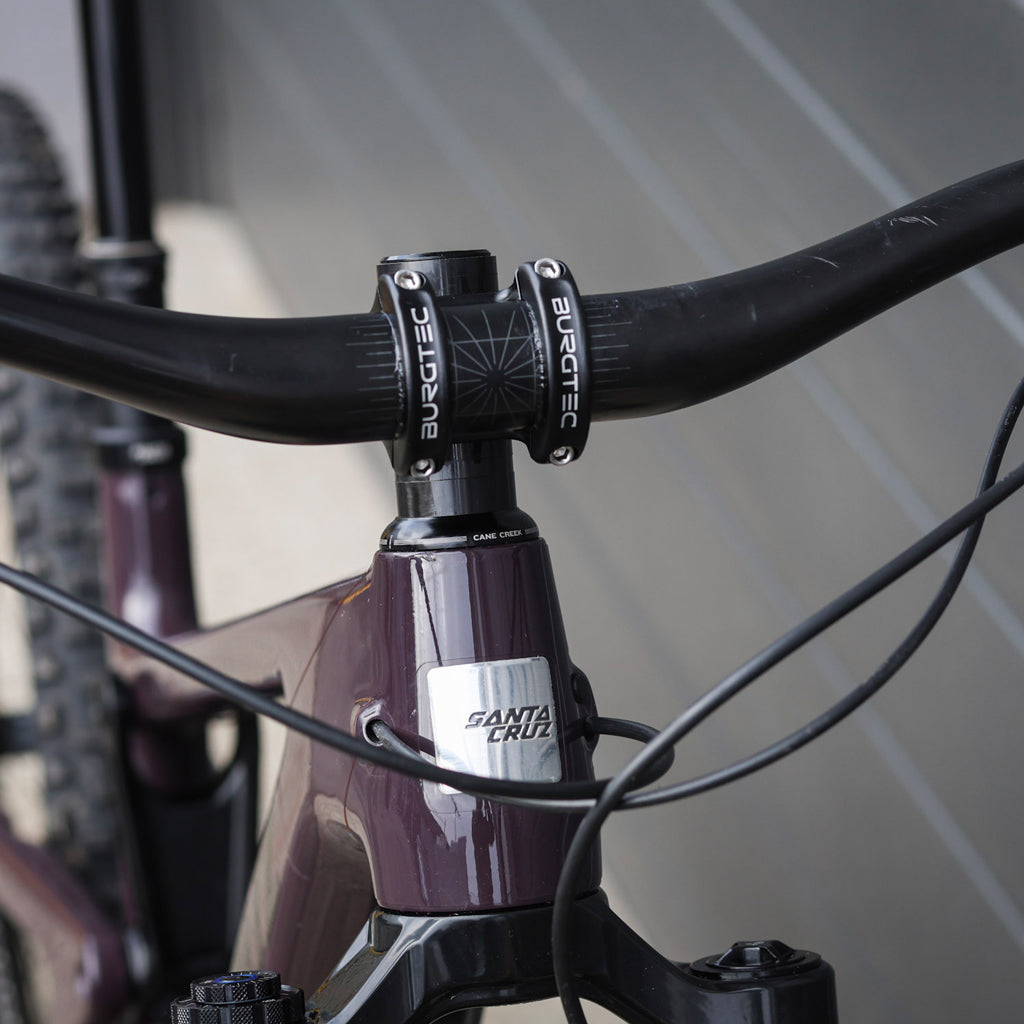

Stem Burgtec Enduro MK3, 42mm

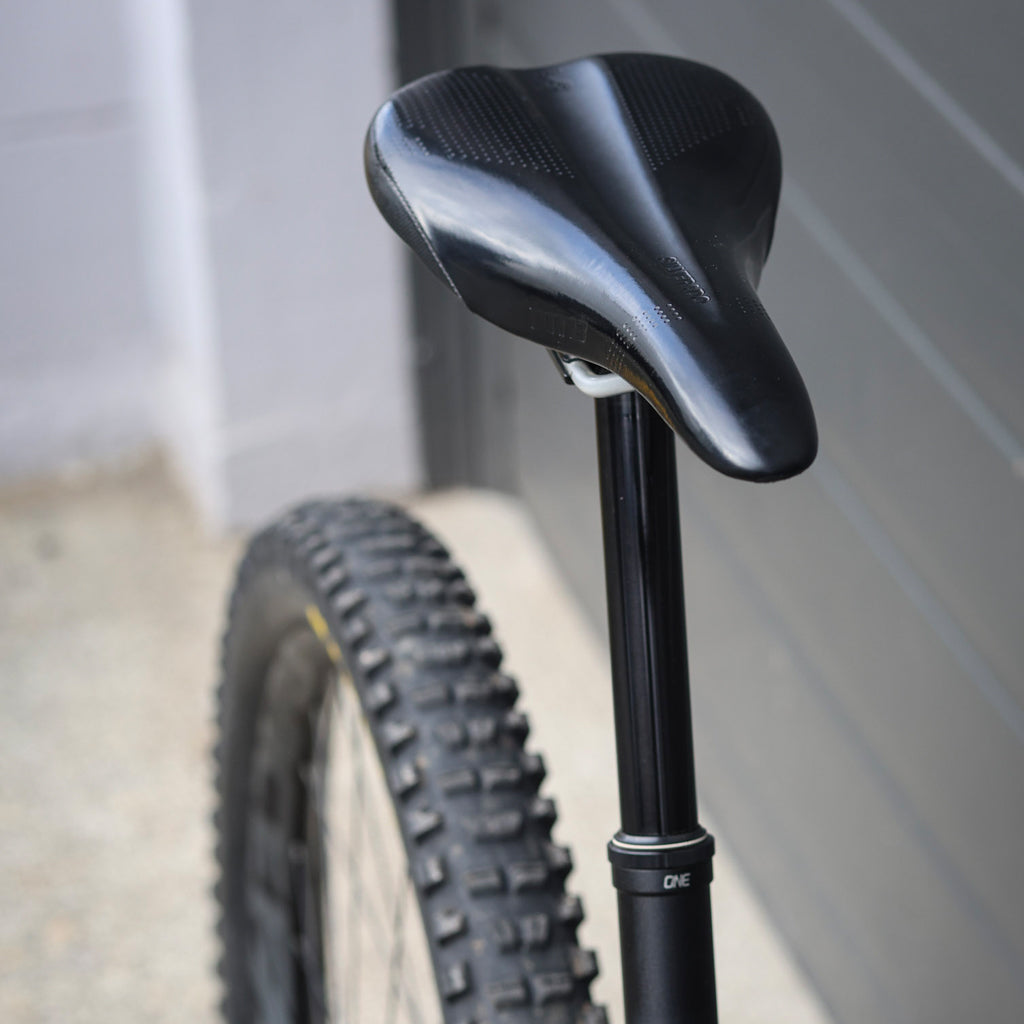

Saddle WTB Silverado
Seatpost OneUp Dropper Post, 31.6
Grips/Bar Tape Santa Cruz Bicycles House Grips
Geometry
| S | M | L | XL | XXL | ||
|---|---|---|---|---|---|---|
| hi | lo | hi | lo | hi | lo | hi | lo | hi | lo | ||
| A | Reach | 430 | 427 | 455 | 452 | 475 | 472 | 495 | 492 | 520 | 517 |
| B | Stack | 616 | 618 | 625 | 627 | 638 | 640 | 656 | 658 | 670 | 672 |
| C | Angle de direction | 63.8 | 63.5 | 63.8 | 63.5 | 63.8 | 63.5 | 63.8 | 63.5 | 63.8 | 63.5 |
| D | Longueur du tube de selle | 380 | 380 | 405 | 405 | 430 | 430 | 460 | 460 | 500 | 500 |
| E | Longueur de la base avant | 770 | 770 | 799 | 799 | 826 | 826 | 855 | 855 | 886 | 886 |
| F | Hauteur du boitier de pédalier | 346 | 343 | 346 | 343 | 346 | 343 | 346 | 343 | 346 | 343 |
| G | Hauteur du boitier de pédalier | 8 | 11 | 8 | 11 | 8 | 11 | 8 | 11 | 8 | 11 |
| H | Empattement | 1209 | 1209 | 1239 | 1240 | 1269 | 1270 | 1301 | 1302 | 1336 | 1337 |
| I | Longueur de la base arrière | 439 | 440 | 440 | 441 | 443 | 444 | 446 | 447 | 450 | 451 |
| J | Hauteur de direction | 90 | 90 | 100 | 100 | 115 | 115 | 135 | 135 | 150 | 150 |
| K | Longueur du tube horizontal | 570 | 571 | 594 | 594 | 612 | 613 | 637 | 638 | 666 | 667 |
| L | Angle du tube de selle | 77.2 | 77 | 77.4 | 77.2 | 77.9 | 77.6 | 77.8 | 77.5 | 77.7 | 77.5 |
| M | Hauteur de surplomb | 709 | 705 | 716 | 713 | 723 | 719 | 722 | 717 | 725 | 720 |
| Toutes les mesures sont en degrés ou en millimètres | ||||||
Sizing Guide
The sizing chart is a great place to start when picking your next bike but everyone will fit a bike a bit differently. Your torso, arm, and leg lengths all play into what size of bike you may need. Plus, there's your own personal preference.
We always recommend swinging by the shop and taking the bike that you're looking for a spin to see how it feels. If you're unable to come by, looking at the geometry of your current bike and comparing it is a good place to start. If you have any further questions, our customer service team is there to help.
| Taille | Taille | |
|---|---|---|
| Impérial | Métrique | |
| S | 5'1" - 5'5" | 155 - 165cm |
| M | 5'5" - 5'9" | 165 - 175cm |
| L | 5'9 - 6'1" | 175 - 185cm |
| XL | 6'1" - 6'4" | 185 - 193cm |
| XXL | 6'4" - 6'7" | 193 - 201cm |
